Feature:
1)
Description:
network socket female rj45 connector PCB modular jack
Number of ports: 1*4
Number of position: 8
Number of contacts: 2,4,6 or
8
2)
Electrical:Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance:
30MΩmaxWithstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min3)
Materials:Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
Shield: 0.20~0.25mm thickness brass with tin plated

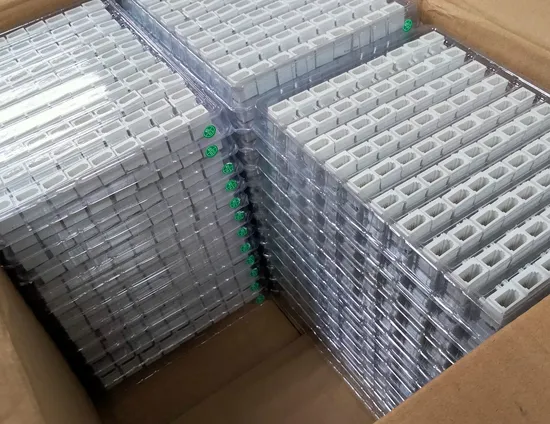

Gold Plating: Fu",+3u",6u",15u",30u",50u"4) Package: Tray or Tape reel
5) RoHS Directive-compliant
6)
Certification: ISO 9001 2015, ISO 14001 2015

Access Star Co., Ltd is a professional manufacture for OEM Cable Assembly, wire harness, Printed Circuit Board Assembly and some Box Build products in China.The products are used for Industrial, medical and electronic domain.
Access Star was established in 2003 for trading, and the factory for above products are established in 2011.Till now, it already had over 20 years Production experience.

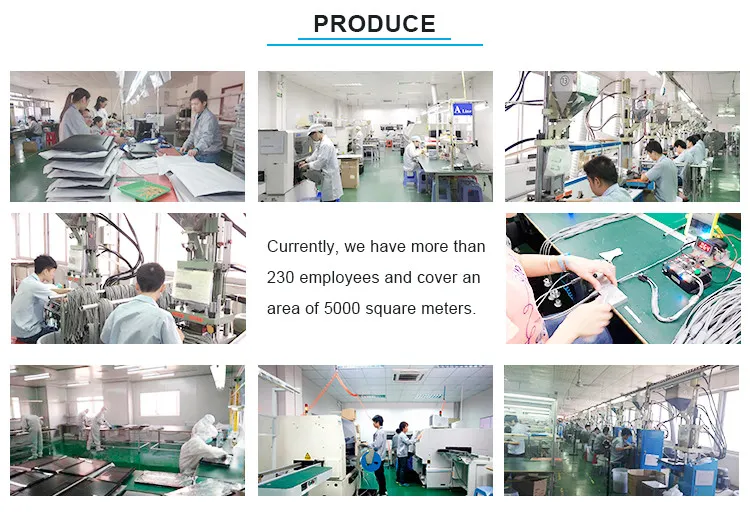

The Factory is located in beautiful Electronic base Dongguan, Guangdong province China, which takes around 5000 square meters and around 200 workers.
Totally four floor, the first floor is for SMT and DIP for PCB A.
Second floor is focus on wire harness, cable assembly, especially for overmold of cable and PCBA.
The third floor and fourth floor are for touch screen and touch pens for education.

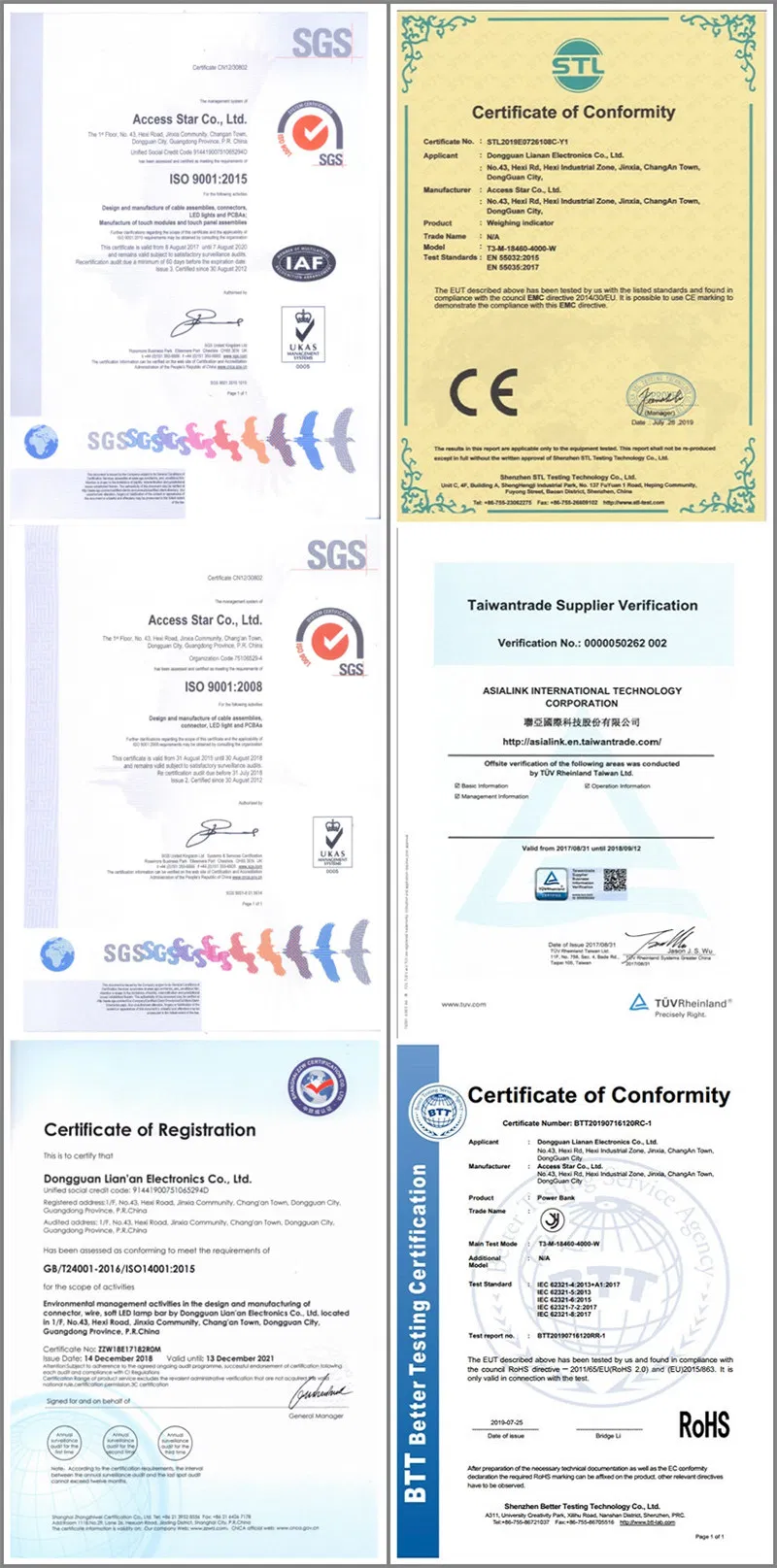

In order to meet high quality requirement, Access start get ISO9001: 2015 certificate and ISO9001: 14001 certificate.
