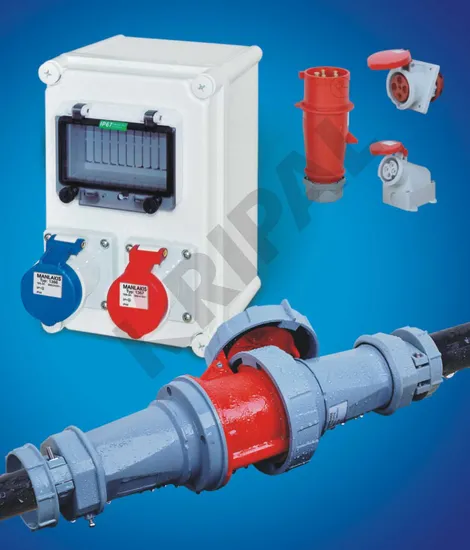

Electrical power distribution box
KRIPAL DESIGN
491MM*260MM*151MM
Technical Parameter
Rated insulation voltage: AC 400V (660V)
Rated operation voltage: AC 230/400V, 440VDC
Rated frequency: 50Hz
Protection class: IP44, IP66, IP67
Single-loop output current: 10A, 16A, 32A, 63A etc.
Single-loop output voltage: 20-25V, 40-50V, 100-130V, 200-250V, 380-480V, 500-660V
Poles of output socket: 1P + N + PE, 3P + PE, 3P + N + PE
Applicable environment: Temperature -30Ó +40Ó , indoor & outdoor
1. Lifting DIN rails: We can withdraw the DIN rail and install the circuit breaker and other articles on the DIN rail and then send the device into the box which provides a large smooth wiring space significantly for easy the insertion as well as connection of large cables.
2. Shorter installation times with the new, user-friendly external fixing.
3. The hinged cover which opens to one side as 180 degree like the door for easy connection work.
4. All combinations are pre-wired for installation and tested for electric safety and quality.
5. Standard pre-punched cable entries at the top and at the bottom for M 20 up to M 40.
6. Joinable modules: The No. Of modules is customized as request.
7. Features: High hardness, stable size, good insulation, good thermal stability and chemical stability (resistant mineral acids, carbohydrates, saturated fat, petrol, fats and oils erosion stability), flame retardant (the material is nonflammable and it can be self-extinguishing after combustion fire). Since it does not contain halogen, combustion, there would be no vapors which would cause acid rain corrosion when burned.
8. Applications: These power distribution boxes are wildly used in oil, chemical industry, metallurgy, power plants, Coal mines, machinery, textile, ports, docks and other industries, specifically for maintenance in the tunnel range of rail transit.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
ZHEJIANG KRIPAL ELECTRIC CO., LTD
Founded: In 1987;
People of the staff: 500;
Engineers: More than 30
QA/QC: More than 20
Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001
The land space of the company: Amounts to 20000m2

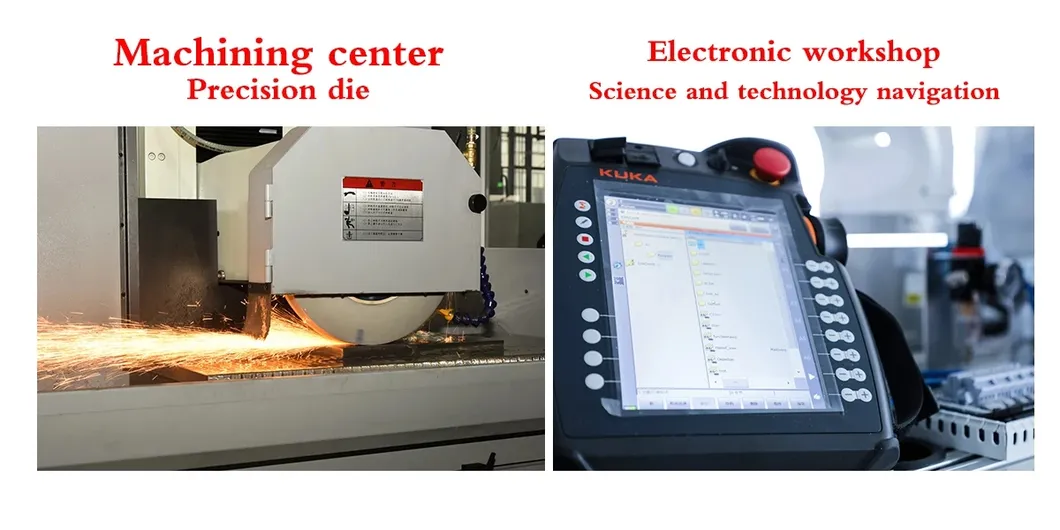

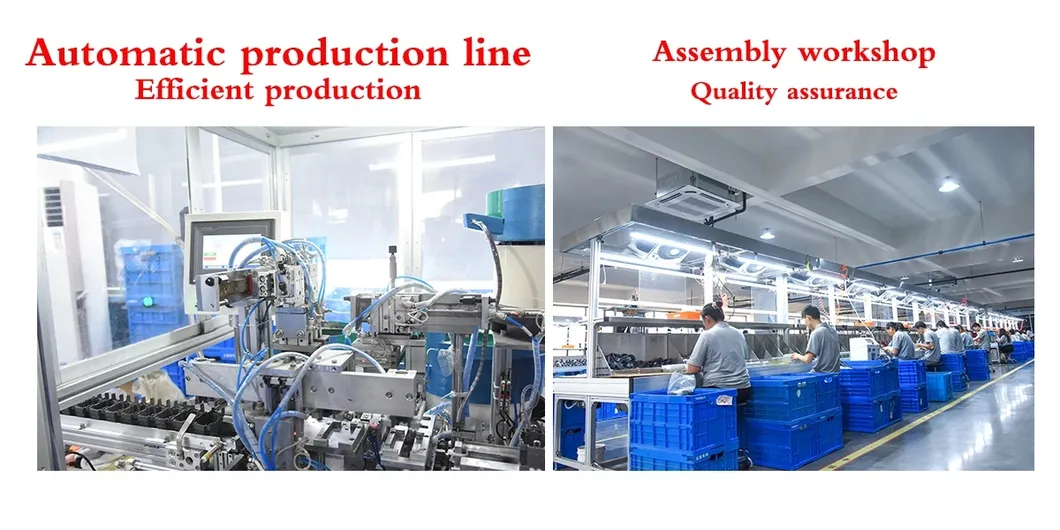

What we do: Products' design, mold building, production of parts (injection & punching), assembling, and products' inspection

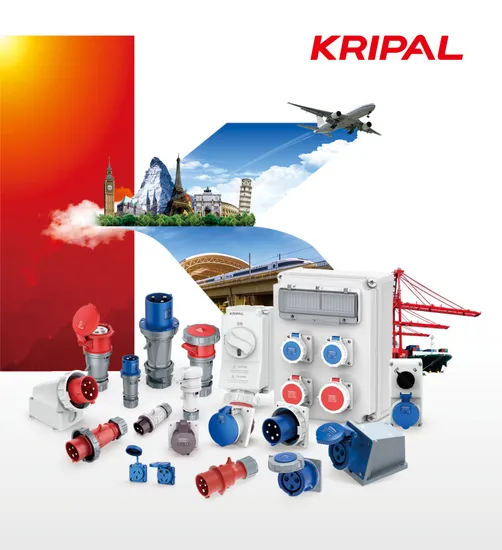

KRIPAL products:
Isolator switch, changeover switch, rotary switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker AC contactor, thermal overload relay, industrial power distribution box and etc.
Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
