基本信息
| 型号 | ACR122U |
| 接口 | 通用串口总线 |
| 类型 | NFC卡 |
| 材料 | 防抱死制动系统 |
| 功能 | 信息、加密/解密、支付、识别 |
| 结构 | RFID卡 |
| 数据传输模式 | 并行 |
| 应用领域 | 非遗弃 |
| 关键词 | NFC阅读器 |
| 操作频率 | 13.56兆赫 |
| 操作距离 | 1至10厘米 |
| 尺寸 | 98mm*65mm*12.8mm |
| 颜色 | 白色 |
| 协议标准 | ISO14443A/B, NFC Forum Type 2 |
| 交通包裹 | 每箱1件，每纸箱40件 |
| 规格说明 | ACR-122U |
| 商标 | ANG |
| 起源 | 中国广东省深圳市 |
| 商品编码 | 8471900090 |
| 生产能力 | 每月20万件 |
产品详情
Product Description
Preview
ACR-122U USB NFC Reader Writer for NFC card
ACR-122U RFID reader is able to read an automatic identification equipment electronic tag data. Radio Frequency Identification RFID is a non-contact automatic identification technology, automatic target recognition and access to relevant data RF signal, to identify work without human intervention, can work in harsh environments. RFID technology can identify fast moving objects and can also identify multiple tags, the operation convenient.
Description:
1.ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, KC, VCCI, ROHS 2, USB Full Speed
2. Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012
Product feature:

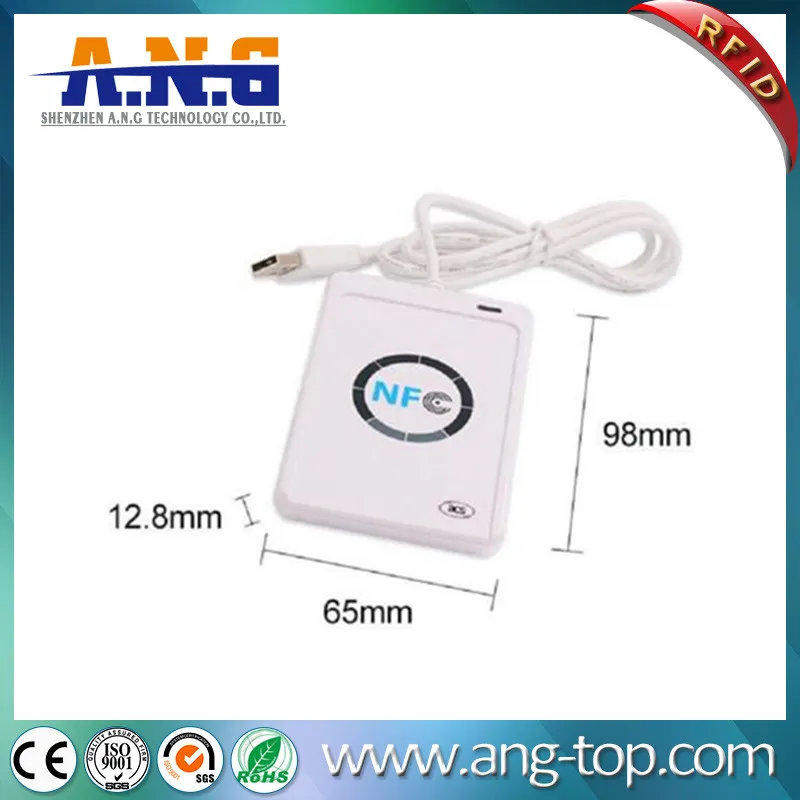

Size: 98mm × 65mm × 12.8mm
Unit Weight: 70g
Supports: ISO14443 Type A & B, NFC (ISO/IEC18092)
Interface : USB Full Speed
Operating Distance: Up to 50 mm (depends on the tag type)
Supply Voltage: Regulated 5V DC
Supply Current: 200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature:0-50 °C
Operating Frequency: 13.56 MHz
Read/write speed up to 424 kbps
Applications:
E-Government
Banking & Payment
Access Control
Network Security
E-Purse & Loyalty
Transportation
Product Photo:
ACR-122U RFID reader is able to read an automatic identification equipment electronic tag data. Radio Frequency Identification RFID is a non-contact automatic identification technology, automatic target recognition and access to relevant data RF signal, to identify work without human intervention, can work in harsh environments. RFID technology can identify fast moving objects and can also identify multiple tags, the operation convenient.
Description:
1.ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, KC, VCCI, ROHS 2, USB Full Speed
2. Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012
Product feature:
Size: 98mm × 65mm × 12.8mm
Unit Weight: 70g
Supports: ISO14443 Type A & B, NFC (ISO/IEC18092)
Interface : USB Full Speed
Operating Distance: Up to 50 mm (depends on the tag type)
Supply Voltage: Regulated 5V DC
Supply Current: 200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature:0-50 °C
Operating Frequency: 13.56 MHz
Read/write speed up to 424 kbps
Applications:
E-Government
Banking & Payment
Access Control
Network Security
E-Purse & Loyalty
Transportation
