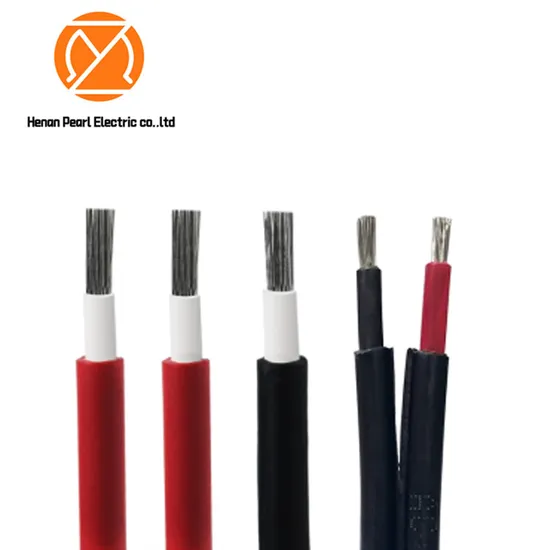

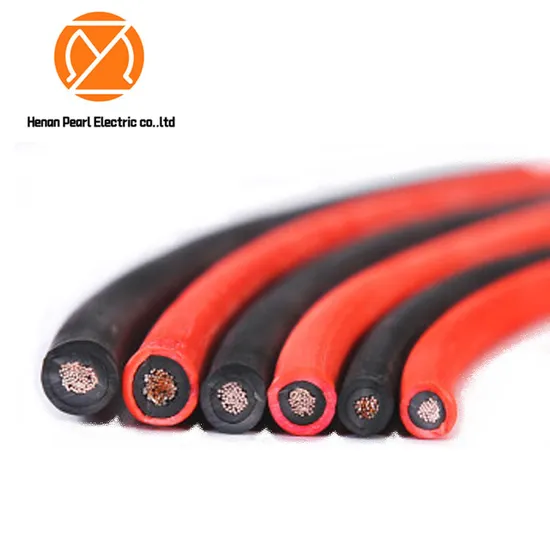

Solar Cable
ApplicationDouble insulation, electron-beam cross-linked cables for photovoltaic power station.
Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment
ConstructionConductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5Insulation: Polyolefin copolymer electron-beam cross-linkedOuter Sheath: Polyolefin copolymer electron-beam cross-linkedSheath color: Black/Red/Blue or as per customer's requeitTechnical SpecificationNominal Votage: U0/U=600/1000VAC,1000/1800VDCTest Voltage: 6500V,50Hz,5minTemperature Rating:-45ºC ~
+125ºC-40°F ~
+257°FAmbient temperature-40ºC ~
+90ºC-40°F ~+194°FMax. Short circuit temperature:280ºC,+536°FBending Radius: Fixed installation>4X,
Occasionally moved>5XMaterial Properties/ StandardsFire-resistance performance: IEC 60332-1Smoke emission: IEC 61034; EN 50268-2Low fire load: DIN 51900Approvals: TUV 2PfG 1169/08.2007 PV1-FApplication standards: UNE 211 23; UNE 20.460-5-52,UTE C
32-502

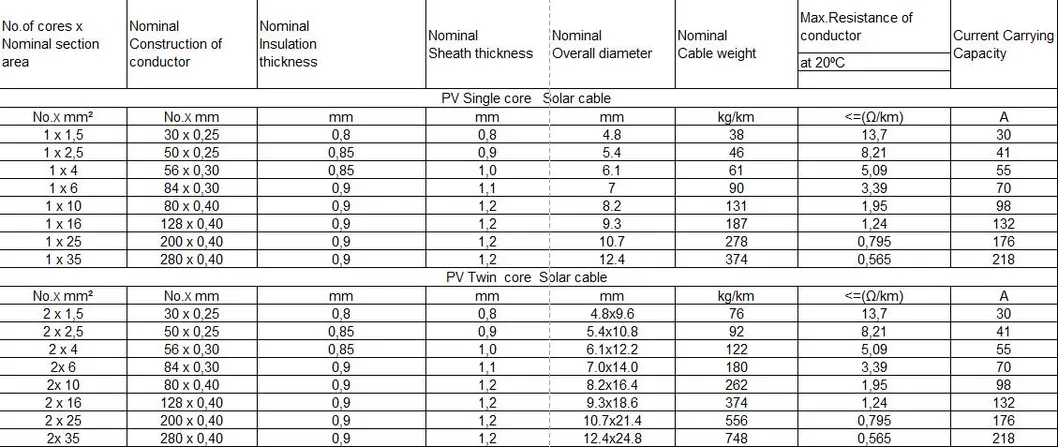

Product Parameters

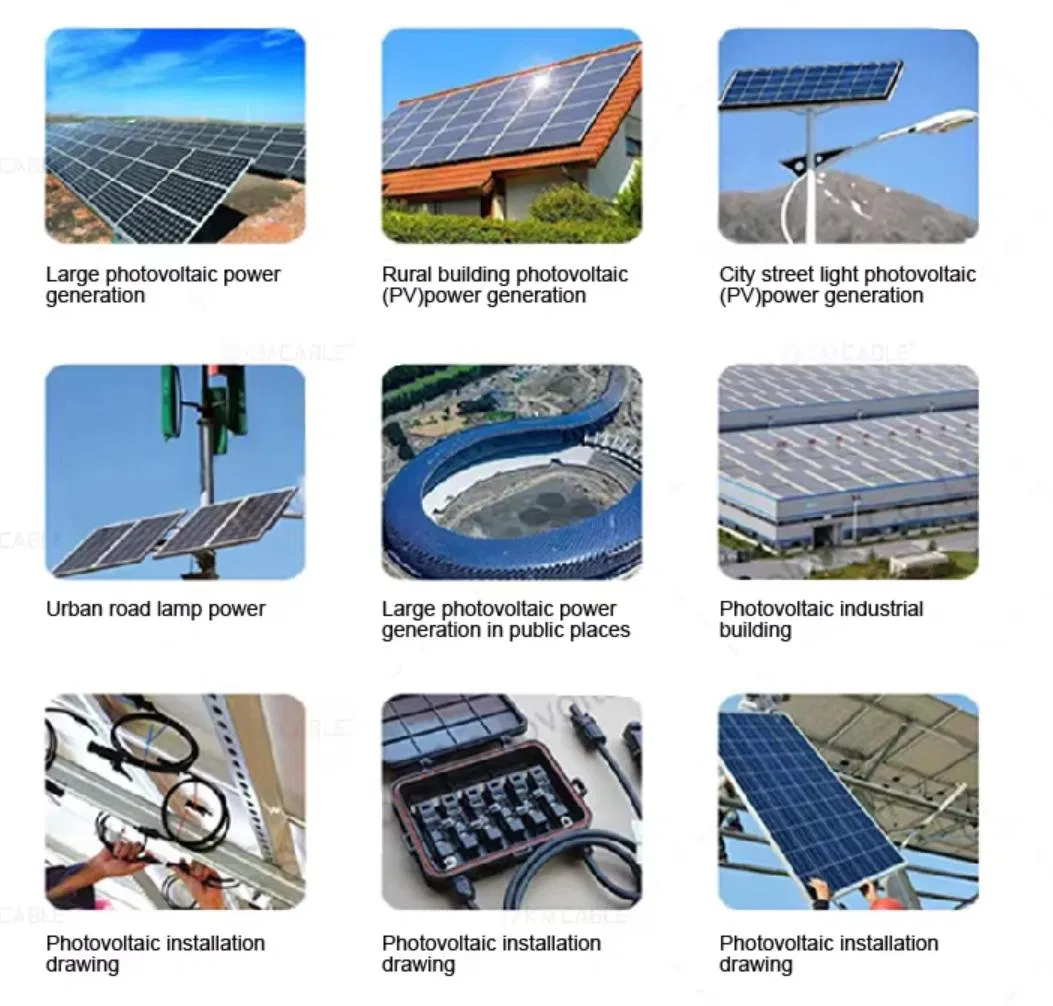

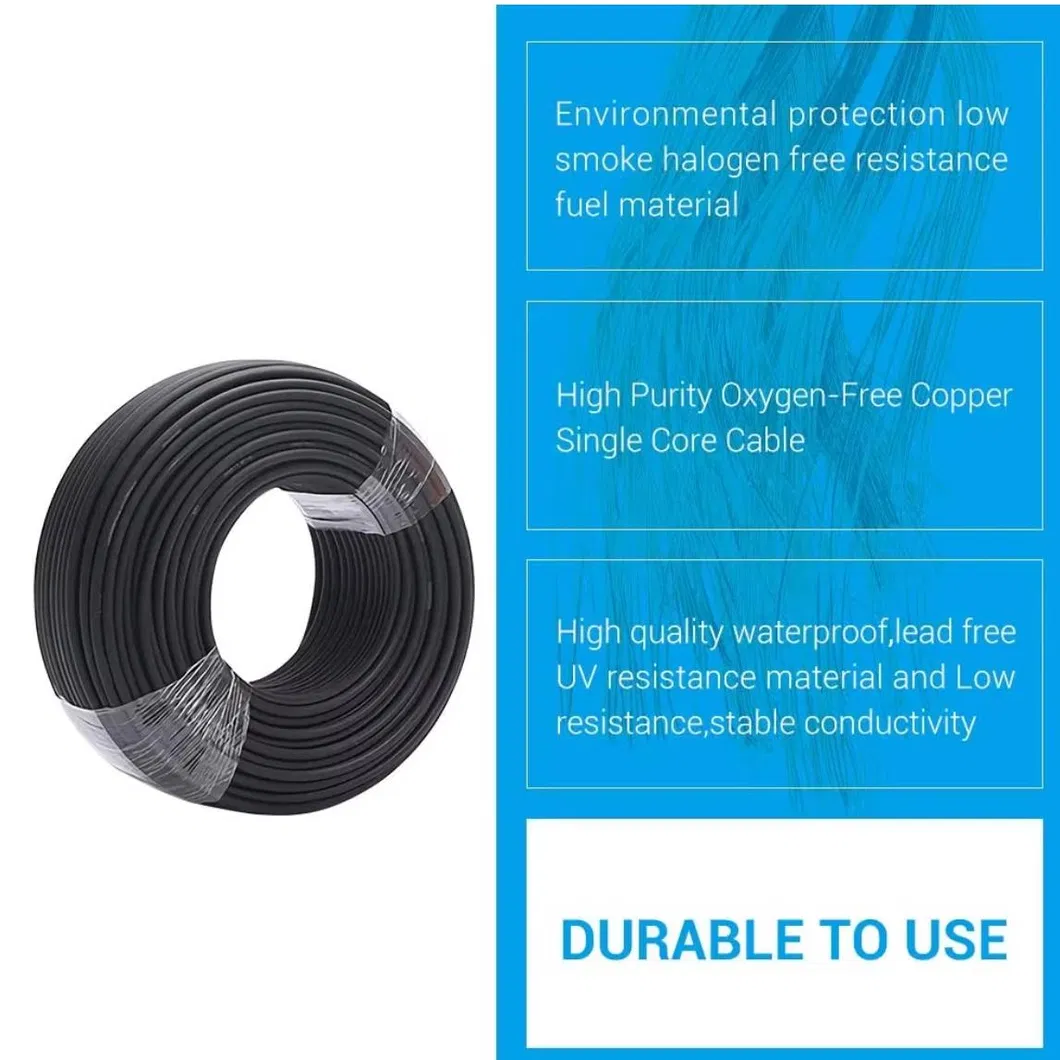

Application

FOR FREE: Design new sticker label with your own LOGO

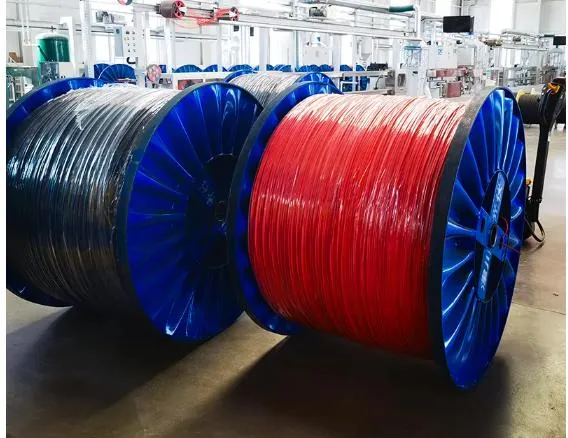

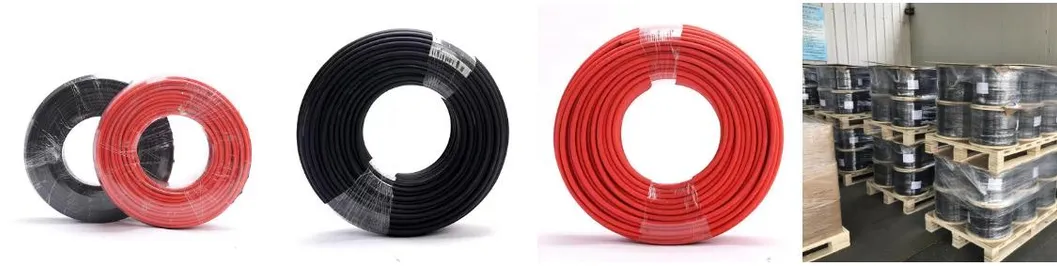

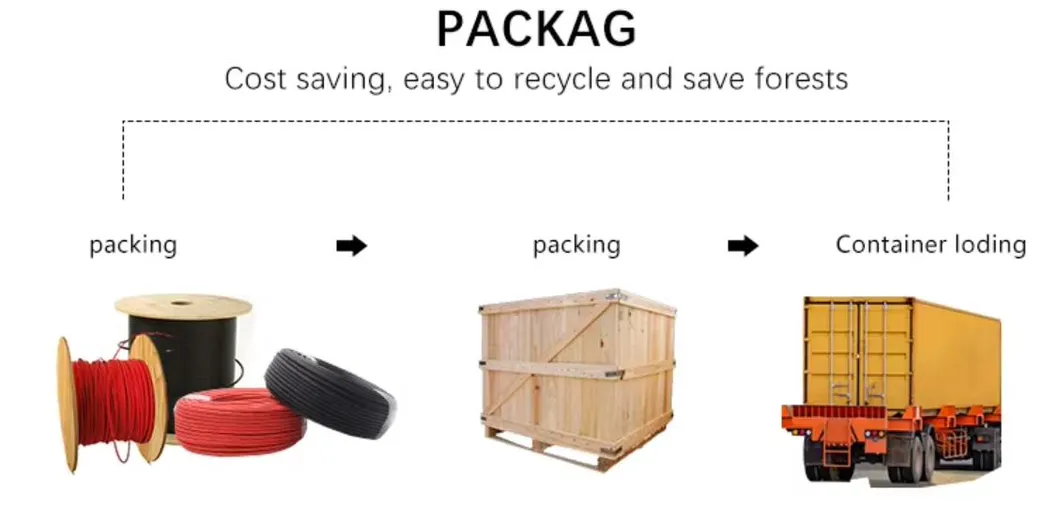

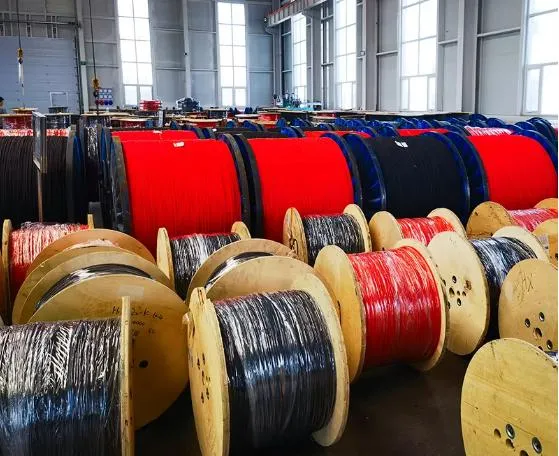

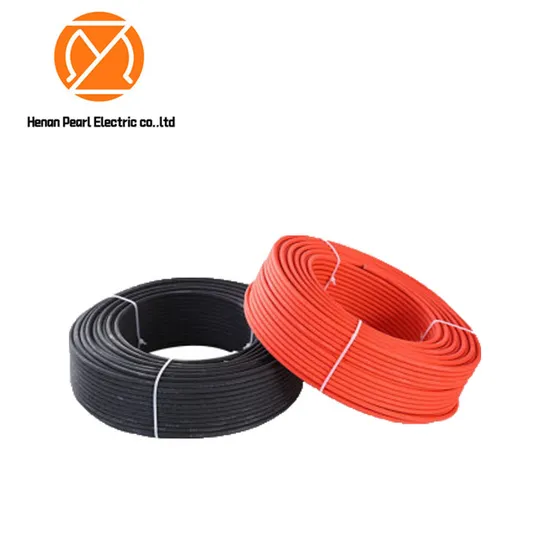

Popular packing:If you need custom package, we will do as your requirest.
OEM service:Support different customized packing

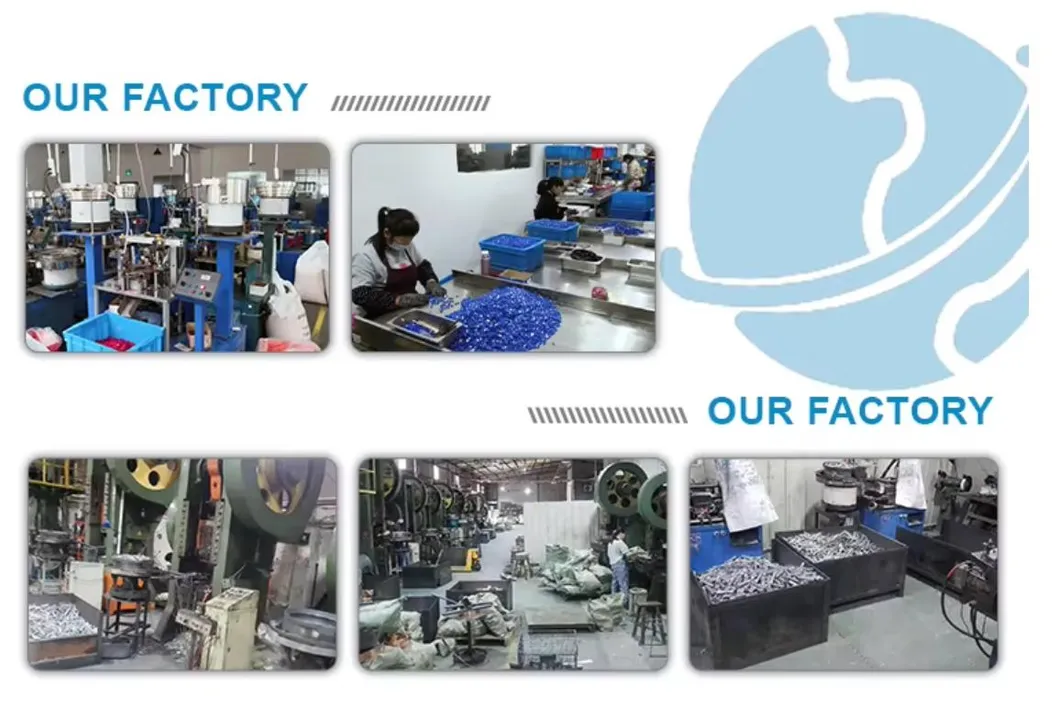

Henan Pearl Electric co., Ltd,
is a professional manufacturer and exporter that is concerned with the design, development and production of Electric products. Since its inception, we have consistently uphold: "customer first, service first, genuine" business philosophy, always uphold the integrity, innovation, development-oriented principle.
The company has experienced design team, industry-leading R & D capability and strong manufacturing strength, the product always follow the current fashion trends emerging, high-quality, world-renowned.
Henan Pearl Electric co.,ltd sales to United States, Europe, Australia, Mid
East, Africa and other countries, and we sincerely hope to establish friendly business relations with customers from all over the world.
The company's operating philosophy: adhere to customer-centric, technology and innovation as the fundamental, continued to improve the user experience, improve product and service quality.
The company's vision: "value-creating" leader.Through constant innovation and improvement of marketing value-added services, to continuously improve market share and customer satisfaction, so that we become Chinese electric industry "value-creating" leader.
Our Advantages
1.we can do the designs according to the customer requirement
2.we can
make customized mould
according to customer
reuirement
3.we can offer you the high quality production & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design team
6. promptly delivery. small order is welcome.

Q1: Are you a factory or trading company?
A1: We are a factory, and guarantee our price is first-hand, cheap and competitive.
