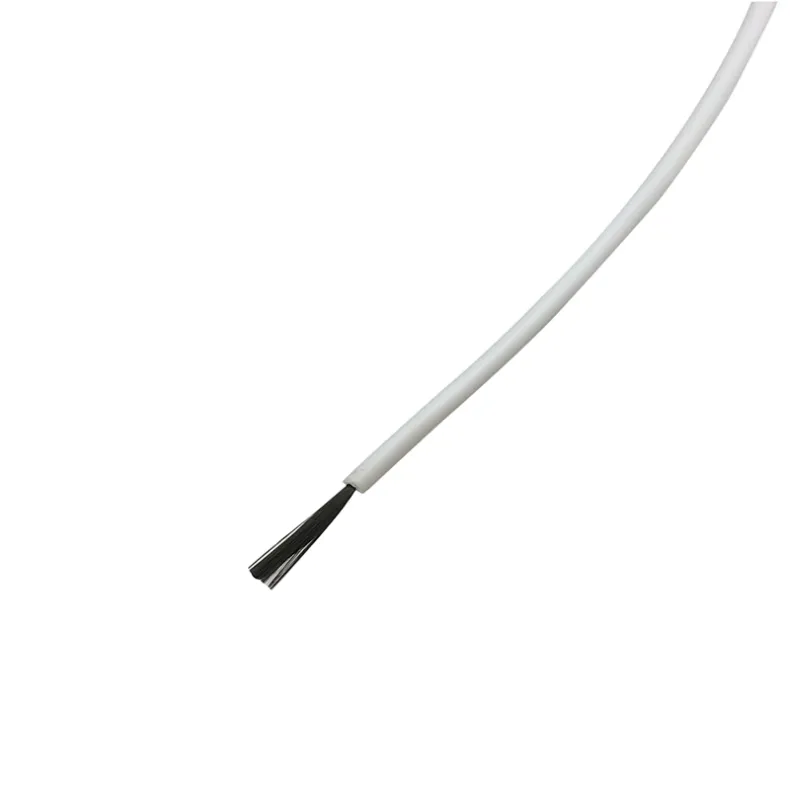

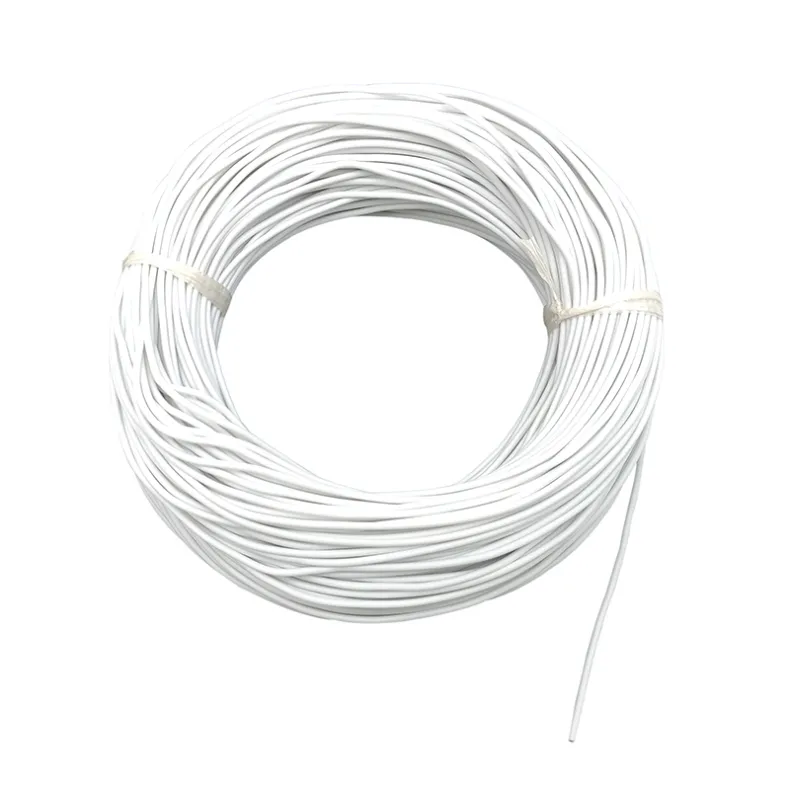

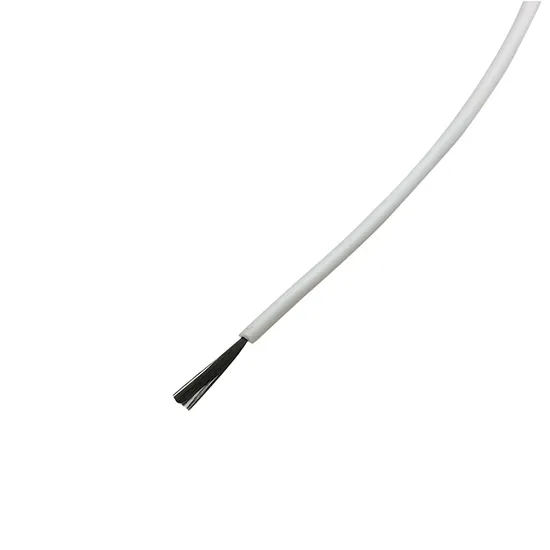

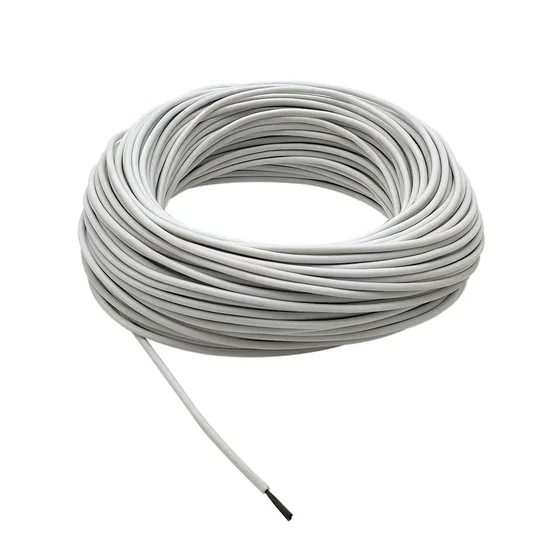

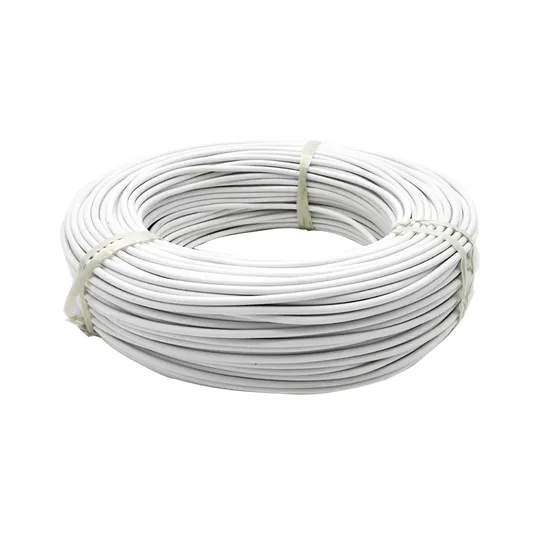

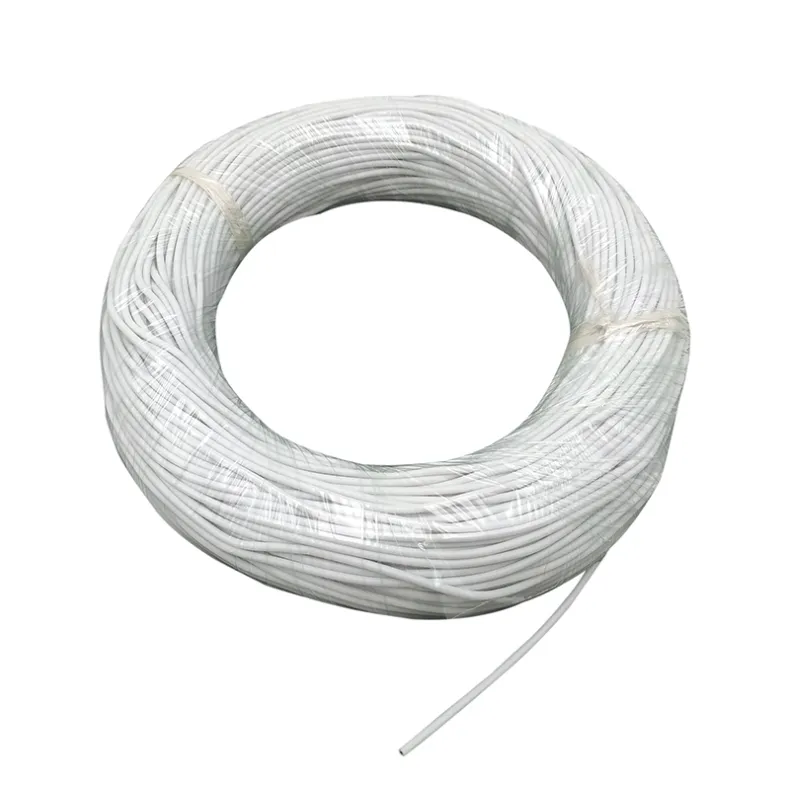

Heating conductor: 1K, 2K, 3K, 6K, 9K, 12K, 18K, 24K,36k,48k
Insulating material: Silicone rubber,
Fluoroplastic

How to calculate power?
Voltage*Voltage÷resistance=electric power
12K=33ohm/meter
For example, using 10m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(10meters*33Ω)=150W
For example,
using
15m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(15meters*33Ω)=100W
The longer length, the smaller power, and lower heating temperature.

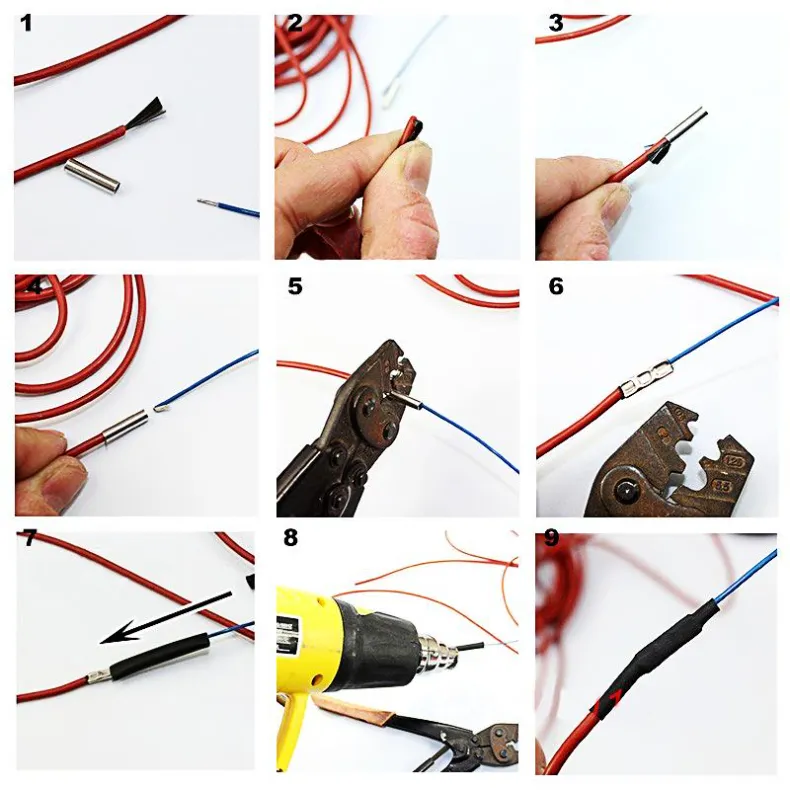

Package Includes:

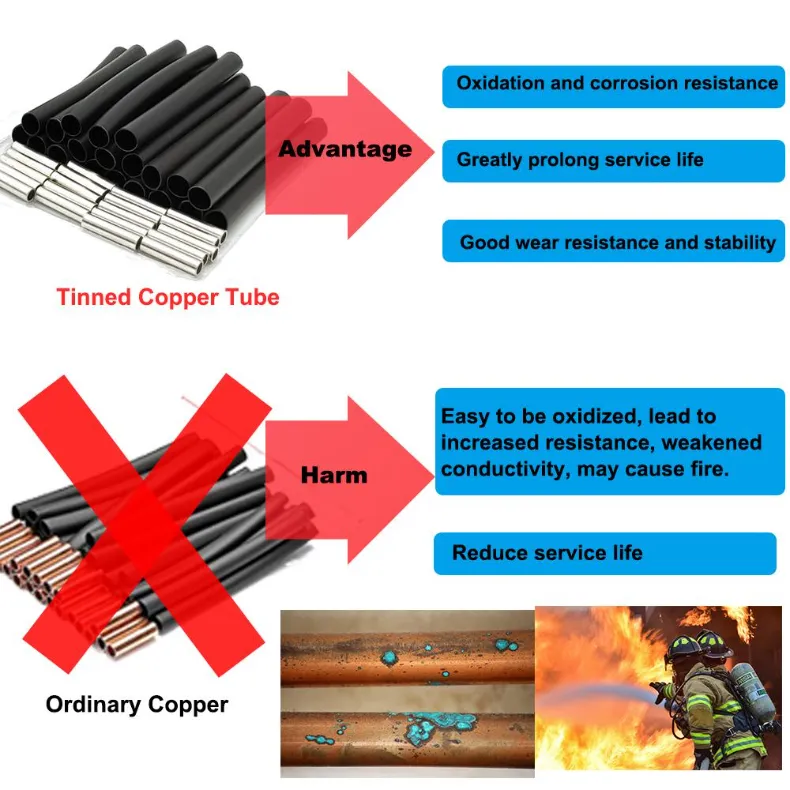

1. Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
1. Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
1. Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
1. Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 10 m = 10m cable + 2 pcs copper tube + 2 pcs sleeves

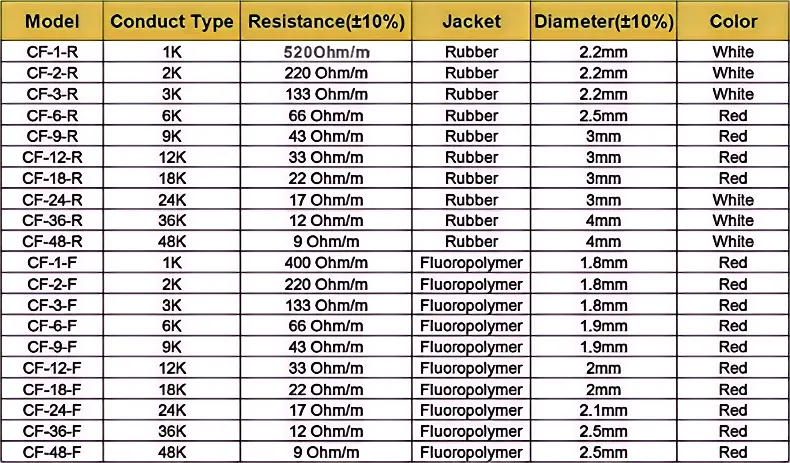

Product Parameters
Product advantages
1.High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.2.Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.3.Easy to install: The carbon fiber heating wire cost a little, and has a long life span,
an investment, life-long benefit, low maintenance costs.And etc...

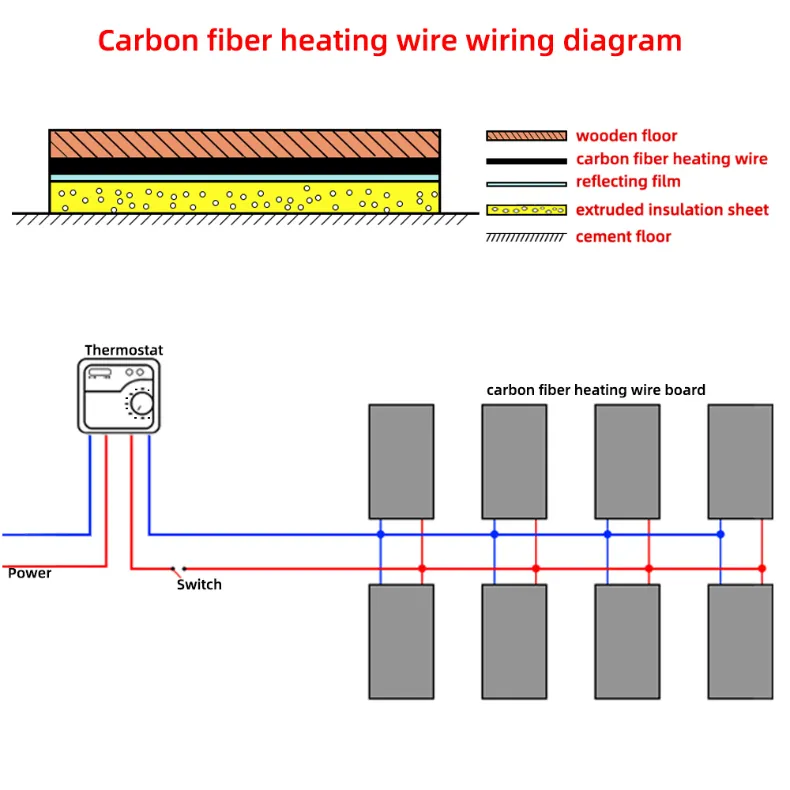

Wiring Diagram

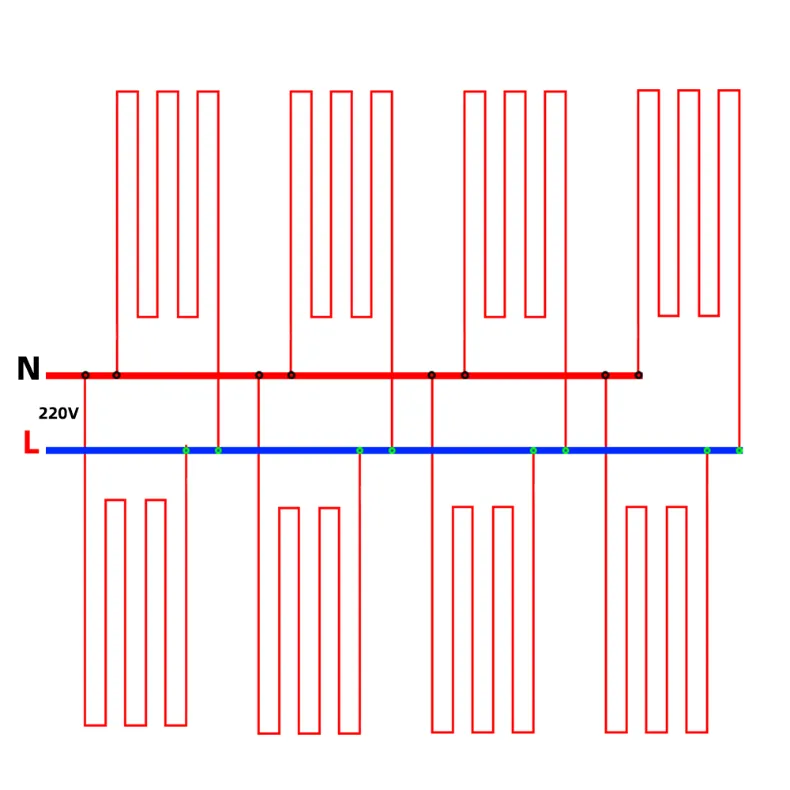

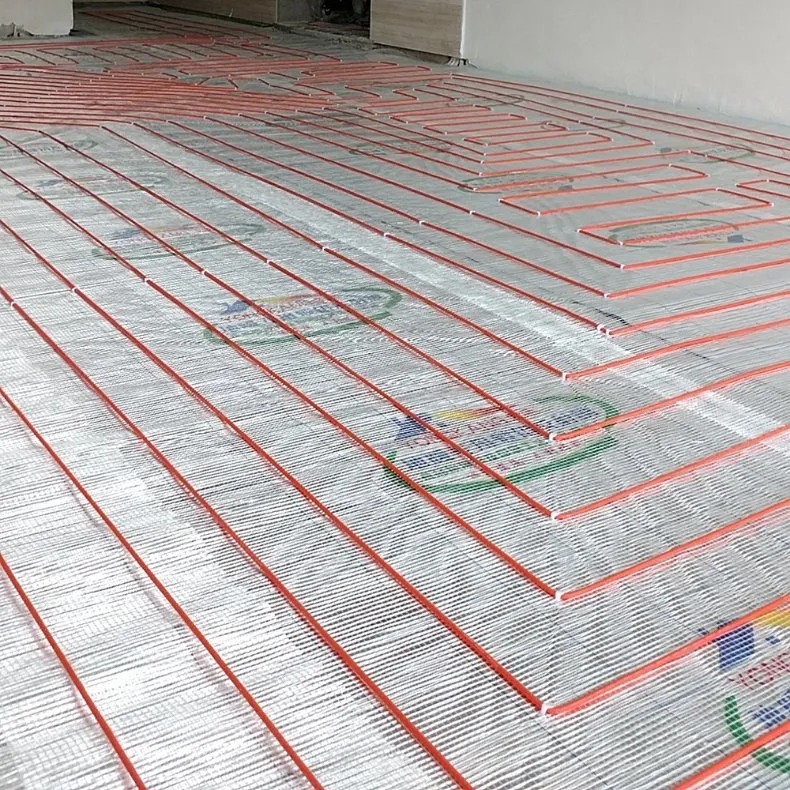

Because of the feature of the carbon fiber cable, this cable cannot be used for a long length. For underfloor heating, we suggest to use 10m per piece, and connect all the pieces in parallel connections. Keep the distance between cables 8~ 12cm.

Product Applications:

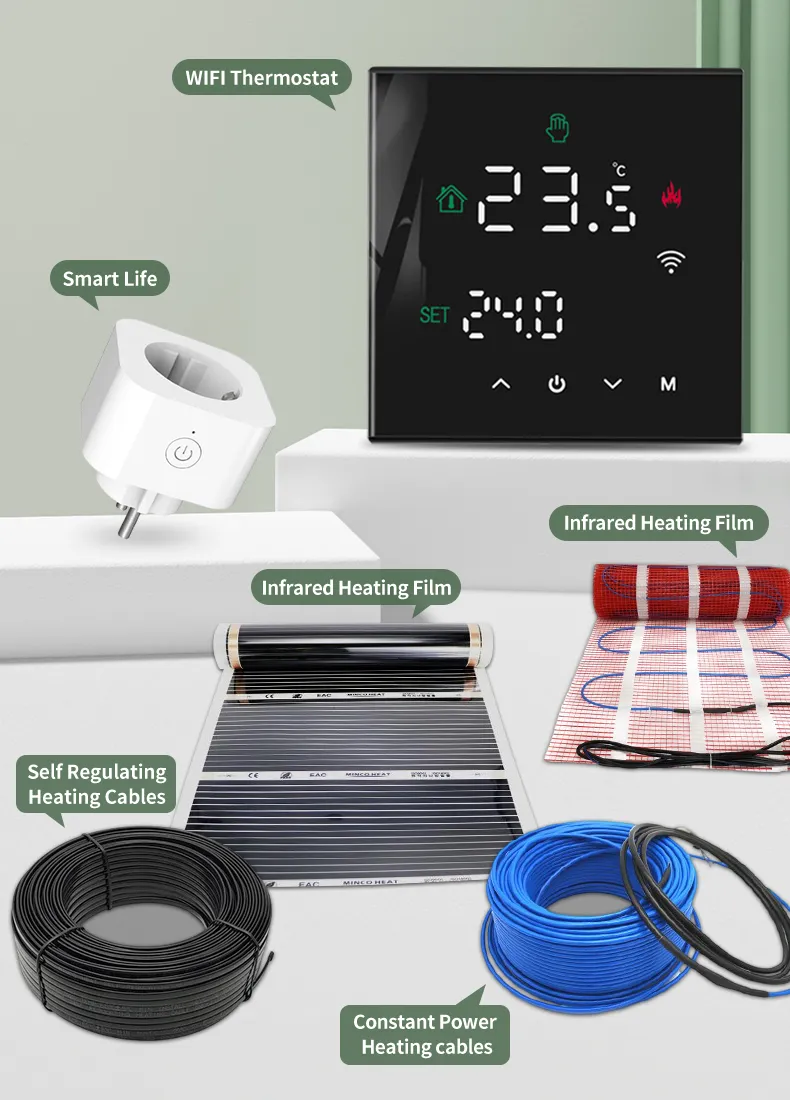

Main Products
