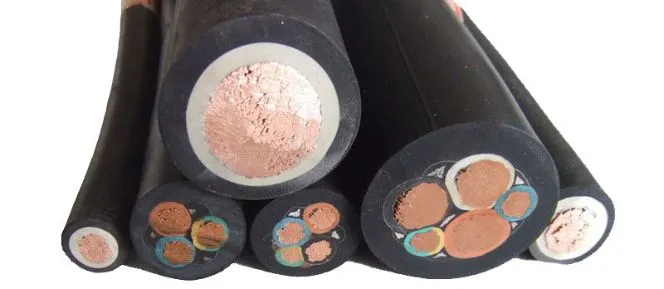

H07RN-F 450/750V 3 or 4 Cores 2.5mm2 50mm2 95mm2 Flexible Rubber Cable

H07RN-F is a heavy-duty rubber flexible trailing cable for power supply designed to provide high flexibility and to withstand chemical, mechanical and thermal stresses. It is suitable for applications such as handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. T
he tough rubber sheath also makes this cable suitable for use in drainage and
water treatment
, cold or refrigerated environments, and severe industrial environments.
Voltage RatingThe H07RN-F cable has a voltage rating of 450/750V. As a low voltage cable, sizing can be determined with help from our Cable Calculator when system design and installation parameters are considered.Cable Specification
The H07RN-F trailing duty cable has a temperature rating of -30oC to +60oC for fixed installations (rising to +85oC for fixed protected installations) and from -15oC to +60oC when flexed. Where applications require smaller conductor sizes at a 300/500V voltage rating it is referred to by the harmonised designation
H05RN-F, available in core sizes 0.75mm and 1.0mm.

Product Parameters
