基本信息产品详情证书
基本信息
| 型号 | GYTC8S |
| 允许的侧向压力 | 大于1000(每100毫米N) |
| 允许的抗拉强度 | 一千牛小于一万牛 |
| Core | 多核 |
| 认证 | RoHS, Reach |
| 品牌 | 原始设备制造商 |
| 鞘材料 | PE |
| 信使材料 | 钢丝 |
| 松散管材料 | 带果冻的PBT |
| 防水材料 | 防水胶带或填充混合物 |
| 外鞘材料 | MDPE/HDPE/LSZH PE |
| 外衣颜色 | 黑色PE光纤电缆 |
| 单一防护材料 | 瓦楞钢板带 |
| 中央无缆线成员 | 钢线或FRP |
| 工作温度 | 零下40度至零上60度 |
| 运输包 | 木鼓 |
| 规格 | SGS ROHS REACH ISO |
| 商标 | TW-SCIE或OEM |
| 起源 | 中国大陆 广东省 东莞市 |
| 商品编码 | 8544700000 |
| 生产能力 | 每小时200公里 |
产品详情
Product Description
Preview

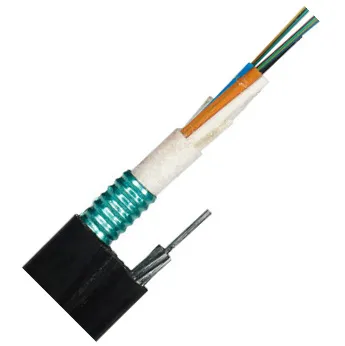

2-288 Core Self-Support Fiber Optic Cable GYTC8SFeatures(Self-support Fiber Optic Cable):
1. Up to 288 Fiber Optic.2. The loose tube stranding technology make the fibers have good secondary excess lenth and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cables is subjected to longitudinal stress.3. Corrugated steel lape armored and PE outer sheath providing properity crush resistance and gun shot resistance features.4. Stranded wires as sell supportiong member providing excellent strain performance and convenlent installation.General Specifications(Self-support Fiber Optic Cable):

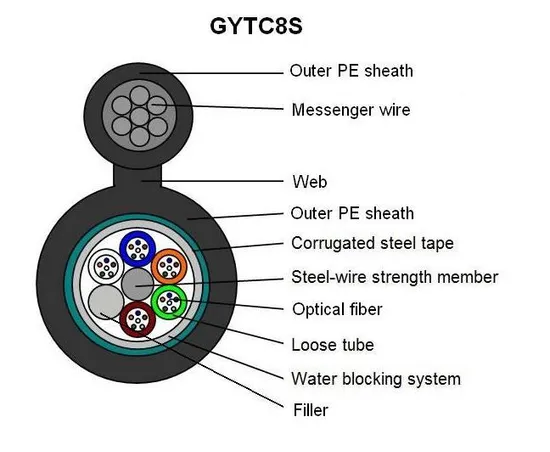

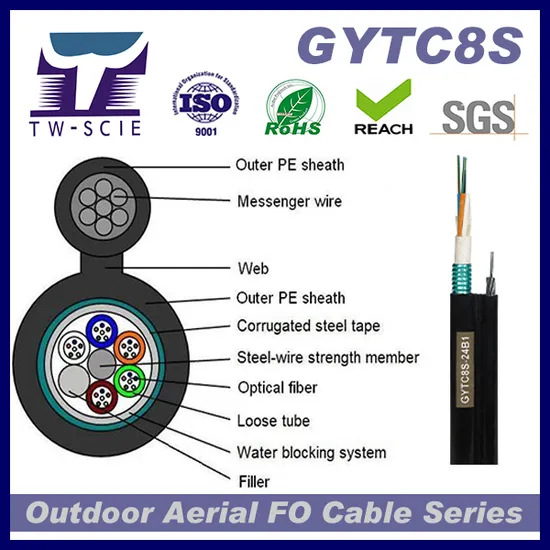

Cable Structure(Self-support Fiber Optic Cable):
Characteristics(Self-support Fiber Optic Cable):
· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
installation cost
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a
critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.Cable Design(Self-support Fiber Optic Cable):
Fiber Specifications:
50/125 MM
OM1 (62.5/125) Multi Mode Fiber:
OM3 Multimode fiber:

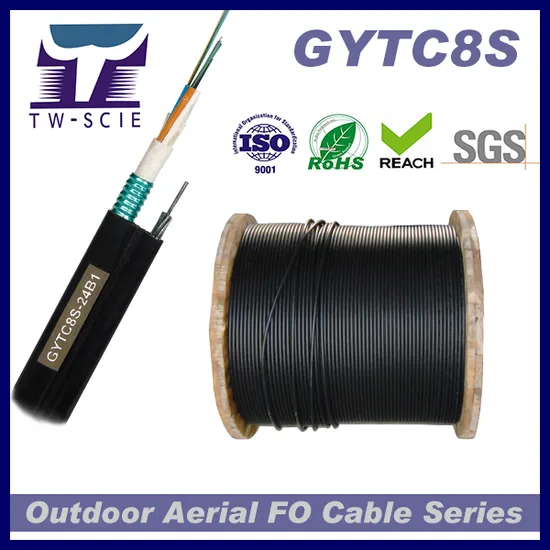

More Pictures(Self-support Fiber Optic Cable):

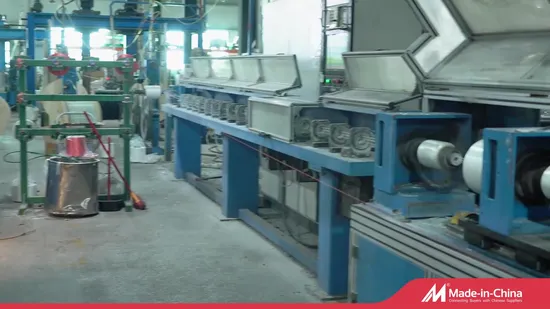

Company Overview:
Related Products:
Tag: Armored fiber optic cable, GYTC8S optical fiber cable, Self-support fiber cable, Aerial fiber optic cable
1. Up to 288 Fiber Optic.2. The loose tube stranding technology make the fibers have good secondary excess lenth and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cables is subjected to longitudinal stress.3. Corrugated steel lape armored and PE outer sheath providing properity crush resistance and gun shot resistance features.4. Stranded wires as sell supportiong member providing excellent strain performance and convenlent installation.General Specifications(Self-support Fiber Optic Cable):
Cable Structure(Self-support Fiber Optic Cable):
Characteristics(Self-support Fiber Optic Cable):
· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
installation cost
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a
critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.Cable Design(Self-support Fiber Optic Cable):
Fiber Specifications:
50/125 MM
OM1 (62.5/125) Multi Mode Fiber:
OM3 Multimode fiber:
More Pictures(Self-support Fiber Optic Cable):
Company Overview:
Related Products:
Tag: Armored fiber optic cable, GYTC8S optical fiber cable, Self-support fiber cable, Aerial fiber optic cable
