Name:
Fiber Optical Cable
High-integrated colored bare fibre designAramid yarn as strength member making cable have excellent tensile strength performanceExcellent performance of anti-torsionThe outer jacket material has many advantages such as anti-corrosion, waterproof, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.No.Items
Unit
Specification
G.652D
1
Mode Field Diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.5
2
Cladding Diameter
μm
124.8±1.0
3
Cladding Non-Circularity
%
≤1.0
4
Core-Cladding Concentricity Error
μm
≤0.6
5
Coating Diameter
μm
245±7
6
Coating Non-Circularity
%
≤6.0
7
Cladding-Coating Concentricity Error
μm
≤12.0
8
Cable Cutoff Wavelength
nm
λcc≤1260
9
Attenuation(max.)
1310nm
dB/km
≤0.4
1550nm
dB/km
≤0.3

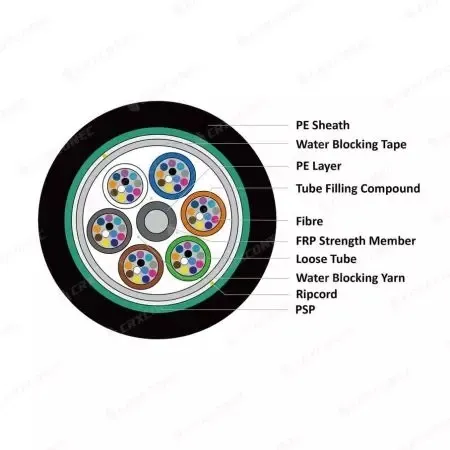

Items
Specifications
Fiber Count
288
Colored Coating Fiber
Dimension
250±15μm
Color
Blue,Orange,Green,Brown,Gray,Natural,Red,Black,Yellow,Purple,Pink,Aqua
Loose Tube
Dimension
1.55mm±0.1mm
Material
PBT
Color(1+9+15)
1+9:Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow 1+15:Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua,Blue,Orange,Green
Strength Member
Diameter
3.0mm
Material
FRP
Outer Jacket
Dimension
10.6mm±0.5mm
Material
PE
Color
Black
Items
Unite
Specifications
Tension(Long Term)
N
400
Tension(Short Term)
N
700
Crush(Long Term)
N/10cm
150
Crush(Short Term)
N/10cm
500
Min. Bend Radius(Dynamic)
mm
20D
Min. Bend Radius(Static)
mm
10D
Installation Temperature
ºC
-20~+60
Operating Temperature
ºC
-30~+70
Storage Temperature
ºC
-30~+70
FAQ
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our clients, from home or abroad, are warmly welcome to visit us!
