Place of Origin:Jiangsu, China
Brand Name: Baiwei Electric
Model :Continuously Transposed Conducto
Type:
insulated
Application:PowerTransformer, transmission line
Conductor Material:Copper or aluminum
Conductor Type:Solid
Insulation Material:Enameled

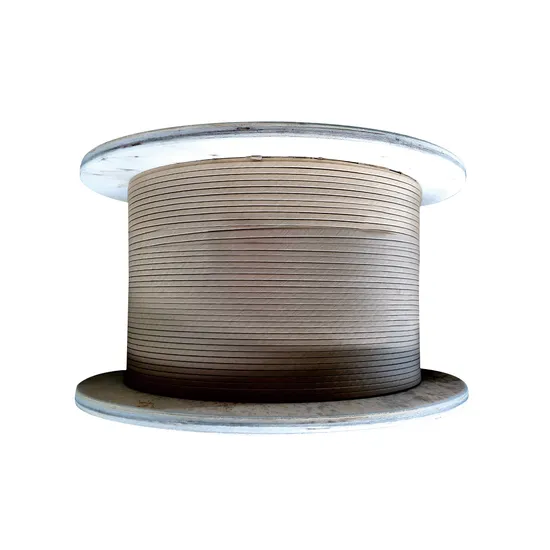

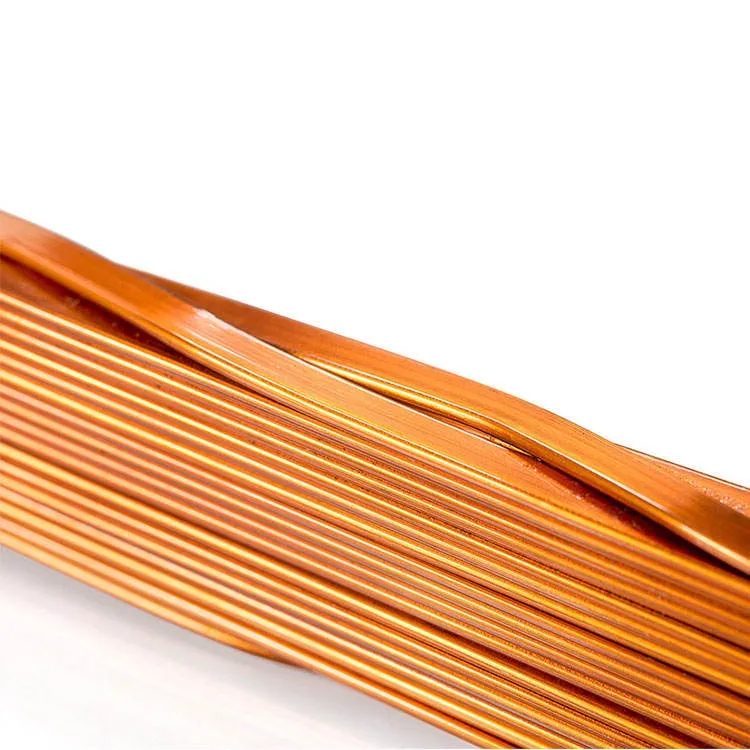

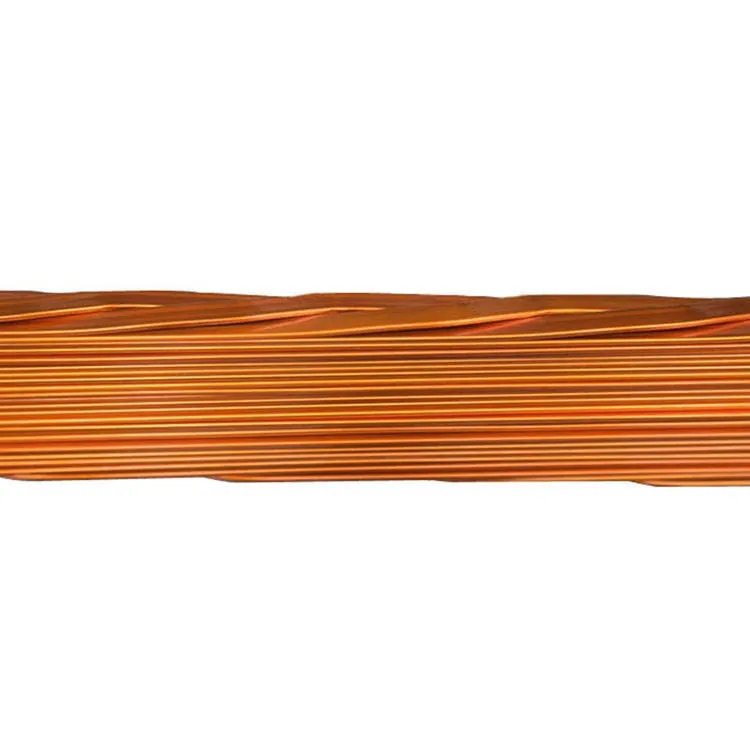

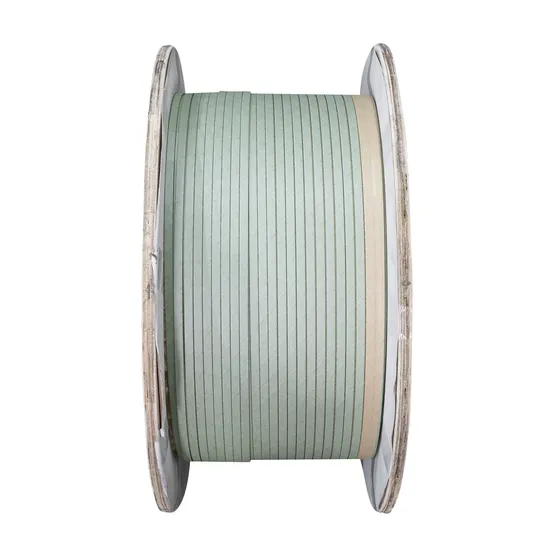

Product name:Continuously Transposed Conductor
Type enameled wire:round or flat enameled wire
Insulation enamel:PEW, PIW, EIW, AIW, EI/AIW
Covered material:paper or cotton wire
Temperature class:120
Standard:IEC,NEMA,GB,JIS
Usage:large transformer or transmission and distribution lines
Feature:high strength, high temperature,
Transposed wire is mainly used in the winding of large oil immersed power transformers,reactors and large capacity dry-type transformers.
Continuously Transposed conductors(CTC)is the important material for transformer winding.It has the advantage of well using of space, low eddy current loss, high mechanical strength and less time of coil winding.
Product Parameters

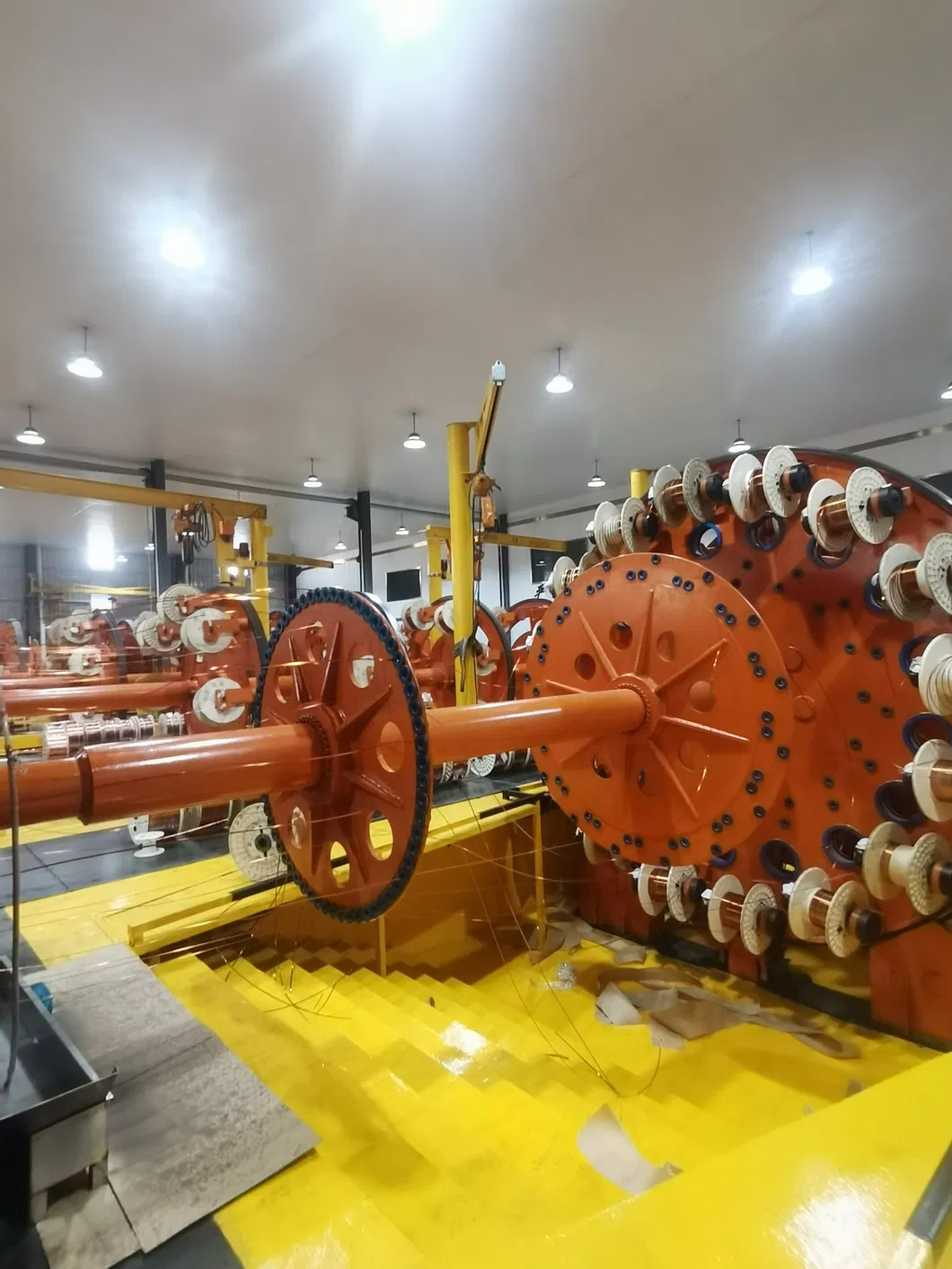

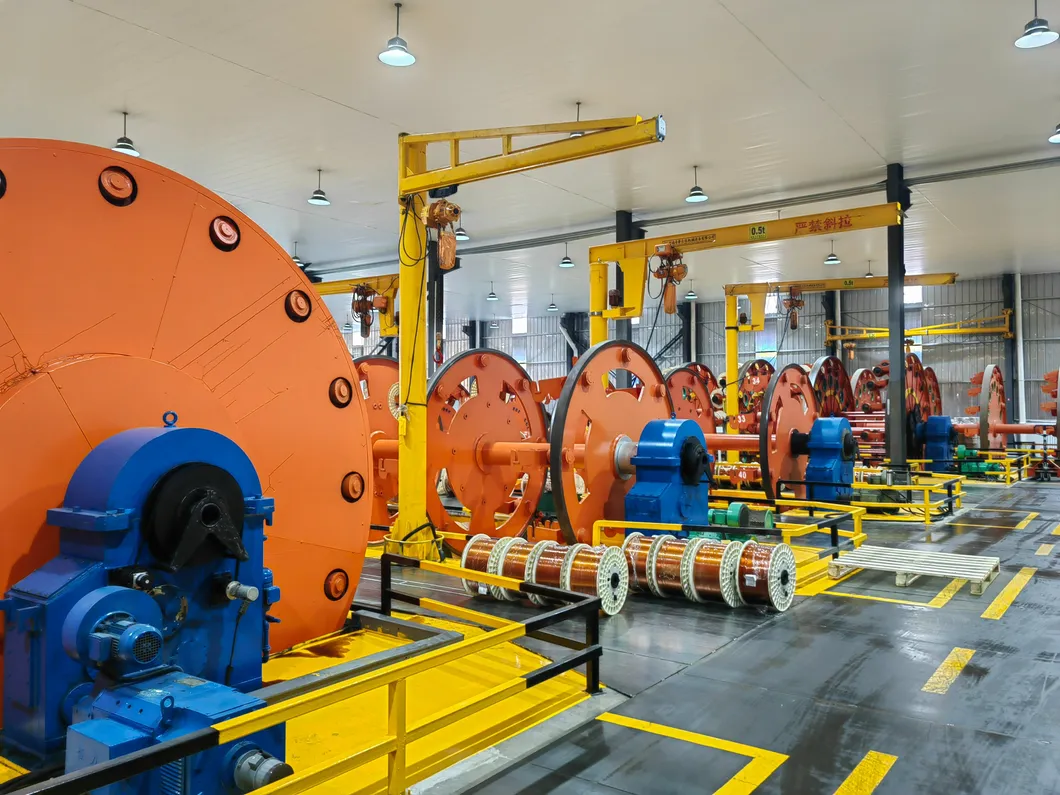

Production Scope
CTC strips:5-80(odd or even).
Max overall dimension :height : 120mm , width 26mm ( tolerance ± 0.05mm )
Dimension of enameled wire:
Single conductor : Thickness a:0.90-3.15mm(tolerance±0.01mm ),
Width b:2.50-13.00mm (tolerance±0.01mm)
Suggested width/thickness ration of single conductor:2.0Suggested thickness of enamel insulation : 0.08-0.12mm;thickness of bondable epoxy resin:0.03-0.05mm .
Product Scope

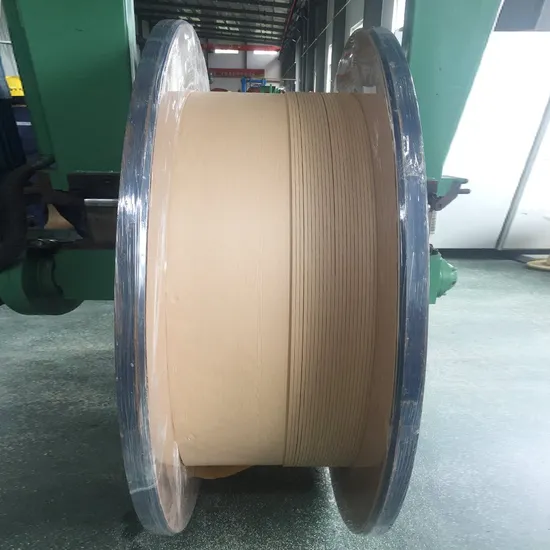

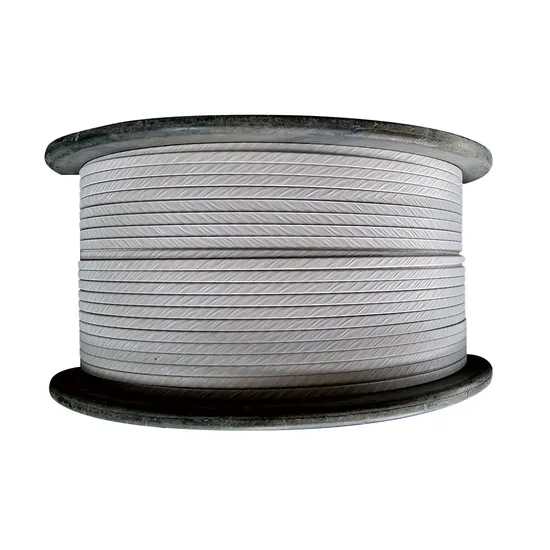

Polyvinyl acetal enameled CTC with paper insulation
Polyvinyl-adhesive acetal enameled CTC with paper insulation
Polyvinyl-adhesive acetal semi-hard acetal enameled CTC with paper insulation
Polyvinyl acetal enameled CTC with special binded
Composite CTC with step
Composite CTC with screen wire inside
Polyesterimide enameled CTC
Polyvinyl alcohol enameled CTC with PET film insulation
number of strips:
7-49
single dimension:
thickness of conductor a : 1.00-3.15mm width of conductor b : 3.00-12.50mm
suggested ratio of width and thickness:
2.5 < b/a <7.5
please connect us if your dimension is out of above range Insulation layers:
24
layers at one time. Max thickness of CTC:
80mm (excluding insulation)
max width:
26mm (excluding insulation)
Max.Height of CTC bundles:
80mm (excluding paper insulation)
Max. Width of CTC bundles:
26mm (excluding paper insulation)
