类H可焊聚酯亚胺聚酰亚胺包覆铜线

Preview

基本信息产品详情

基本信息

型号/编号	没有型号号码
应用	变压器、电气设备、电动机
形状	圆导线
导体材料	铜线
适用标准	Jcs 2394 NEMA MW79c IEC60317-20
应用程序	小型马达，返回变压器
最低订购量	无最低订购量要求
运输包	Box
规格	PU树脂
商标	OEM欢迎词
起源	中山
生产能力	每天30吨

产品详情

Product Description

Preview

This wire is the same as conventional polyesterimide enamelled copper wire except solderability has been added to eliminate terminal preparation work.
Applicable standard:JCS 2394,NEMA MW77C,IEC60317-23
Applications:Small motors, small transformers.

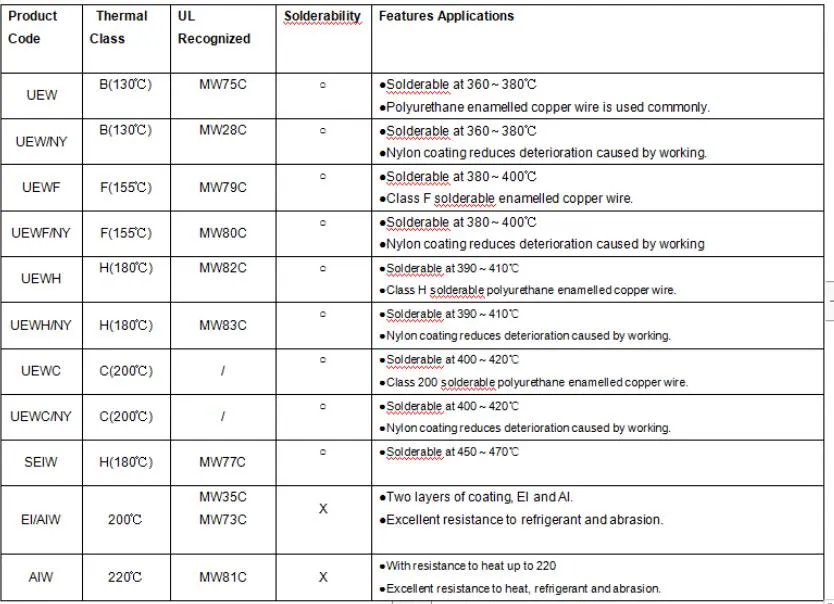

Features

Preview

Thermal class and range of manufacture

Preview

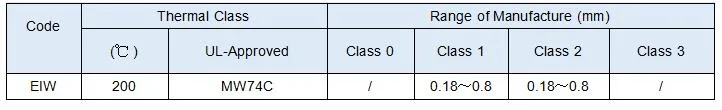

EIW
Polyesterimide Enamelled Copper Wire
This wire is enameled with insulating varnish,main ingredient is isocyanuric polyesterimide resin.
Applicable standard:JIS C 3202,NEMA MW74C.
Applications:Heat-resistant general-purpose motors, automotive parts, transformers.

Preview

EI/AIW
Polyesterimide overcoated with Polyamideimide Enamelled Copper Wire
This wire has double layers of enamelled coatings-polyamideimide for upper layer and polyesterimide for lower layer.
JCS 2392
NEMA MW35C,MW73C,IEC60317-13.

Preview

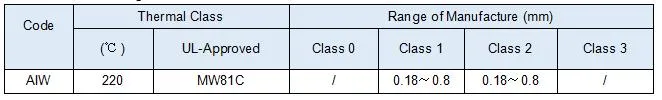

AIW
Polyamideimide Enamelled Copper wire
This wire is coated with an insulating varnish and main ingredient is polyamideimide resin.
Applicable standard:JCS 2334,NEMA MW81C,IEC60317-57.
Applications:Heat-resistant motors, motors for electric tools. Heatresistant dry type transformers, lifting magnet coils.

Preview
