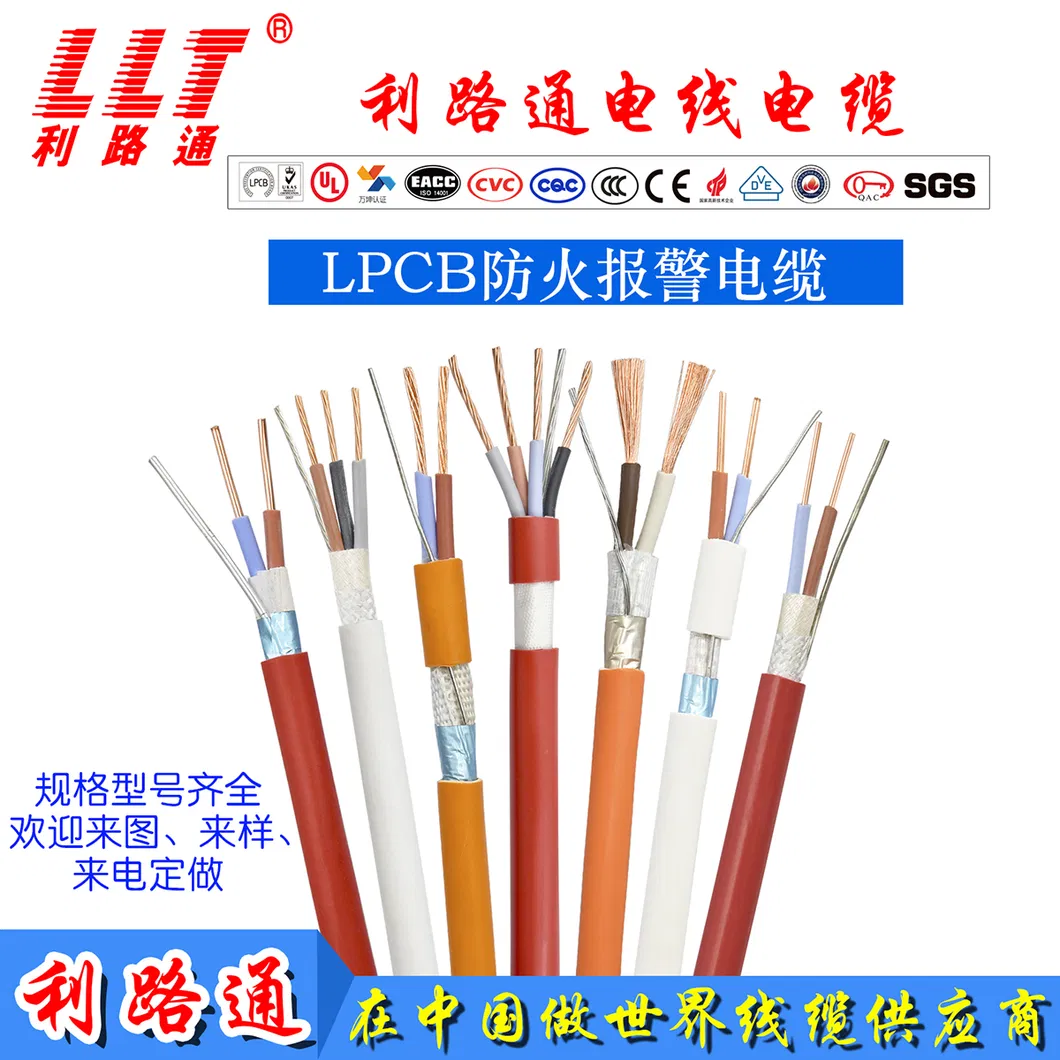

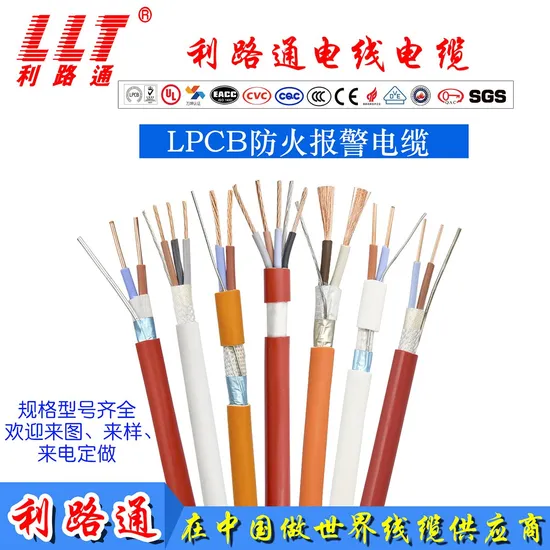

2c 1.5mm 180分钟耐火等级防火电缆适用于火灾报警系统

Preview

基本信息产品详情证书

基本信息

型号编号	LLT-FR215
导体材料	1.5mm2实心裸铜
覆盖材料	Lts3
绝缘材料	硅橡胶
材料形状	圆导线
适用范围	消防
认证	ISO9001, CE, CCC, RoHS, Lpcb
品牌	深圳Llt
交货时间	十五天内
绝缘色码	1. 布朗 2. 蓝色
运输包	线圈
规格	2C 1.5mm²
商标	LLT
起源	中国广东
商品编码	8544492100
生产能力	50万公里/年

产品详情

Product Description

Preview

Product description

Preview

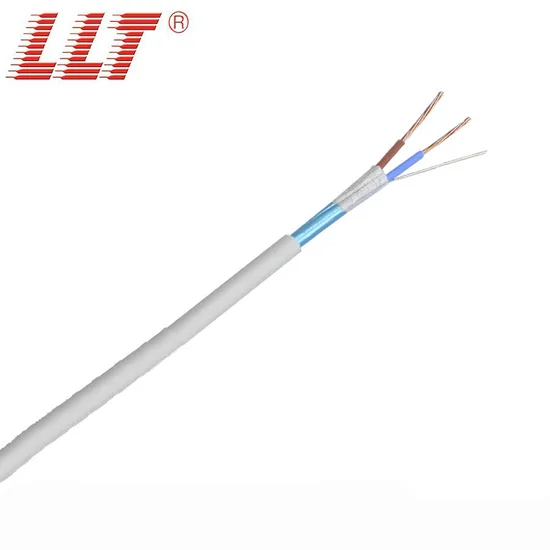

2x1.5mm2 Solid FIRE Resistant Cable
Specification
1. Temperature Rating: -40°C ~ +90°C
2. Operating Voltage: 300/500V
3. Withstand voltage test:
Between insulated conductors, AC:2000V / 5min, no breakdown
Between insulated conductor and ground wire, AC: 1000V / 5min, no breakdown
4.Maximum Resistance : 12.1 Ohms/KM at 20°C
Standard
All these cables comply to
1. Application to insulation: EN50363-1,EN50363-2-1,BS2683
2. Inner Conductor Diameter: BS EN 60228
3. Insulation: EN50363-1, EN50363-2-1,BS2683
4. Sheath: EN7655-6.1, BS EN50267-2-1, BS60754, BS2683
5. Smoke emission: EN 61034-2: 2005+A2:2020
6. Corrosive and acid gas : EN 60754-1: 2014
7. Flame propagation on a single cable : EN 60332-1-2:2004
8: Fire resistance(single cable) : BS6387 , BS EN 50200, BS 8434-2
9. Fire resistance time : PH30-PH120
Application
Fire-fighting cables are mainly used for emergency lighting, fire observation, signal sensing system, blower system, communication call system, fire pump and fire alarm system circuit cables, etc.For example: Office, School, Airport, Underground and tunnel, Railway station, Computer center, Alarm system, Traffic control system, Fire protection system
Calbe Marking:SHENZHEN LLT FIRE RESISTANT Cable 300/500V, ...... BS6387 CWZ 2x1.5mm2+E, RH , dateRelated Product

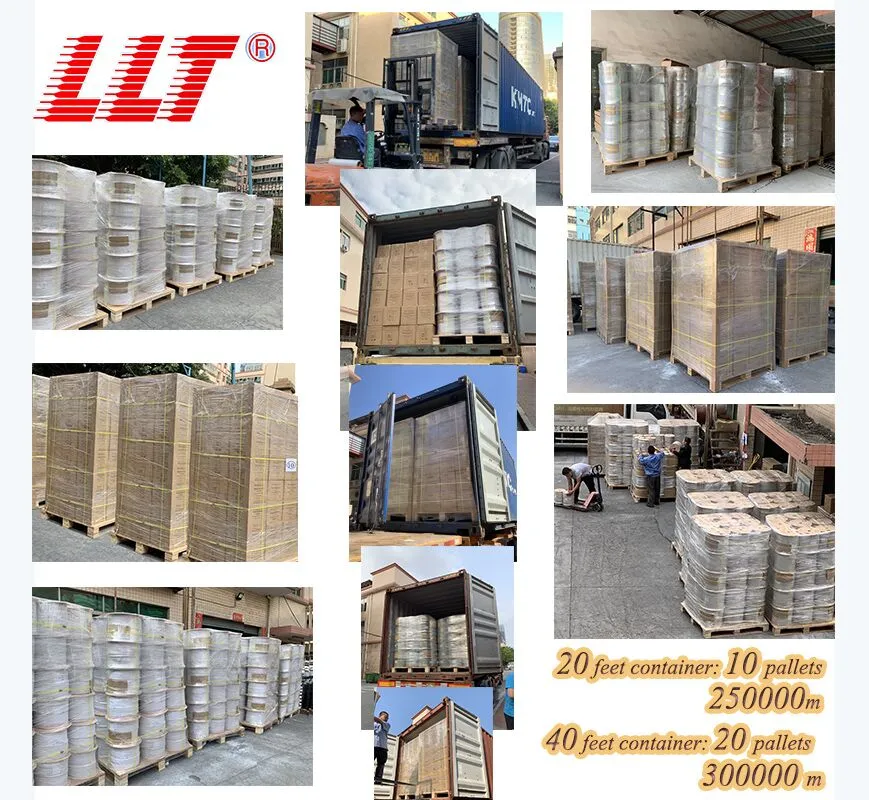

Packing & Shipping

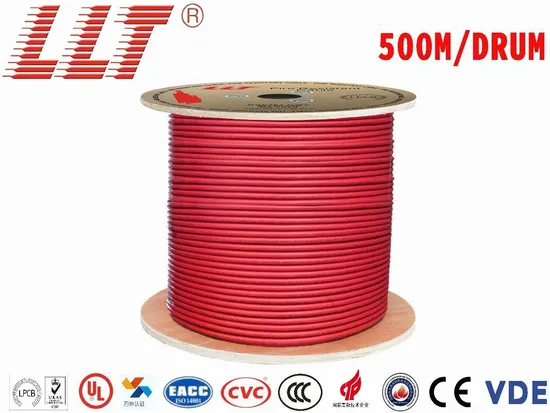

100 Meter/Rool, 200 Meter/Wooden drum, 500 Meter/Wooden drum, Carton & Pallet
