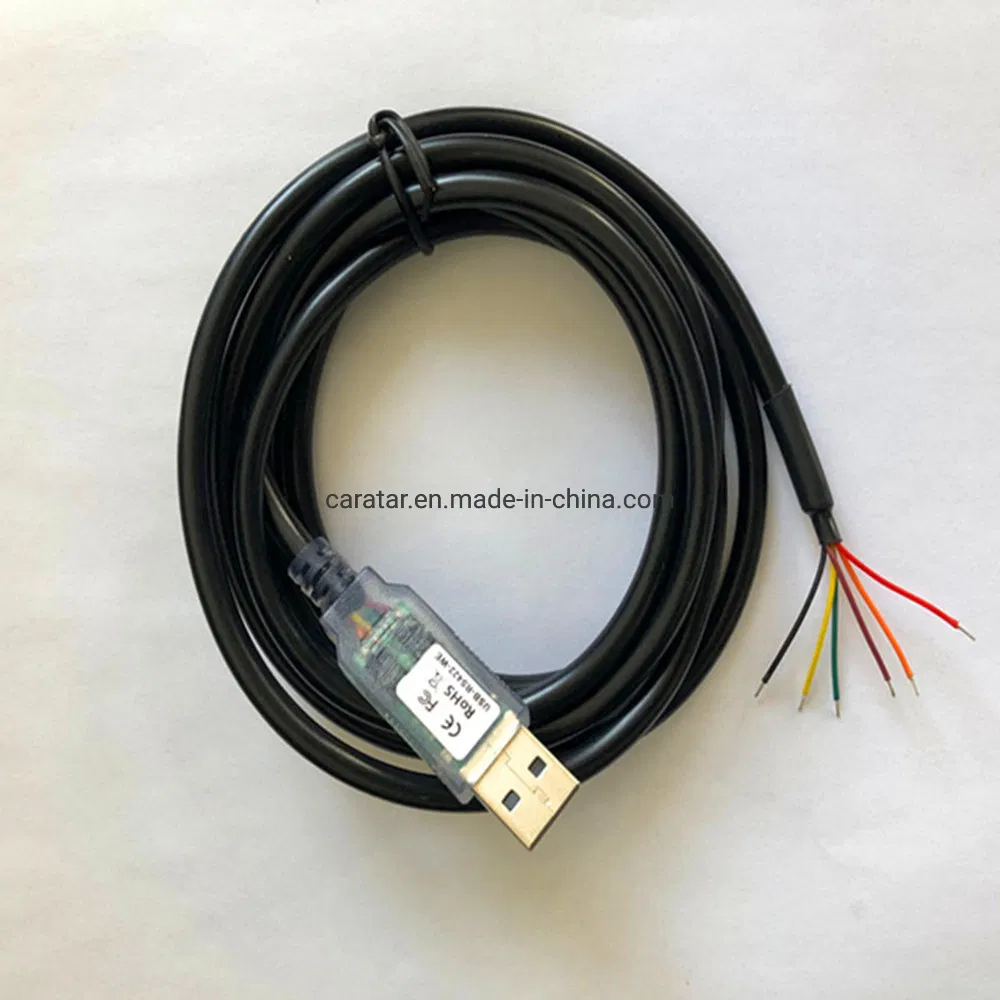

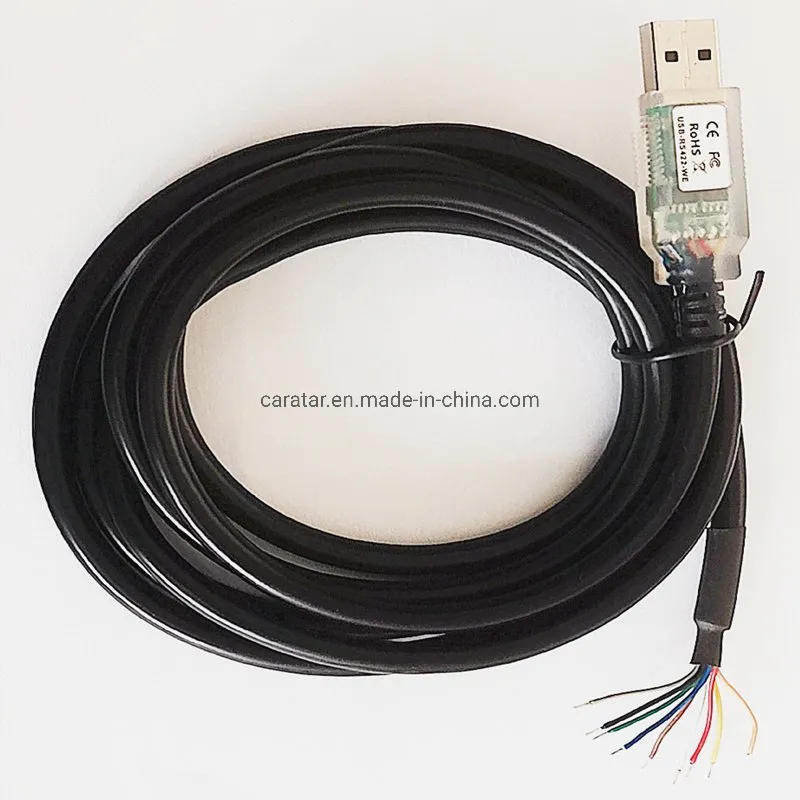

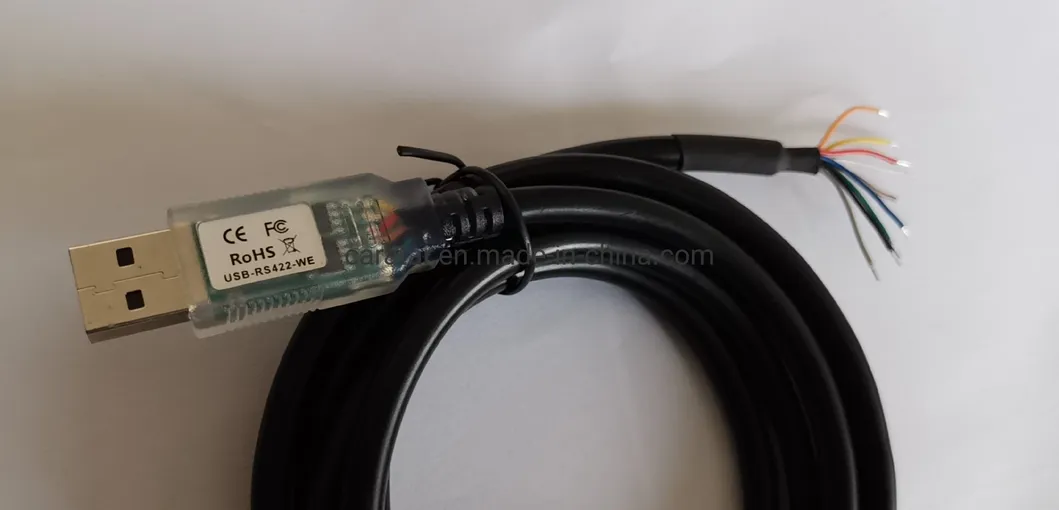

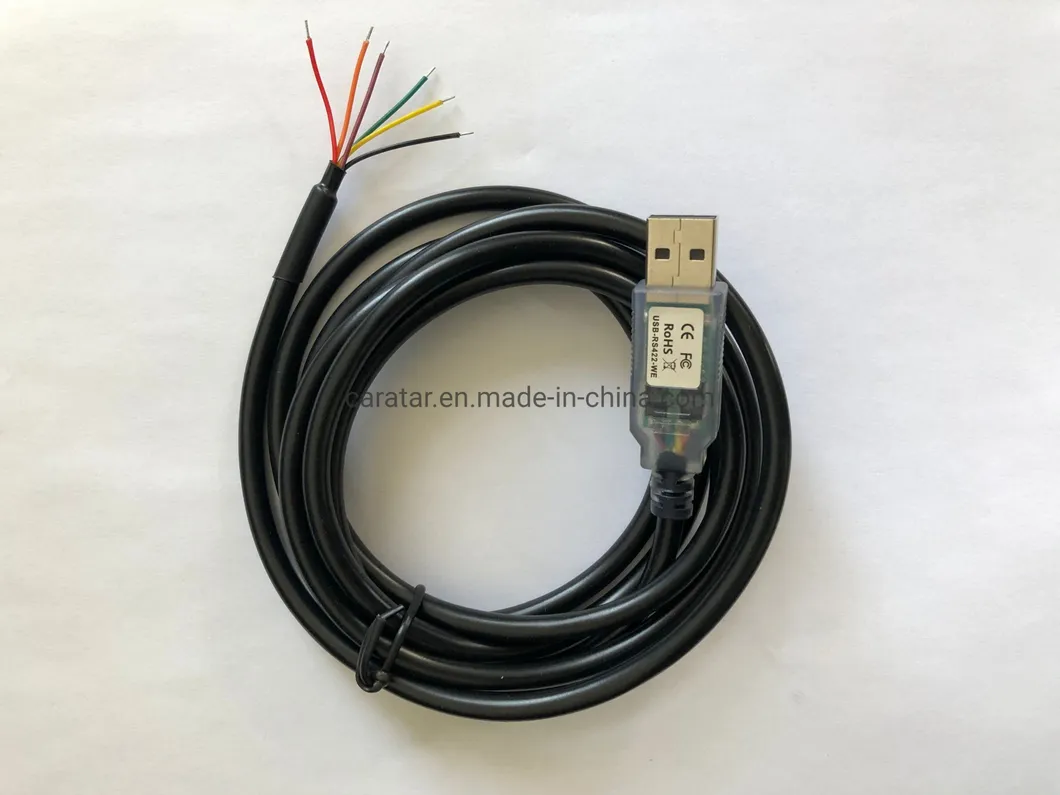

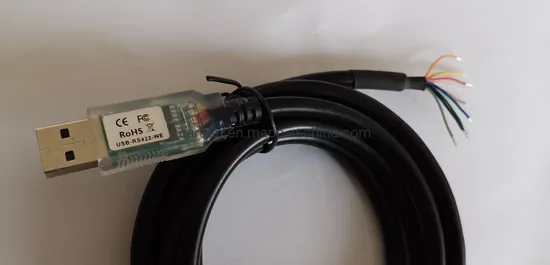

FTDI Chip USB to RS-422 Converter Cable Wire Ended with LED.The USB-RS422 cable is a USB to RS422 levels serial UART converter cable incorporating FTDI's FT232RL USB to serial UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with a RS422 interface to USB.Each USB-RS422 cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The integrated electronics also include the RS422 transceiver plus Tx and Rx LEDs which give a visual indication of traffic on the cable (if transparent USB connector mould specified). The other end of the cable is bare, tinned wire ended connections by default, but can be customised using different connectors to support various applications.Cables are FCC, CE, RoHS compliant.Features and Benefits.• USB to UART Converter cable.• USB-RS-422 serial interface.• USB Protocol managed by electronics within the cable.• EIA/TIA-422 Communication interface.• Low power requirement.• UART Interface support for 7 or 8 bits (1 or 2 stop bits).• Built-in LED to monitor traffic.• USB Connecter is transparent.• Data transfer rate from 300 baud to 3 Mbaud.• Low USB bandwidth consumption.• UHIC, OHCI, EHCI host controller compatible.• USB 2.0 Full speed compatible.• ESD Protection.• Various cable lengths available.• Colour is black.Typical Applications.• USB to serial RS422 level converter.• Upgrading legacy peripherals to USB.• Interface microcontroller UART or I/O to USB.• Interface FPGA or PLD to USB.• USB instrumentation OC interface.• USB Industrial control.• USB Password protected file transfers.Converter Cables Available.Stock number
6877831, part USB-RS422-WE-1800-BT, black, cable length 1.8 m, 9 core, UL2464 24 AWG, diameter 5 mm. Stock number
7300161, part USB-RS422-WE-5000-BT, black, cable length 5 m, 9 core, UL2464 24 AWG, diameter 5 mm.Converter Support Available.Converters are supported with Microsoft WHQL certified VCP (Virtual Com Port) drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from FTDI website. http://www.ftdichip.com.Approvals
FCC, CE, RoHS compliant.

Introducing the Ftdi USB-RS422-We-1800-Bt Cable, the ultimate solution for seamless data transfer between USB and RS422 interfaces. This high-quality cable is designed to provide reliable and efficient connectivity, making it an essential tool for professionals in various industries.
The Ftdi USB-RS422-We-1800-Bt Cable is a USB to RS422 serial converter, offering a convenient and straightforward way to connect devices with different interfaces. With a length of 1.8 meters, this cable provides ample flexibility and reach, ensuring hassle-free connections even in larger workspaces.
Crafted with precision and expertise, this cable guarantees exceptional performance and durability. The Ftdi USB-RS422-We-1800-Bt Cable is built with top-notch materials, ensuring long-lasting functionality and resistance to wear and tear. Its wire-end design further enhances its usability, allowing for easy and secure connections.
This cable is compatible with a wide range of devices, making it a versatile choice for professionals in various fields. Whether you need to connect industrial equipment, medical devices, or communication systems, the Ftdi USB-RS422-We-1800-Bt Cable is the perfect solution.
With its user-friendly design, this cable is incredibly easy to use. Simply plug it into your USB port and connect the RS422 device, and you're ready to go. No complicated setup or additional drivers are required, saving you time and effort.
Invest in the Ftdi USB-RS422-We-1800-Bt Cable and experience seamless data transfer like never before. With its exceptional quality, compatibility, and ease of use, this cable is a must-have for professionals seeking reliable connectivity solutions.
Please note that this product description is provided in English only, ensuring clear communication and understanding for customers worldwide.
