product高频金属陶瓷功率栅格管真空三极管(8T25RA)
Image 2Image 3Image 4Image 5Image 6
Image 1
Preview
基本信息产品详情证书

基本信息

型号编号8T25RA
工作频率高频
结构金属陶瓷
封装结构其他
功率高功率
材料金属陶瓷
灯丝电压7.5至8.5伏
灯丝电流130A
放大系数20
最大功率31千瓦
职位垂直的
最大高度402.5毫米
最大直径202毫米
最大重量10.7公斤
冷却强制通风
运输方案泡沫包装
商标赛泰克
起源中国
商品编码8540890090
生产能力每月100件

产品详情

8T25RA
, it is metal ceramic high-power triode, with the directly heated thorium tungsten cathode, the anode is cooled by forced air. Max anode dissipation power 15kW, when the frequency is less than 40MHz, the continue output power can up to 28kW, this tube is mainly used as oscillators and amplifiers in industrial high frequency medium heated equipments.
Electrical Characteristics
Limit Working Conditions:
Rf Power Amplification and Oscillation
(Class C telegraphic state)
Typical Operation:
(Oscillating)

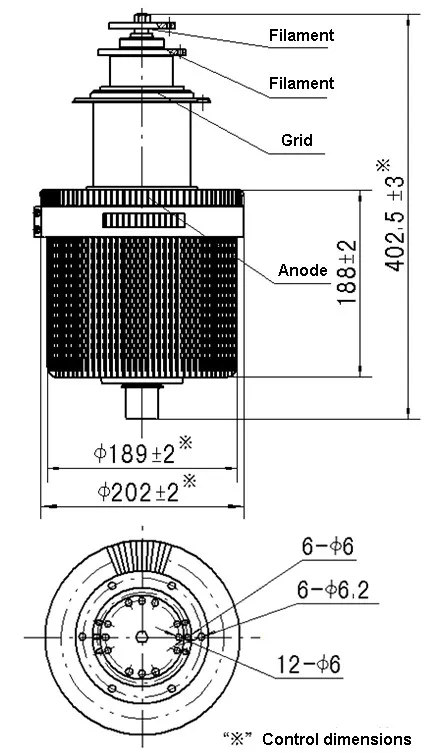

Dimension(mm)
detail
Preview
detail
Preview

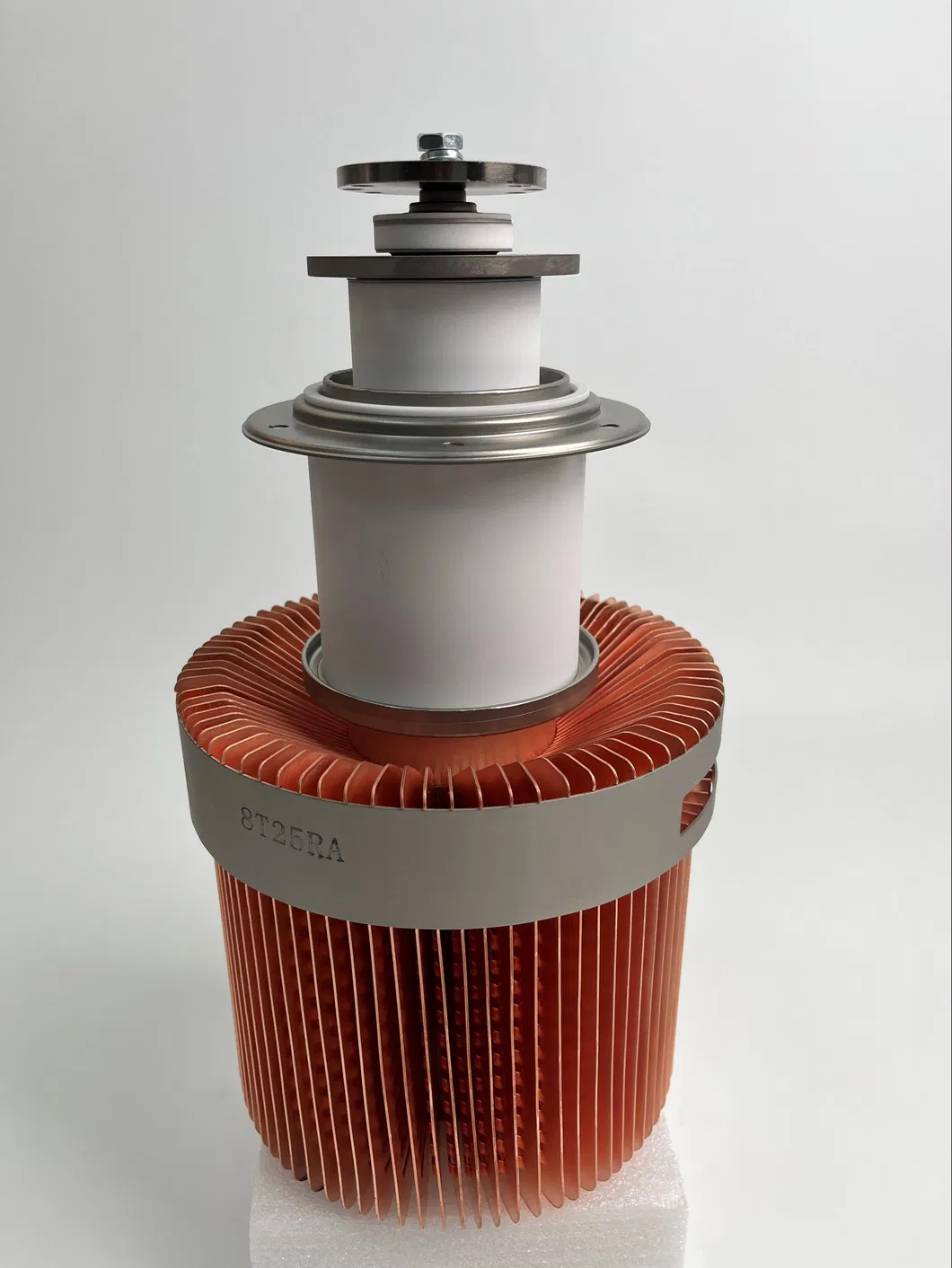

Product Picture
detail
Preview
detail
Preview
Product Description
detail
Preview
8T25RA is a High frequency metal ceramic Power grid tube triode designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tetrode may be operated in CW or pulse modes.
detail
Preview
Certifications
detail
Preview
detail
Preview
Packaging & Shipping
detail
Preview
detail
Preview

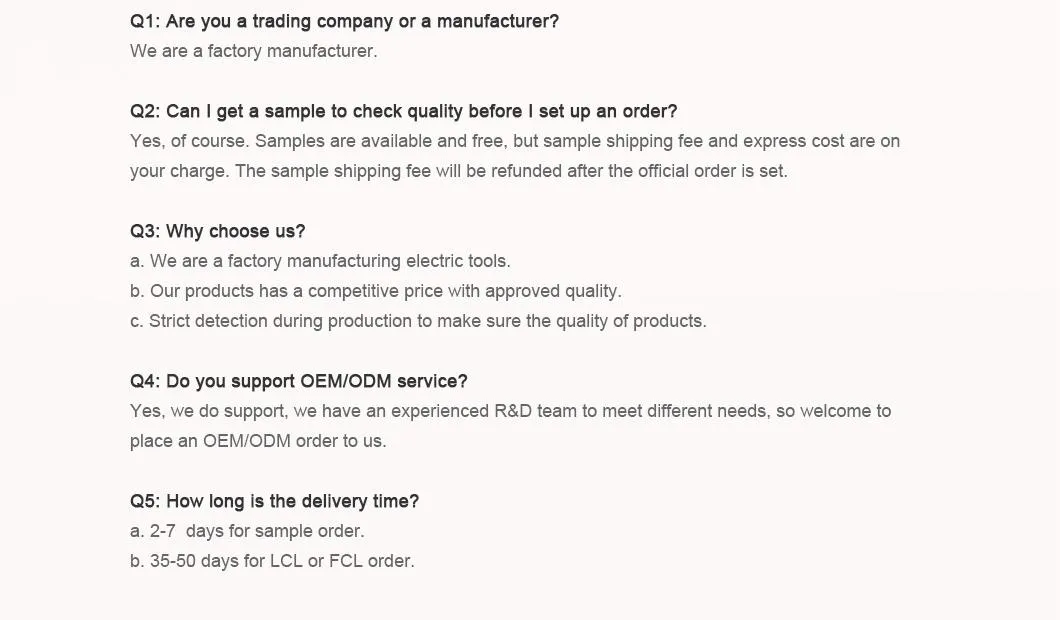

FAQ
detail
Preview
detail
Preview
