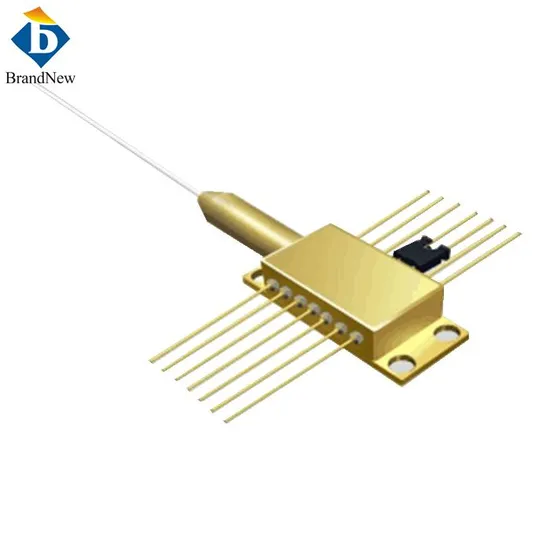

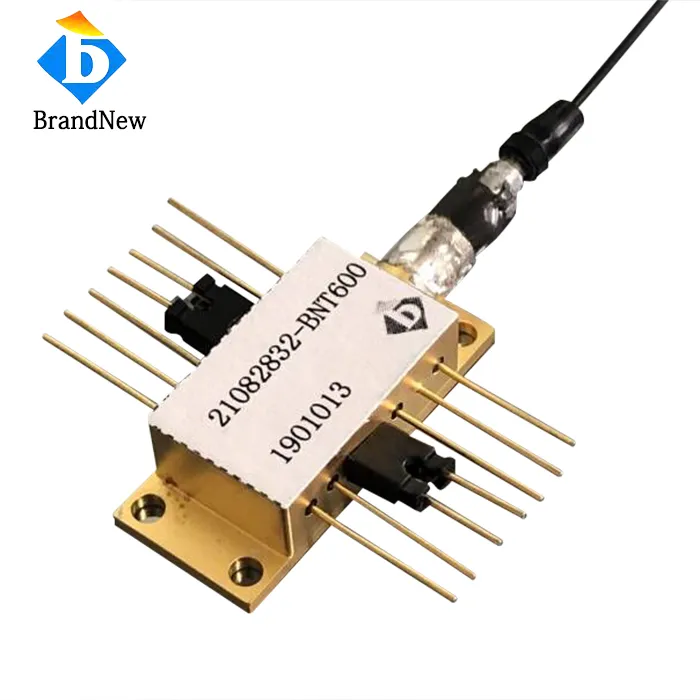

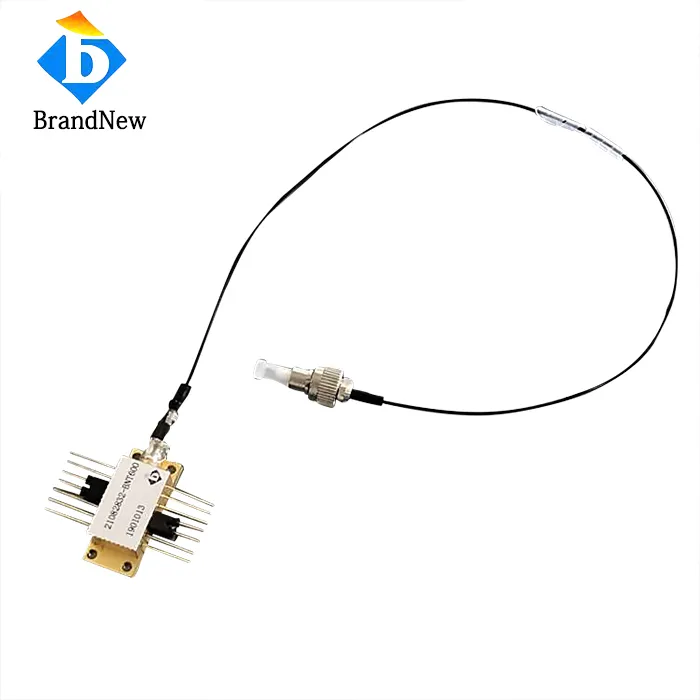

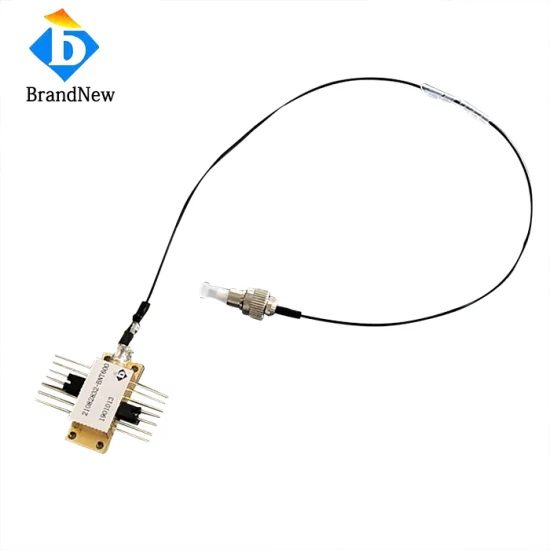

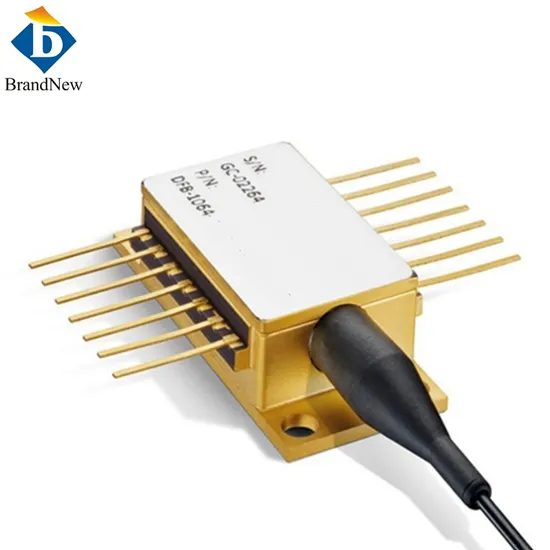

600mW 785nm Butterfly Fiber Coupled Laser Diode 14Pin Stabilized Wavelength for Raman Spectroscopy

These volume Bragg grating stabilized laser diodes offer a narrow linewidth, high power solution for Raman Spectroscopy research and testing applications. These 785nm diode lasers are fiber coupled devices offered in a butterfly packaged with integrated cooler, thermistor and PD. They offer up to 600mW of power at 785nm in a wavelength-stabilized, high-power, fiber-coupled laser designed. Due to the integrated VBG the wavelength is fixed and the spectral width is very narrow. This model is also used in metrology, bio-Instrumentation, sensing, and analytical instrumentation applications.Key features:Wavelength Stabilized 785nm ±0.5nmButterfly Package with Internal Cooler, Thermistor and PhotodiodeVolume Bragg Grating Stabilized
Spectral Width: <0.1nm
Fiber core: 105 μm, 0.22NA
FC/PC or SMA905 Fiber Connector optional
Fiber length can be customizedApplications:Raman Spectroscopy
Analytical Instruments
Biological Research

Specification
Item No.:
FC785DL600

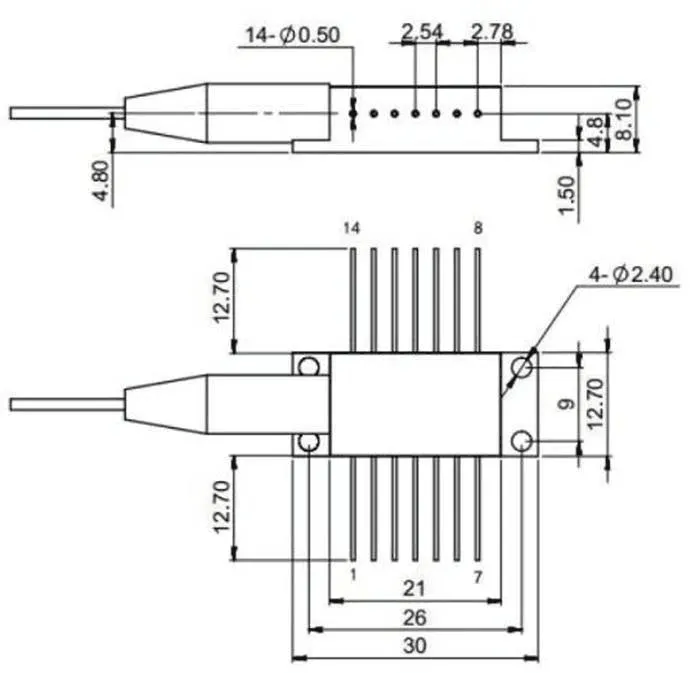

Dimension

About us

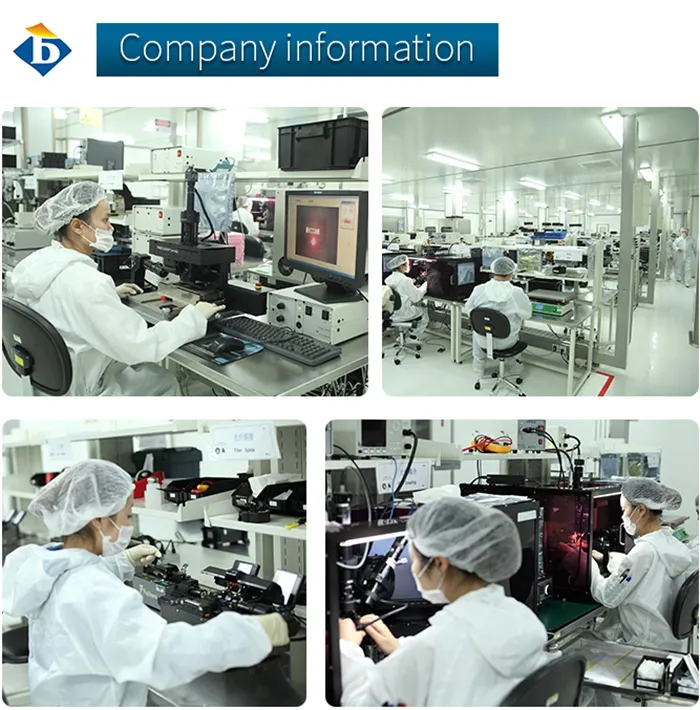

Hangzhou Brandnew Technology Co., Ltd.Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.BrandNew's strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.Core Competency
