Cables Transmission Terminal Box/ODF

Description:

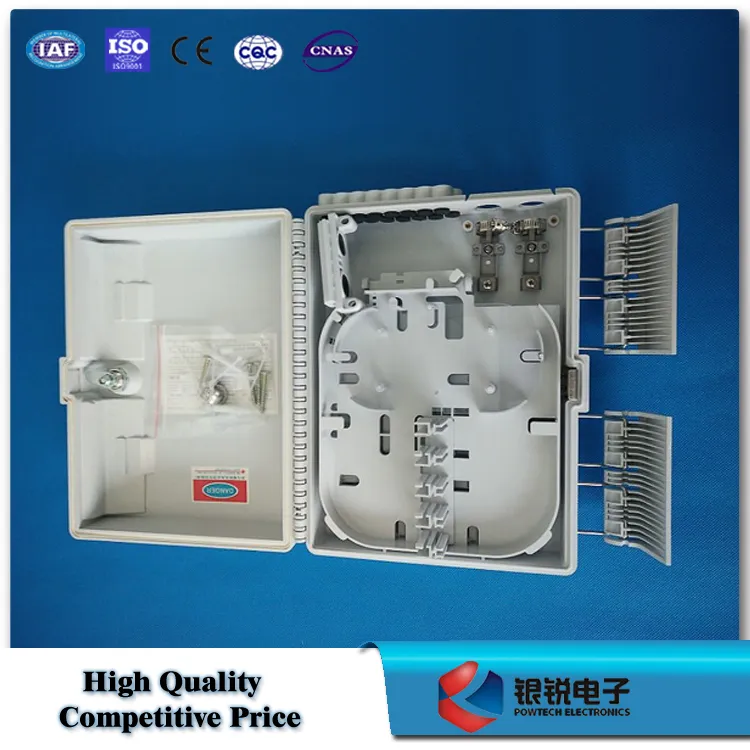

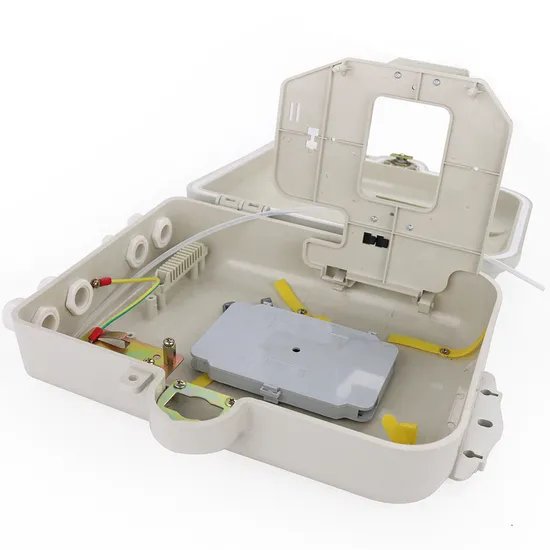

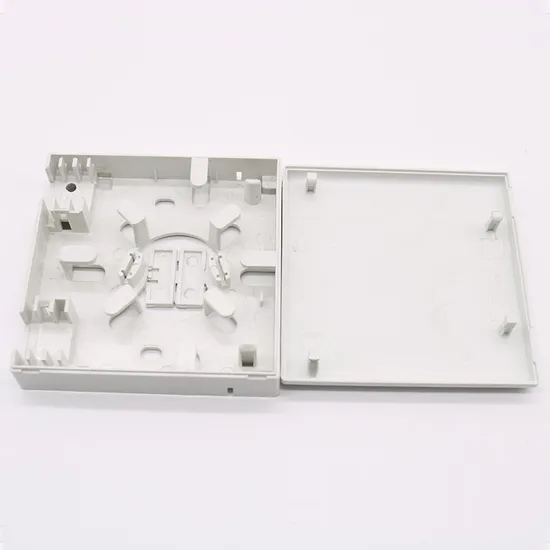

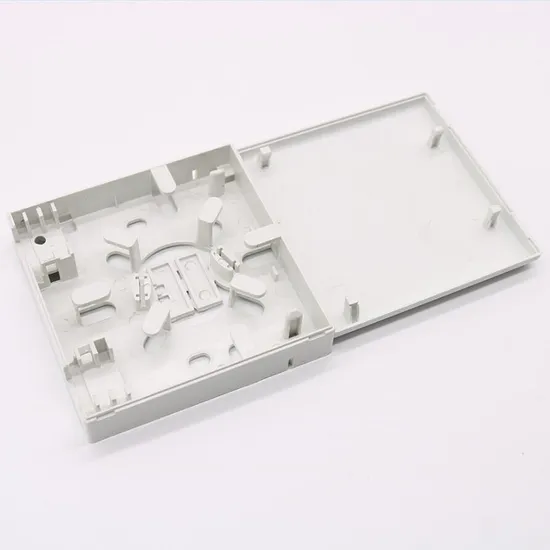

The fiber optic distribution box is widely used as a termination point for the feeder cable to connect with drop cable.The fiber splicing, splitting, distribution can be implemented in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
Complete close structure

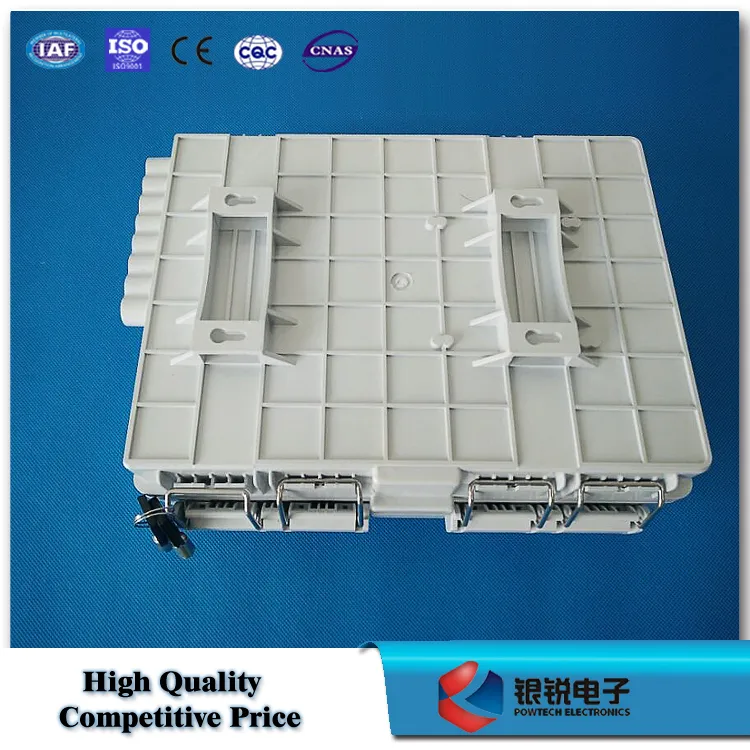

The material of this box is PC + ABS which can prove more than 10 years working life and wet-proof, water-proof, dust-proof, anti-aging and the protection level is up to IP65.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution in one.Cable, pigtail, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adapter installation, easy maintenance.Distribution panel can be filled up, feeder cable can be place in a cup-joint way, easy for maintenance and installation.Cabinet can be installed by the way of wall-mounted suitable for both indoor and outdoor uses.
Specification:
1. Enviromental requirement
Working temperature:-40ºC~+85ºC Relative humidity:≤85%(+30ºC)
Atmosphere pressure:70Kpa~106Kpa
2. Main technical datas:
Insert loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: >1000 times
3. Thunder-proof technical datas:
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC); Insulation resistance≥2x104MΩ/500V.
The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flash-over, U≥3000V.
Technical data sheet:
