基本信息
型号 | HX-EM1500-121-ID |
防水防尘 | IP68 |
最大放置深度 | 长至4.9英尺(1.5米) |
ID版本 | 示例ID|ID(可选) |
应用领域 | 卫生污水管道定位 |
兼容定位器品牌 | 可被3米远的人和温度识别 |
Ex.ID 版本 兼容 | 被3米或Tempo定位器识别 |
ID版本兼容 | 被ED8000定位器识别 |
运输包 | 纸箱 |
规格 | 4.7英寸(120毫米) |
商标 | HXTC |
起源 | 深圳 |
商品编码 | 9031900090 |
生产能力 | 年产量为 500 万件 |
产品详情
Product Description
Preview

Preview
1.PRODUCT DESCRIPTION
Preview

Preview

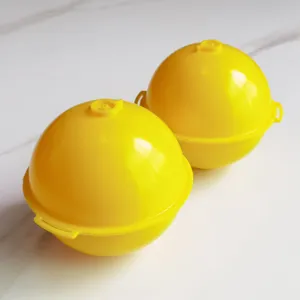

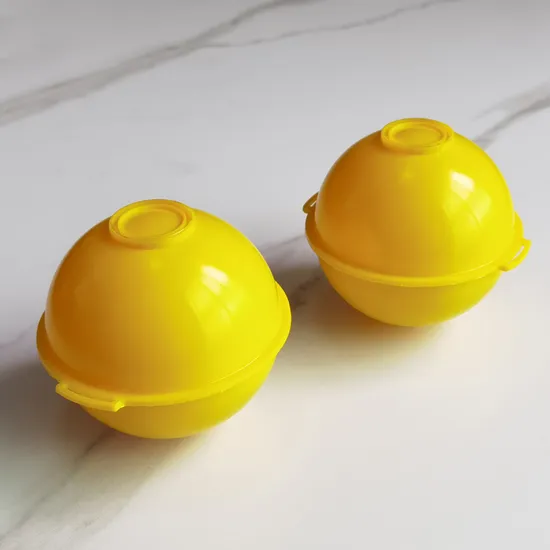

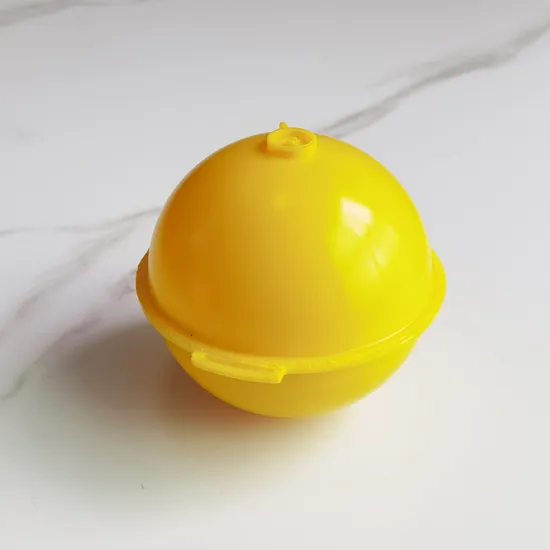

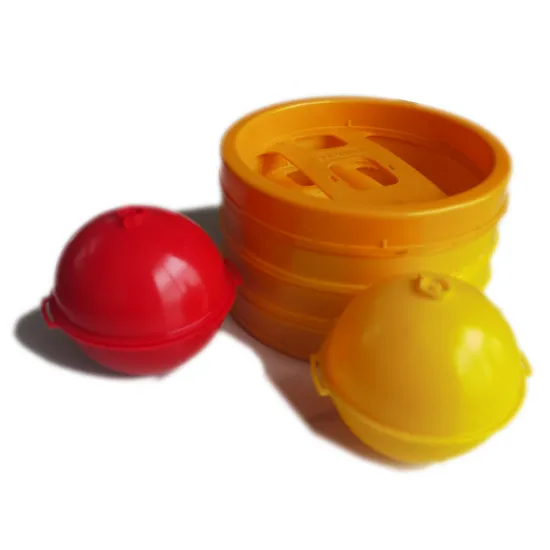

HX-EM1500 Underground Electronic Marker have two models(ID or Non ID). It consists of a sealed shell containing a passive antenna - a low-frequency resonance circuit tuned to a certain frequency. The ID version integrates an ID chip. Depending on the resonant frequency and the color, the HX-EM1500 are used to mark a wide range of underground facilities, such as telecommunication lines, power supply networks, cable television networks, water supply pipelines, wastewater networks, oil and gas pipelines, and so on.

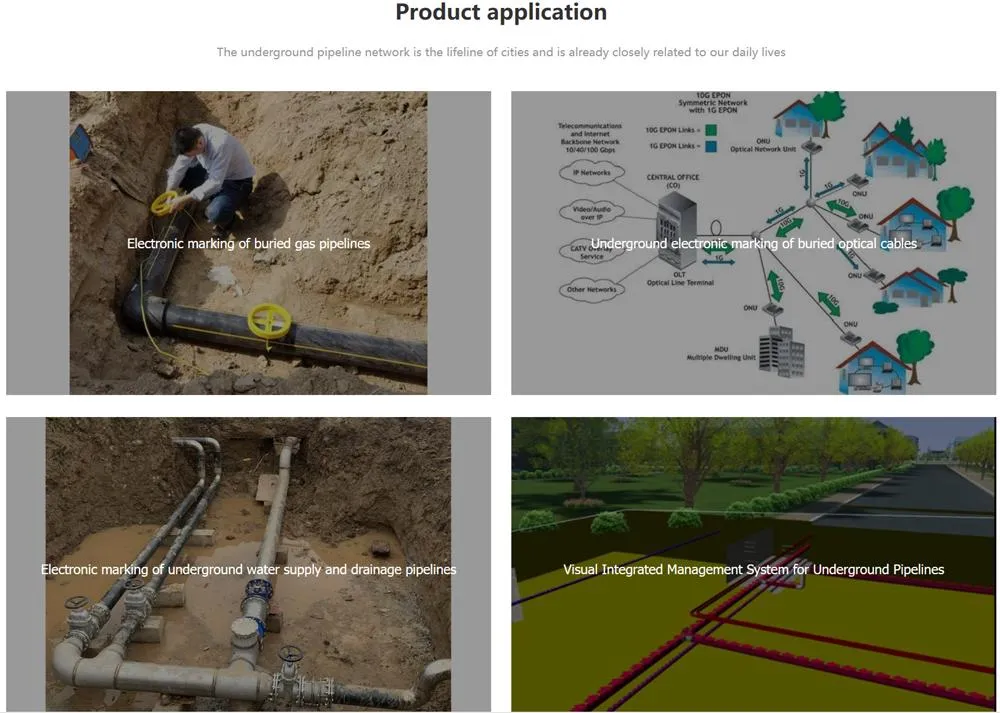

2.APPLICATIONS
HX-EM1500 can be installed at a certain interval, or at the turning of changing trend and at some event points, such as connection points, valves, well covers, T-shaped branches, etc. According to the project importance and project budget, the instralling density can vary from several meters to tens of meters, usually 10-20 meters. · Pipeline path · Nonmetallic pipe · Various valves· Metering meter · Various crossing points · Tee · Depth change · Pressure reducing device· Cathodic protection· Pressure control point · Embedded reserved port · Various elbows · Pipe diameter change · Water well · Cover · Maintenance point...
3. FEATURES
4.Internal Structure
5.Product packaging diagram
2.APPLICATIONS
HX-EM1500 can be installed at a certain interval, or at the turning of changing trend and at some event points, such as connection points, valves, well covers, T-shaped branches, etc. According to the project importance and project budget, the instralling density can vary from several meters to tens of meters, usually 10-20 meters. · Pipeline path · Nonmetallic pipe · Various valves· Metering meter · Various crossing points · Tee · Depth change · Pressure reducing device· Cathodic protection· Pressure control point · Embedded reserved port · Various elbows · Pipe diameter change · Water well · Cover · Maintenance point...
3. FEATURES
4.Internal Structure
5.Product packaging diagram
Preview

Preview

Preview
6.Installing The Marker
· Place the marker on nonmetal cable · Place a minimum of 4 inches (10 cm) of fill dirt over the cable with metal (Including shielded cable, Coaxial cable etc.)
· Place the marker on nonmetal cable · Place a minimum of 4 inches (10 cm) of fill dirt over the cable with metal (Including shielded cable, Coaxial cable etc.)
Preview

Preview
证书
标题:TUV CE

Preview
用于卫生污水管道定位的121.6kHz地下标识电子球标
¥79.64 ~ ¥159.28
消费电子产业链 · 电缆零件 · 电缆标记
型号HX-EM1500-121-ID
产地深圳
