Motexo Vent--

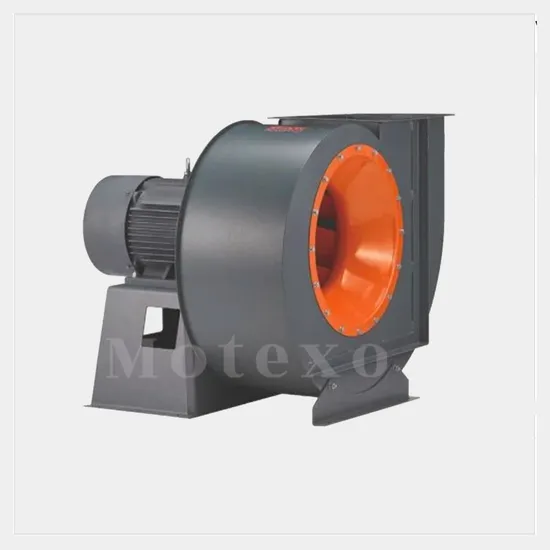

HEAVY DUTY CENTRIFUGAL FANS
APPLICATIONS
MTX-KLT series centrifugal fan is generally used for factories and large buildings ventilation,
it also can be used as gas input or output.
GENERAL SPECIFICATIONS
The model KLT fan can transport air or other non-spontaneous combustion,
and gas that is non-explosive, harmless to the human body, no corrosion for the steel.Sticky material should not be included in the gas, containing dust and hard particles shouldn't
be greater than 150mg / m3, gas temperature shall not exceed 80 ºC.
When you want to use this series of fans to transport the gas that is flammable, explosive,
corrosive or temperature over 80 ºC, we are designed and manufactured for you before your order.
Driven Type: Direct driven,belt driven,coupling driven.
Optional Accessories: Inlet silencer or outlet silencer,flexible connecter,air shutter.
You can click
below link to select outlet angle that meet your demands.https://motexco.en.made-in-china.com
AIRFLOW
SWSI FANS - UP TO 900,000 CFM (1,529,100 M3/HOUR)
DWDI FANS - UP TO 1,500,000 CFM (2,548,500 M3/HOUR)
STATIC PRESSURE
SINGLE-STAGE FANS
- UP TO 120 INCHES W.G. (29,850 PA)
TWO-STAGE FANS
- UP TO 240 INCHES W.G. (59,650 PA)
TEMPERATURE RANGE:
UP TO 1,500°F (815°C)
MOTOR SIZES:
UP TO 15,000 HP (11,185 KW)
ARRANGEMENTS:
1, 3, 7, 8
FAN CONSTRUCTIONS

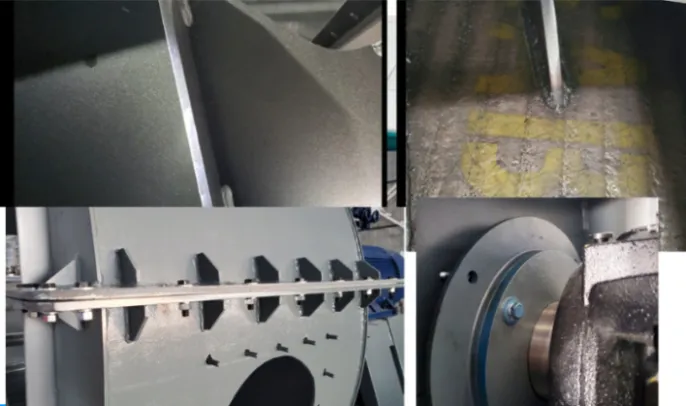

FAN CASING
The casing is formed from the Q235 steel sheet to stainless steel SS316 or 304 with integral supports.The grey/red/white/orange paint finish is applied after production, optional hot dip galvanization,
furnace paint or epoxy paint is available. On fan casing there is Aerodynmical round Inlet

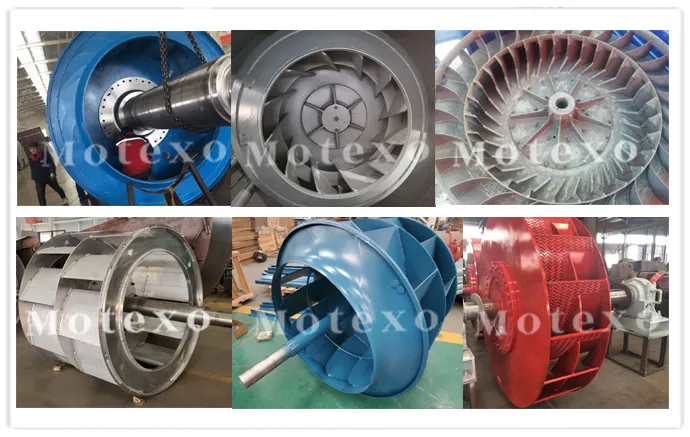

IMPELLER
Impellers are produced from Q235 Steel Sheet,stainless steel, ZAlSi7Mn Aluminium or FRP.
Static and dynamic vibration defects recovered after production according to appropriate ISO norm.
Static and dynamic vibration defects recovered after production according to appropriate ISO norm.WHEEL SIZES
:
UP TO 160 INCHES (4,065 MM)
UP TO 160 INCHES (4,065 MM)

DRIVEN TYPEDirect driven,belt driven,coupling driven.
OPTIONAL ACCESSORIES
Inlet silencer or outlet silencer,flexible connecter,air shutter.

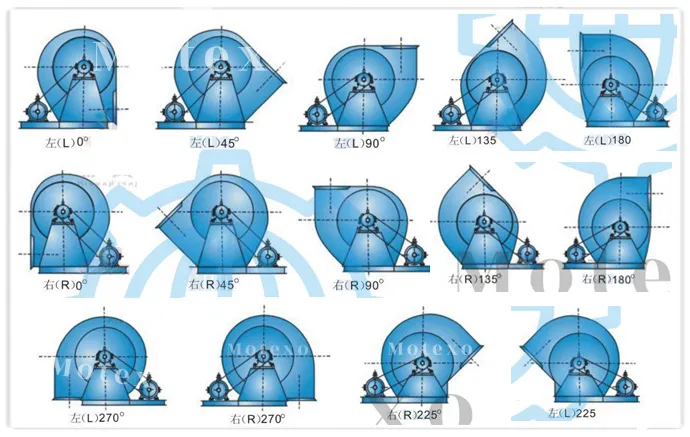

OUTLET ANGLE
You can check below to select outlet angle that meet your demands.

View more details and technical sheet of our centrifugal fan ,kindly please contact
us
to get latest catalog.
Inlet silencer or outlet silencer,flexible connecter,air shutter.OUTLET ANGLE
You can check below to select outlet angle that meet your demands.View more details and technical sheet of our centrifugal fan ,kindly please contact
us
to get latest catalog.
PRODUCTION DETAILS

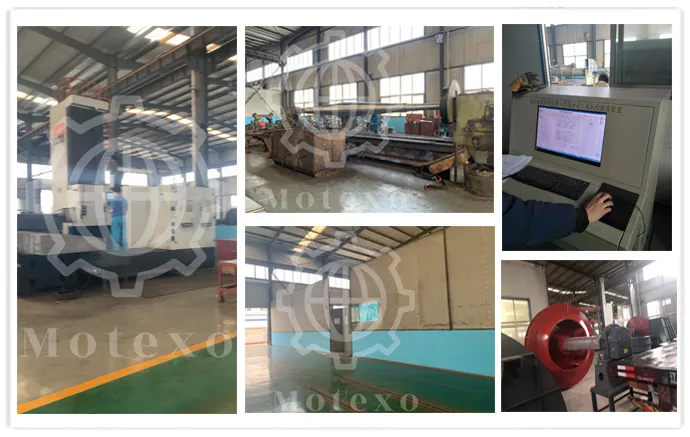

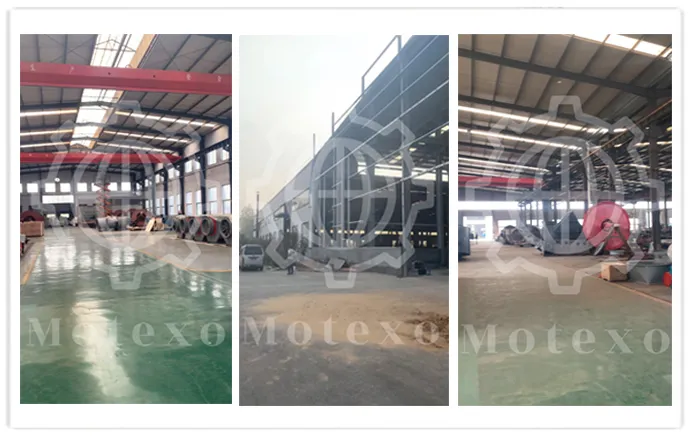

PRODUCTION WORKSHOP
Motexo Fan
manufacture 300 series and more than 1,400 kinds of industrial fans.All include heavy-duty designs for industrial applications.
We have individual workshop for roots blower,centrifugal fans&blowers,
maintaining,axial fan,welding and
assembling.

Motexo Fan
manufacture 300 series and more than 1,400 kinds of industrial fans.All include heavy-duty designs for industrial applications. We have individual workshop for roots blower,centrifugal fans&blowers,
maintaining,axial fan,welding and
assembling.

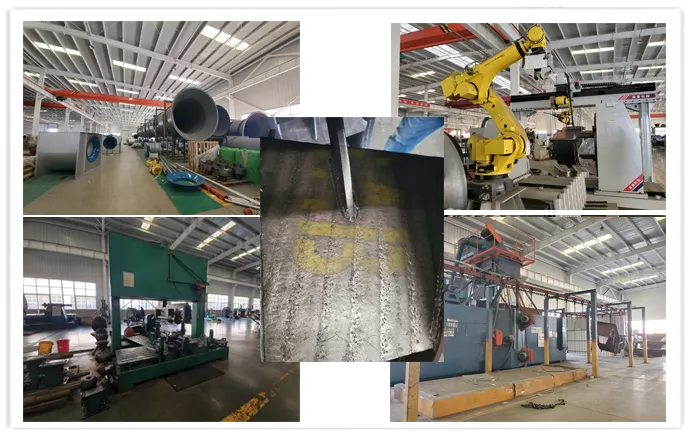

PRODUCTION&TESTING EQUIPMENT
Not only we can produce large batch of small fan, we have processing
capability to produce heavy
duty fans like above 3.5m high.We adopt the best technology in all aspects of industrial fan,

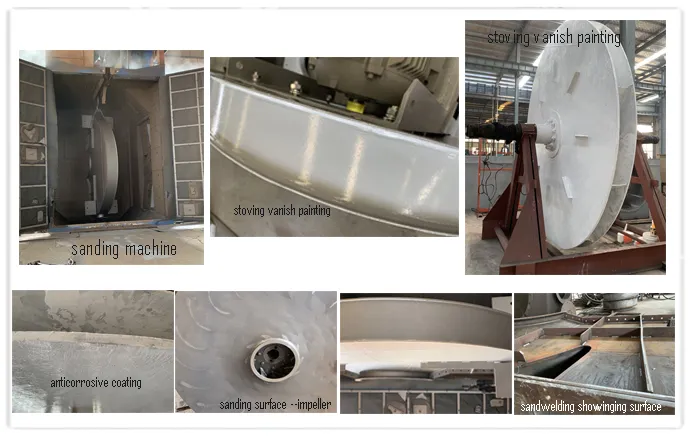

such as shot blasting, sand blasting, all the paint process, welding process, etc.Stoving vanish looks brighter than water paint( ordinary painting color).It has more than 200 sets of fine,
large and rare processing equipment, and has a high-tech resin sand casting production line.Our equipment is generally used for power plants, environmental protection plants, coal plants, and so on.It requires high technology and workmanship.

CUSTOMER CASES
Centrifugal Blower Fan Environmental Project Worldwide
We've been working with many project in Uganda,Indonesia, Myanmar,Peru,Pakistan and
other countries for sewage treatment project,Steel plant boiler drafting project,
Hydro Electric Power Plant and tunnel&mining project.We understand the harsh environments in which fans are used.Motexo fans will meet and exceed the demands of your industry engineering,
infrastruction project, mining/tunnel project and other environment project.

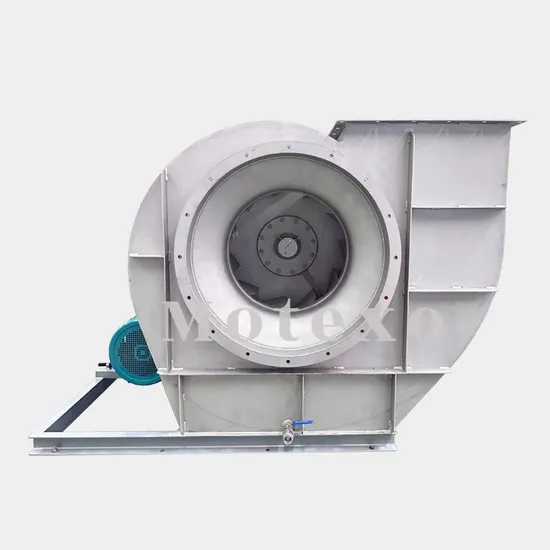

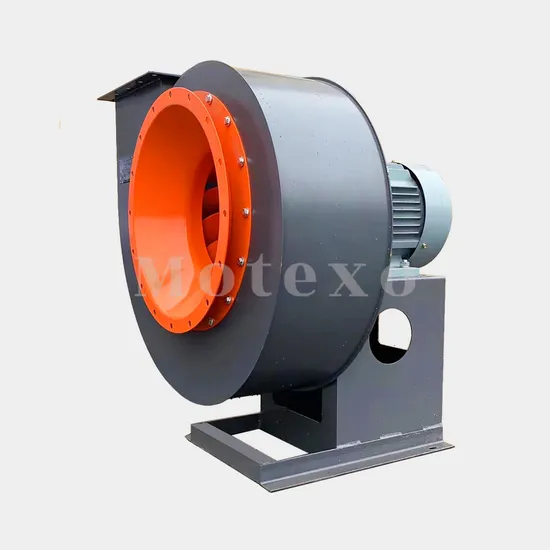

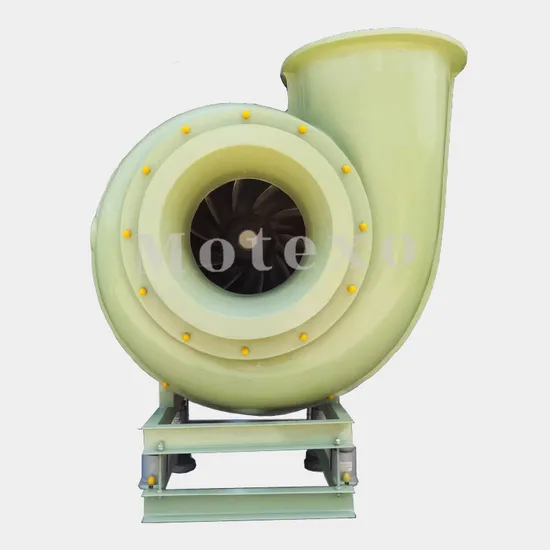

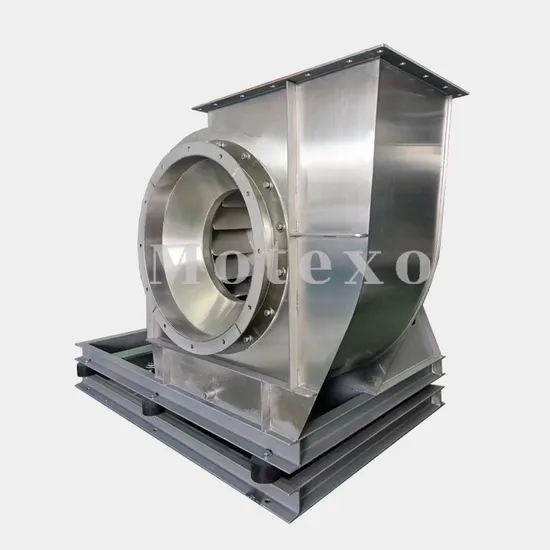

Centrifugal Fan

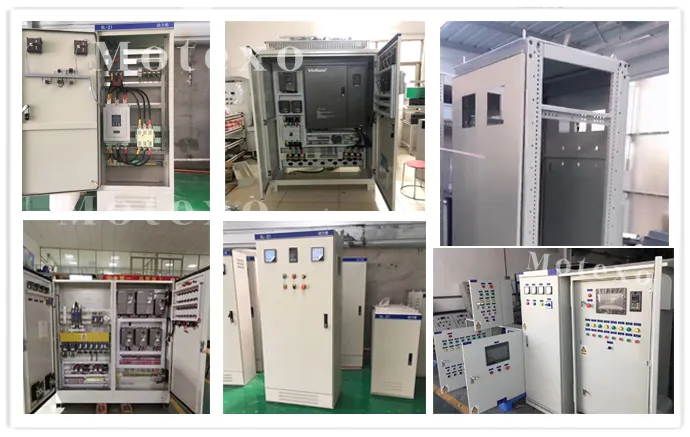

Equiped with Frequency Control Panel/Soft Starter

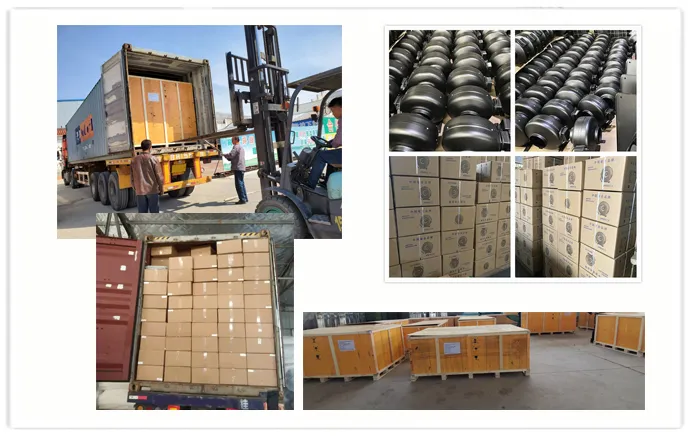

DELIVERY & PACKAGE WORLDWIDE
For
diverse
requirements for customers or fans and blowers, we have three methods available
Wooden box, wooden palisade and paper carton.All package are passing international exported standard.
