Deep Burnt Ladle Flow Control CS80 Slide Gate Plate for Steel Making

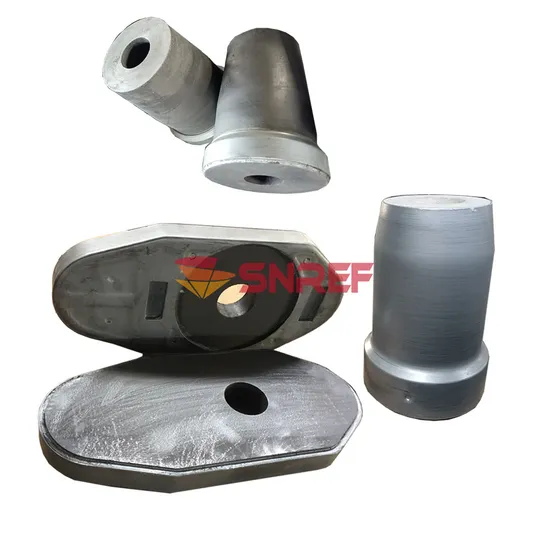

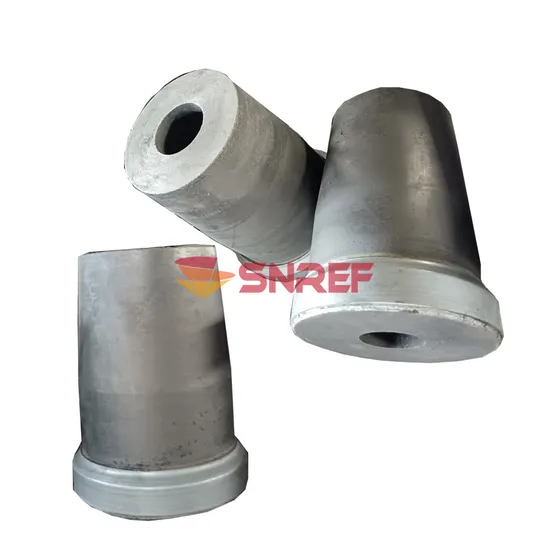

Feature of SNREF slide gate plate, nozzle and well block:
1.Excellent thermal stability
2.High temperature strength
3.Resistance to molten metal and slag
4.Consistency in shape and size
5.Ability to sustain mechanical treatment without detriment to the surface integrity

Deep Burnt Ladle Flow Control CS60 CS80 Slide Gate Plate for Steel Making:
Adopting tabular corundum, fused alumina, fused alumina zirconia, zirconium mullite as raw materials, through the addition of moderate micro and fine metal powder, by reaction under high temperature, to increase the high temperature performance of plates. Through the adding of moderate boron carbide powder to increase the oxidation resistance of plates. The bonding agent is phenolic resin with high solid content and high carbon residue.

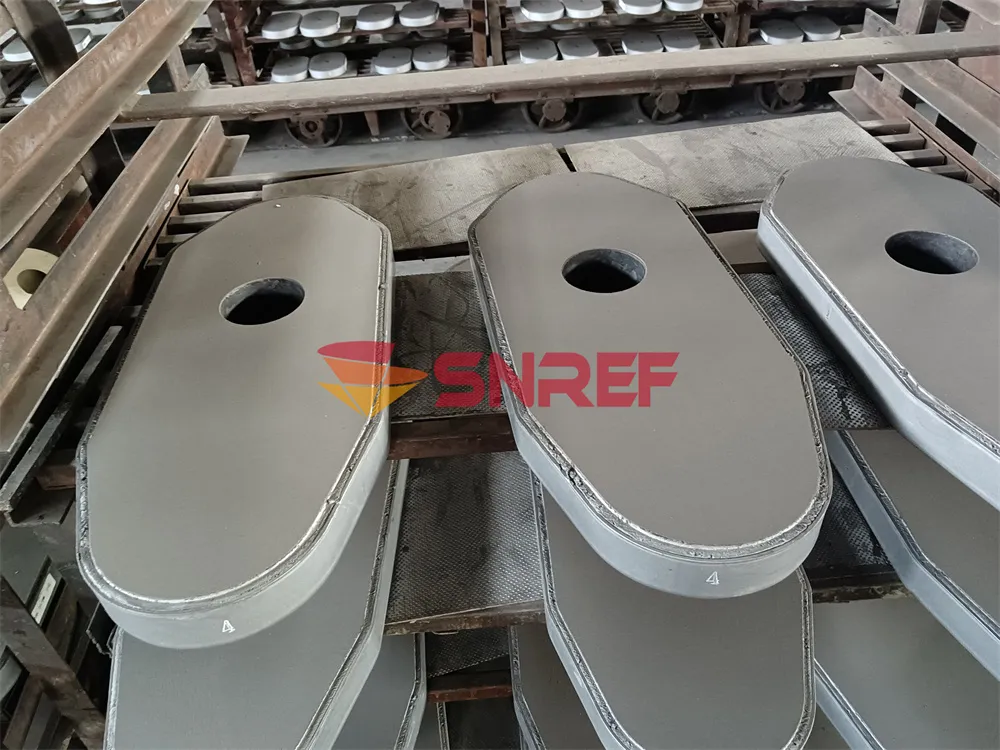

After forming, adopting advanced heating treatment technology, through impregnating, burning to form high performance slide plates. With features of good thermal stability, excellent erosion resistance, stable consistency in shape and size, mainly suitable for ladles over 180 tons or converter slagging slide gate systems.

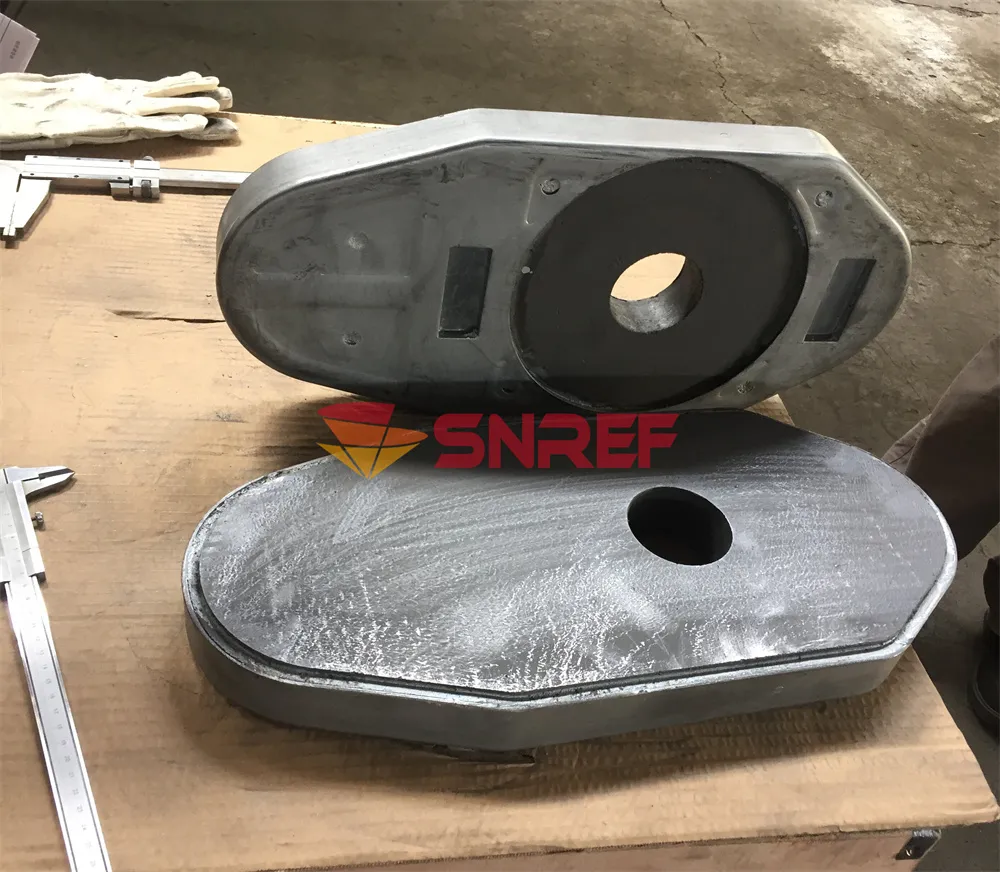

Special Design with Zirconia Insert Plate:

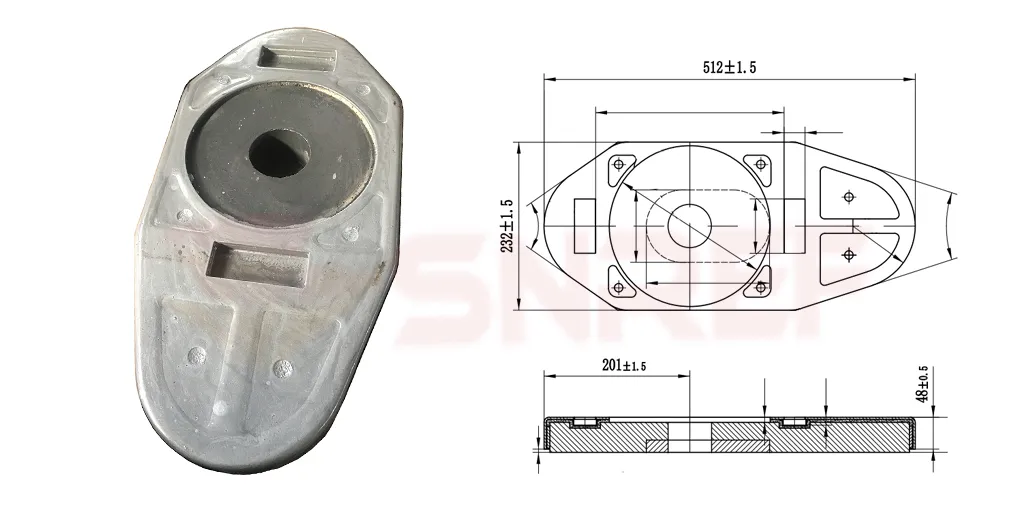

Drawings

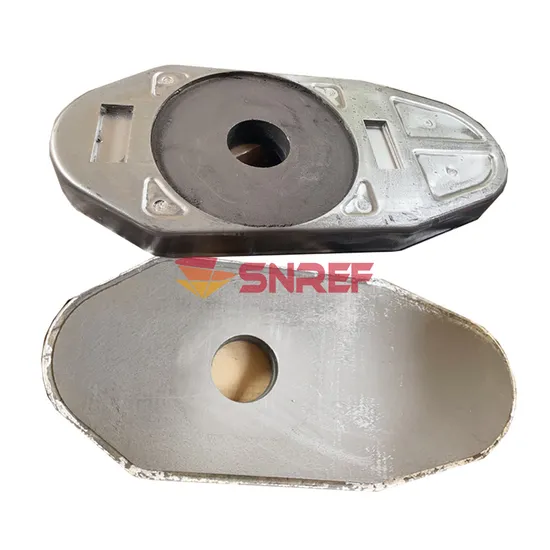

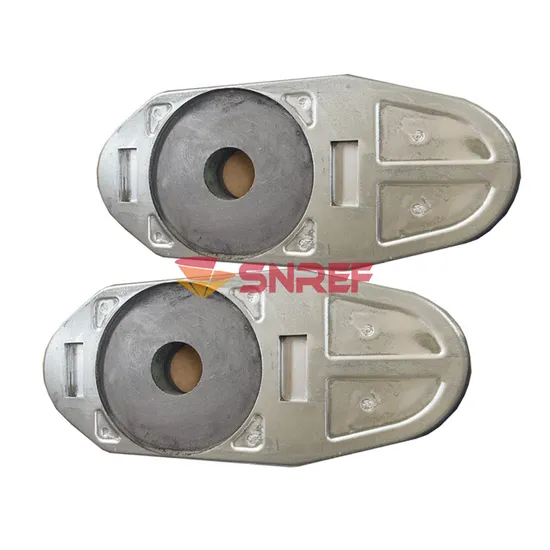

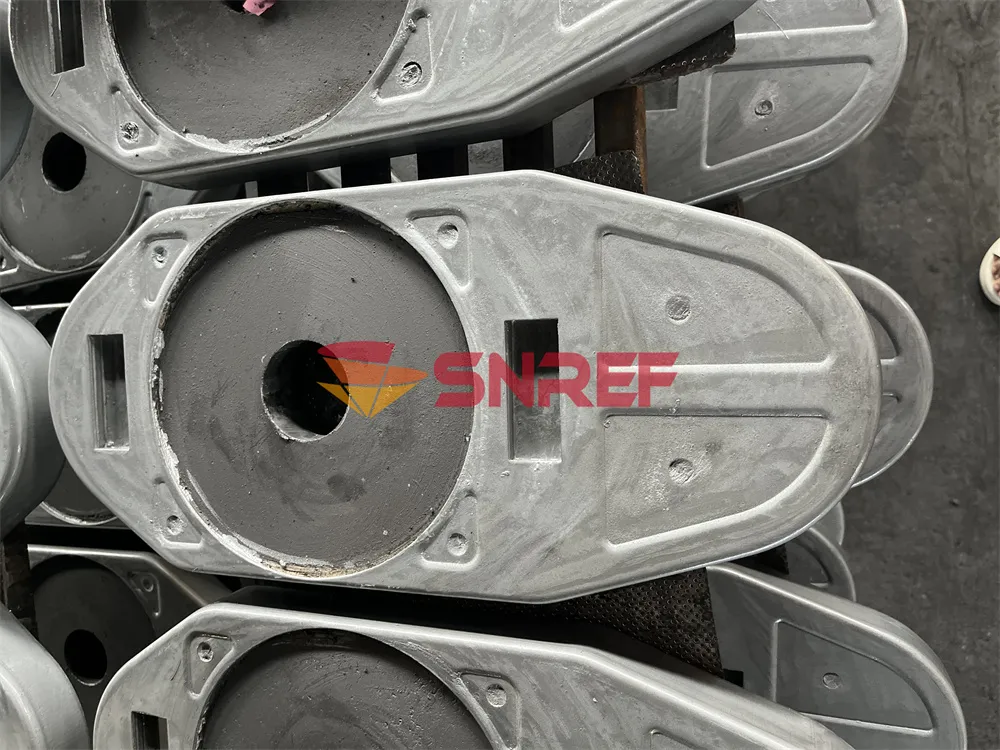

CS80 Slide Gate Plate
CS80 Slide Gate Plate
for your reference, will do the customization according to your drawings, steel making condition etc.

Product Parameters

Shandong Sinorefractory New Materials Co.,Ltd (SinoRefractory)has been focusing on international marketing of flow control refractories in iron and steel industry for 17 years.SinoRefractory is the second generation of refractories export enterprise developed out of EMEI Group.Supported by one of China's largest production bases in functional refractory materials.Through years of development in the field of exporting top quality refractories to worldwide markets,SinoRefractory aims at researching,producing,marketing and exporting high standard Ladle slide gate plate,Ladle Nozzles,Well blocks,Purging plugs,Nozzle stuffing sand,Refractory castables, Slide gate Mechanisms etc.Up to now,SinoRefractory has supplied high quality refractory products and services to nearly 70 top-hundred global steel enterprises.SinoRefractory will always put clients'interest in the first place,striving to provide a wide range of services,including technical solution,pre-sales support,after-sales services,installation team support,professional know-how according to the changing of steelmaking condition,etc.We are not only selling products,we are more focused on supporting,developing and growing together with clients.

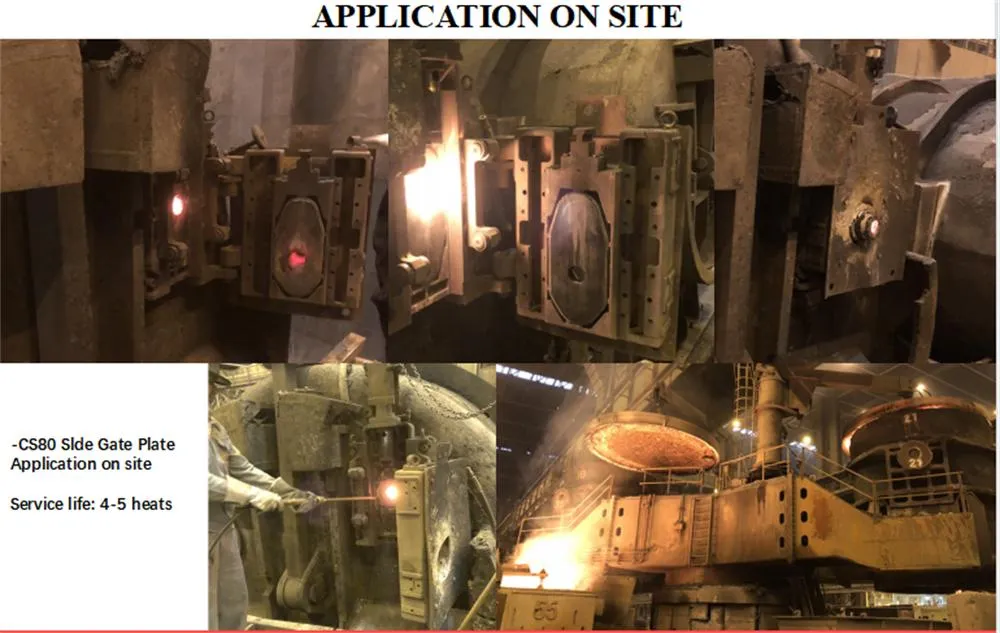

Application
Service Result for SNREF Deep Burnt Ladle Flow Control CS60 CS80 Slide Gate Plate for Steel Making:
Also service result of slide gate plate depends on so many condition of steel plants. the above is just for your reference.

Below are some FAQ and answers about ladle and tundish flow control refractories:
Q: What are the requirements for refractories for ladle?
A: The requirements of refractories for ladle mainly include:
* high temperature resistance
* thermal shock resistance
* resistance to the erosion of the slag
* high temperature with sufficient mechanical strength
* the lining has a certain degree of expansion
Q:What are the reasons for the destruction of refractories for ladle?
A: The main causes of damage are as follows:
When the ladle transports high-temperature molten steel, the high-temperature molten steel and slag at about 1680ºC scour and erode it, especially in the slag line part, the scouring and erosion is more serious, and it is an important factor to decide the service life of the ladle.LF and other extra-oven refining treatment on the unburnt brick damage is serious.Q:What steel grades are different materials of slide plate bricks suitable for respectively?
A: Different materials of slide plate bricks are applicable to different steel grades. For example,
Al2O3-ZrO2-C slide gate plate can be used as ladle sliding gate plate due to its excellent erosion resistance and thermal shock stability, which can adapt to the casting of various steel grades, and ther are the following materilas based on customer's steel making condition: the MgO-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, and so on.For more details, feel free to send inquiry to us.
