Oxygen Humidifier Bottle/Nasal Oxygen Cannula/Nebulizer Kit
Details:
Components: oxygen humidifier bottle, nasal oxygen cannula, and nebulizer kit

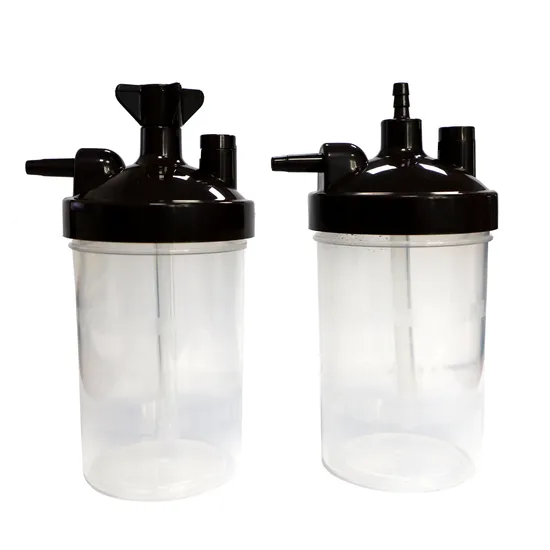

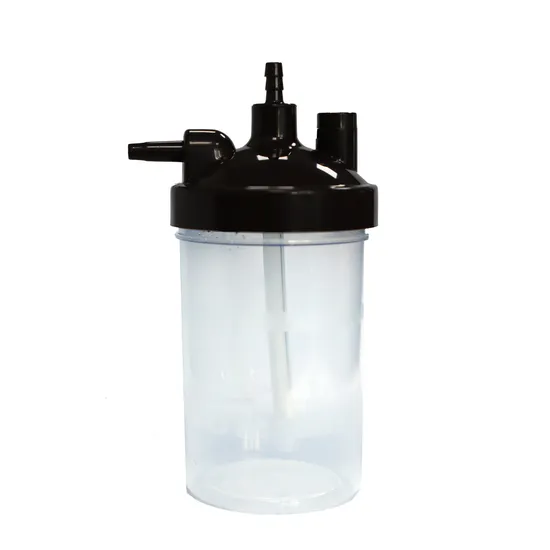

Oxygen humidifier bottle
Oxygen humidifiers are used to help humidify the Oxygen or Medical Air administered to the patient through respiratory tubes. The bubble humidifier is indicated for use with oxygen concentrator or gas sources in homecare, hospital, extended care facilities and hospice environment.Don't use on more than one person.

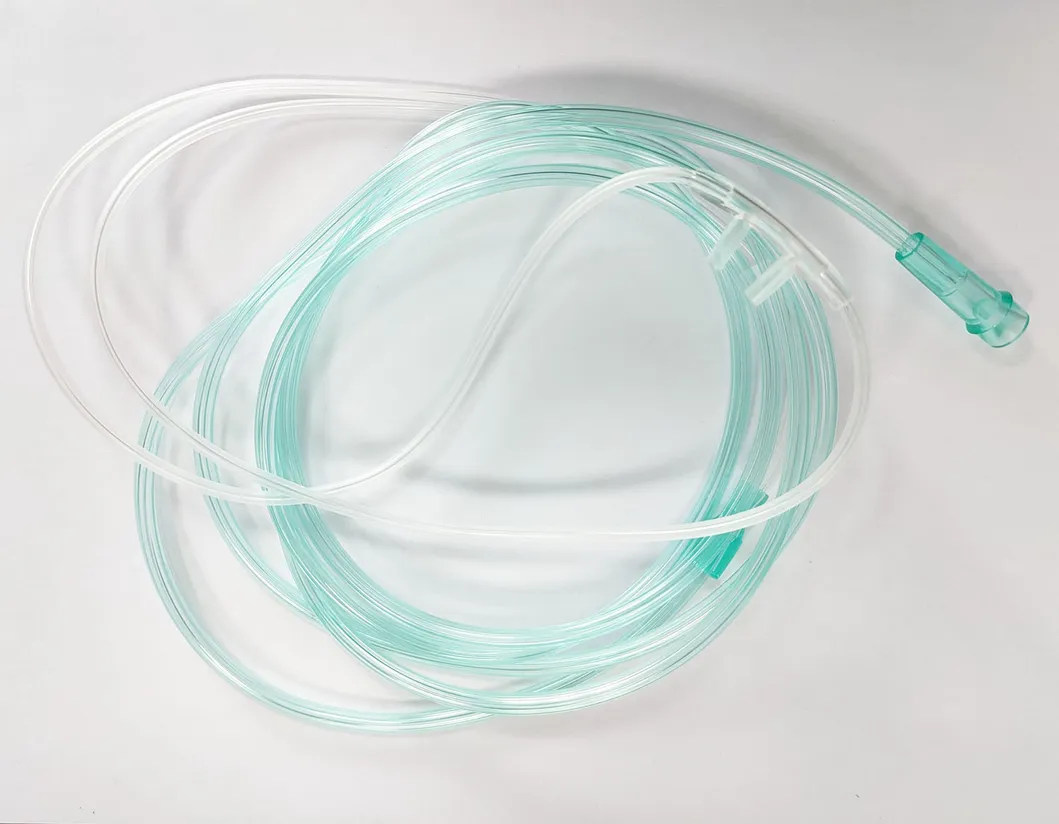

Nasal oxygen cannula
Attach the oxygen supply tubing to the gas source and set the oxygen to the prescribed flow.Check for gas flow throughout the device.Insert the nasal tips into the nostrils with the two plastic tubes over the ears and under the chin.Gently adjust the plastic slide until the cannula is secure.
NOTE: Nasal tips may be trimmed with scissors to fit smaller patients

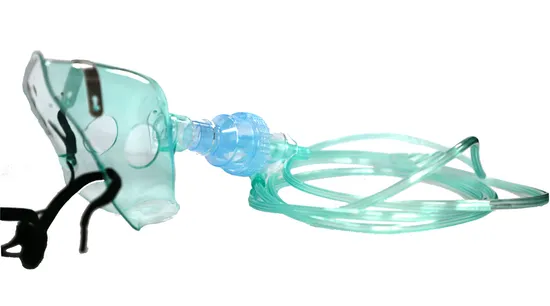

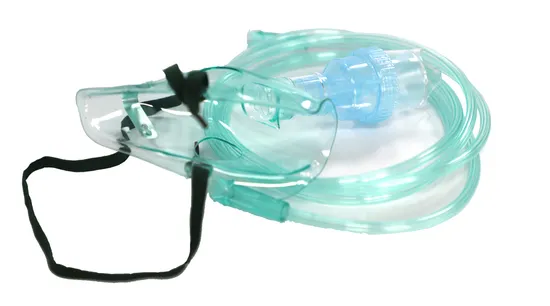

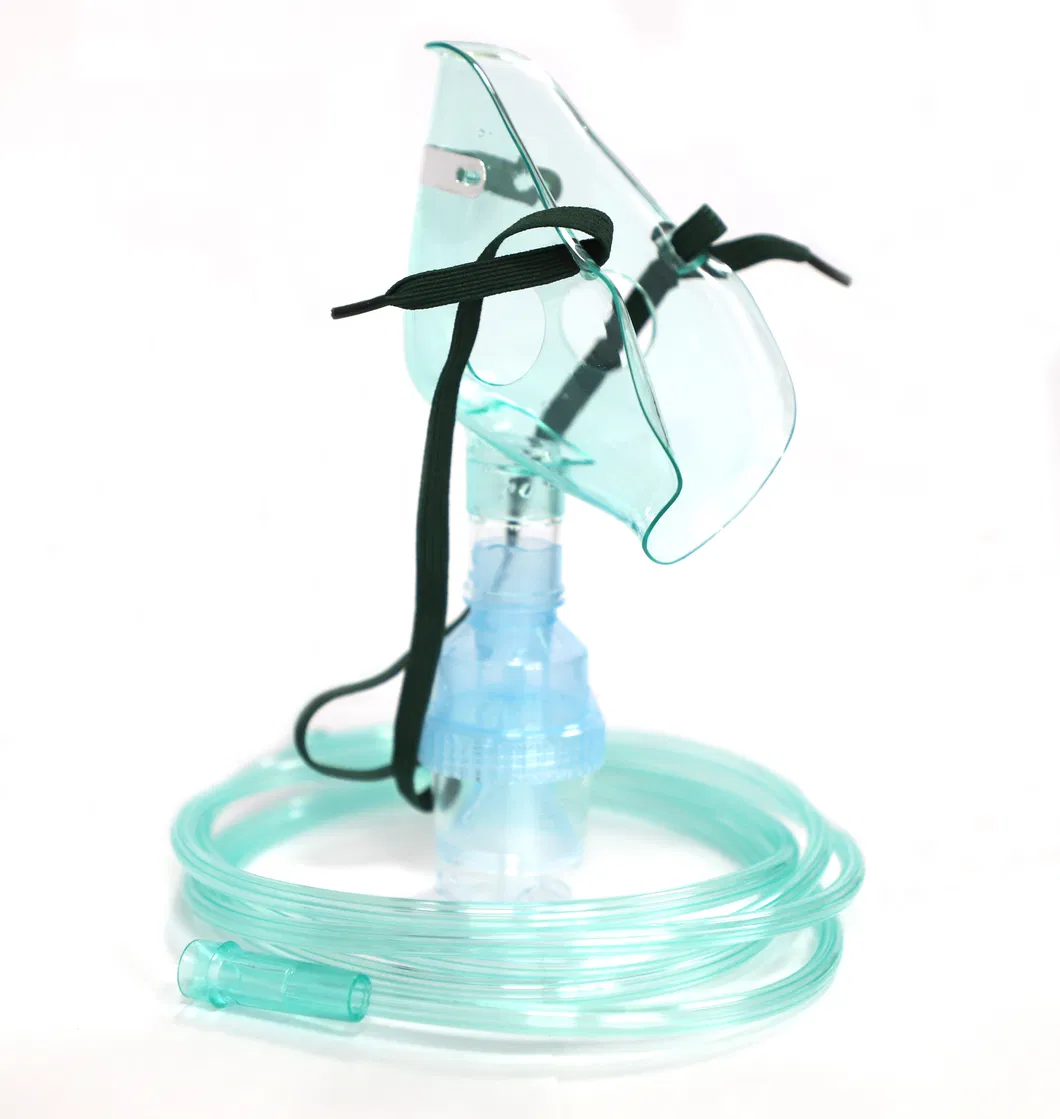

Nebulizer kit
Components: nebulization core, medicine cup, 2m oxygen tube, mouthpiece or mask and elastic cord

Technical Specifications
CautionsOxygen humidifier bottle
Fill the humidified bottle with water, pay attention that the water level must not be lower than 1/3 of the minimum water level line, and must not exceed the maximum water level line (2/3).
It is recommended to add warm water not exceeding 32 ° C in winter.
Be sure to add distilled water or purified water, because bacteria or mold propagation in ordinary tap water may cause respiratory infections in users.Please insist to change the water in the bottle at least once a day.Make sure that the bottle cap is tightened tightly after each water change, to avoid the leakage of oxygen which will reduce the amount of oxygen at the oxygen-absorbing end.After the humidification bottle is installed, the bottle should not be tilted more than 15 degrees. Do not move the bottle holder up and down at will to prevent water from entering the nasal oxygen tube.Long-term use without a humidifier bottle may cause the user's respiratory tract to become dry and uncomfortable.When there is no water in the humidification bottle, be sure to replenish it immediately. It is forbidden to fill the humidification bottle with water within 1 meter near the oxygen concentrator, so as to avoid water damage to the machine due to circuit damage.
When connecting the nasal cannula to the o2
outlet of the humidification bottle, make sure that the connection is secure, and it is not easy to fall off even if pulled.Nasal cannula is disposable and should be replaced every day. Repeated long-term use of the same nasal cannula may breed bacteria or mold and cause respiratory infections in users.If the user cannot feel the oxygen in the nasal cannula, plunge the end of the nasal cannula into a cup of pure water and observe whether there are bubbles. If not, please confirm whether the nasal cannula has been folded, squeezed or blocked Or fall off from the humidification bottle.When inserting the end of the nasal cannula into the nostril, the abrupt direction should be upward (as shown on the right) to fix the two nostrils and improve the comfort.If the nasal cannula needs to be worn for a long time, it may cause skin friction and irritation. Use a medical tape to hold the nasal cannula near the ear. (As shown below)
This product does not provide aerosolized drugs, and please purchase and use aerosolized drugs under the guidance of a doctor.Dosage and spray time should be used according to the guidance of doctors or professionals.Oxygen production and atomization can be turned on at the same time, but it is not recommended to use oxygen absorption and atomization at the same time.When connecting the nebulizing tube to the nebulizing air outlet, make sure that the connection is secure, and it is not easy to fall off even if it is pulled.The nebulizer components are disposable and should be replaced frequently. Repeated long-term use of the same package of nebulizer components may breed bacteria or mold and cause respiratory infections in users.If the user cannot see the medicine being atomized, please confirm whether the NEBULIZE button is turned on and check whether the nebulizer tube has been folded, squeezed, blocked or detached from the nebulizer outlet.When putting the nebulizer mask on the face, please make sure that the nose is completely surrounded by the mask and in the center position.Select a suitable nebulizer mask and adjust the tightness of the headband to ensure the comfort of the mask and its tightness with the skin.
