基本信息
| 型号 | 10升、20升、30升、50升、80升、120升、240升、360升和480升。 |
| 条件 | 新（的） |
| 噪音水平 | 低 |
| 部分 | 氮气压缩机/过滤器/净化/液化 |
| 目的 | 液氮生成/气态氮液化 |
| 使用说明 | 氮气、液氮 |
| 保修 | 三年 |
| 特征 | 一键智能控制 |
| 噪音 | <70dba |
| 液氮纯度 | 百分之九十九点九九九 |
| 重量 | 200至1000公斤 |
| 功率消耗 | 1.5千瓦 |
| 工作压力 | 1-6bar，7-150bar可定制 |
| 福玛轮（通用轮） | 带通用锁轮的装置 |
| 售后服务 | 在线视频技术支持/终身配件支持 |
| 机器尺寸 | 小型/集成式滑架式安装 |
| 交通包裹 | 木箱 |
| 规格 | 滑行装置安装式/可定制 |
| 商标 | 沃博集团 |
| 起源 | 中国 |
| 商品编码 | 8419609090 |
| 生产能力 | 每月一千单位 |
| 包装尺寸 | 50.00厘米×50.00厘米×100.00厘米 |
| 包装总重量 | 50000千克 |
| 包装尺寸 | 50.00厘米*50.00厘米*100.00厘米 |
| 包装总重量 | 五十万公斤 |
产品详情
PSA Liquid Nitrogen Generator / Liquid Nitrogen Making Plant /
Liquid Nitrogen Machine:
Liquid Nitrogen Machine:
Preview
Product Description
Preview

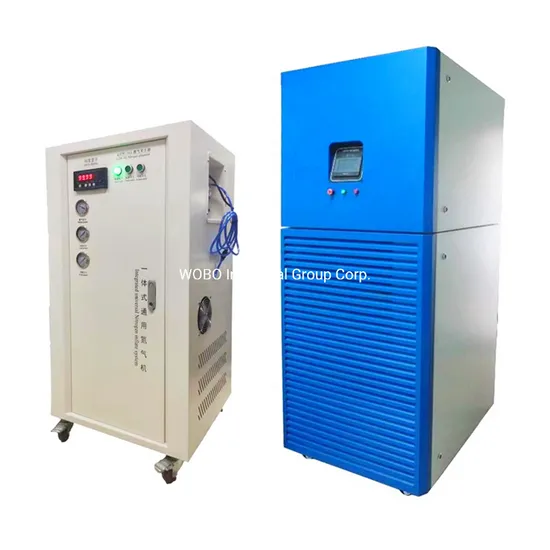

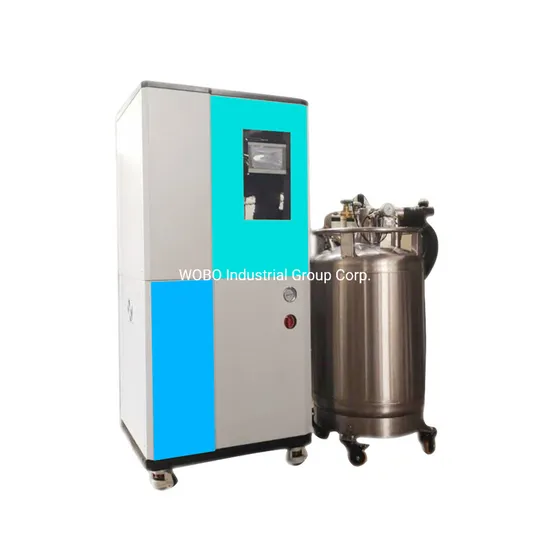

Small Liqulid Nitrogen Generator
Preview
Preview

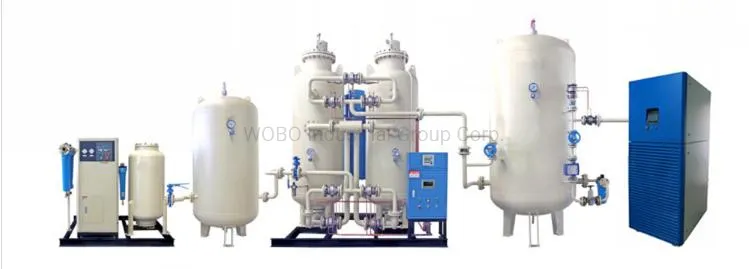

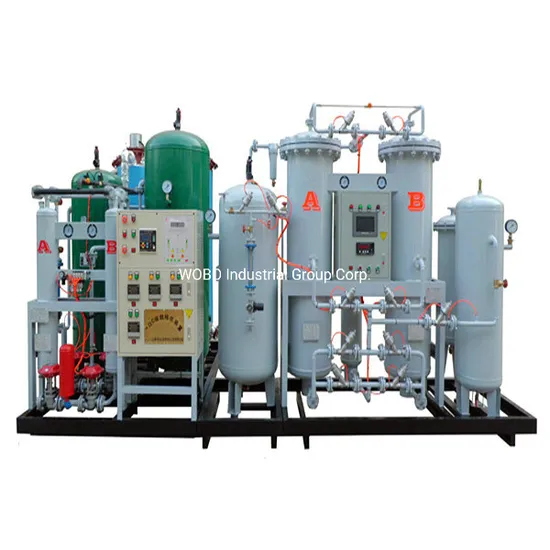

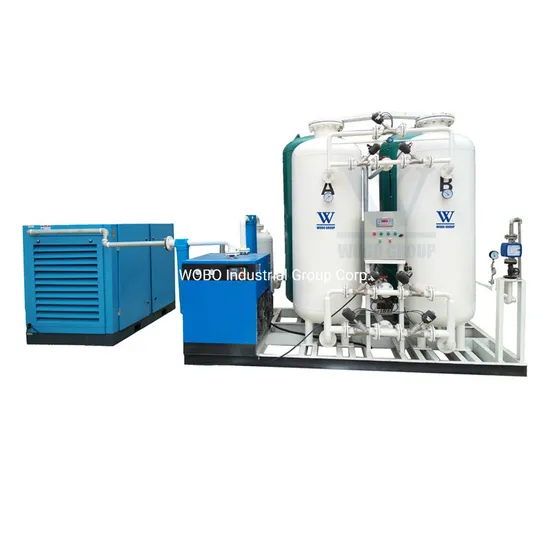

PSA Large Liquid Nitrogen Plant
Features Of Liquid Nitrogen Generator:
1. Capacity from 2L/Day to 50L/H. Meet all your requirements.
2. Low power consumption.
3. Automatic operate. One key start.
4. Small floor space.
5. Durable. Can work 24 hours per day.

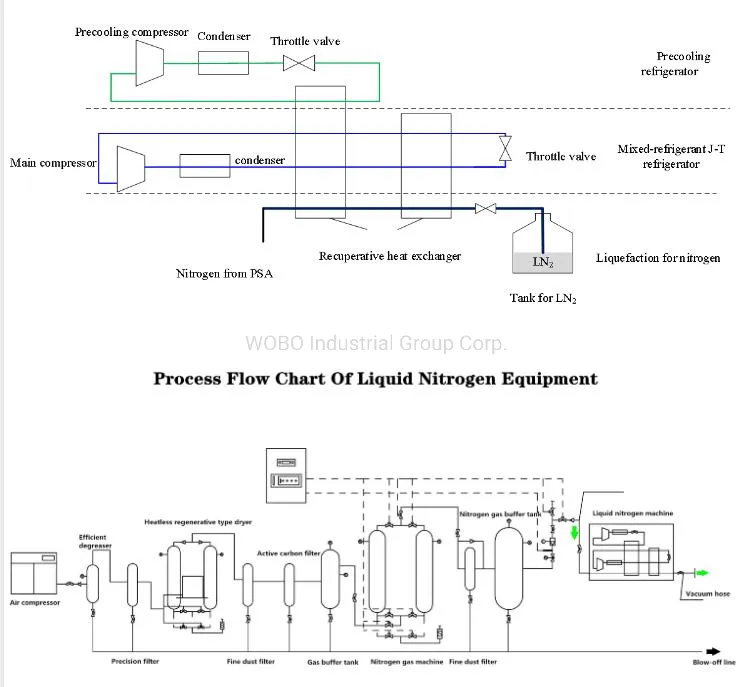

6. One station of liquid nitrogen generator manufacture. ( we supply liquid nitrogen generator, vacuum tube and liquid nitrogen dewar.)Liquid Nitrogen Generator Working Principle:
Mixed-refrigerant Joule-Thomson (MRJT) refrigerator at low temperature ranges driven by single compressor with precooling is applied to liquefy nitrogen (-180ºC) for Nitrogen Liquefier from TIPC, CAS. MRJT, a Joule-Thomson cycle based on reoccupation and multicomponent mixed-refrigerants through optimizing various refrigerants with different boiling points with a good match along with their respective efficient refrigeration temperature ranges, is an efficient refrigerator for the temperature range from -40 to -196ºC. The feature of this product is as following: the available mature commercial compressors and heat exchanges, high liquefaction efficiency, high reliability, no maintenance and long life.
Features Of Liquid Nitrogen Generator:
1. Capacity from 2L/Day to 50L/H. Meet all your requirements.
2. Low power consumption.
3. Automatic operate. One key start.
4. Small floor space.
5. Durable. Can work 24 hours per day.
6. One station of liquid nitrogen generator manufacture. ( we supply liquid nitrogen generator, vacuum tube and liquid nitrogen dewar.)Liquid Nitrogen Generator Working Principle:
Mixed-refrigerant Joule-Thomson (MRJT) refrigerator at low temperature ranges driven by single compressor with precooling is applied to liquefy nitrogen (-180ºC) for Nitrogen Liquefier from TIPC, CAS. MRJT, a Joule-Thomson cycle based on reoccupation and multicomponent mixed-refrigerants through optimizing various refrigerants with different boiling points with a good match along with their respective efficient refrigeration temperature ranges, is an efficient refrigerator for the temperature range from -40 to -196ºC. The feature of this product is as following: the available mature commercial compressors and heat exchanges, high liquefaction efficiency, high reliability, no maintenance and long life.
Preview
Preview

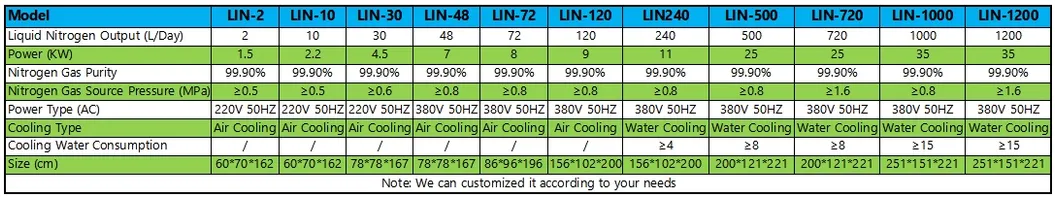

Product Parameters
Preview
Preview
Applications
Preview
Preview
Preview
Preview
Our Advantages
Preview
Preview
Preview
Solutions
Preview
FAQ
Preview
Q:What are the applications?
A:Applications:
a.Fish
boat,hotel and food processing plant:food quick-freezing,beverage processing;
b.Hospital and beauty salon:liquid nitrogen refrigerating apparatus,vaccine preservation;
c.Laboratory:transducer calibration,specimen preservation;
d.Farm:embryo freezing instrument,freezing spermatozoon etc.

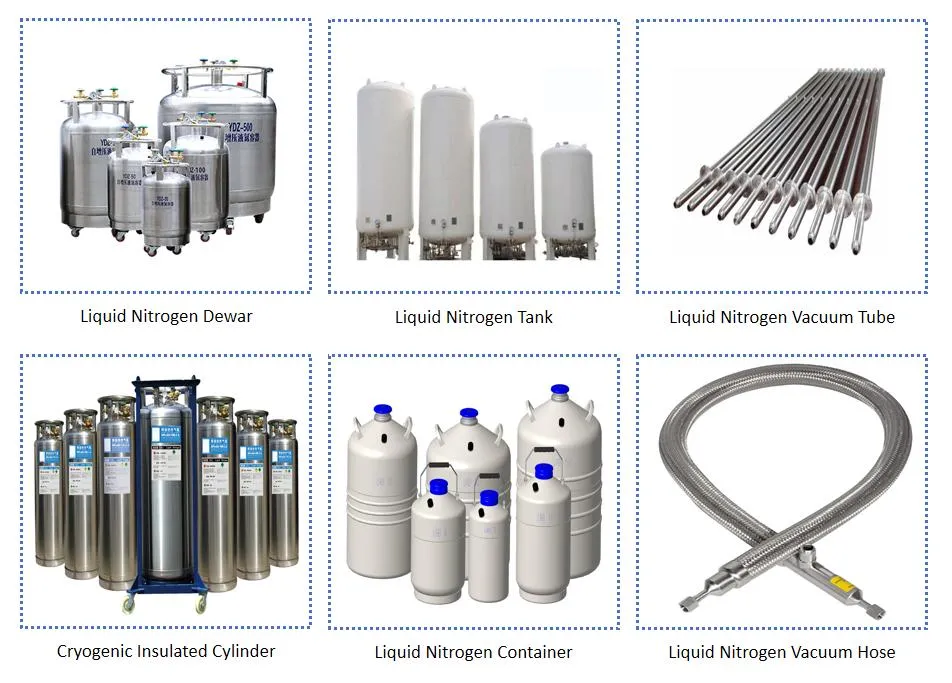

Related Products
A:Applications:
a.Fish
boat,hotel and food processing plant:food quick-freezing,beverage processing;
b.Hospital and beauty salon:liquid nitrogen refrigerating apparatus,vaccine preservation;
c.Laboratory:transducer calibration,specimen preservation;
d.Farm:embryo freezing instrument,freezing spermatozoon etc.
Related Products
Preview
Preview
