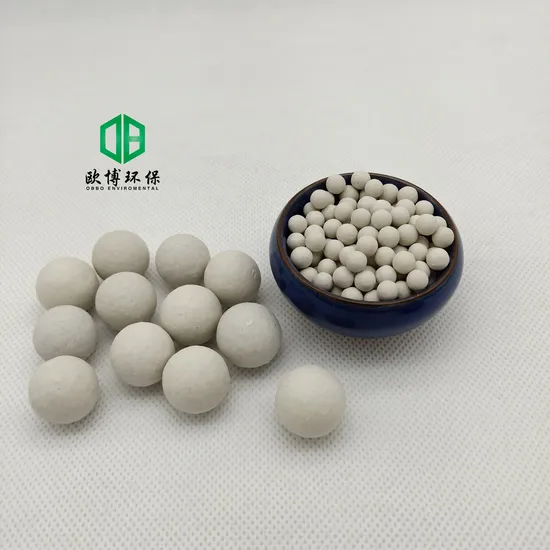

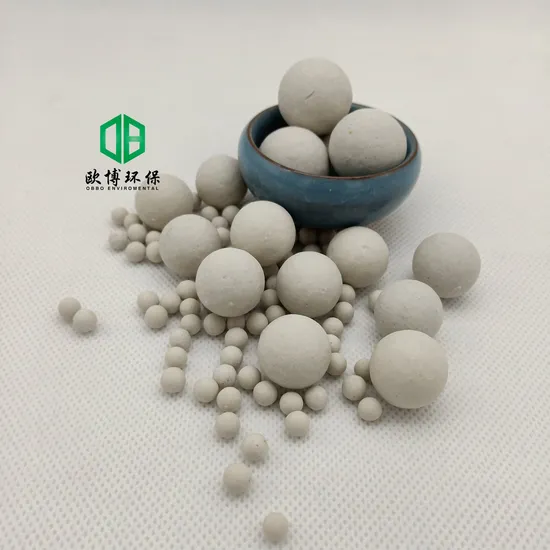

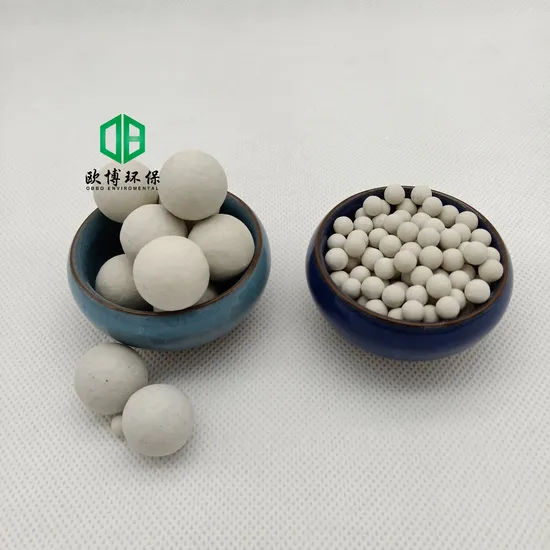

Inert ceramic balls (catalyst support ) are widely used as packing
for catalyst carriers worldwide due to their excellent stability and reliability. It is produced from high-quality chemical ceramic clay materials, which have good stability, high mechanical strength, and thermal shock resistance, making it their ideal choice to support all types of catalysts. It is widely used in industries such as petroleum, chemical, fertilizer, na-tural gas, and environmental protection as a covering and supporting material for catalysts in reactors and tower packing. It has the characteristics of high temperature and high pressure resistance, low water absorption, and stable chemical properties. Can withstand corrosion from acids, alkalis, and other organic solvents, and can withstand temperature changes that occur during the production process. Its main function is to increase the distribution point of gas or liquid, support and protect active catalysts with low strength.

Chemical composition:
Leach able Fe2O3
is less than 0.1%.
Physical composition:
Size & Crush strength:

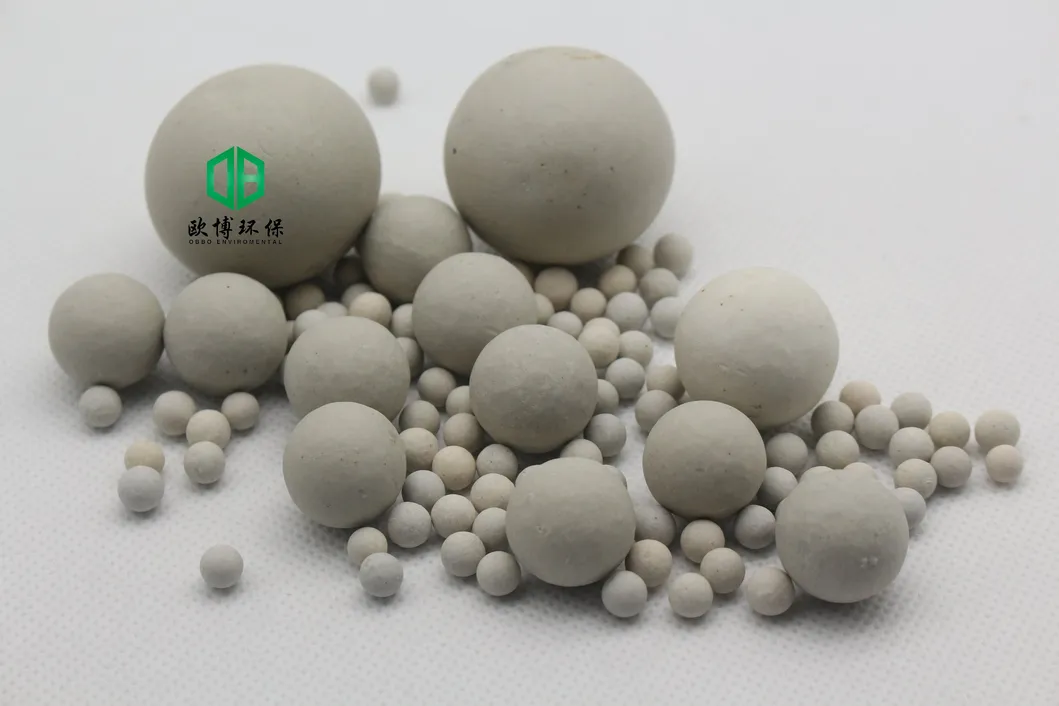

1.Inert alumina ceramic balls are a new type of high-strength, high porosity spherical support, covering, and protective filler for catalysts.2.High mechanical strength, high temperature resistance, oxidation resistance, wear resistance, strong acid and alkali chemical corrosion resistance, excellent resistance to rapid cooling and heating, and extremely low chemical activity. Containing a large amount of network needle like structure of mullite and corundum crystals, as well as some residual quartz, it is sintered tightly, has a hard texture, and does not pulverize.3.Specially possessing excellent chemical corrosion resistance: except for hy-drofluoric acid, it can withstand all inorganic and organic acids, as well as all acidic and neutral gases. Unless the product is contaminated with impurities in the raw gas or liquid and needs to be cleaned or replaced, it can be used as a catalyst cover, support agent, or protective agent in chemical process equipment. The product itself will not have any problems, ensuring its service life.Production process:
1. Formulate according to requirements such as water absorption, aluminum content, and strength, and then ball mill;
2.Produce mud strips for producing inert ceramic balls through a filter press and vacuum mechanism (ensuring appropriate moisture content during the process);
3.Accurately cut the clay strips (the size of the clay strips is equivalent to the specifications of the inert ceramic balls to be produced), and select the extrusion forming process to accurately shape them;

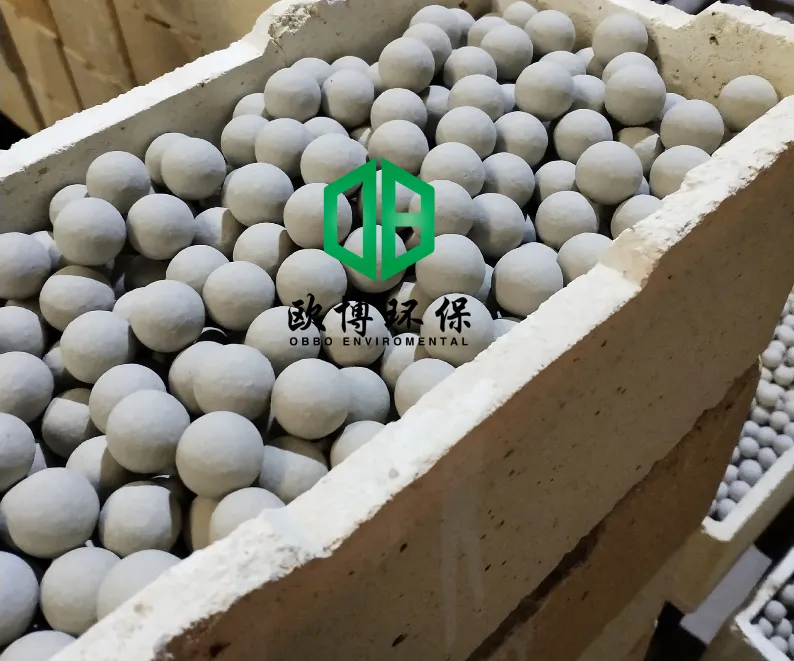

4.The semi-finished products are placed in the kiln after entering the drying room or naturally drying in the shade;
5.High temperature sintering of semi-finished inert ceramic balls;
6.Screening and packaging of finished products.

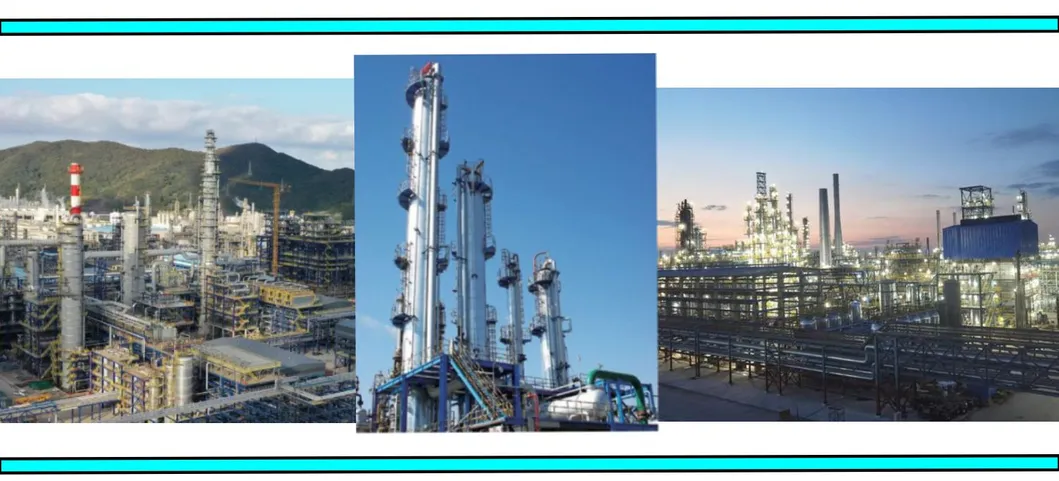

Mainly used in packed towers in industries such as refining, petrochemicals, fertilizers, me-thanol, coal chemicals, natural-gas chemicals, smelting, environmental protection, and fine chemicals
1. Me-thanol unit: oil tank, crude desulfurization tank, zinc oxide desulfurization tank, nap-hthalene removal tank, pre hydrogenation tank, primary hydrogenation tank, secondary hydrogenation tank, primary desulfurization tank, secondary desulfurization tank, me-thanol synthesis tower, etc.2. Medium temperature shift furnace, low-temperature shift furnace, me-thanol synthesis tower, desulfurization tank, and dehydrogenation reactor in the coal chemical alcohol am-monia co production project.3. Petrochemical: Aromatic extraction unit for ethylene engineering; Sulfur recovery acid, natural water stripping unit, etherification unit.4. There are also natural-gas drying adsorbers, full fraction oil hydrogenation units, synthetic am-monia shift furnaces, and flue gas acid production converters that require a large amount of inert alumina ceramic balls or perforated ceramic balls.

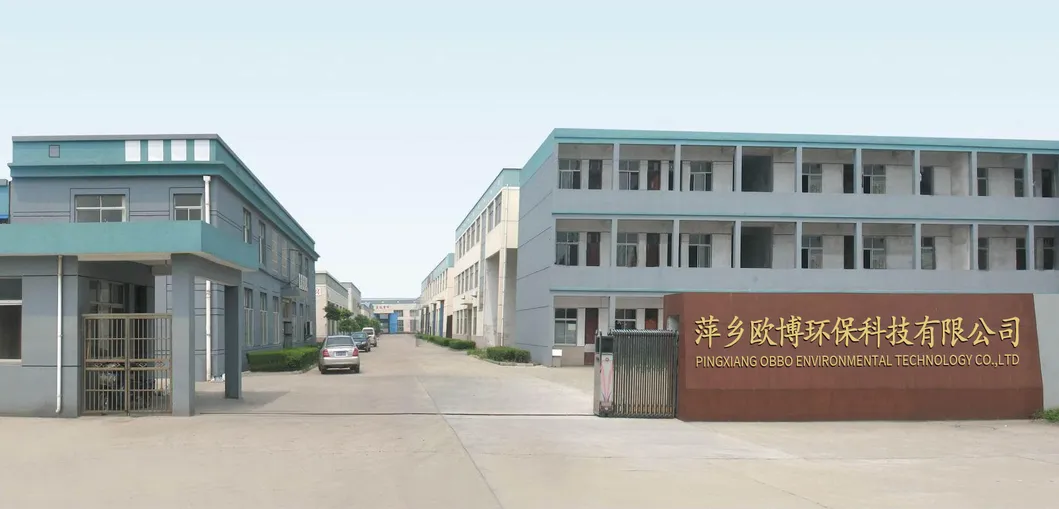

Pingxiang Obbo Environmental Technology Co., Ltd is an industrial ceramic manufacturer and advanced ceramic research company, which is located in Jiangxi Pingxiang Industrial Ceramic Park - the capital of ceramic in China. Obbo environmental is specializing in manufacturing ceramic media and distributing its products over the world.The main Industrial ceramic media we produce includes: Ceramic Honeycomb carrier, honeycomb ceramic Heat Recovery Media, Catalyst Carrier, ceramic foam filter, three way catalytic converter, as well as ceramic packings and related products. We provide customized solutions for honeycomb ceramic media and our products are widely applied in the industries of chemical, electric power, metallurgy, petroleum, electronics, electrical appliances, machinery, environmental, residential, etc.With the team of ceramic professionals and senior consultants, Obbo environmental has made significant breakthroughs of high temperature material and high cell density honeycomb ceramics and it will keep pushing the edges.
