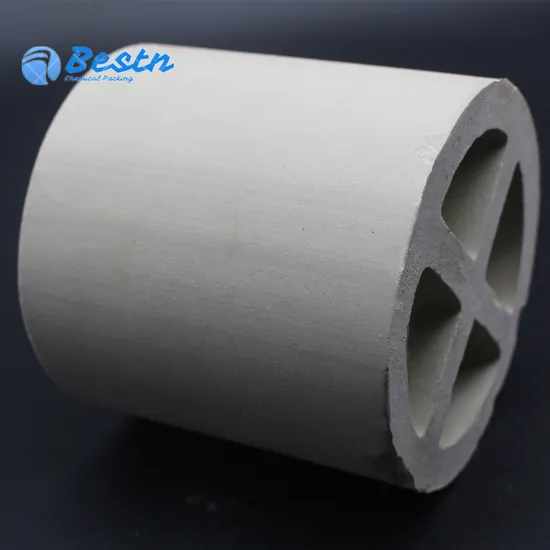

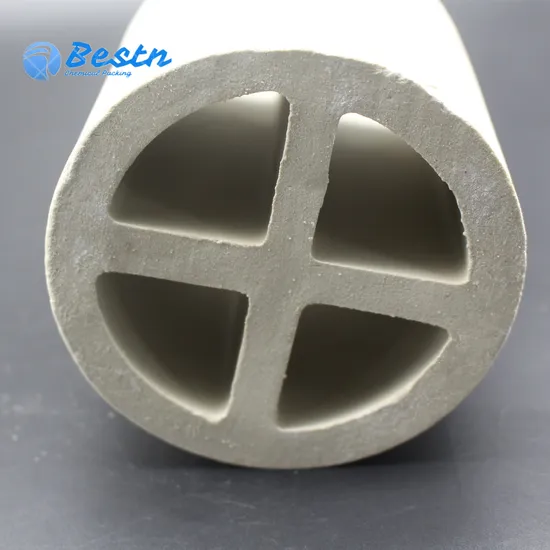

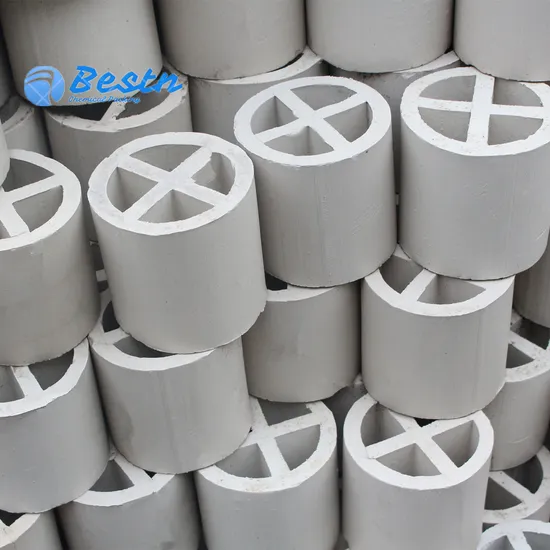

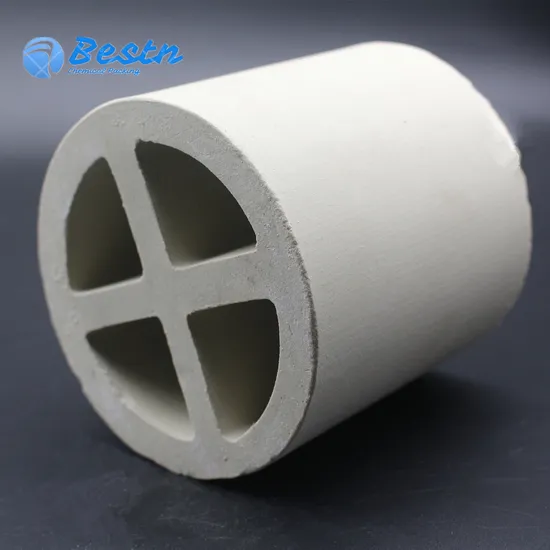

Cross-partition ring is a type of ceramic tower packing.It has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric aci, and can be used in high or low temperature conditions.Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry.

Technical Specification
Chemical composition
SiO2
Al2O3
Fe2O3
CaO
K2O+Na2O
>70%
23-30%
<1%
<1-2%
<2-4%
Physical properties
Index
Value
Specific gravity(g/cm3)
2.25-2.35
Water absorption(%)
<0.5
Acid-resisting strength, %Wt. Loss (ASTMc279)
<4
Firing temperature(Degree C)
1280-1320
Softening point( Degree C)
>1400
Density(kg/m3)
2350
Diameter (mm)
D*H*T(mm)
Surface area(m2/m3)
Free volume (%)
Number per m3
Bulk density (Kg/m3)
Dry Packing Factor (m-1)
50
50*40*50*5
145
6400
600
565
80
80*64*80*8
120
56
1950
820
356
100
100*80*100*10
110
53
1000
850
252
120*96*120*12
75
55
370
860
146
Our Advantages
a.
Have excellent acid resistance and heat resistance.
b.It can resist to corrosion of various inorganic acids, organic acids and organic solvents except
hydrofluoric aci.
c.Used in high or low temperature conditions.
Applications:

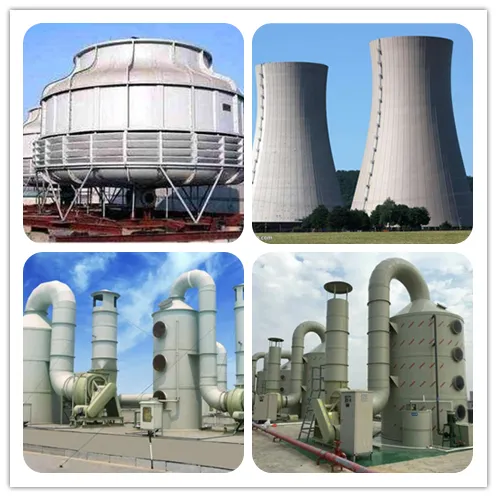

Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

Shipping and Packing
Package Type
Container Load Capacity
Delivery time
Quality
Insurance
Payment Terms
20 GP
40 GP
Ton bag
20 m3
40 m3
Within 7-14 days
Chinese National Standard; Offer quality assurance as request.
T/T, L/C, Paypal, West Union
Plastic bag
Paper box
Wooden box
