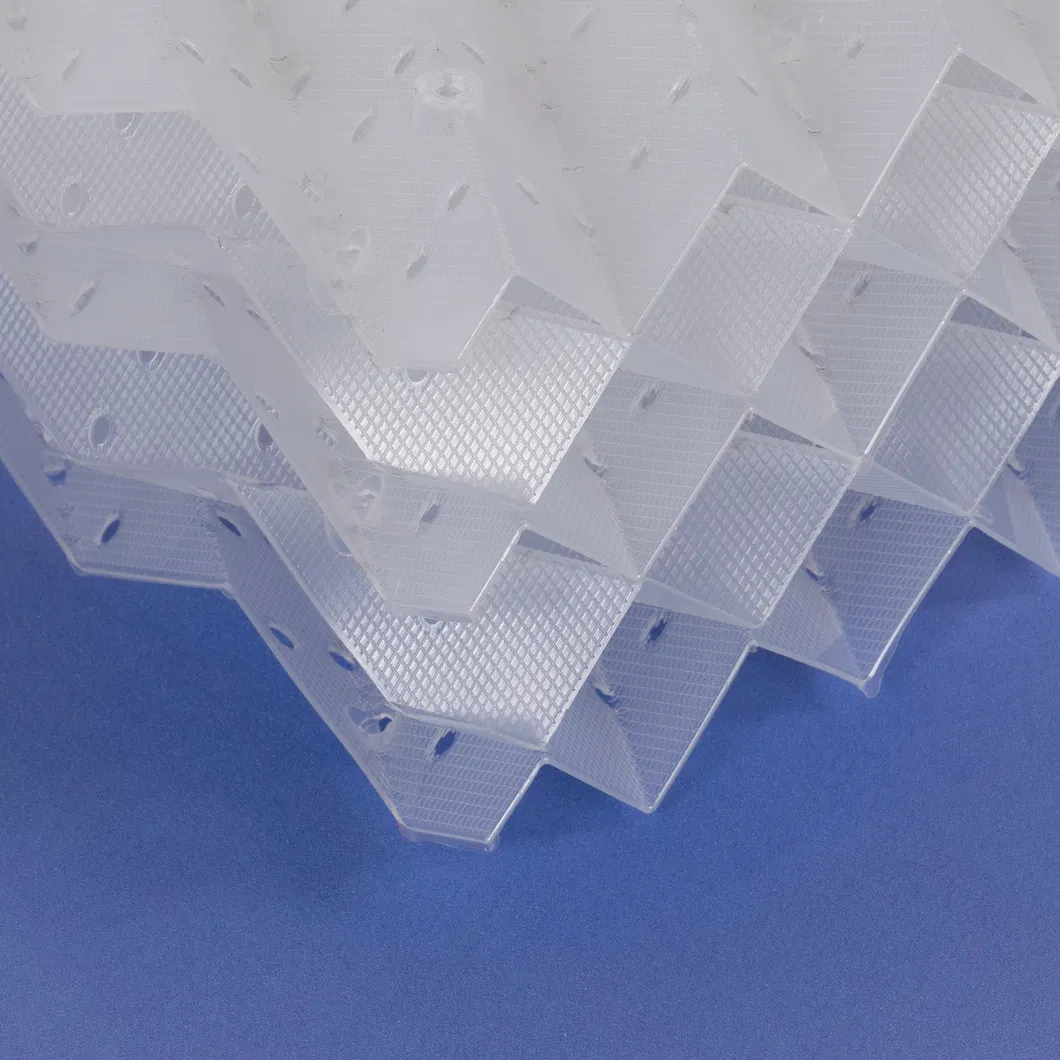

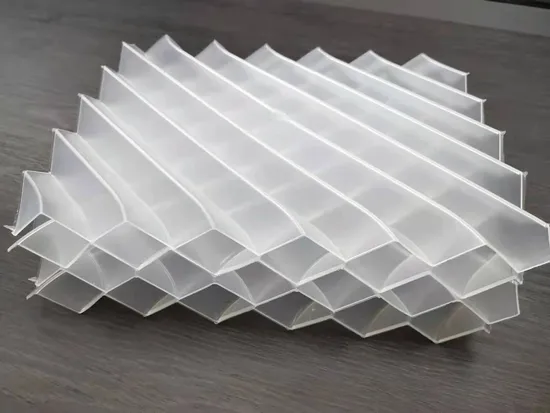

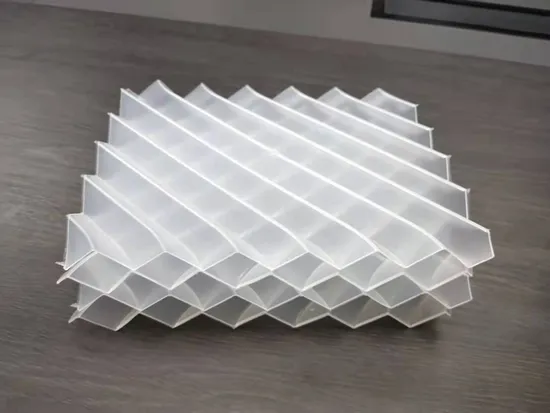

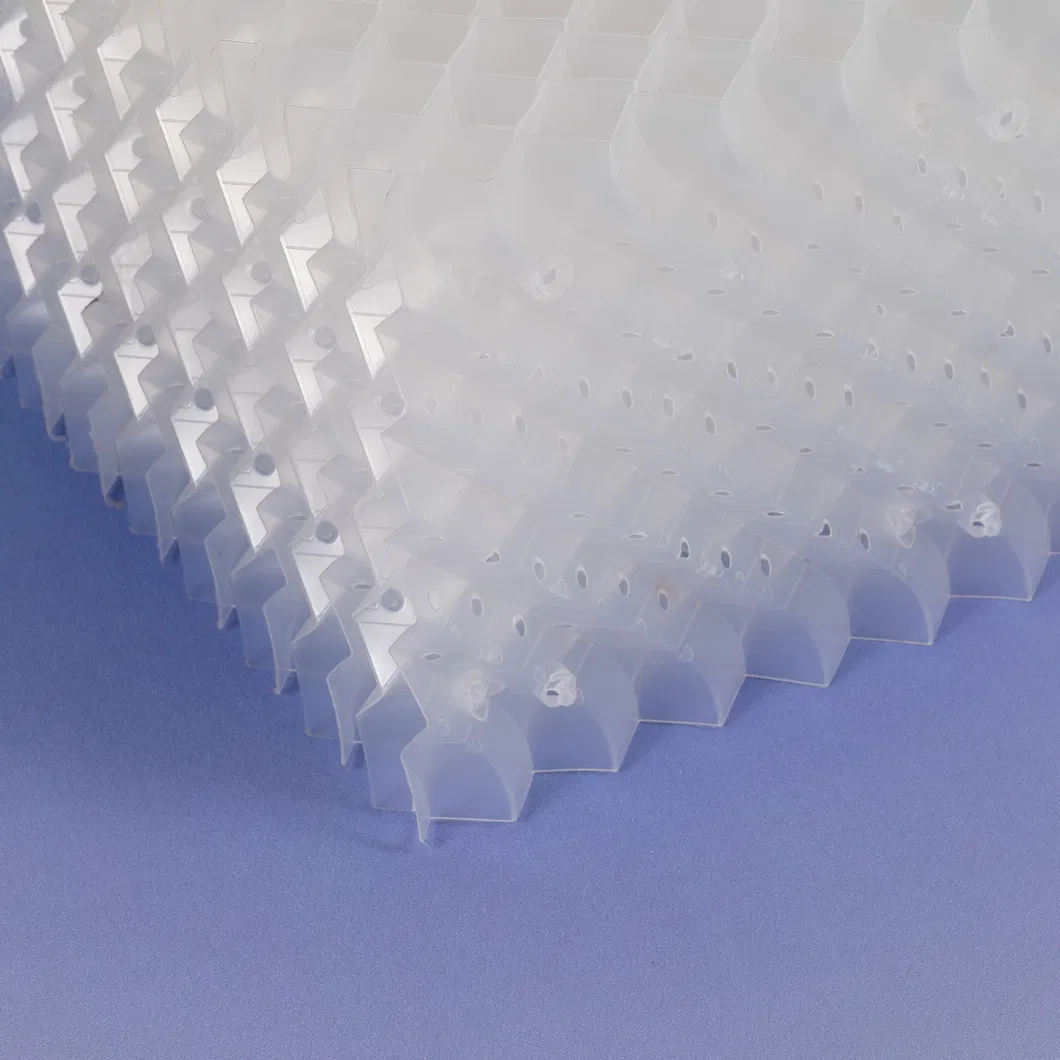

Injected Type 252 Structured packing for for carbon dioxide capture:
Injected Type 252 Structured packing for for carbon dioxide capture
is
manufactured by welding profile-shaped plastic foils onto each other. Two aspects are important:
Even liquid distribution from the structure of the whole packingThe profile-shaped foils as well as the structure reached by the inclination of the foils towards each other (channel inclination) achieve an even liquid distribution throughout the packing for low up to very high liquid loads.High rate of mass transfer by profile-shaped foilsThe wave-like profiles (inner structure) of the single foils assure a continuous thorough mixing of gas and liquid. This constant renewal of the gas/liquid boundary results in high mass transfer rates.This design proves to be more efficient than for example random packings. Tests have shown that FXSINO structured packings reach a significantly higher throughput and a lower pressure drop at the same level of mass transfer performance.

Feature:
1:High efficiency, high capacity and low pressure drop as metal structured packing.2:Excellent corrosion resistance performance to be used in high corrosive applications.3:Better high temperature resistance than metal structured packing and ceramic structured packing. Working temperature of PP packings can reach 100 °C and PVDF packings can reach 150 °C.4:Perforated plates packings with small holes on surface increase mass transfer efficiency.5:High sheet stiffness of no perforation packings in less separation requirements applications.
Product Parameters
Our Advantages

After Sales Service
1:Pre-purchase service
Fully understand customer's requirement, and give our professional opinion to help them.2:User Training
Owing to our product has many different type, so it has many different installation way. For each type product, we must let you know its basically installation way. If necessary, issue one installation manual to them.3:Warranty services
So called"Warranty services" is repairing replacement of selected parts for a selected period of time. For the first year, the customers are provided with free replacement or repairing of the device for any problem except for Abnormal use environment. For EPC project, we will issue our warranty booklet to our customer for each components. As for unmentioned, we will negotiated with our customer about warranty range and period
4:Online support
24 hours online service. For different problems, we will find related staff to solve with your problem timely.5:Return and Replacement
In the warranty period, we provide free replacement of the product in case of any queries. Of course, if customers does not agree, we will refund after reduce some fees related with this deal.6:Outsourcing and guiding installation
For customer's different requirement, Under achieving related fees payed standard(such as worker daily install fees,board and lodging
and so on),we can send our installation team to help customer to install product installation. Of course, if you do not need our installation, we also send our engineer to guide how to install. So you would pay for the guiding fees.
Application
Typical Application:
1:Air separation plant direct contact cooler.2:Flue gas cooler.3:Seawater scrubber.4:HCl absorber.5:SO2
absorber.6:ClO/ClO2
scrubber.7:Deaerators.
