Robot model: Pentium 8000 binding line

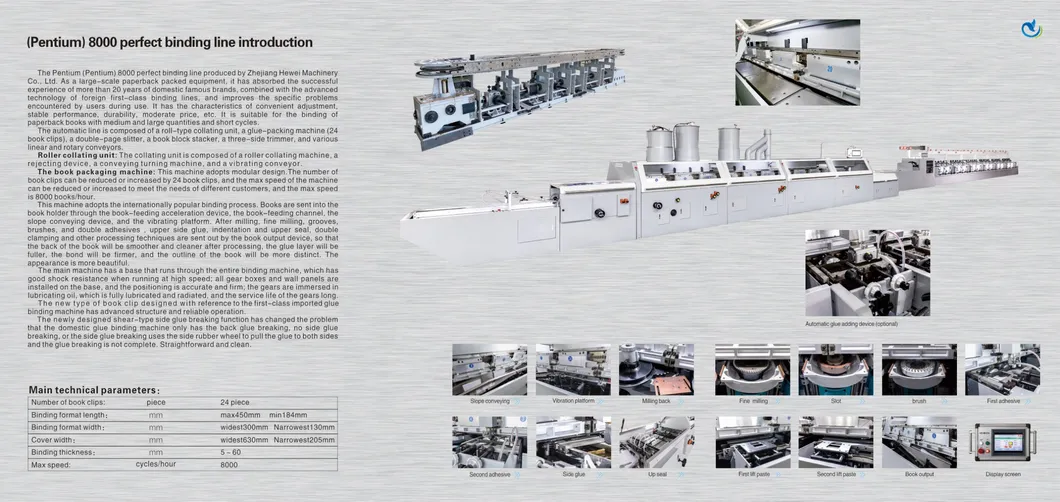

(Pentium) 8000 perfect binding line introduction
The Pentium (Pentium) 8000 perfect binding line as a large-scale paperback packed equipment, it has absorbed the successful experience of more than 20 years of domestic famous brands, combined with the advanced technology of foreign first-class binding lines,and improves the specific problemsencountered by users during use,it has the characteristics of convenient adjustment.stable performance, durability, moderate price, etc. lt is suitable for the binding ofpaperback books with medium and large quantities and short cycles.The automatic line is composed of a roll-type collating unit, a glue-packing machine (24book clips), a double-page slitter, a book block stacker, a three-side trimmer, and variouslinear and rotary conveyors.Roller collating unit: The collating unit is composed of a roller collating machine, arejecting device,a conveying turning machine, and a vibrating conveyor.The book packaging machine: This machine adopts modular design.The number ofbook clips can be reduced or increased by 24 book clips, and the max speed of the machinecan be reduced or increased to meet the needs of different customers, and the max speedis 8000 books/hour.This machine adopts the internationally popular binding process. Books are sent into thebook holder through the book-feeding acceleration device, the book-feeding channel, theslope conveying device, and the vibrating platform. After milling, fine milling, grooves.brushes, and double adhesives , upper side glue, indentation and upper seal, doubleclamping and other processing lechniques are sent out by the book output device, so thatthe back of the book will be smoother and cleaner after processing, the glue layer will befuller, the bond will be firmer, and the outline of the book will be more distinct. Theappearanceis more beautiful.The main machine has a base that runs through the entire binding machine, which hasgood shock resistance when running at high speed; all gear boxes.
(Pentium) 8000 perfect binding line introductionThe Pentium (Pentium) 8000 perfect binding line as a large-scale paperback packed equipment, it has absorbed the successful experience of more than 20 years of domestic famous brands, combined with the advanced technology of foreign first-class binding lines,and improves the specific problemsencountered by users during use,it has the characteristics of convenient adjustment.stable performance, durability, moderate price, etc. lt is suitable for the binding ofpaperback books with medium and large quantities and short cycles.The automatic line is composed of a roll-type collating unit, a glue-packing machine (24book clips), a double-page slitter, a book block stacker, a three-side trimmer, and variouslinear and rotary conveyors.Roller collating unit: The collating unit is composed of a roller collating machine, arejecting device,a conveying turning machine, and a vibrating conveyor.The book packaging machine: This machine adopts modular design.The number ofbook clips can be reduced or increased by 24 book clips, and the max speed of the machinecan be reduced or increased to meet the needs of different customers, and the max speedis 8000 books/hour.This machine adopts the internationally popular binding process. Books are sent into thebook holder through the book-feeding acceleration device, the book-feeding channel, theslope conveying device, and the vibrating platform. After milling, fine milling, grooves.brushes, and double adhesives , upper side glue, indentation and upper seal, doubleclamping and other processing lechniques are sent out by the book output device, so thatthe back of the book will be smoother and cleaner after processing, the glue layer will befuller, the bond will be firmer, and the outline of the book will be more distinct. Theappearanceis more beautiful.The main machine has a base that runs through the entire binding machine, which hasgood shock resistance when running at high speed; all gear boxes.our advantages

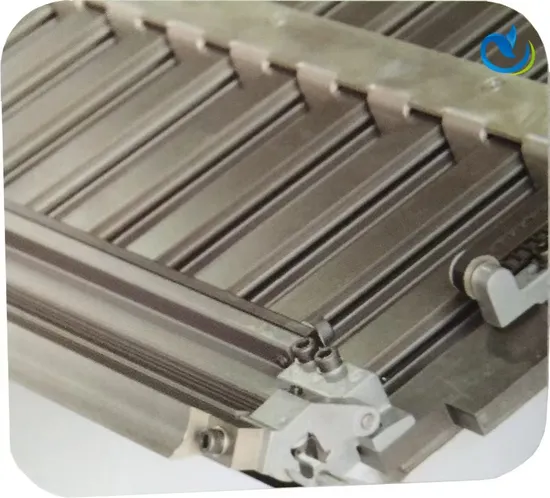

Adopt stainless steel indirect bevel wheel, reduce sound pollution

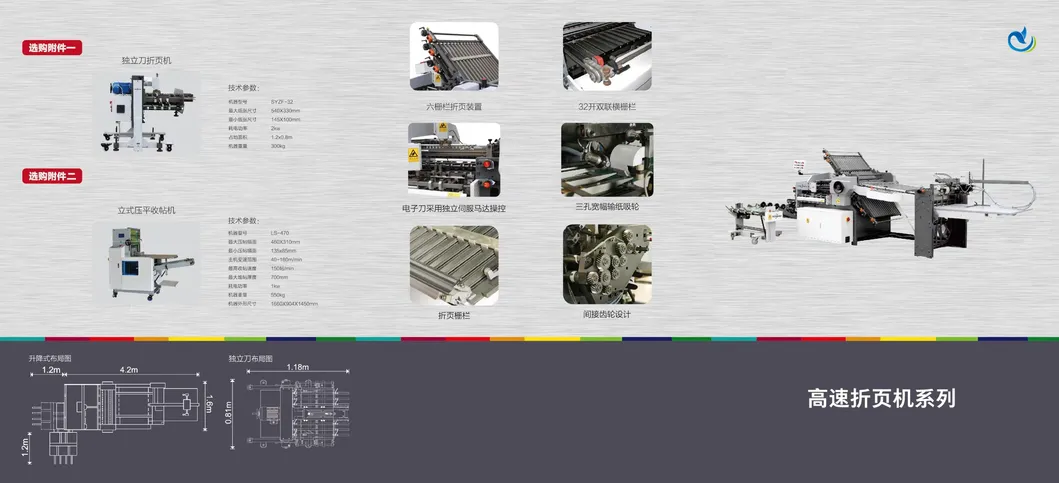

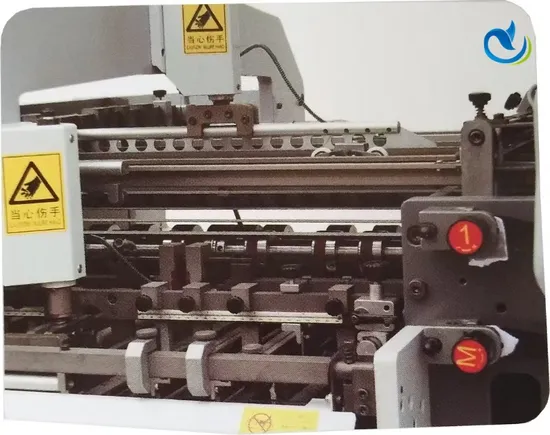

It can be operated for four times parallel knife-folding and three times vertical knife-folding
It can install the line pressing knife, slitting knife or pressing crease knife
With PLC and frequency control
The system of feeding paper is with three hole suction wheel

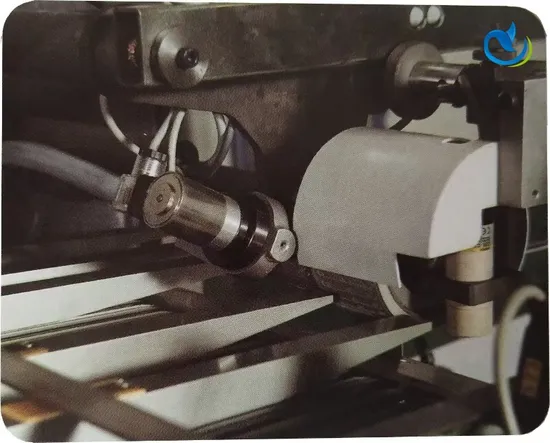

Electronic scalpel adopts self-contained servo motor to operate
With the two-sheet and jamming stop function
With the automatic oiling and lubrication function
The preloader device is optional, it can shorten the times for paper pasting and stopping
Recirculation Feida system is optional, make cut-sheet paper continuous feeding(no stopping paper stopping)
Application

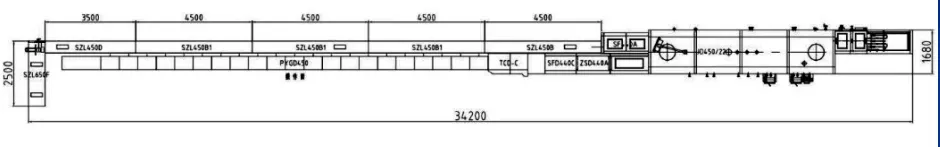

22 binding linkage line with 21 dispensing machines about 34 meters (half line)
The layout of the whole line needs to be designed according to the situation of the plant.
Perfect adhesive process

Other production
