基本信息产品详情证书
基本信息
型号编号 | 1880年 |
传输类型 | 灵活的 |
自动化生产线 | 全面的 |
认证 | ISO, CE, Lr, ABS |
灵活生产 | 智能制造 |
韵律 | 流水生产线 |
生产范围 | 产品线 |
保修 | 一年 |
商品编码 | 8441809000 |
生产能力 | 每月300套 |
产品详情
Product Description
Preview
Full automatic toilet paper machine toilet paper rewinding machine
Introduction:The toilet paper processing production line is the latest model independently developed by our company in combination with the advanced equipment manufacturing concept. Using PLC programming control; large-screen true color man-machine interface operation; mechatronics control and other international advanced technologies, the entire production line achieves the best working condition, is the best choice for paper processing enterprises to produce toilet paper.
Rewinder design speed: 300 m/min
Rewinder production speed: 80-160 m/min
Adapt to base paper: wood pulp paper, sugarcane pulp paper, bamboo pulp paper, etc.
Equipment function and process introduction:

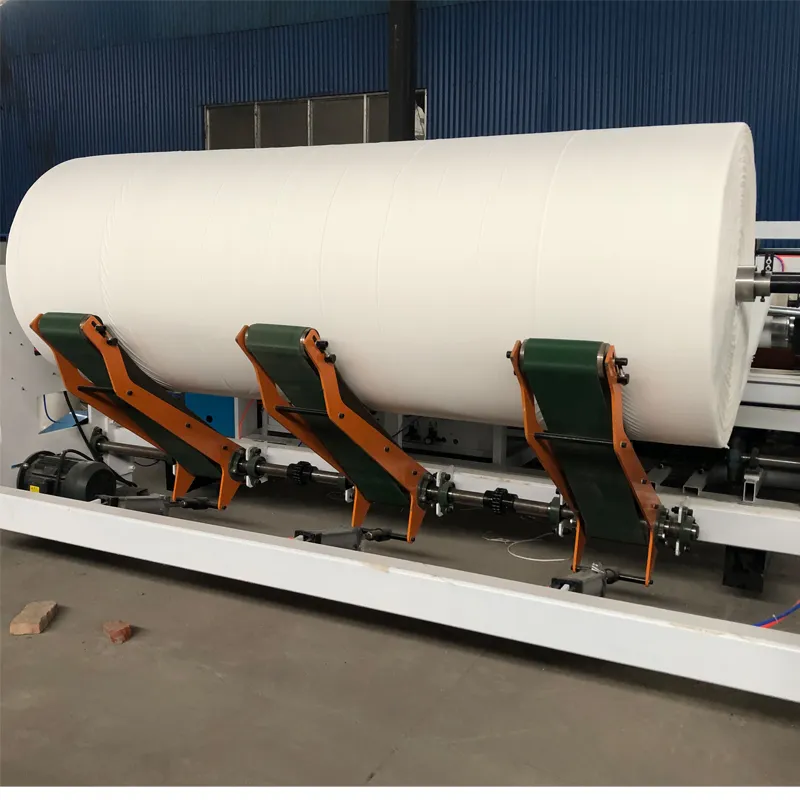

1. The rear frame of the rewinder is a single-layer independent drive for feeding the paper, and the three hair belts control the speed of the reeling paper. The diameter of the paper roll that can be loaded is (maximum) 1500mm.
2. The rewinding machine adopts the mandrel rewinding function, which can automatically push the rolled thin roll paper to the glue spraying position, and then cut it neatly by the disc knife, and at the same time, spray glue and seal at the end of the toilet paper roll, and then rewind it. Roll, so that the cut tail and the whole roll of paper are well attached together, and the appearance quality of the product is improved.
3. The automatic transmission is completed. After the rewinder completes the rewinding, the finished roll paper will be automatically turned down to the paper storage platform of the paper cutter.
4. Band saw paper cutter function - this machine automatically puts the small and thin roll paper at the designated position of the paper cutter, and pushes it to the paper cutting platform, cuts the roll and cuts out the final finished roll paper, and the finished roll paper reaches the setting. The specified finished paper specifications.
5. Automatic roll paper packaging machine: The cut finished small roll paper enters the automatic roll paper packaging machine for packaging, and then enters the edge ironing machine.
6. The paper roll is transferred to the toilet paper bagging machine by the conveyor belt. The packaging machine needs to be bagged manually. The finished base paper is automatically put into the bag and the finished product is packaged.
Introduction:The toilet paper processing production line is the latest model independently developed by our company in combination with the advanced equipment manufacturing concept. Using PLC programming control; large-screen true color man-machine interface operation; mechatronics control and other international advanced technologies, the entire production line achieves the best working condition, is the best choice for paper processing enterprises to produce toilet paper.
Rewinder design speed: 300 m/min
Rewinder production speed: 80-160 m/min
Adapt to base paper: wood pulp paper, sugarcane pulp paper, bamboo pulp paper, etc.
Equipment function and process introduction:
1. The rear frame of the rewinder is a single-layer independent drive for feeding the paper, and the three hair belts control the speed of the reeling paper. The diameter of the paper roll that can be loaded is (maximum) 1500mm.
2. The rewinding machine adopts the mandrel rewinding function, which can automatically push the rolled thin roll paper to the glue spraying position, and then cut it neatly by the disc knife, and at the same time, spray glue and seal at the end of the toilet paper roll, and then rewind it. Roll, so that the cut tail and the whole roll of paper are well attached together, and the appearance quality of the product is improved.
3. The automatic transmission is completed. After the rewinder completes the rewinding, the finished roll paper will be automatically turned down to the paper storage platform of the paper cutter.
4. Band saw paper cutter function - this machine automatically puts the small and thin roll paper at the designated position of the paper cutter, and pushes it to the paper cutting platform, cuts the roll and cuts out the final finished roll paper, and the finished roll paper reaches the setting. The specified finished paper specifications.
5. Automatic roll paper packaging machine: The cut finished small roll paper enters the automatic roll paper packaging machine for packaging, and then enters the edge ironing machine.
6. The paper roll is transferred to the toilet paper bagging machine by the conveyor belt. The packaging machine needs to be bagged manually. The finished base paper is automatically put into the bag and the finished product is packaged.
Preview

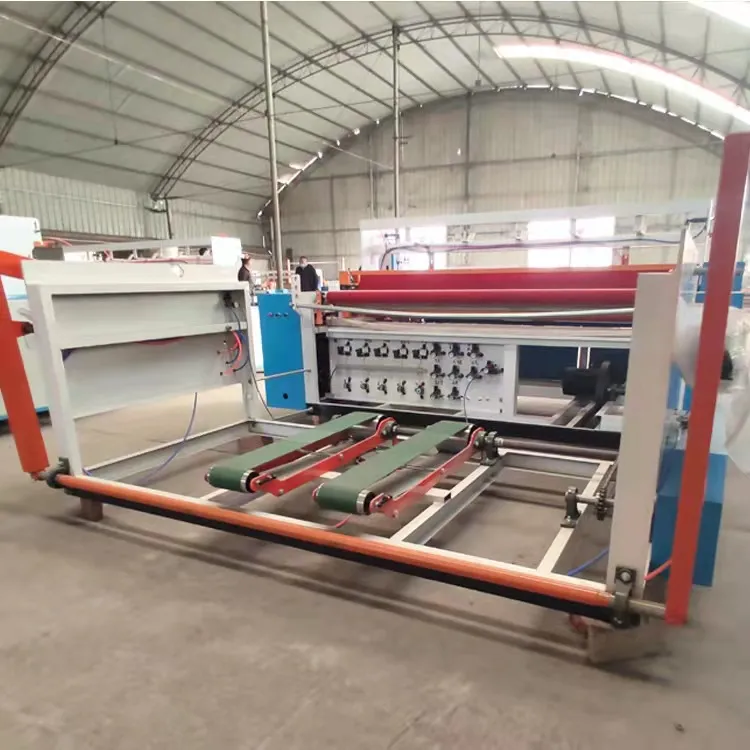

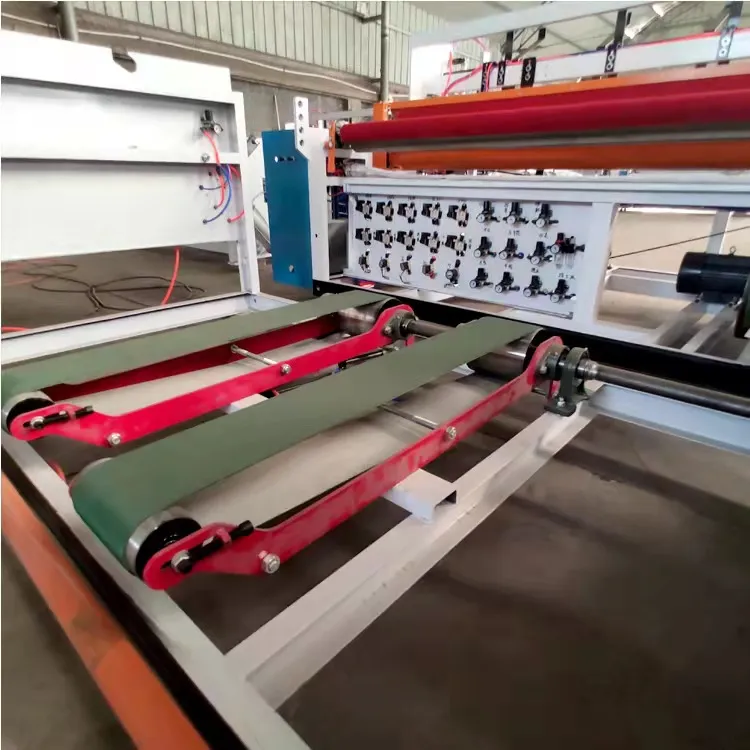

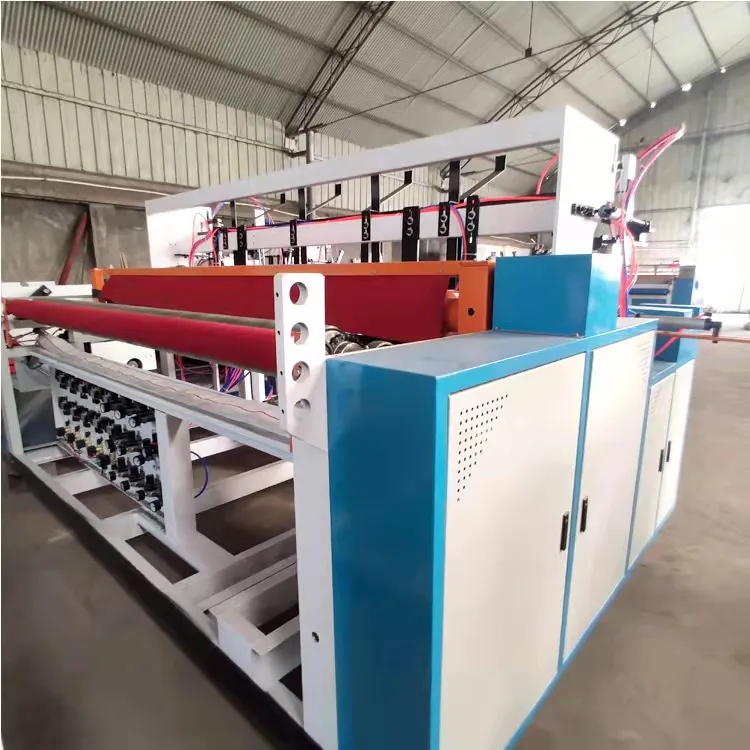

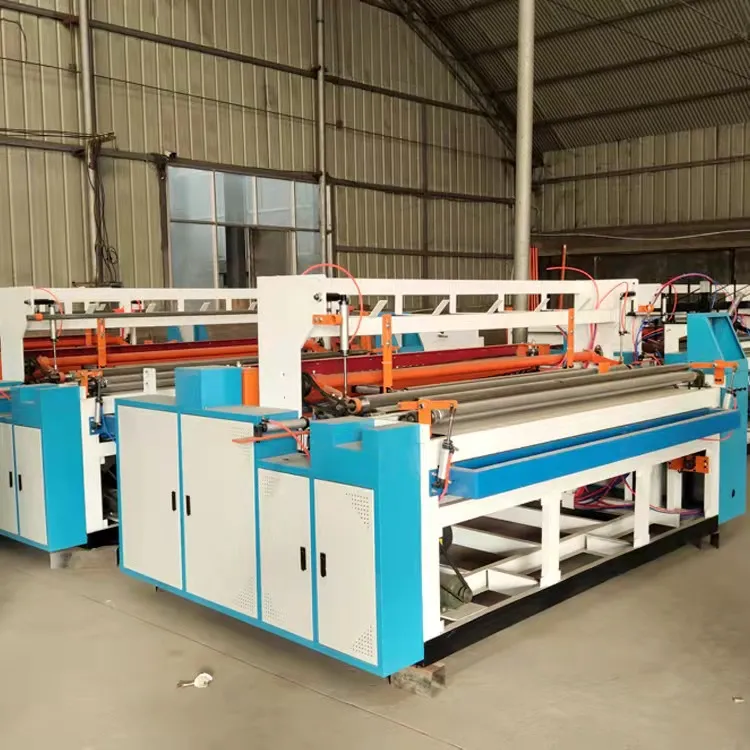

Detailed Photos
Preview

Preview

Preview

Preview

Preview

Preview
Product Parameters
Preview
Certifications
Preview

Preview
Packaging & Shipping
Preview

Preview
Company Profile
Preview

Preview
FAQ
Preview

Preview
