基本信息产品详情证书
基本信息
| 型号/编号 | ZST-3000 |
| 自动化生产线 | 组装 |
| 生产范围 | 产品线 |
| 灵活生产 | 智能制造 |
| 认证 | ISO，CE |
| 条件 | 新 |
| 自动化 | 自动的 |
| 售后服务 | 海外机械可用工程师 |
| 控制 | 自动的 |
| 应用程序 | 工业的 |
| 集成设计 | 全部室内。 |
| 速度 | 每小时1450件 |
| 交通政策包 | 框架容器 |
| 规格 | 6300x1800x2050毫米 |
| 商标 | 吉尼索拉 |
| 起源 | 中国 |
| 商品编码 | 848640 |
| 生产能力 | 每年100套 |
产品详情

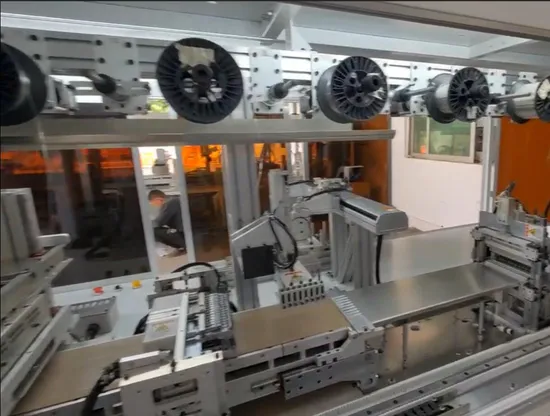

Photo on site
Product Parameters
Model
ZST-3000
Production speed
theoretical cycle velocity
3000pcs/h
actual production rate
2200~2600pcs/h
Defect detection
CCD positioning and detection function
Cells pick up model
Robot placed, double track
Breaking rate
<2‰( quality grade A)
Grid specification
5BB-20BB
Ribbon
width
0.35~1.6mm, different solar cell use different ribbon
thickness
0.14~0.20mm, different solar cell use different ribbon
Solar cell Specifications
size range
156.75,158.75,166,182,210, 220mm
182-220mm
(half cut and 1/3 cut).156-166mm(cell width≥26mm).
140~300μm
Number of serial welding
(size per piece by 156.75mm)
minimum
2pcs
most
12 pcs
Maximum
<2100mm
Cell block spacing
1~10mm
(different ribbon size, different cell distance. More thickness of ribbon, need more cell distance)
Length of head and tail
Can be flexibly adjusted with different products
power
use power
15kw
peak power
18kw
Air consumption
600 L/min
Equipment dimensions
(length x width x high)
6300x1800x2050(mm)
Product Parameters
Model
ZST-3000
Production speed
theoretical cycle velocity
3000pcs/h
actual production rate
2200~2600pcs/h
Defect detection
CCD positioning and detection function
Cells pick up model
Robot placed, double track
Breaking rate
<2‰( quality grade A)
Grid specification
5BB-20BB
Ribbon
width
0.35~1.6mm, different solar cell use different ribbon
thickness
0.14~0.20mm, different solar cell use different ribbon
Solar cell Specifications
size range
156.75,158.75,166,182,210, 220mm
182-220mm
(half cut and 1/3 cut).156-166mm(cell width≥26mm).
140~300μm
Number of serial welding
(size per piece by 156.75mm)
minimum
2pcs
most
12 pcs
Maximum
<2100mm
Cell block spacing
1~10mm
(different ribbon size, different cell distance. More thickness of ribbon, need more cell distance)
Length of head and tail
Can be flexibly adjusted with different products
power
use power
15kw
peak power
18kw
Air consumption
600 L/min
Equipment dimensions
(length x width x high)
6300x1800x2050(mm)
