Overview
Quick Details
Type:Packaging Line
Condition:New
Application:Beverage, Chemical, Commodity, MEDICAL
Packaging Type:case
Packaging Material:Wood
Automatic Grade:Automatic
Driven Type:Electric
Voltage:380V 50HZ
Place of Origin:Jiangsu, China
Brand Name:Xirun
Dimension(L*W*H):69m*4.5m*6.3m
Weight:90000KG
Certification:CE Certification
After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:1 Year
Packaging Details:Vacuum treatment, wooden-case package
Product Description
Product Application

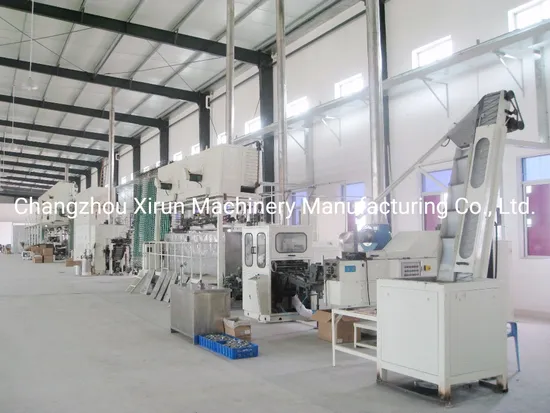

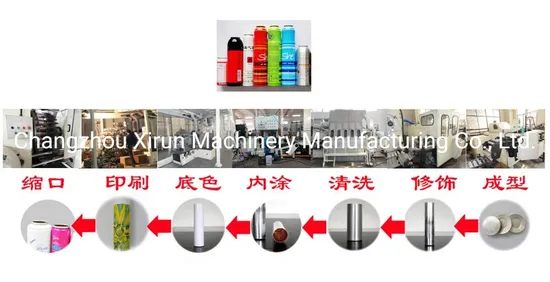

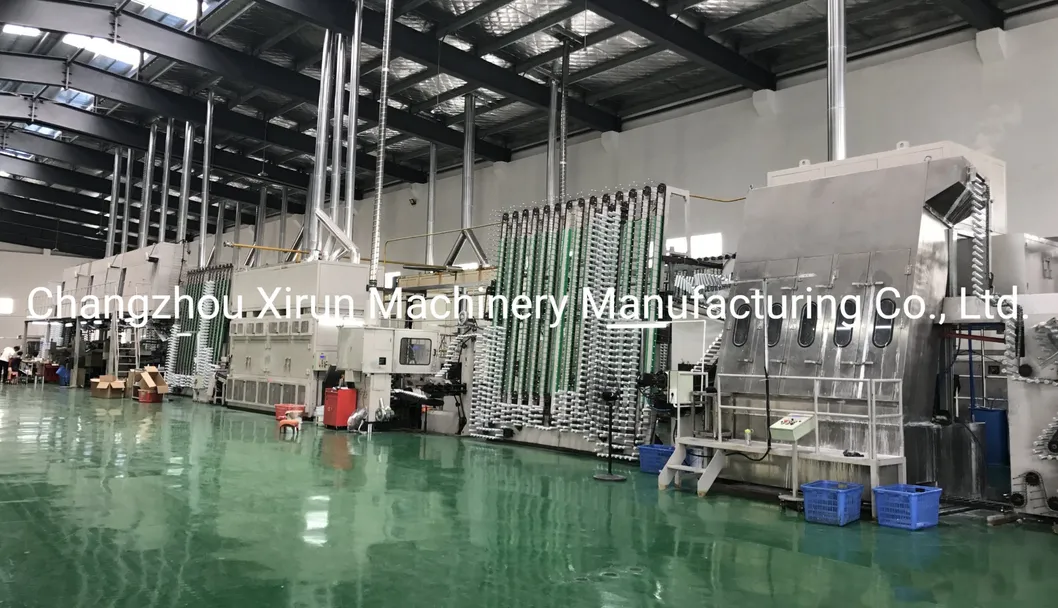

Aluminum can line are a set of machines to produce mono block aerosol cans and bottles.Mono block cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.The XR series aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client's needs. The main machines include YR01 Extrusion press, XR02 Trimmer cum brushing, XR03 can washer or degreasing Spray washing machine,XR04 Accumulator, XR05 Internal lacquering machine, XR06 Lacquer curing oven, XR08 Base-coating machine, XR09 6-color or 8-color printing machine, XR12 Drying oven, XR14 and XR14E Necking machine, etc.All the equipment of the series are properly aligned in structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.

Main Configuration List
1) PLC: SIEMENS2) Touch screen: Pro-face3)
Terminal display:SIEMENS4) Bearing:NSK or NTN5) Approach switch:BANNER6) Photo switch:TURCK7) Divider:TANTZU8) Electrical component:SCHNEIDER or OMRON
Certifications
Detailed Images
Main machine
Name:

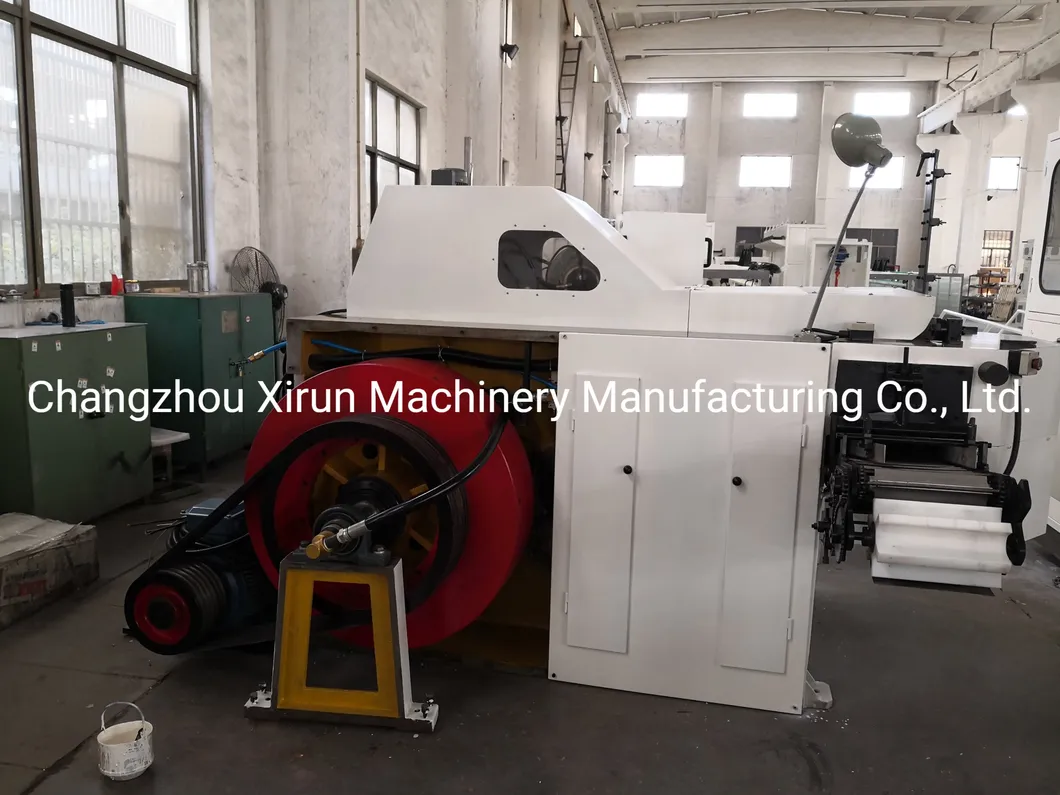

XR01 Extrusion press machine
Main technical parametersA. Can diameter range: φ35mm-φ53mm
B. Can length range: 80-250mm
C. Production speed: ≤110cans/min
D. Main motor power: 37KW, Total power:37.28KW
E. Intake pressure: ≥0.4Mpa
F. Slide stroke:350mm
G. Net weight: 11000 KG
H. Dimensions: 3195*1558*1585mm(conveyer belt and vibration
hopper not included)
Main machine
Name:

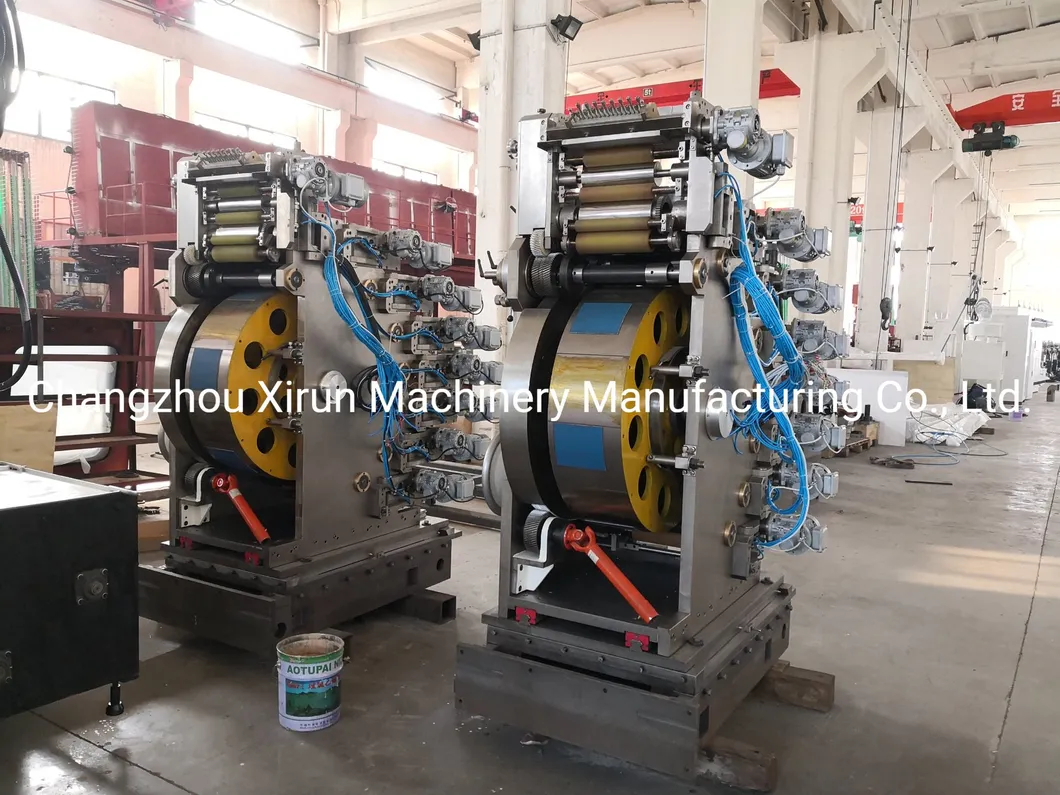

XR09 6-color Printing MachineMain technical parameters
A. Can diameter range: φ35mm-φ53mm
B. Can length range: ≤230mm
C. Production speed: ≤110cans/min
D. Motor power: 19.17KW
E. Dimensions: 3340×2330×2100mm
F. Net weight: 7600KG
G. Intake pressure: 0.6Mpa
Main machine
Name:
XR02 Trimming cum brushing machineMain technical parameters
A. Can diameter range: φ35mm-φ53mm
B. Can length range: ≤250mm
C. Production speed: ≤110cans/min
D. Main motor power: 4KW, total power:12.85KW
E. Intake pressure: P=0.6MPa
F. Dimensions: 2940*2600*1820mm
G. Weight: about 2800KG
Main Features
Name:
XR08 Base-coaitng machineMain technical parameters
A. Tube diameter range: φ35-φ53mm
B. Tube length range: ≤250mm
C. Production speed: ≤110cans/min
D. Motor power: 5.15KW
E. Dimensions: 2750*2330*1760mm
F. Net weight: 4500KG
G. Intake pressure:≥0.5Mpa
