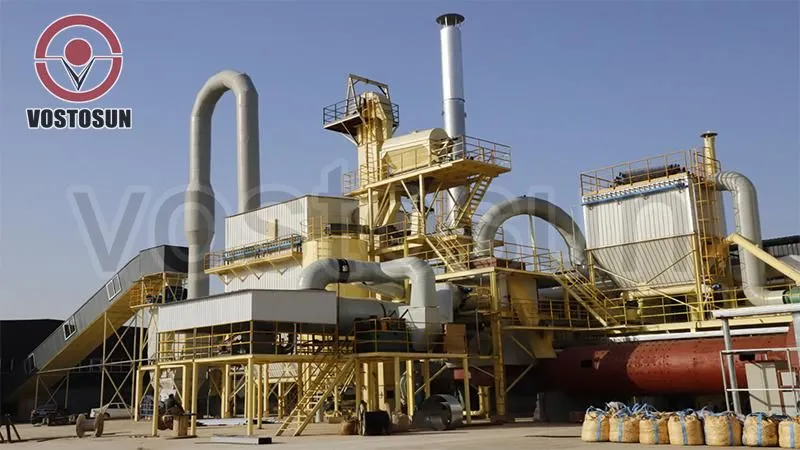

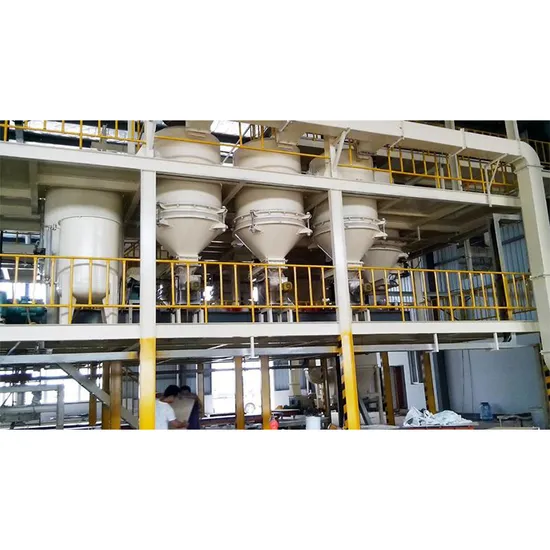

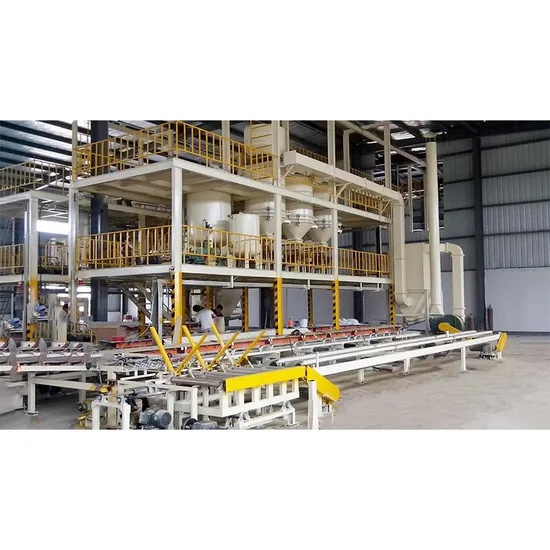

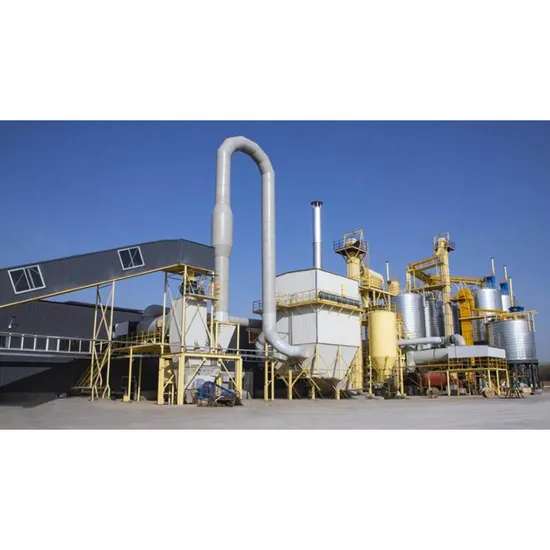

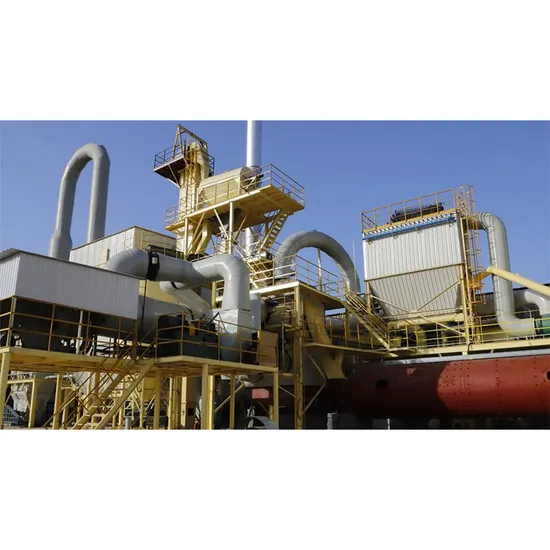

Natural Gypsum Powder Plant

Introduction:
Gypsum is an important architectural material. We've been developing and manufacturing gypsum processing devices since 1998. We offer a complete natural gypsum plant solution according to the location of your factory, plant area and market conditions. Production power of our plant is 20,000/ Year - 500,000 / year. We also offer replacement and upgrade services on devices in your plant. We provide worldwide services whenever you need.Production Process:

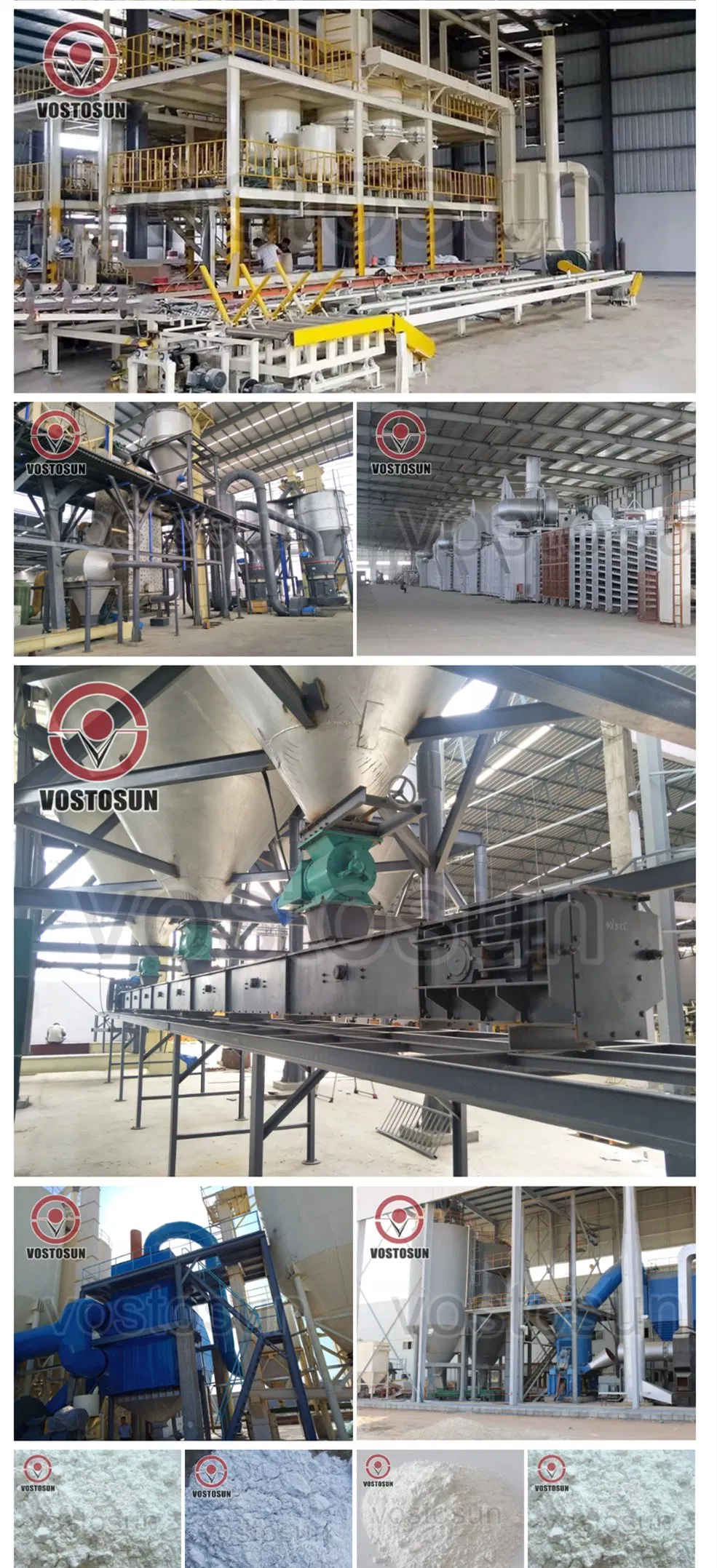

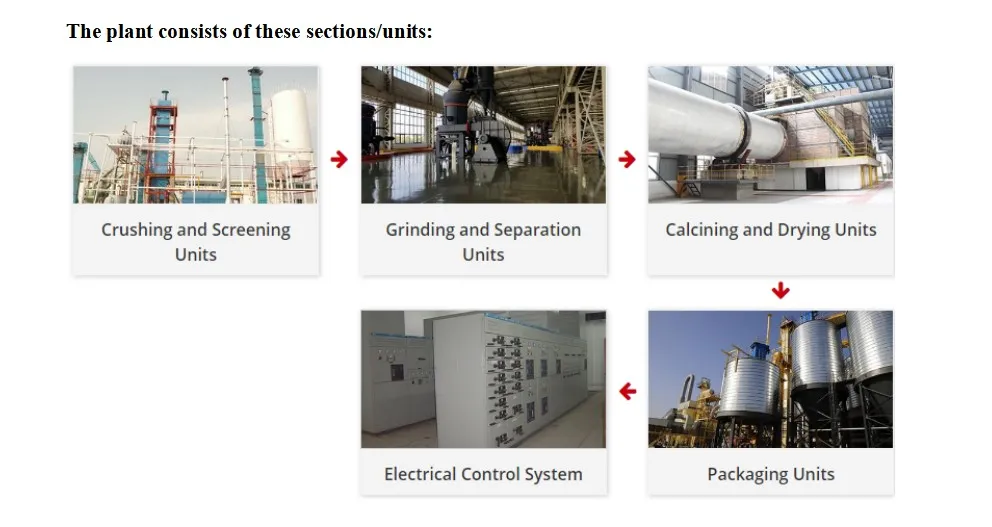

Multiple processes are taken in production of the plant. First, gypsum ores are being crushed, conveyed and stored into raw material bin, and then the crushed gypsum ores get grinded into powder with fineness required by the raymond mill, and the gypsum powder is then conveyed into calcining section via metering feeding device to get calcined, and the calcined gypsum gets modified by grinder and cooled by cooling device. Finally, the finished gypsum is conveyed for storage.Features of Our Natural Gypsum Plant:
1. A material supplement stabilizing system is deployed to achieve stable supplement of the fluidized bed combustion boiler, and to stabilize material supplement and heating. Material supplement stabilizing system consists of material supplement stabilizing bin and conveying device (metering screw or belt weigher).2.Calcining system applies hot air boiling furnace calcining process to perform even calcination on gypsum material.3. Cooling device added to cool down calcined gypsum before it enters silo, to prevent gypsum from deterioration caused by over temperature.4.Silo turn-over system: materials at different time periods feature different quality, therefore products made from them feature different quality. The silo turn-over system can evenly mix new and old materials, make the products share the same quality. Besides, the system prevents overheating deterioration caused by heat generated by powder accumulation.5. The dust removal system applies a bag type dust collector, to ensure dust generated during pre-drying, conveying, grinding,calcination and aging processes get cleaned before discharging outside, to meet working environmental requirements.6. Distributed control system is applied, to do centralized control on distributed devices.Gypsum Products Parameters:

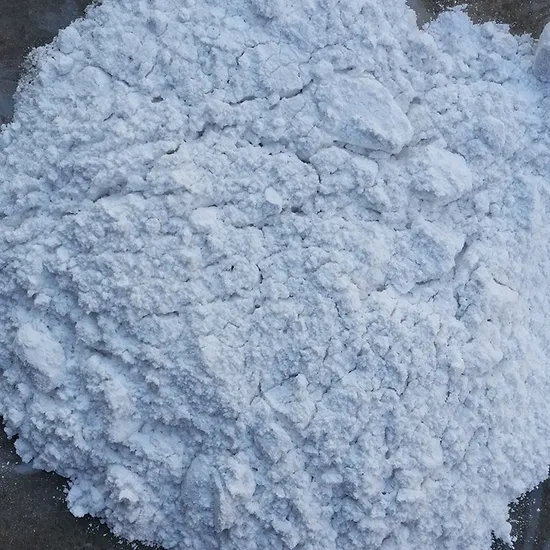

1.Fineness: ≥100 mesh;2.Flexural Strength (having a direct relation to raw material): ≥1.8Mpa; The Strength of Antipressure: ≥3.0Mpa;3.Main Contents: Hemihydrate: ≥80% (Adjustable);Gypsum <5% (Adjustable);Soluble Anhydrous <5%(Adjustable).4. The Initial Setting Time: 3-8min (Adjustable); the Final Setting Time: 6~15min (Adjustable)5.Consistency: 65%~75% (Adjustable)
PRODUCT SPECIFICATIONS
SALES AND SERVICE NETWORK
FAQ
Q1: Where your products have been exported before?
A1: Our products have been sold to South Asia, Africa, South America, middle East and so on.Q2: How will you help the customer to install the equipment?
A2: Our senior engineer will guide the installation and commissioning on line or on site.Q3: How about the wear parts supply?
A3: We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place and you are therefore, responsible for all the cost involved.Q4: What about the payment method?
A4:T/T, L/C is availableQ5: What about after-sale service?
A5:12 months warranty for all kinds of products.Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
