The heat-pipe heat exchanger has high heat transmission efficiency. The equipment also has a compact structure and small thermal side flow resistance. Its structure is safe, reliable, and better than the heat exchanger of other structures, and the damage of a single (or few) heat pipe will neither affect the overall performance of the equipment nor affect the plant production.The waterway is outside the flue, so it requires no shutdown for replacement and overhaul.
Design life is 10 years plus. This equipment is used in combination with the start-up pre-heater, which produces steam before cold start-up, an external steam supply is not needed.
The recovery rate: 100kg sulfur burning generates 250kg steam.
The first/second stage recovery of exhaust gas generates steam;
The third stage of recovery produces hot water with
an efficiency of 36.5%, 44.2%, and 67.3% respectively.

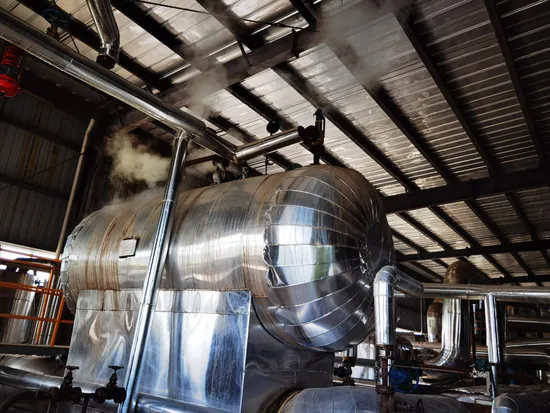

Heat-pipe Heat Exchanger- Appearance 1

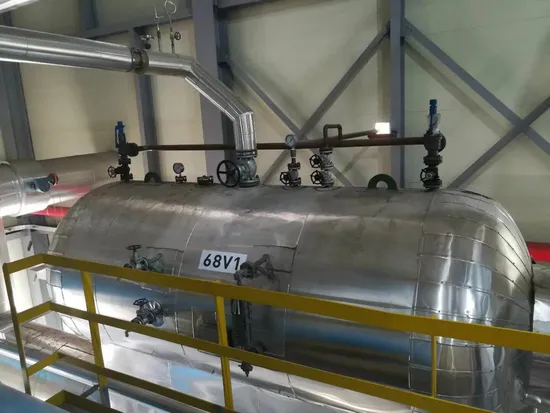

Heat-pipe Heat Exchanger-Appearance 2

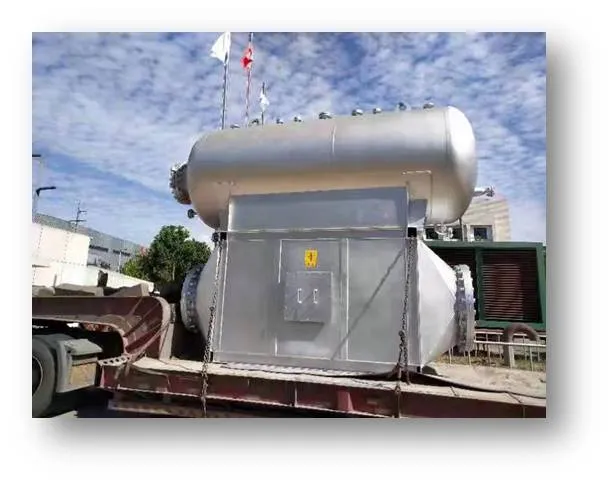

Heat-pipe Heat Exchanger-Appearance 3
Product Parameters
Unit 68 Waste Heat Recovery adopts Three-stage-recovery Technology and Heat-pipe Heat Exchanger for realizing plant steam and hot water self-sufficiency. Compared with Fin-type Heat Exchanger (3-5 years life), Heat-pipe type featured in longer serving life, also when designing we reserve 20% extra Heat Pipes for spare, so the system can last for 15 years. Moreover, with the Start-up Preheater, this system can produce steam by itself for sulfur melting before the sulphonation plant start-up, therefore the external steam supply is not needed before and during the planting running.

Our Advantages
After Sales Service
WEIXIAN guarantees our customers that we
can respond to your
needs and problems within 10 hours. Thanks to the reliability of the plant, WEIXIAN sulphonation plants can achieve an operation rate of 330 days/year. All plants have a one-year guarantee period. Meanwhile, we will advise customers to purchase our standard spare parts kit to facilitate the timely replacement of vulnerable parts; the spare parts kit shall be provided at the cost price.
WEIXIAN's technical services include:
1. Free technical consultation.
2. Feasibility study in the early stage of the project.
3. Quotation and proposal of turnkey sulphonation plant and equipment.
4. Renovation and revamp of the old sulphonation plant.
5. Design and engineering of customized turnkey sulphonation plant and equipment.
6. Installation of the plant.
7. Remote or on-site technical support and commissioning.
8. Training of the buyer's technical personnel.
9. Other technical services related to sulphonation.

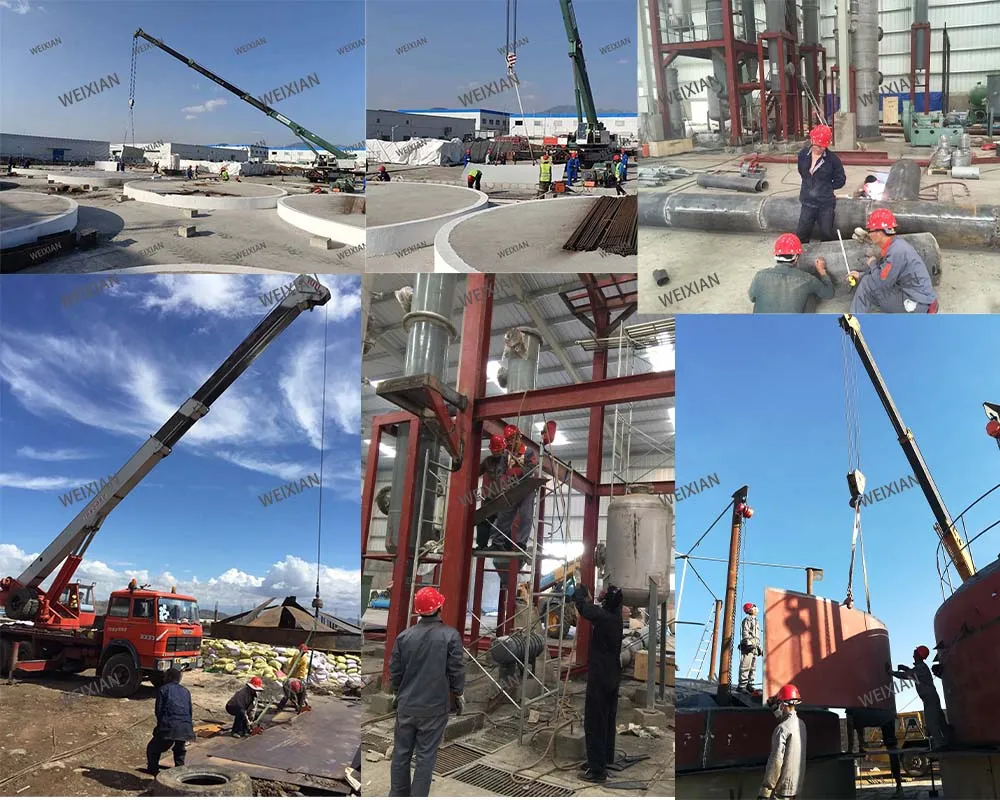

Installation Instructions

WEIXIAN owns a
professional installation team that has assisted
plant owners in carrying out the installation of their plants, tank farms, etc,
professionalism, efficiency, and
quality are the purposes of our service!
