基本信息产品详情证书
基本信息
型号编号 | 1-5米 |
滚压表面材料 | 橡胶辊 |
橡胶辊芯结构 | 重型滚筒 |
橡胶硬度 | 软橡胶辊 |
表面配置 | 黑色 |
工作性质 | 用橡胶辊润湿 |
运输包 | 适合海运包装 |
商标 | 孙尼 |
起源 | 中国山东 |
商品编码 | 4008210000 |
生产能力 | 年产量为 12000 片 |
产品详情
Product Description
Preview

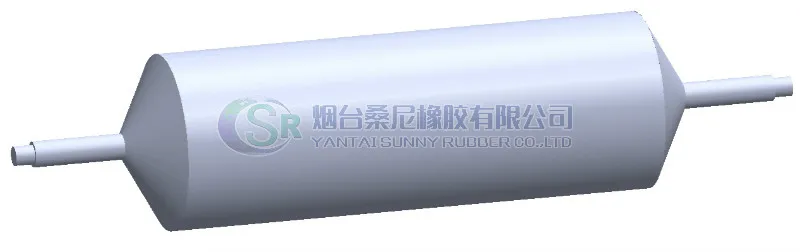

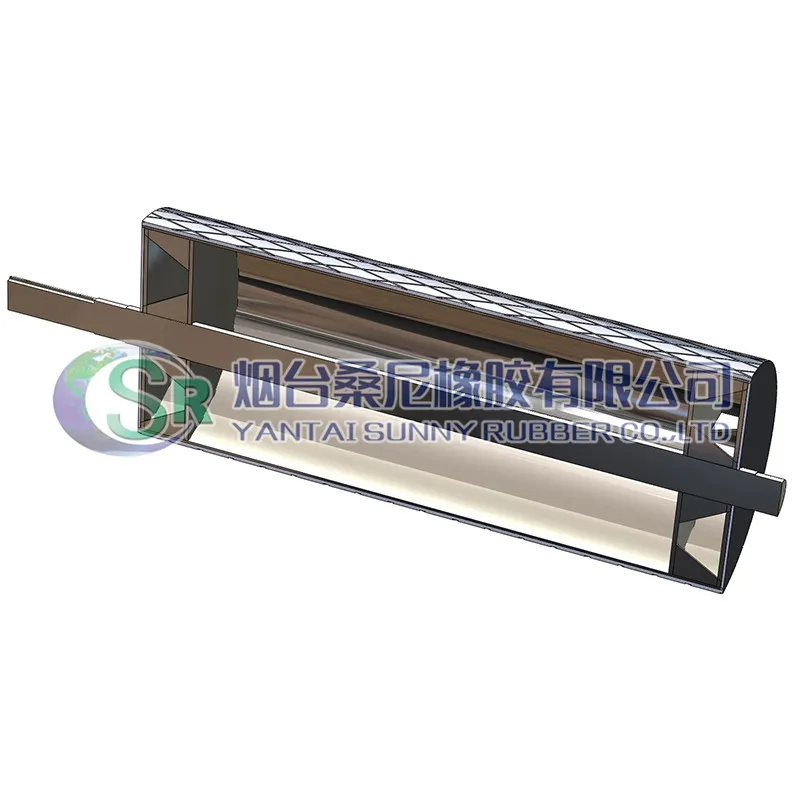

Rubber pulleys
Each filter is equipped with a drive pulley and a driven pulley; the cylindrical surface and lateral surface are covered by SBR rubber. For the drive pulley, the rubber layer thickness is no less than 30 mm, while the thickness is 16 mm at the tip, with the hardness of 65 degrees. For the driven pulley, the rubber layer thickness is 25 mm. V-shaped grooves are carved on the rubber layer of the drive
pulley, to drain the excess fluid and increase the adhesive force of the rubber layer. The service life is up to 100,000 hours. The design and manufacture of all rollers (including the rubber belt support roller, the filter cloth supporting, bend
and tension rollers, the filter cloth press roller, and the cloth flattening roller) are of low bending stress, that is: the roller does not bend during load running; the bearings of all rollers adopt self-positioning double-seal ball bearings, and simultaneously the sealing effects are fully taken into account, the mother liquid is not allowed to enter the bearing body. The structure that the bearing body is placed externally and fixed on the framework is not recommended.
Each filter is equipped with a drive pulley and a driven pulley; the cylindrical surface and lateral surface are covered by SBR rubber. For the drive pulley, the rubber layer thickness is no less than 30 mm, while the thickness is 16 mm at the tip, with the hardness of 65 degrees. For the driven pulley, the rubber layer thickness is 25 mm. V-shaped grooves are carved on the rubber layer of the drive
pulley, to drain the excess fluid and increase the adhesive force of the rubber layer. The service life is up to 100,000 hours. The design and manufacture of all rollers (including the rubber belt support roller, the filter cloth supporting, bend
and tension rollers, the filter cloth press roller, and the cloth flattening roller) are of low bending stress, that is: the roller does not bend during load running; the bearings of all rollers adopt self-positioning double-seal ball bearings, and simultaneously the sealing effects are fully taken into account, the mother liquid is not allowed to enter the bearing body. The structure that the bearing body is placed externally and fixed on the framework is not recommended.
Preview

Preview

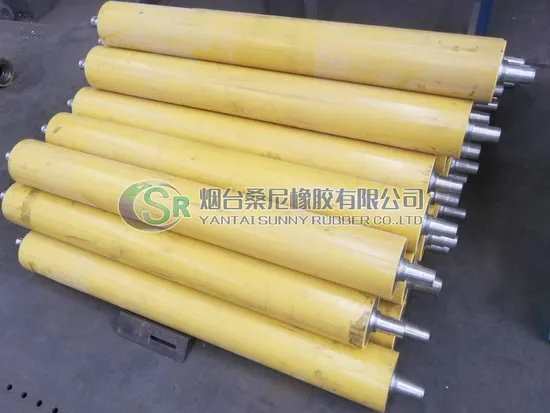

Rubber belt support roller:
The invention patent technology (ZL96115855.7) is used. The roller material is plastic alloy. Built-in design and labyrinth design are employed in the bearing, to ensure that the bearing is not corroded by atmosphere and penetration, which can greatly improve the bearing life.
The invention patent technology (ZL96115855.7) is used. The roller material is plastic alloy. Built-in design and labyrinth design are employed in the bearing, to ensure that the bearing is not corroded by atmosphere and penetration, which can greatly improve the bearing life.
Preview

Preview

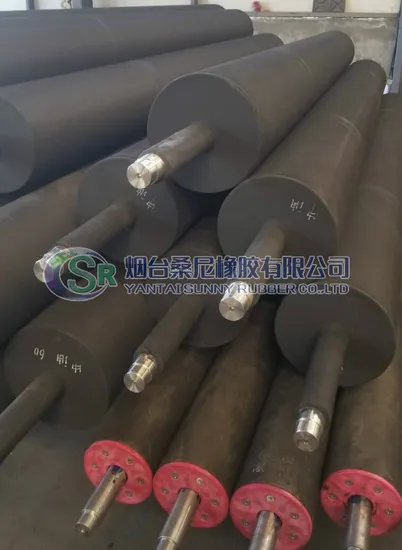

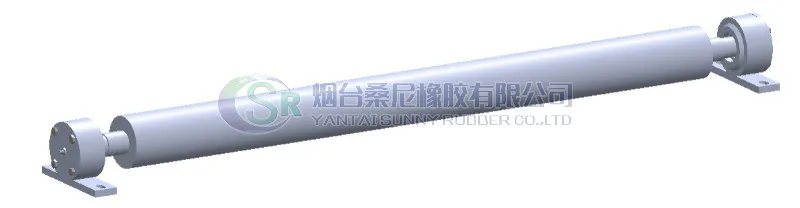

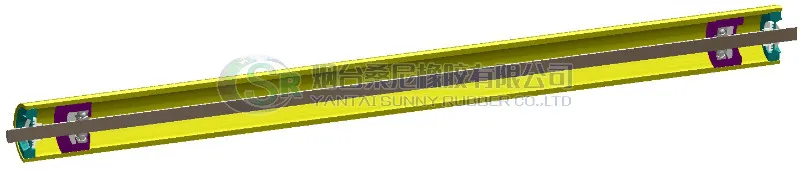

Rubber belt support roller
It uses Q235 seamless pipe, with SBR rubber covered on the surface and the rubber thickness is 20 mm. For the rubber-covered roller, the diameter
of DU-72 m2/3200 is φ345. Both ends of the roller are connected to the framework with bearings and one-piece sealed bearing support. The bearings adopt heavy series double-row self-aligning roller bearings.
It uses Q235 seamless pipe, with SBR rubber covered on the surface and the rubber thickness is 20 mm. For the rubber-covered roller, the diameter
of DU-72 m2/3200 is φ345. Both ends of the roller are connected to the framework with bearings and one-piece sealed bearing support. The bearings adopt heavy series double-row self-aligning roller bearings.
Preview

Preview

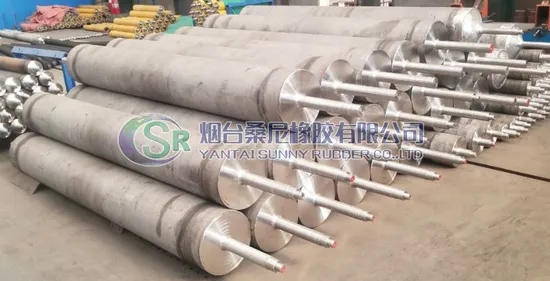

Filter cloth
press roller
It is mounted in
front of the feeding hopper, and its role is to ensure the effective integration of the filter cloth and rubber belt before the filter cloth entering the feeding hopper. The material is Q235 lining plastic. It is of tapered design at both ends, with a diameter of φ325.
press roller
It is mounted in
front of the feeding hopper, and its role is to ensure the effective integration of the filter cloth and rubber belt before the filter cloth entering the feeding hopper. The material is Q235 lining plastic. It is of tapered design at both ends, with a diameter of φ325.
Preview

Preview

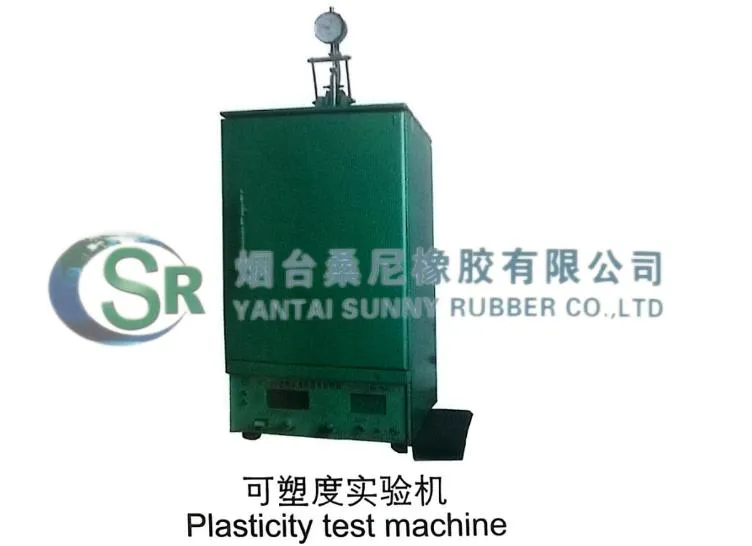

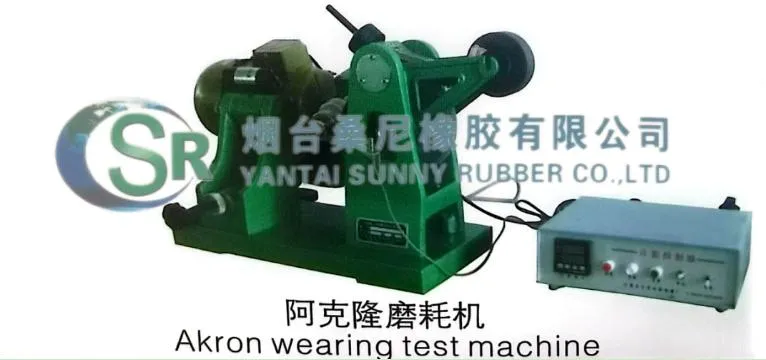

Product InspectionComplete advanced inspection facility, and ensure a batch inspection of the raw materials and finished products. It can ensure the stability and reliability of the product quality, and also meet the requirements of the customer about the capability of the products.
Preview

Preview

Preview
Company profileYantai Sunny Rubber Co., Ltd established in 2005, located in Economic Development Area of Qixia City, Shandong Province. It is high-tech enterprise. Main products are pneumatically operated spillway gate, rubber dam, filter belt, conveyor belt, etc.The workshop is 22,000 square meters, equipment 200 sets, worker 230. It owns 11 patents for invention, 18 patents for utility. With the full capacity of design, production, installation and after sales, more than 100 spillway gates were built by Sunny in domestic, for power plant impounding and river management. Our product also export to Italy, Thailand, Philippines, South Africa, Argentina etc.
Preview

Preview

Preview
证书
标题:Shandong Provincial Certified Enterprise Technology Center
