product输送带鼓形人字齿陶瓷衬里皮带轮滑动滞后橡胶垫圈在滑轮上
Image 2Image 3Image 4Image 5Image 6
Image 1
Preview
基本信息产品详情证书

基本信息

型号编号ZE-TC
橡胶硬度65±5肖氏硬度
氧化铝大于92%
陶瓷硬度(莫氏)超过9吨
工作温度低于85度
抗拉强度24兆帕
Cn键合层剥离强度> 12千牛/米
交通包胶合板箱,托盘
规格12×200毫米 15×500毫米
商标德邦
起源中国河南省焦作市
生产能力每周500个

产品详情

Product Description
detail
Preview

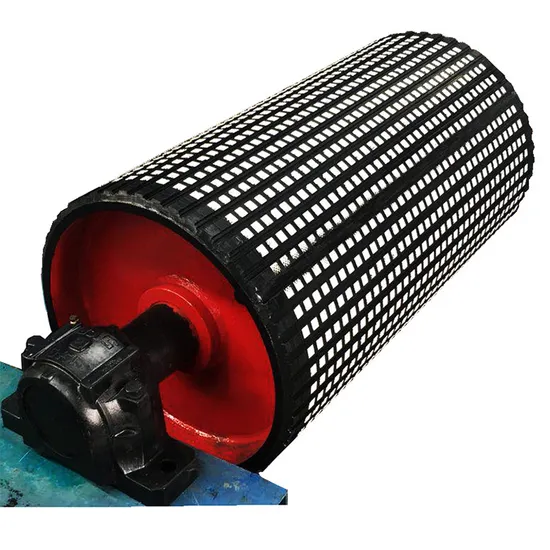

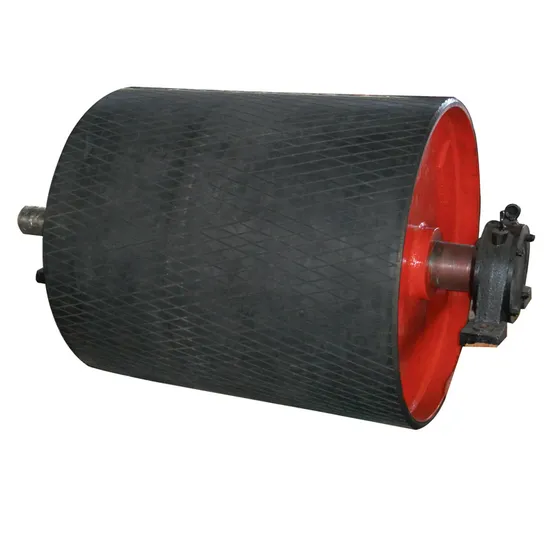

Rubber Ceramic Pulley Lagging for Conveyor
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview

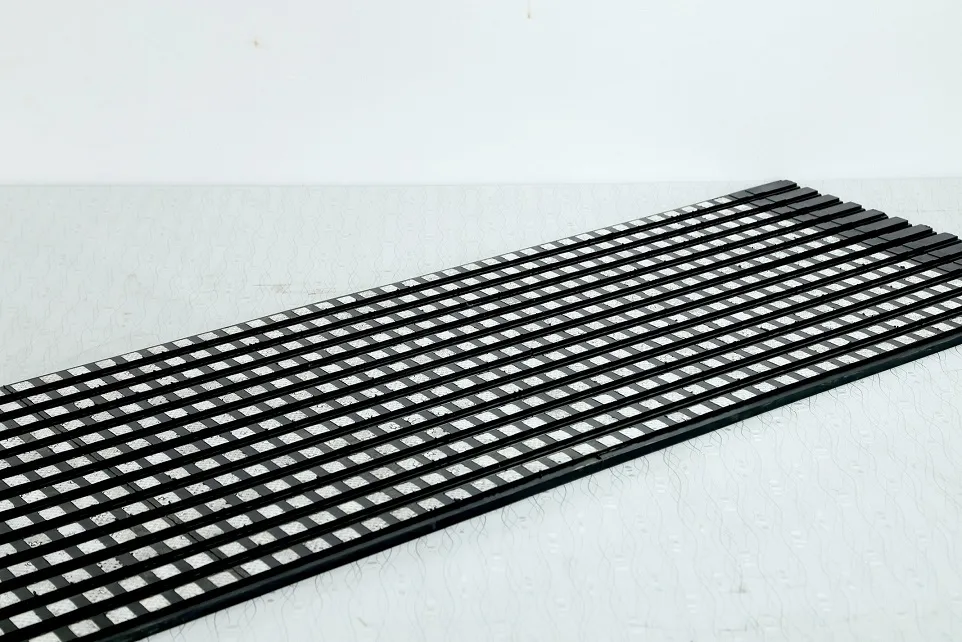

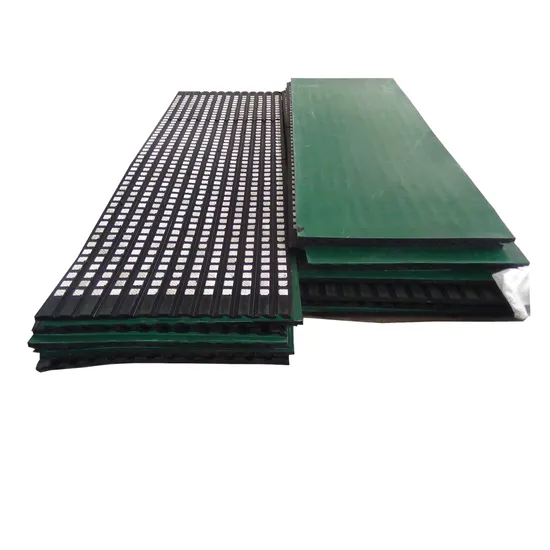

Ceramic rubber lagging is specially suited for pulleys where slippage and excessive wear and tear problems make normal rubber lagging ineffective. The alumina ceramic tiles help in proper grip of the belt under wet, muddy or any other such arduous conditions.DB-TC-I ceramic pulley lagging:
Ceramic coverage: 80%
DB-TC-I size: 12mm thick * 200mm width
Length: 50mm~100mm longer than your pulley width

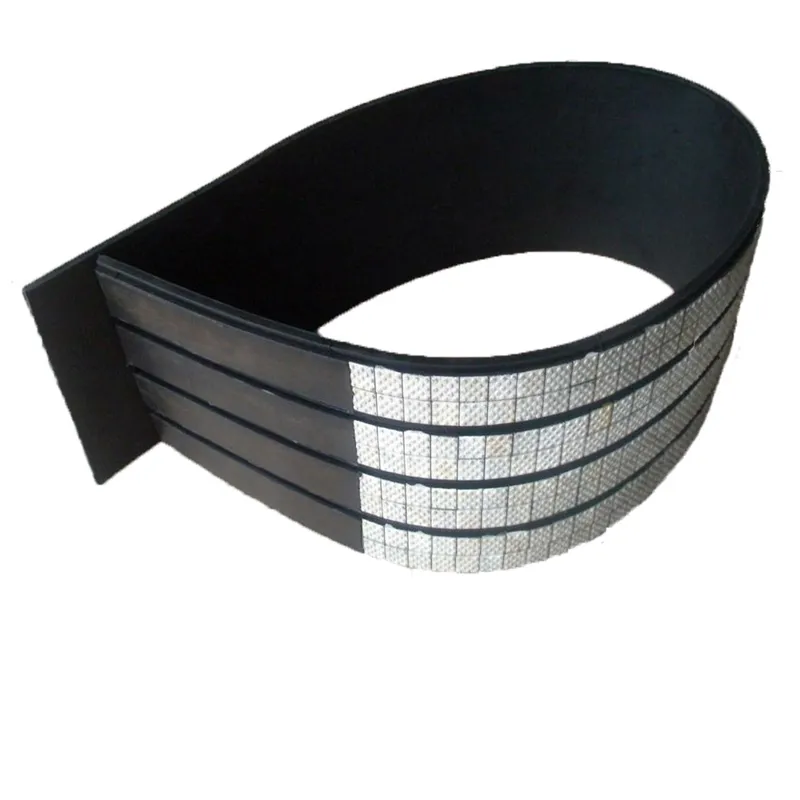

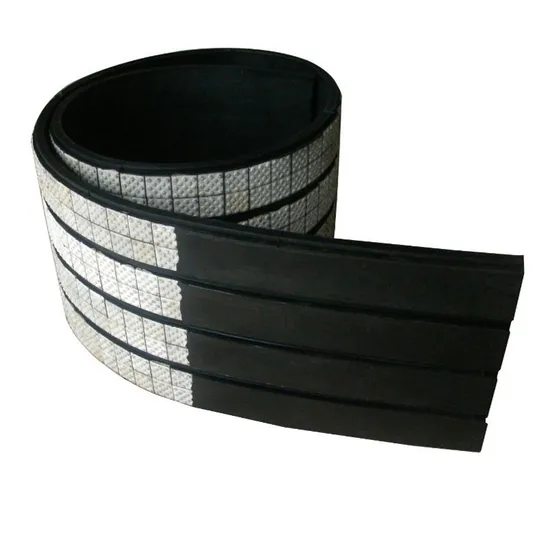

DB-TC-II ceramic pulley lagging:
Ceramic coverage: 39%
DB-TC-II Size: 15mm thick * 500mm width
Length: 50mm~100mm longer than your pulley width

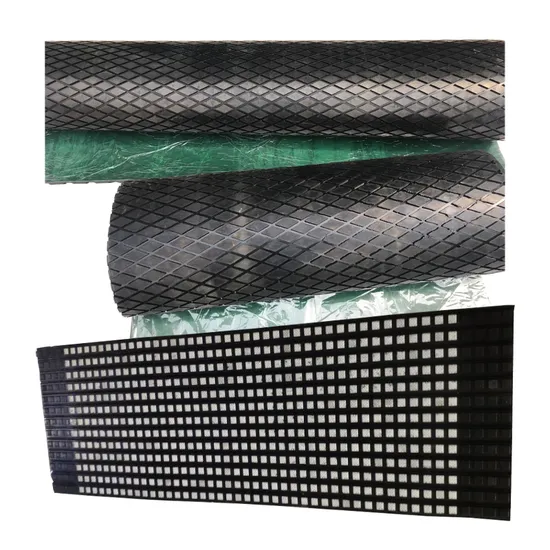

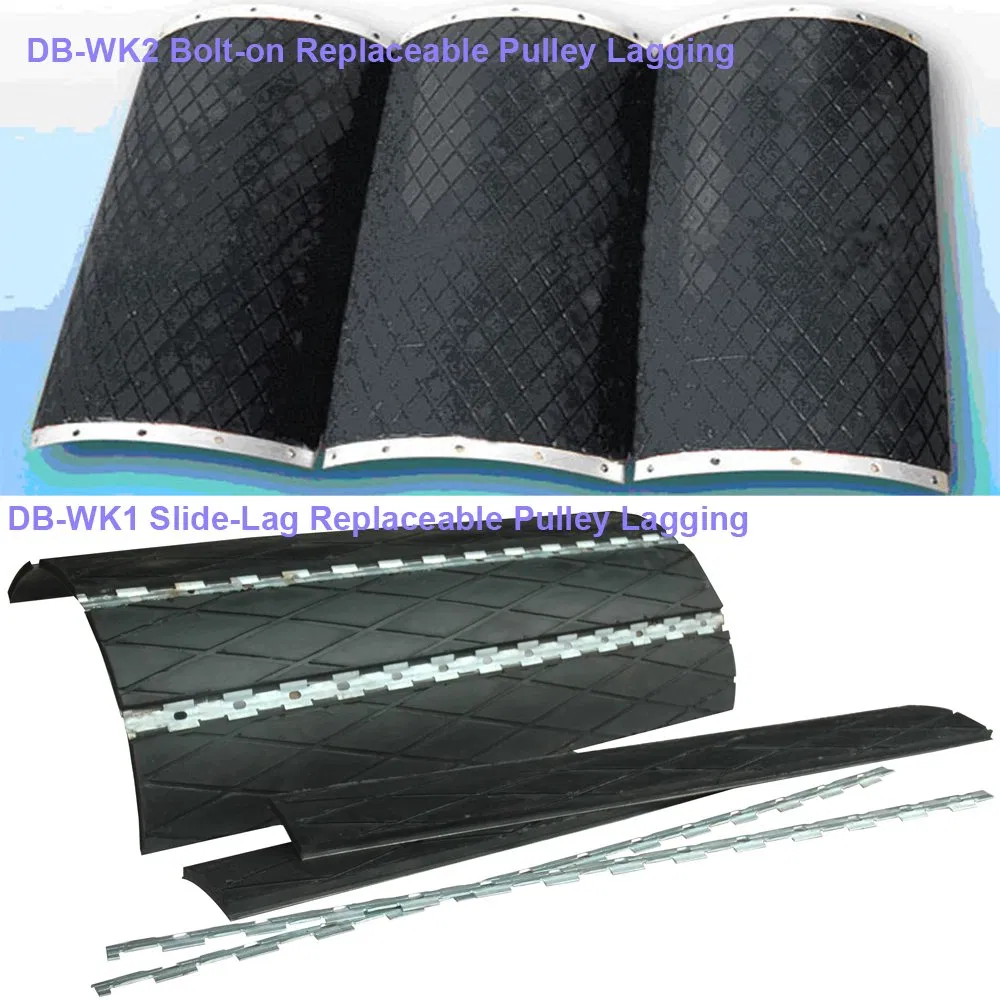

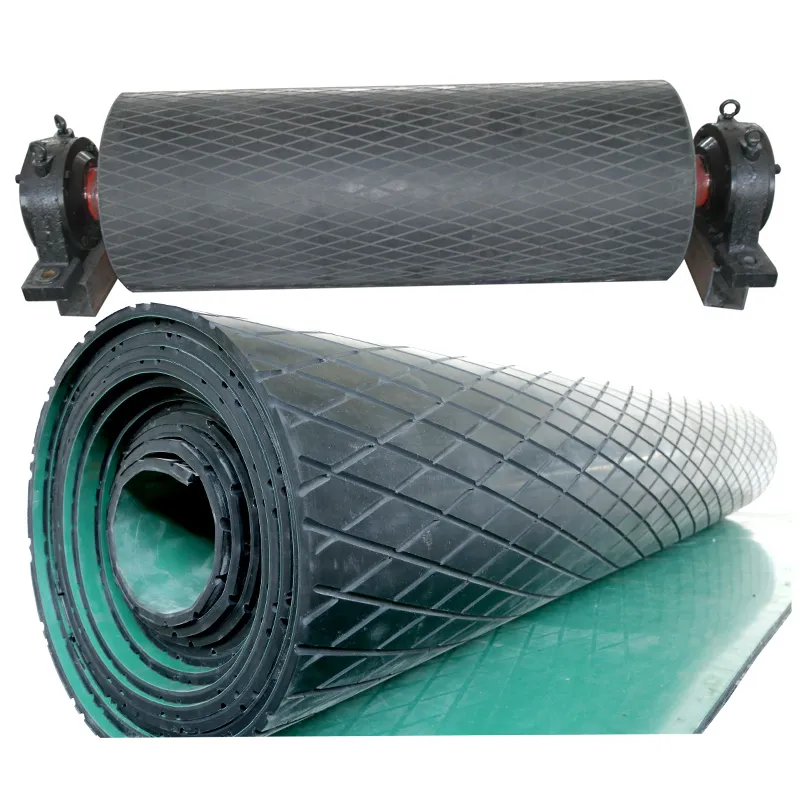

Other types of Pulley Lagging:

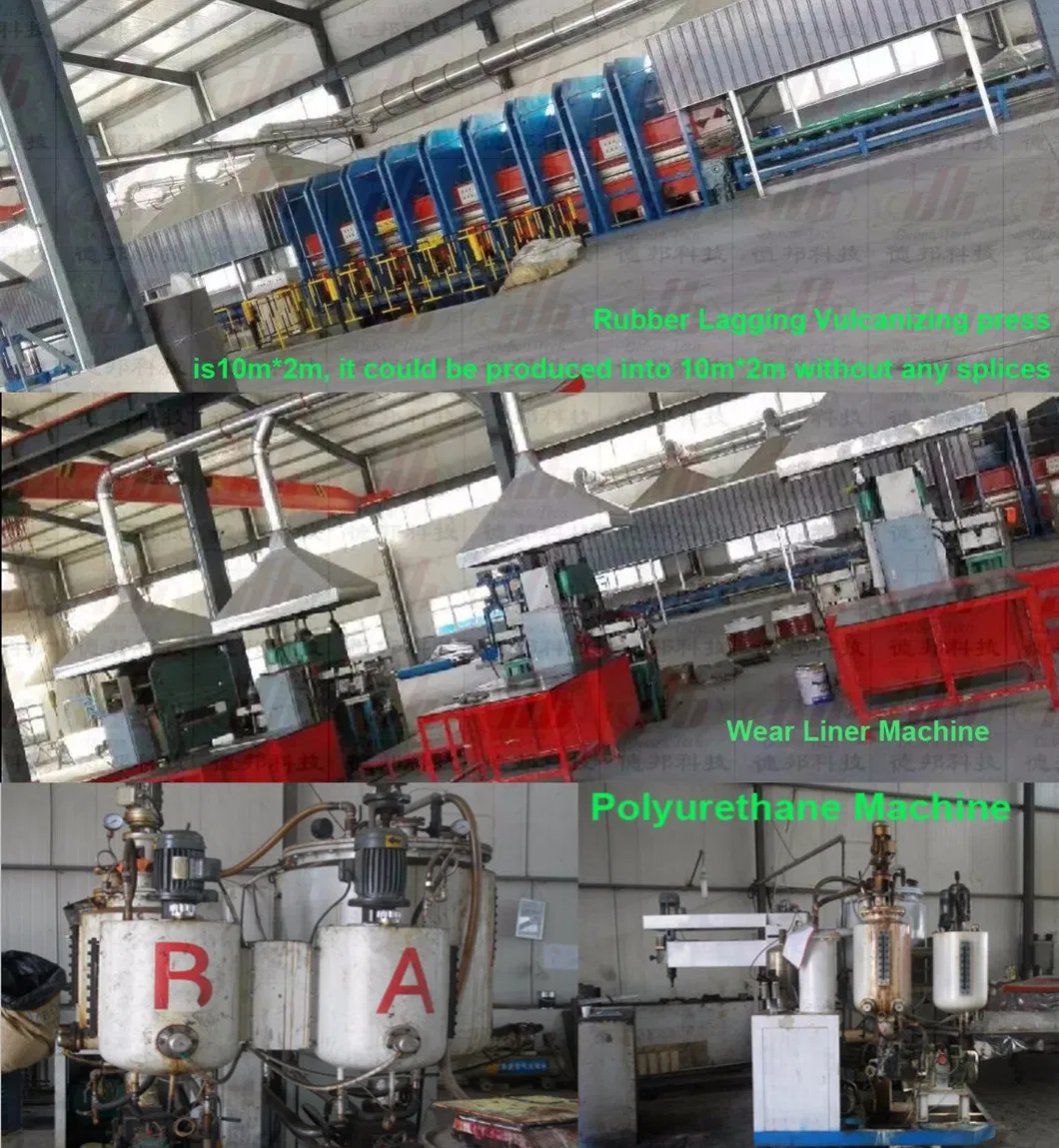

Our Factory
Over 15 years experience of producing and developing, Debon Technology have become top 10 belt conveyor accessories factory in China.Certificate we had: ISO, SGS, Saftey Certificate of Approval for Mining Products, etc..8-Year Exporter to more than 45 countries in the world.Main Products
Conveyor Accessories:Belt cleaner, impact bed/impact bar, skirt board,pulley lagging,etc..Wear Liner:Ceramic wear Liner, Rubber liner, PU liner, Composite liner, Liners with/without wear strips, etc..Belt Repair:Steel Cord Stripper, rubber belt stripper, repair strips, diamond patches, etc..Custom Rubber and Polyurethane:Polyurethane Blade, PU rods, PU wheels, PU Sheet, Rubber sheet, Rubber seal parts, etc..Contact me for more details
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview

证书

标题:采矿产品安全认证批准书
Preview
