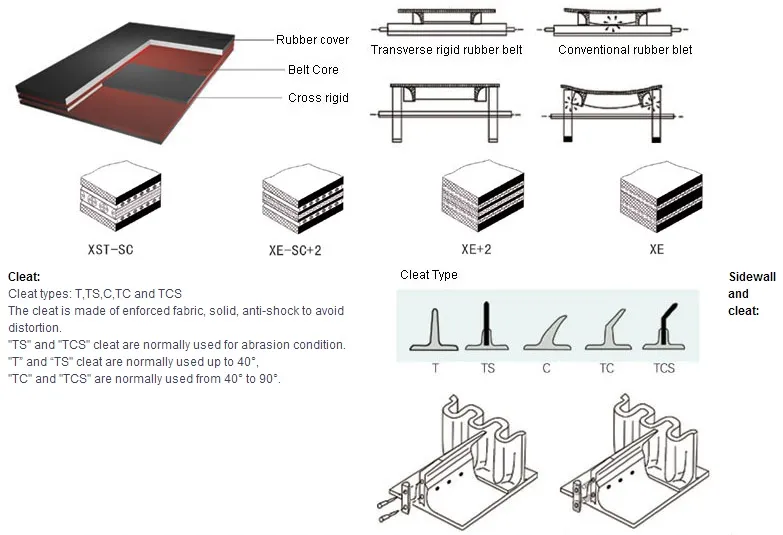

StructureFour parts: Top cover rubber; Bottom cover rubber; Reinforced core; Cross rigid.Min
top cover
thickness: 3 mm;
Min bottom cover thickness: 1.5 mm.Belt carcass ( casing ply): EP, Cotton, Nylon
Steel Cord

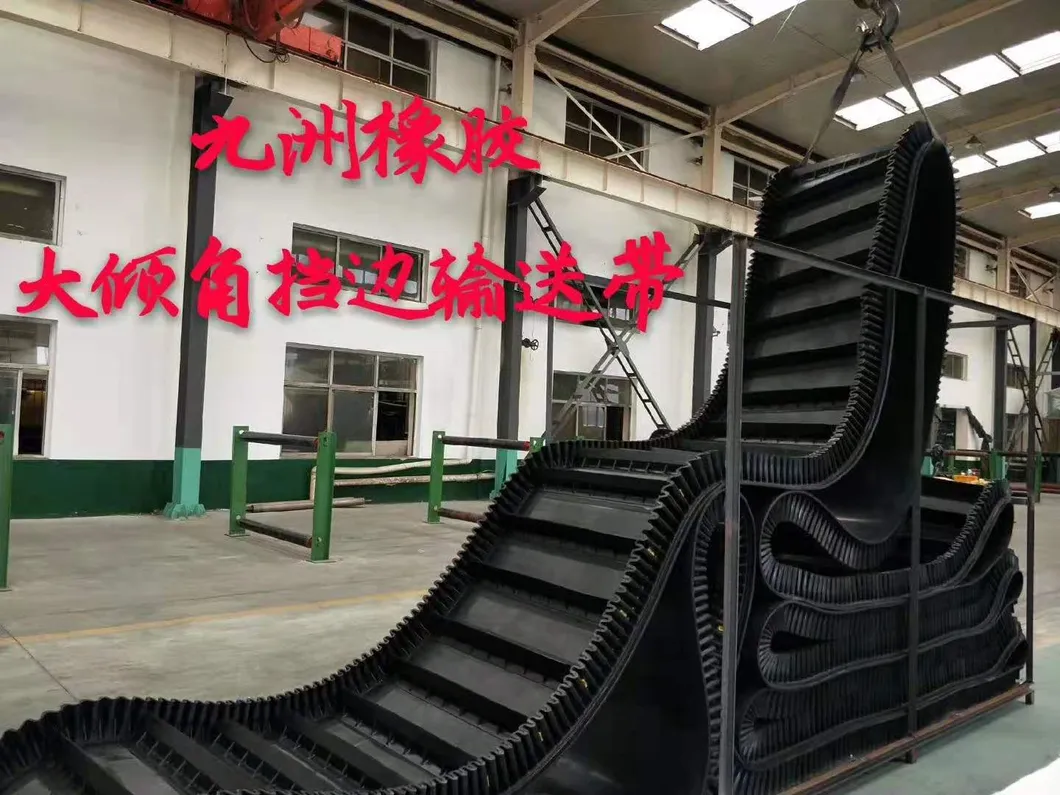

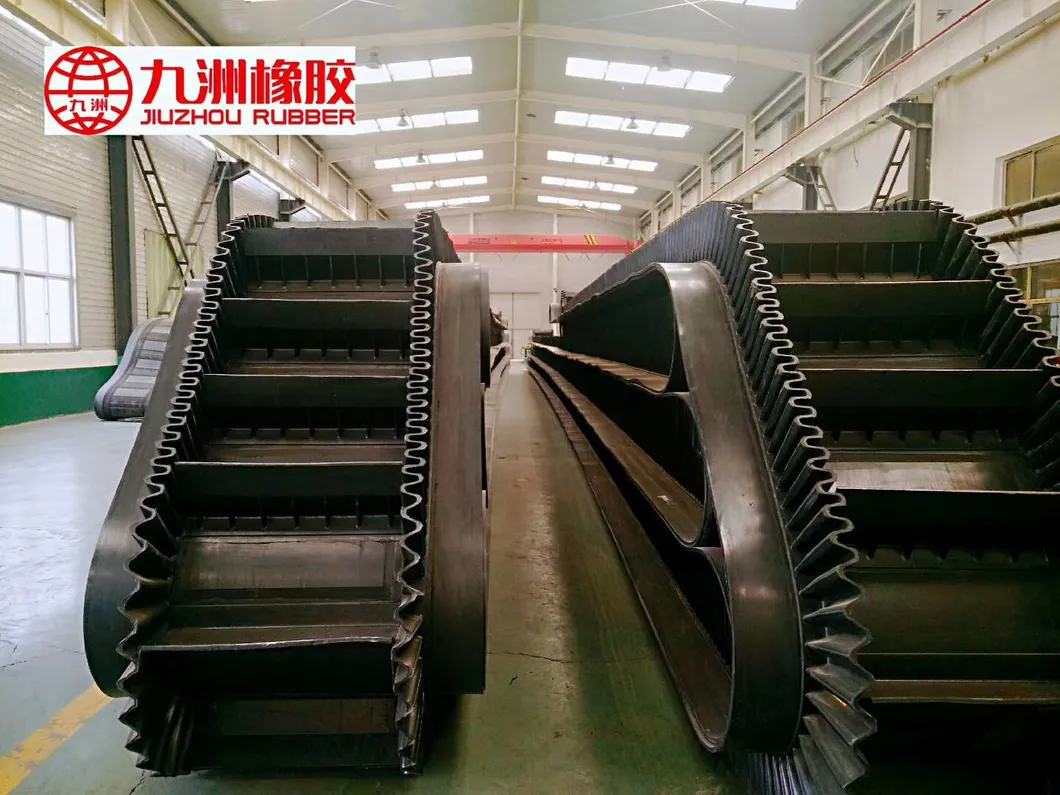

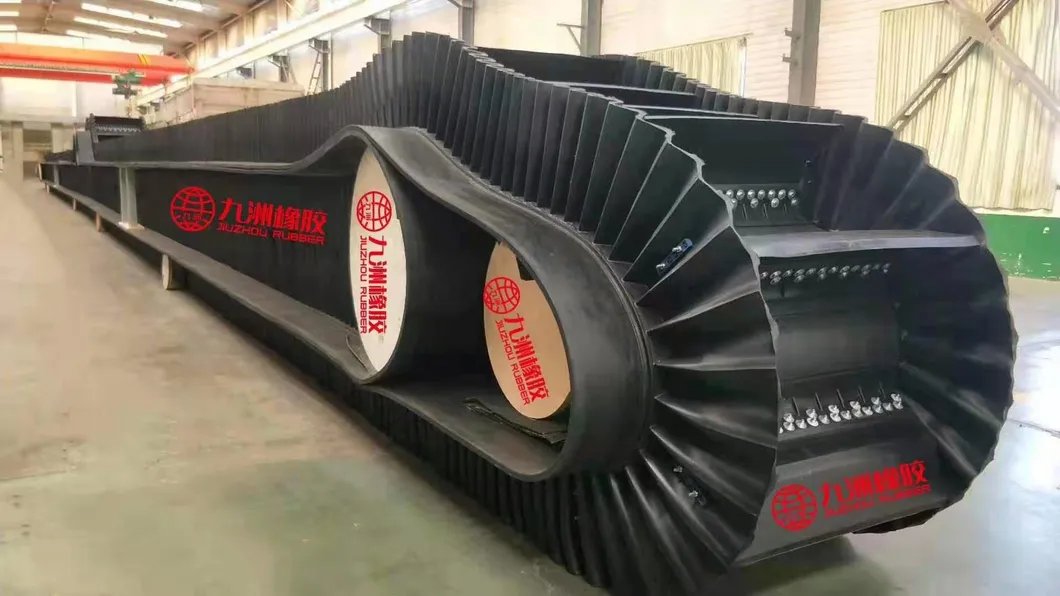

Characteristcis:1) Conveying angle 30~90ºC
2) Smaller
area covering;3) Bigger
throughput,
higher
hoisting
height;4) Smooth
transition
from
horizontal
to
tilt or
vertical;5)
Saving time
6) Strong conveying capacity

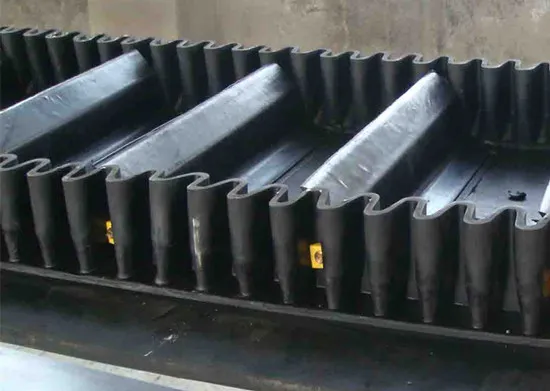

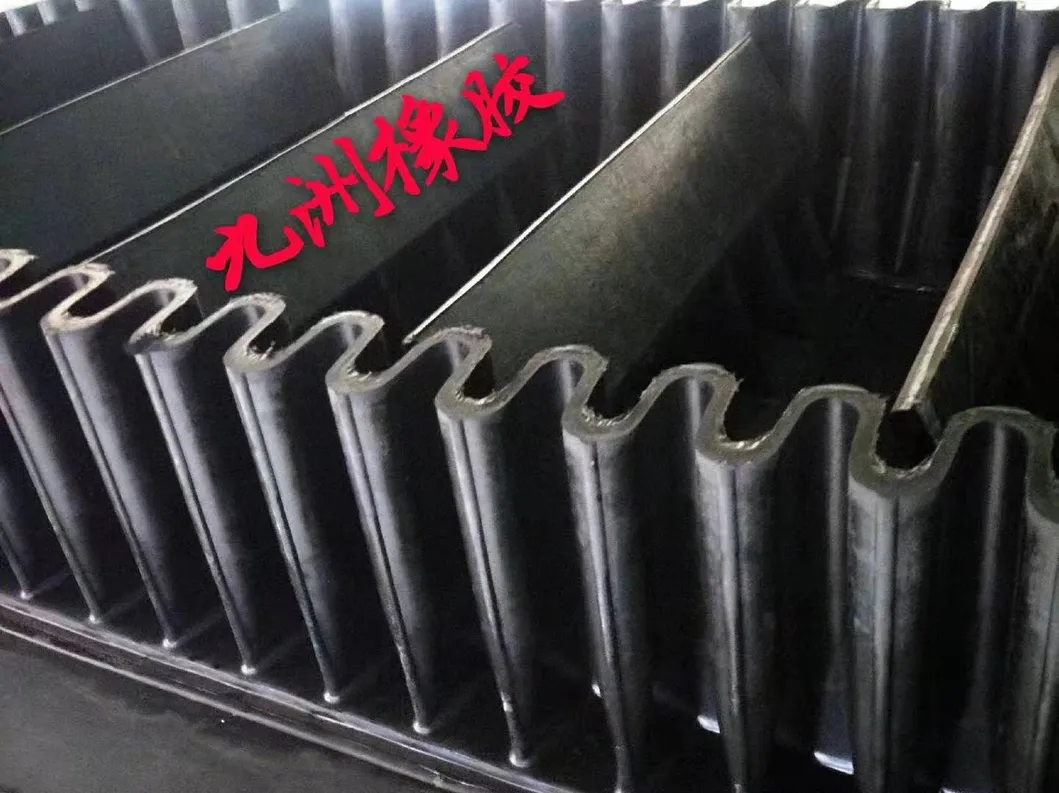

Cleat:
Cleat types: T, TC
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion."T" cleat are normally used up to 40 degree
"TC"
normally used from
0 degree to 90Classify by constructure:
1) Conventional type
2) Transverse reinforcement type: XE, XE+2, XE-SC+2 etcStandard:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etcApplication:
Suitable
for
conveying
easy
sifted materilas in powder,
granulated
and
small
lump,
paste
and liquid, widely used in loading and unloading transportation systems such as ore mine, coal mine, stations and wharf to conveying materials in shape of lump, partials, and powders, etc.Why

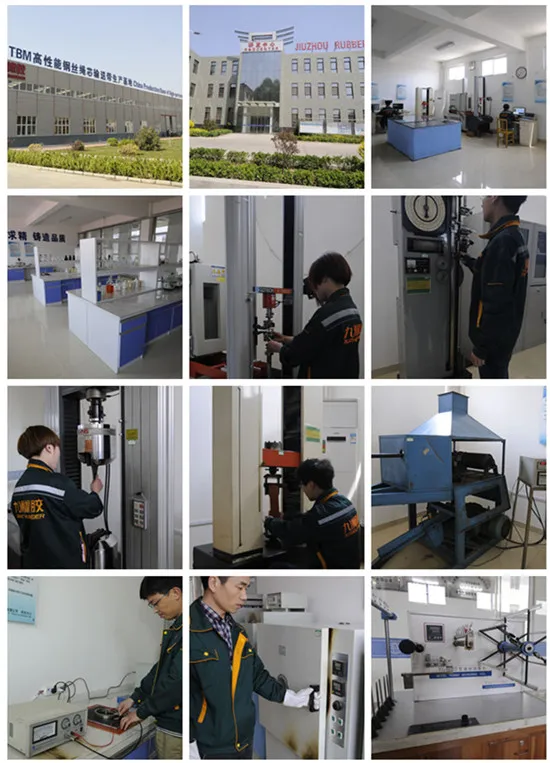

choose us?1. High level of choosing upstream supplier: like carcass, Wuxi Taiji being our strategic partner supplying qualified fabric.All raw materials purchase is accompanied with quality test certificate.2. Strict QC system over the whole process of production: raw materials - semi-finished product - finished product

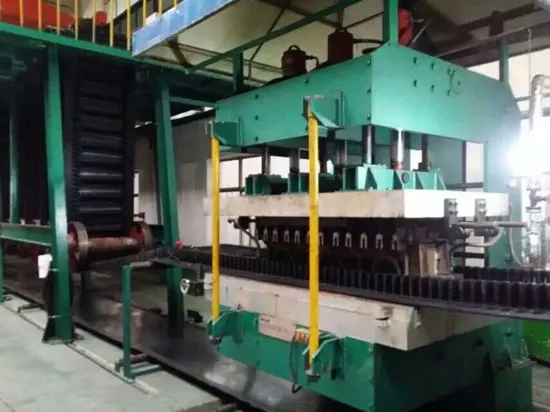

Every one step of semi-finished product shall be tested before next step of processing. Unqualified pieces are now allowed for next step of processing.3. All finished products shall get tested, and only
qualified products can leave factory.
