Applications :Food Packaging:
The Multi Station Thermoforming Machine produces trays, lids, and containers with high standardization and cutting accuracy, enhancing food packaging efficiency and quality.Industrial Use: This versatile Multi station thermoforming machine forms durable parts and components with flexible production capabilities, ensuring exceptional reliability and precision in industrial applications.Medical Industry:
Create high-quality sterile packaging solutions with the Multi Station Thermoforming Machine, which offers strong, durable materials and user-friendly software for precise control in medical packaging.Consumer Goods:
Utilize the Multi station thermoforming machine to manufacture clamshells, flower pots, and nursery trays, benefiting from the 4-post press system for balanced forming and cutting forces.Custom Manufacturing:
The Multi Station Thermoforming Machine supports custom manufacturing, enabling the production of tailored products across various industries with its robust design and consistent performance.
Product Parameters
ZHS-800/500
Sheet Materials
PP.PS.PET.PE.PLA
Sheet Width
600-820mm
Sheet Thickness
0.3-2.5mm
Motor Power
15kw
Max. Forming Area
800x500
Heading Power
125kw
Max. Cup Height
200mm
Total Weight
6ton
Forming Pressure
0.6-1.0Mpa
Water Consumption
40-45L/min
Productivity(cycles)
10-35cycles/min
Air Consumption
2500-3500L/min
Overall Dimensions
4000x1700x2900mm

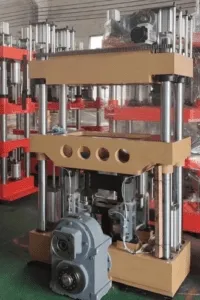

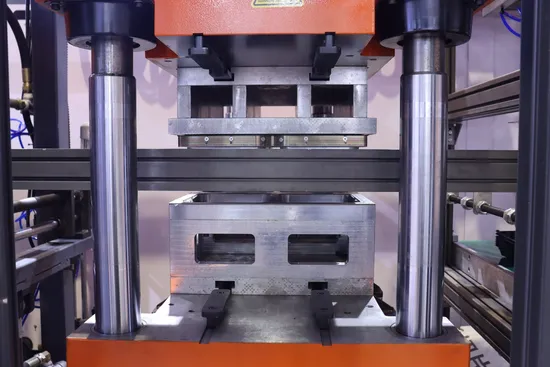

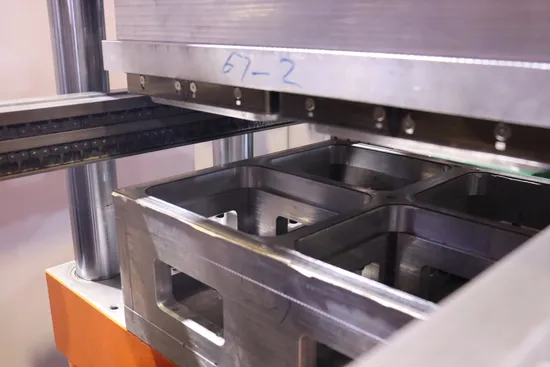

Pillar Servo Construction
Our pillar offers superior product quality across various shapes, including round, rectangular, oval, and square, even for larger sizes.
This mechanism significantly increases the rate of finished products and ensures more stable operation, making it an excellent choice for high-efficiency production.

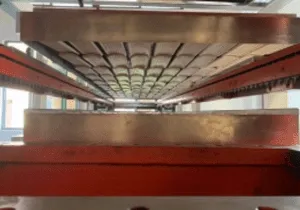

Oven
Our system boasts seven times the maximum forming area, utilizing advanced little infrared ceramic tile heating for more uniform results.
Constructed with 304 stainless steel for durability, it features Dongtai Tianbao heaters controlled by an intelligent temperature controller for precise temperature management.
The oven structure adopts a pneumatic drawer design for easy access, while safety measures include manual blowing cooling to prevent sheet fall, ensuring safe and efficient operation.

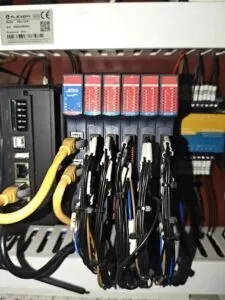

PLC
Our
cup forming machine, features a Trio PLC according to standard design, ensuring the stability, high efficiency, and low failure rate of the entire machine.
This advanced system guarantees consistent and reliable operation, making it an ideal choice for high-precision production needs.

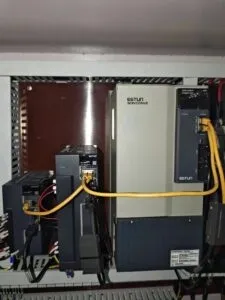

Servo Drive
cup forming machine, is equipped with Estun Servo Drives, renowned for their high accuracy and production efficiency.
Having utilized these servo drives for all our thermoforming machines, we have experienced flawless performance with no errors, showcasing their exceptional reliability and consistency in delivering high-quality results.

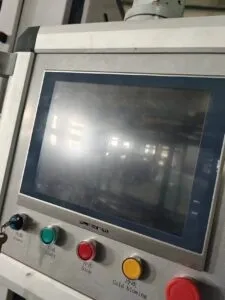

Human Machine Interface
cup forming machine, is equipped with a FLEXEM HMI, known for its advanced industrial grade and high durability.
This state-of-the-art HMI enhances user interaction, ensuring efficient and reliable operation for all production needs.
Samples

Auxiliary Equipment (option)

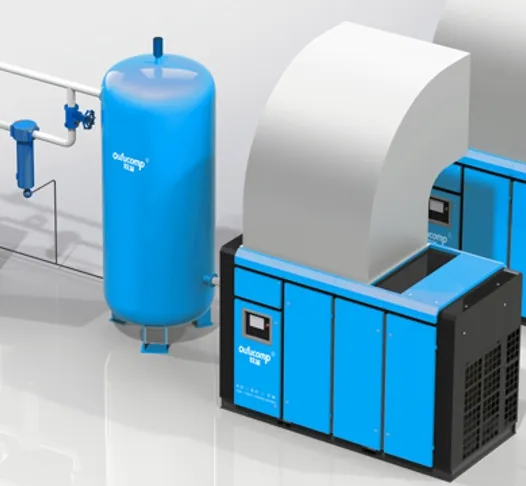

Air
Compressor
Motor Power :22kw
Capacity : 3.8m3/ 0.8/mpa
Dimension:1.2*0.88*1.55m
Weight:600kg
Air tank : 1000L

Robot
hand
system
MAX. Load: 3kgVertical stroke: 1400mmCrosswise stroke: 650mmDrive type : servo motor1.8kw

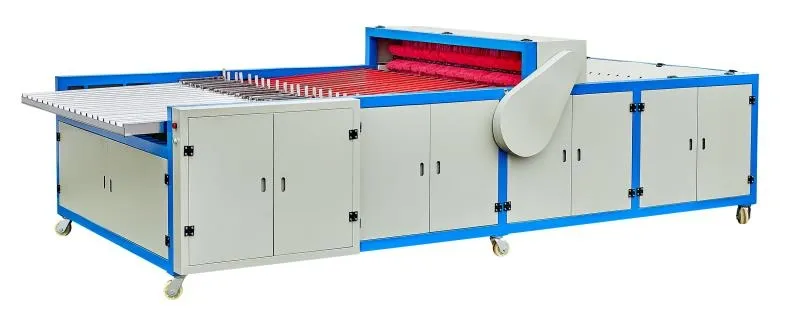

Cup Stacking
Machine
Motor: 2kw
Dimension: 3700x1500x1200

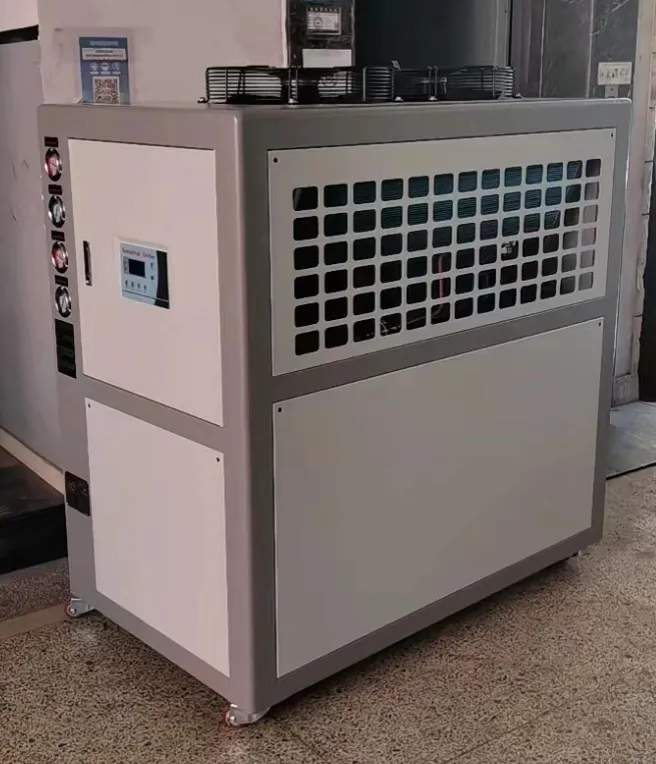

Chiller 10P
Cooling capacity: kw/50hz 29
Kcal/Hr/50Hz 31000
Compressor power: 8.3kw
Cooling water flow: 5.95m3
Pipe Diameter 1-1/2''
Chilled fluid flow: 4.95m3
Water pump: 0.75kw
Weight:455kg
Dimension: 1450x800x1450
Usage:Its used for mould

Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.
