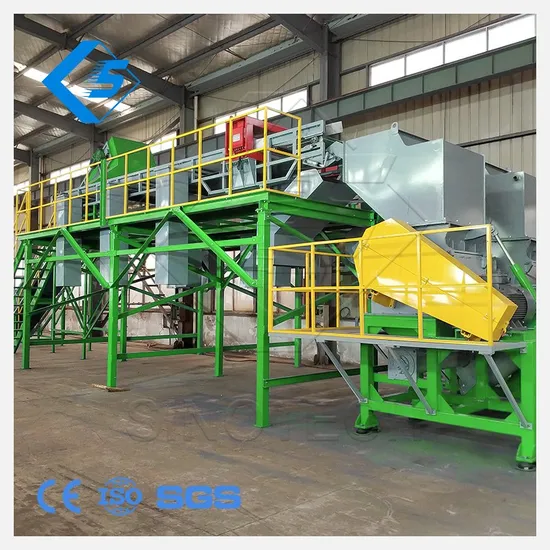

Plastic Recycling Washing Line
PET bottle washing recycling line is a full automatic crushing washing dewatering and drying production line, it is the ideal equipment to waste mineral water bottles, cola bottle, PET bottle sorting, label removing, crushing, washing, dewatering and drying machines.

Product Description:
1.This line is mainly used for recycling the waste PET bottle, PET container etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.3. This line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.4. Easy to operate, Full automatic.5. Production capacity: 500KG/H, 1000KG/H,
1500KG/H,
2000KG/H, 3000KG/HMain Advantage:1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film. 2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.Features:
Capacity: 500-3000kg per hourMoisture of PET Flakes: Less Than 2%Cap &Label separate with the PET bottle flakes automaticallyBottle Types: PET Bottle, Plastic Bucket, Water Bottle, Coke Bottle,Application: PET Strap, PET Yarn Fiber, PET Sheet

Product Parameters

The production line includes: De-baler, belt conveyor, trommel, label remover, sorting table, crusher, floating washing tank, screw feeder, hot washer, high speed friction washing machine, centrifugal dewatering machine, dryer
blower and label seperator, silo, electric cabinet
etc.

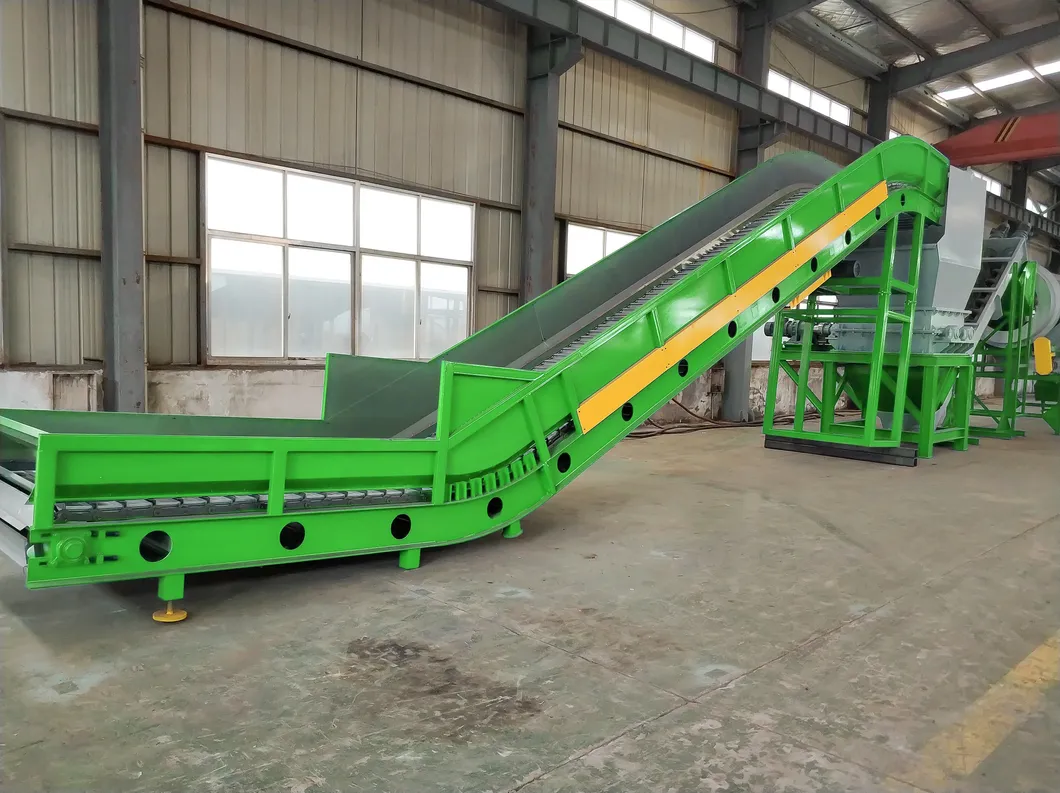

01 Metal chain conveyor
Usage: Cut the bundled PET bottles of wire, through the chain conveyor to the unpacking machine unpacking
02 De-baler
Usage: Manully cut off the packaging steel line of the packaged bottles. then put them into the debaler. The packaged bottles will opened by the
running screw blade and run ahead to exit.

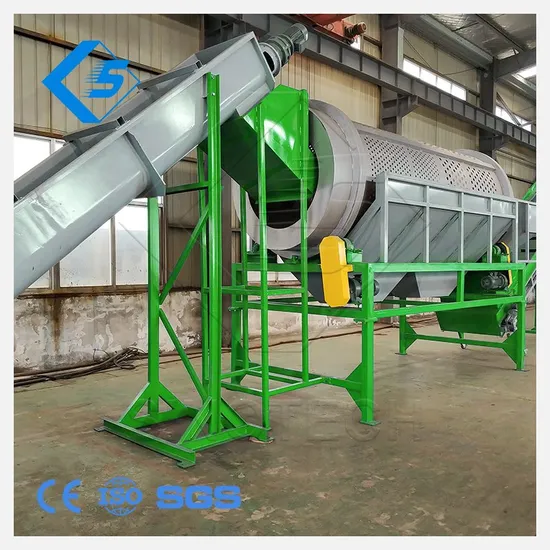

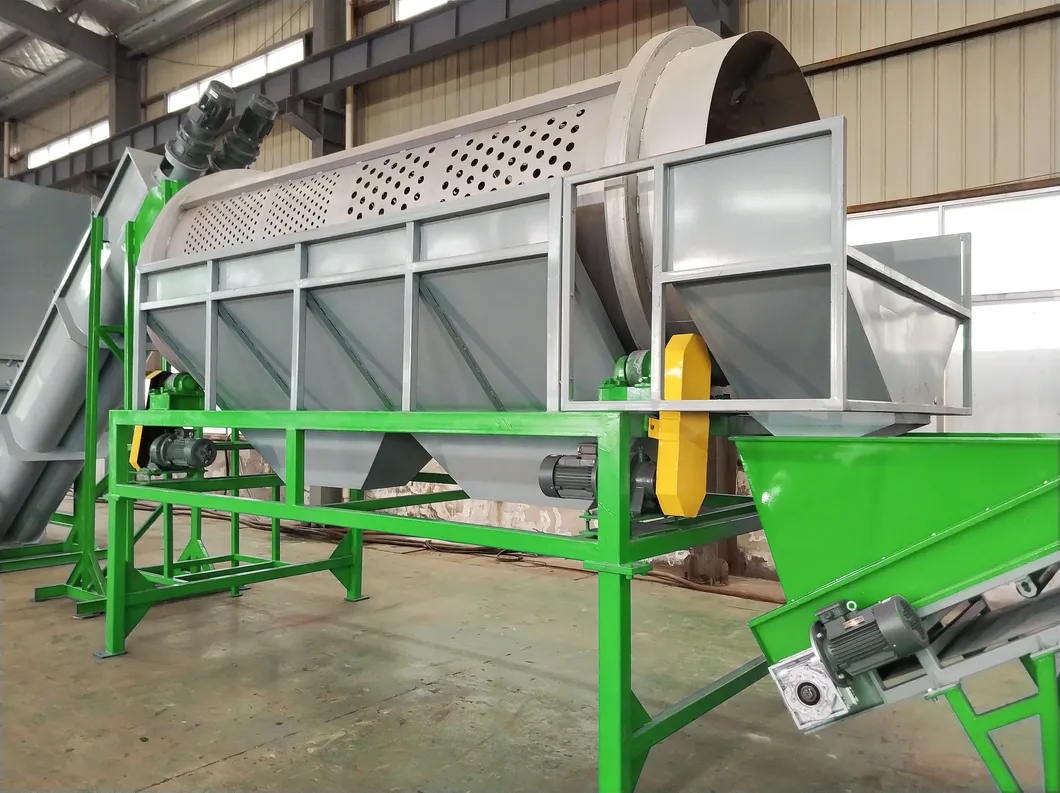

03 Trommel
Usage: Separate different impurities such as sand, rocks ,metals, caps according to different size of the holes

04 Label-remover
Usage: for removing the labels by friction between screen and arms

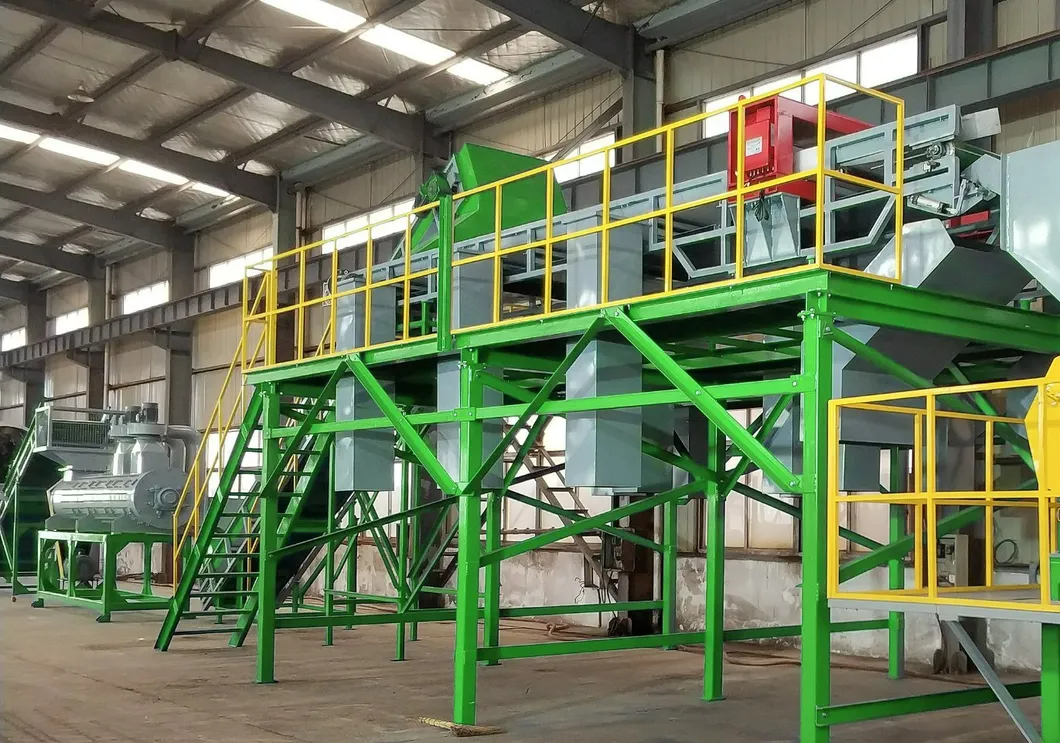

05 Platform of choosing
color bottles with metal detector
Usage: Manually separate any impurities that can be seen.

06

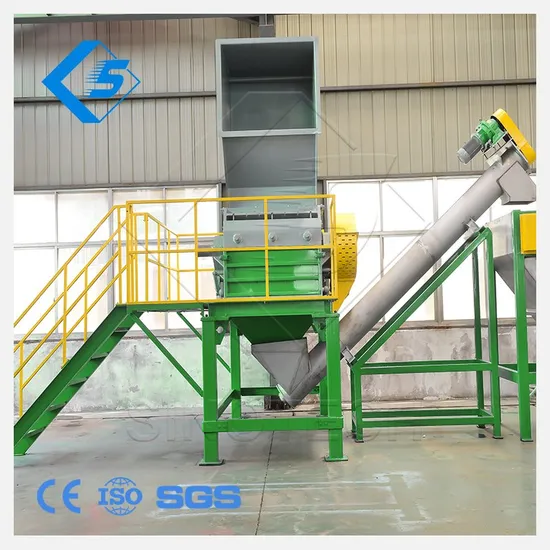

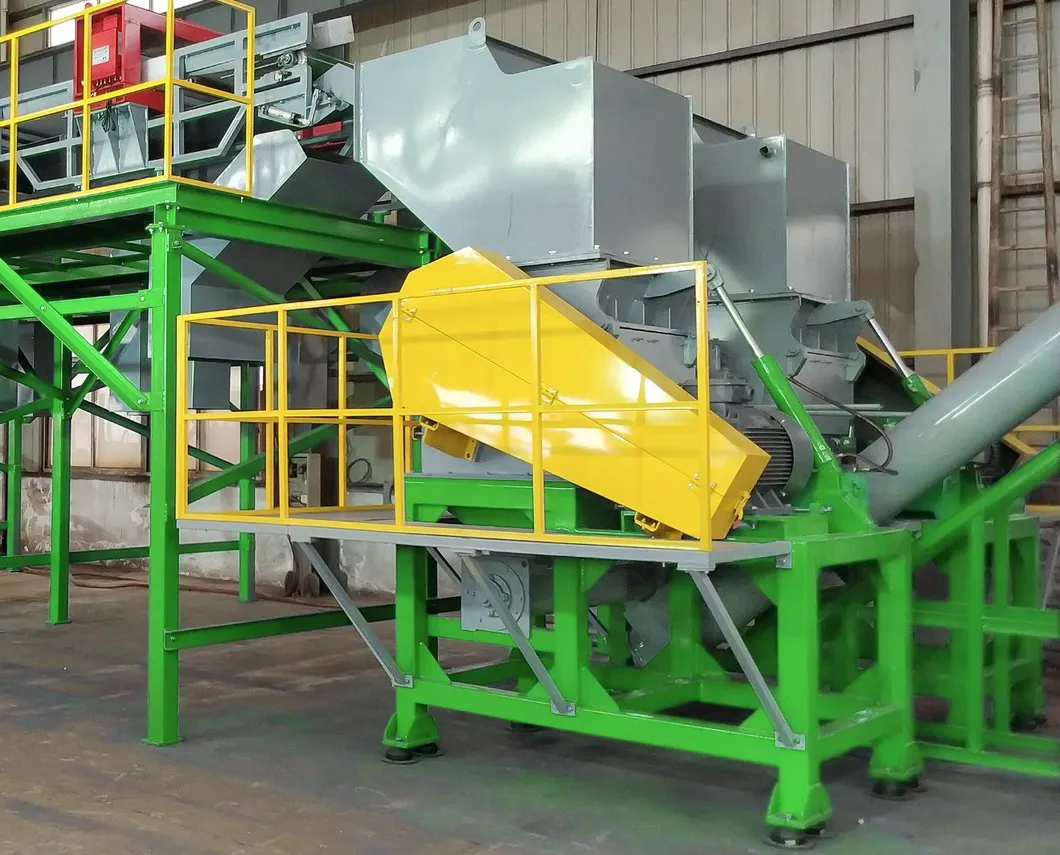

Wet crusher
Usage: to crush PET bottles into PET flakes.

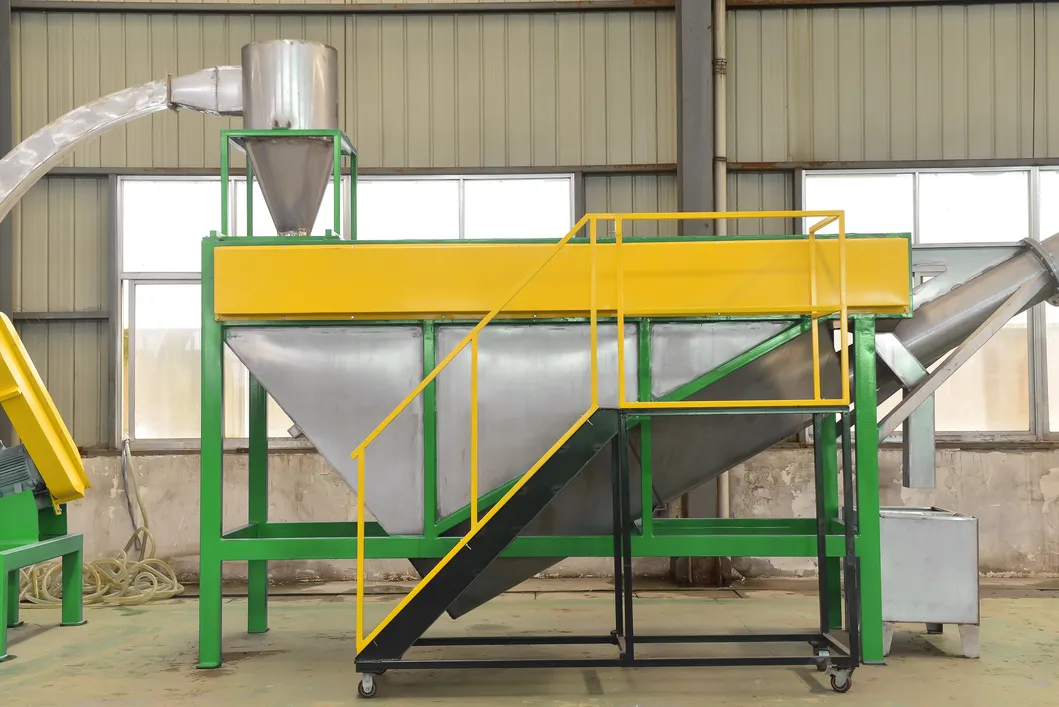

07 Floating washing tank
Usage: to remove labels, caps chemicals dirties etc

08

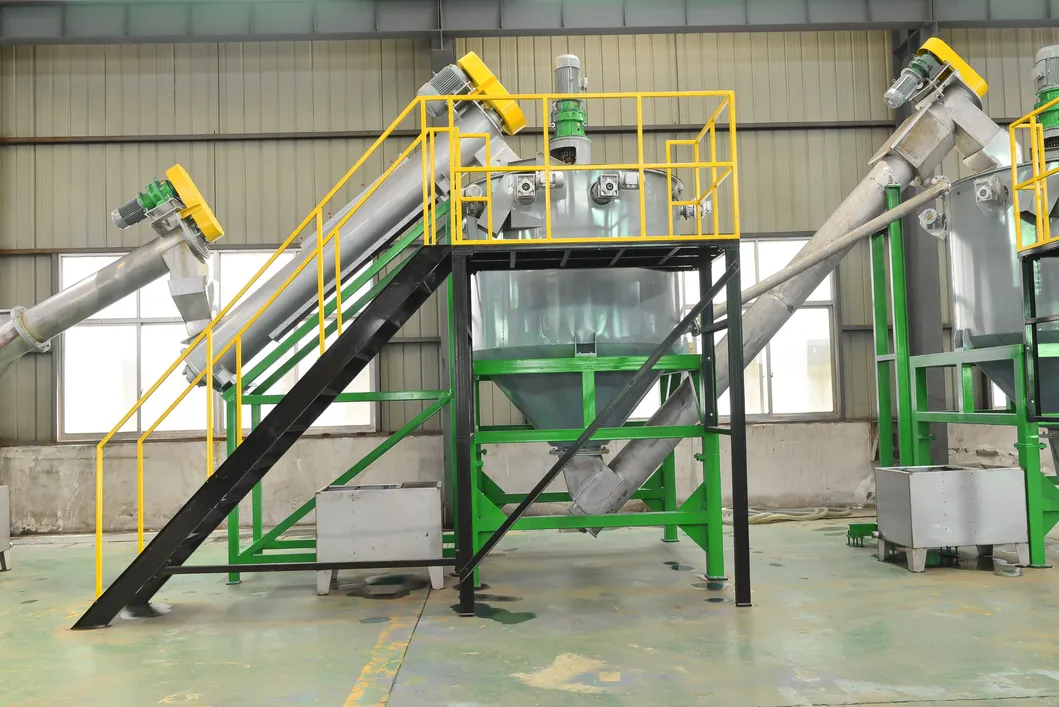

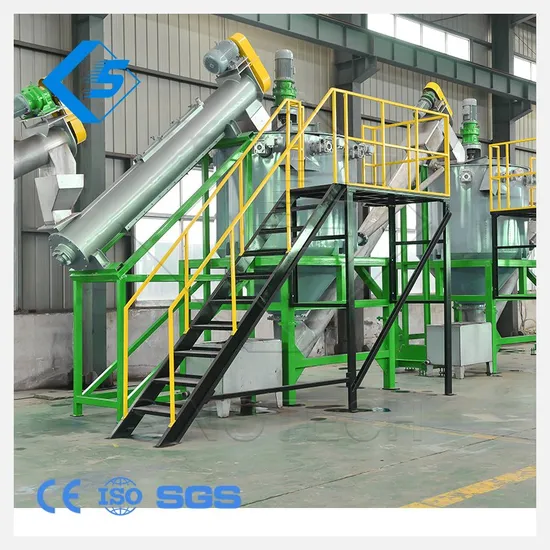

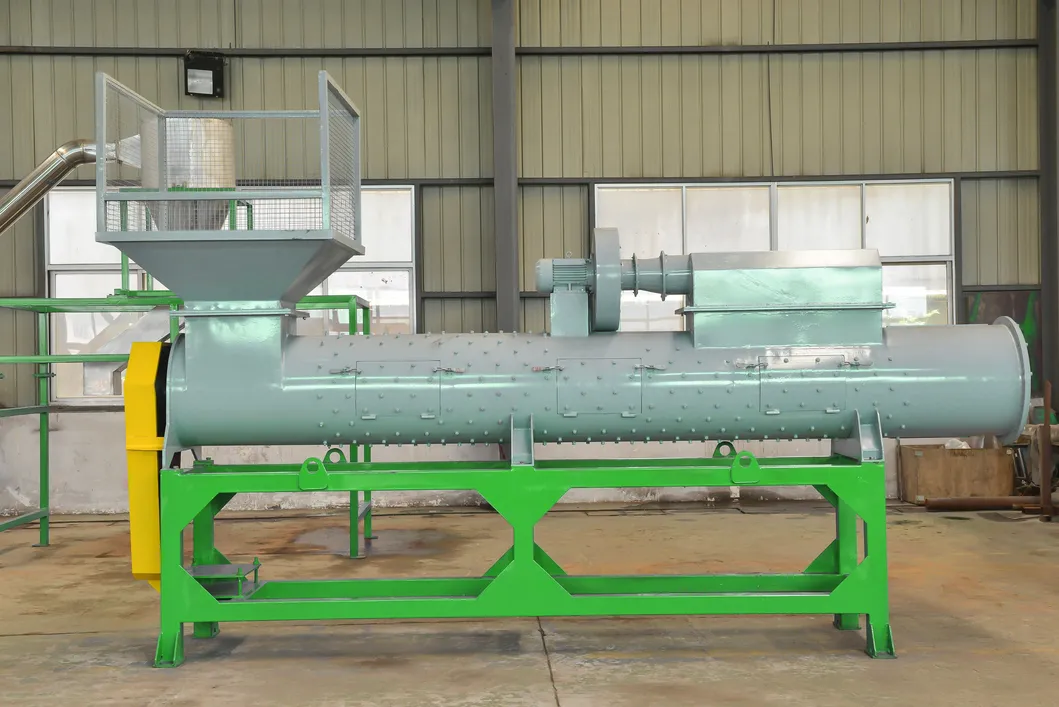

Hot washer
Usage: for wash with hot water and detergent to get rid of oil, dirties and some labels

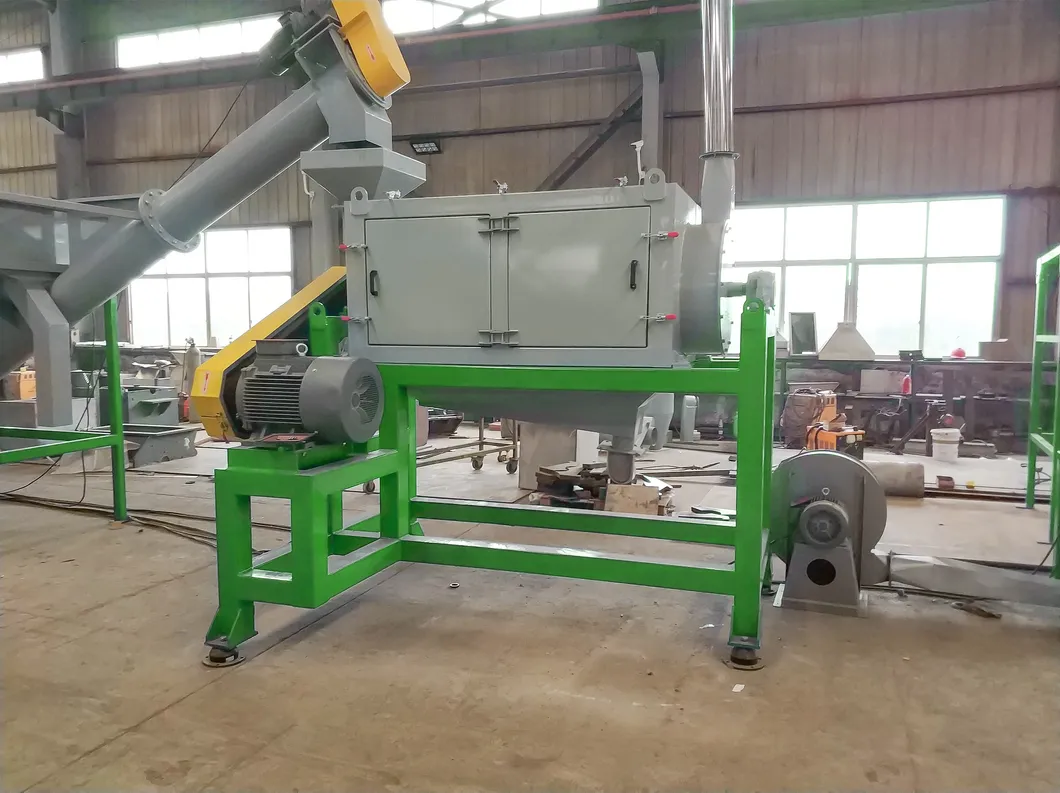

09 High speed friction washing machine
Usage: through the injection of high pressure water, the effective remova of chemicals and impurities

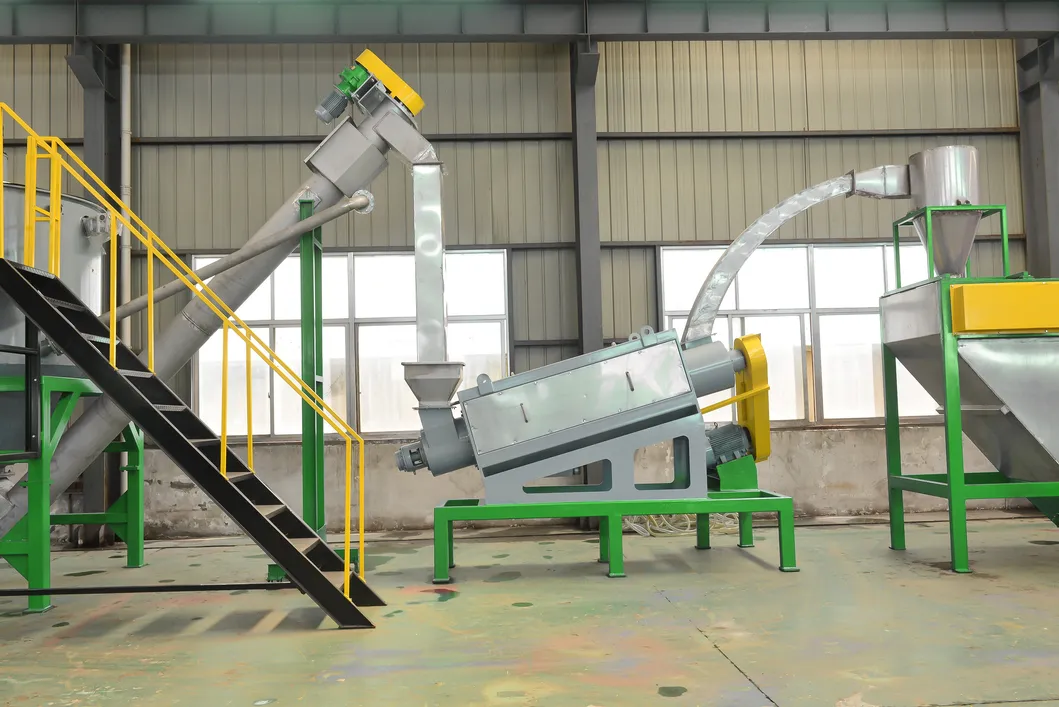

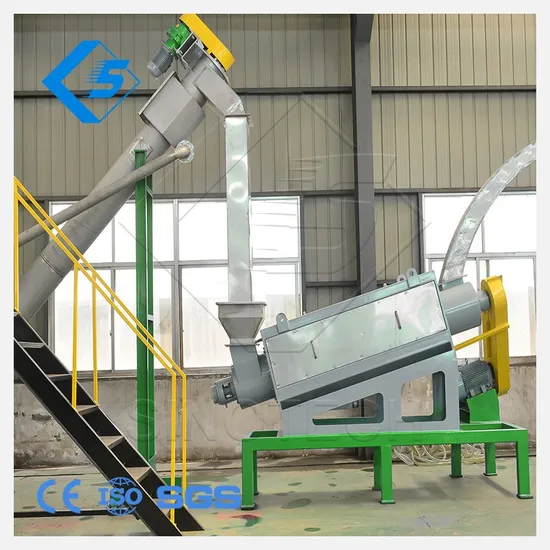

10 Centrifugal dewatering machine
Usage: to get rid of glue, dirties, oil. detergent and etc.

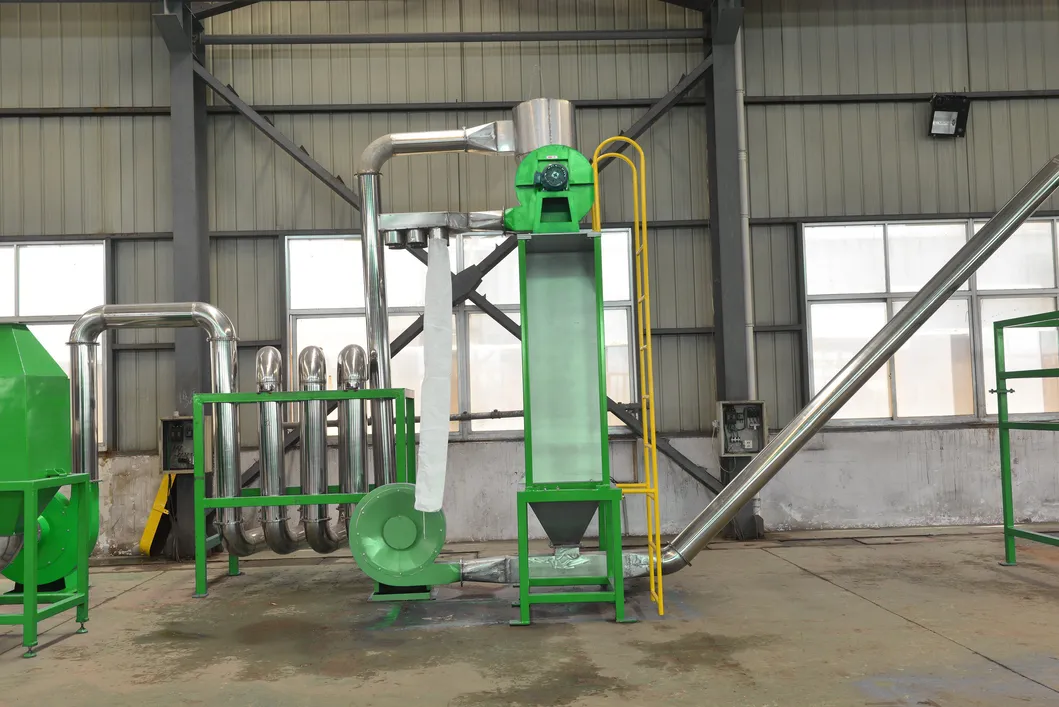

11 Zig-zag label blower
Usage: to separate labels and dust from the flakes.

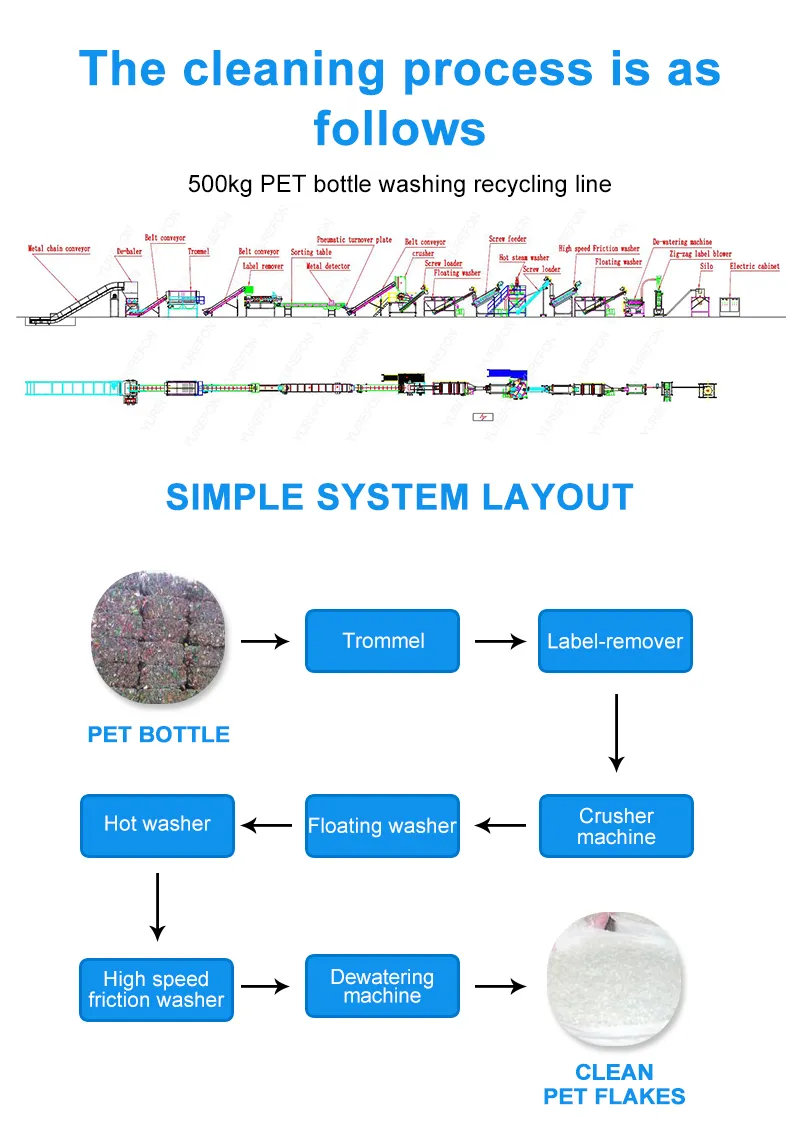

productive process
