UPVC Imitation
Marble Sheet/Board extrusion line-machinery
Company introduction :
Qingdao Trusty Plastic Machinery Co., Ltd. is a professional plastic extrusion equipment manufacturer integrating design, research and development, production and sales.The company's main products are rich, the production technology is mature, and the after-sales service is guaranteed. Products are sold at home and abroad, such as: Brazil, Chile, Mexico, the Philippines, Italy, Russia, Pakistan, Vietnam, India, Algeria, Egypt and other countries.Our company is located in Qingdao, one of the plastic machinery bases in China, where the railway, sea transportation, aviation and other transportation systems are very complete. And it is one of the regions with rapid economic development in the coastal cities.The advantaged geographical conditions have provided great convenience for the development of the company's trade.Our company's main products are: PVC door and window profile production line, WPC wood-plastic profile production line, PVC wall panel production line, PVC/PE/PPR pipe production line, PVC/WPC crust foam board production line, PE/PP/PC hollow sheet production line, PVC roof tile production line and PET packing belt production line, etc. According to customers' needs, to achieve diversified processing customization.Over the years, the company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.
Product introductionPVC Imitational Marble Sheet/Board/Profile Making Machine
PVC plastic stone board extrusion linePVC Imitation marble board production linePVC artifical
marble board made of PVC material + CaCo3, has advantage of water-proof, anti-corrosion, easy cleaning, easy setting up, colorful, hard surface etc.The product has marble pattern, granite pattern, imitation wood grain, rationale pattern, solid color semipermeable heart and other patterns.
Main introduction of PVC Artificial marble sheet
PVC Artificial Marble Sheet/Wall Panel/Interior Decoration Board Production Line is used to make PVC imitation marble sheet whichhave marble, carpet, stones, natural scenery, stereo design on the surface. And the board is popular in the hospital, school, office buildings, shopping malls,supermarkets, transportation and other public places.
Advantages of marbel sheet/board:(1) Green environmental protection, does not contain formaldehyde,non-toxic harmless, non radioactive pollution, no pollution to the environment, belong to the green environmental protection products, can be recycled
(2) PVC super wear-resistant floor surface has a
layer of special by high-tech processing transparent wear-resistant layer, withwear resistance strong, so PVC floor more and more popular in the hospital,in school, office buildings, shopping malls,supermarkets, transportation and other places
(3) Waterproof, moisture-proof, water is not deformation, non slip PVC material,strong anti slippery ,
can eliminate the elderly,children's anxiety.(4) Strong elastic shock, comfortable.(5) Safety, insulation, flame retardant, corrosion resistance, acid and alkali
(6) Novel color, a
variety of colors available for selection, brilliant color,natural and vivid color, any spell group shape, highlight the individuality color.(7) Installation convenience,convenient construction sawing, planing, nail, glue free paint.(8) Long service life can reach more than 20 years.
PVC imitation marble sheet/ board production line processing:

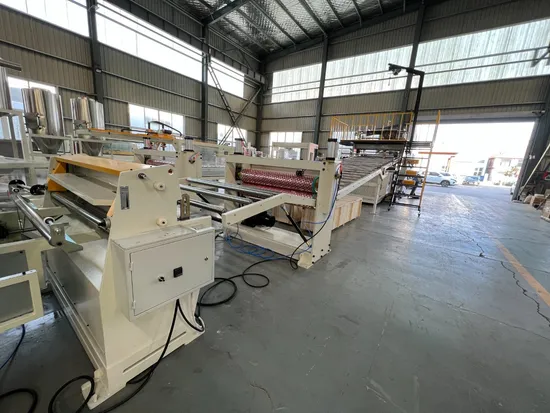

Mixer (mixing the main materials and additives) → SJSZ 80/156 conical double Screws Extruder → Mould → Lamination unit → Three-calender unit → Cooling Bracket → Hual-off Machine → Edge Cutting → Cutter → Stacker → UV coating machine
Summary
Machines configuration:
Auxiliary machinery
Machinery part in details:
1. SRL-Z-500/1000 hot
and cold

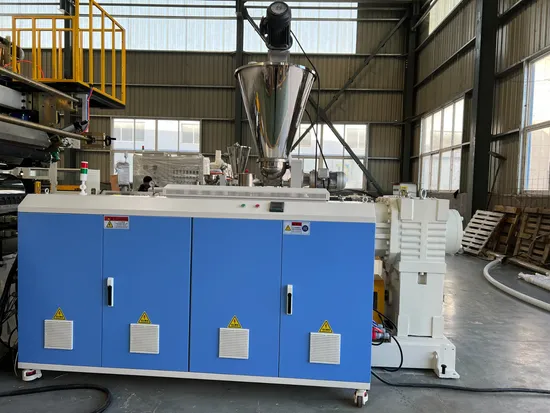

mixer.capacity 500-700KG/H, driven by 75KW motor adjust by ABB inverter.self friction & electric heating for hot mixer, water cooling for cooling mixer.2. SJSZ-80/156 Twin conical screw extruder with screw loader
*Screw,barrel design and manufacturing absorb European advanced technology*Screw and barrel material:38CrMoAlA,Nitriding treated*Adopt original famous electric components with high steady running quality.*Omron temperature controller,ABB frequency inverter,low-voltage breaker adopts SIEMENS*Gearbox adopt high torque, low noise, hard gear tooth face gear box

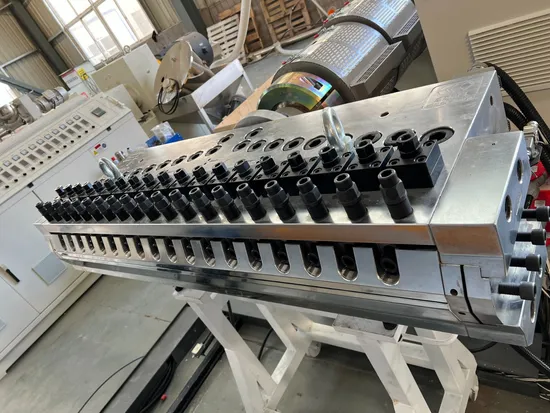

3. Extrusion T DIE
mould*Connection method of T-die and machine head: Flange type with bolt connection
*Die model: Cloth rack type
*Width of die layer: 1320mm

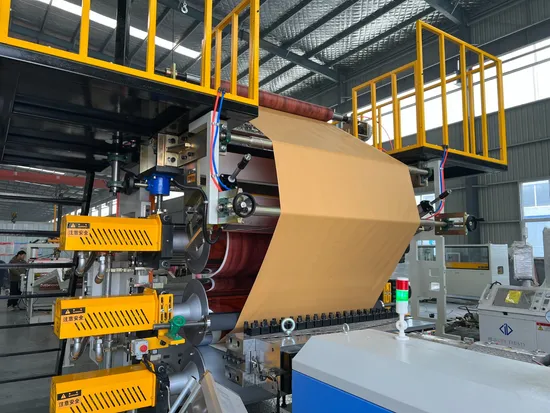

*Height of die lip open: 1mm-6 mm4.Three-roller calander with film hot-stamping/lamination device*High quality seamless steel tube
*The roller surface with quenching treatment, then chrome plated and polished
*The hardness of base material >HRC50
*The inner structure of roller :
reinforced type
5.Cooling bracket with side cutting
*Multi-group cooling rollers;
*Speed control by frequency inverter
*Compacting driving by pneumatic
*With adopts wear-resisting rubber roller
6.Haul off unit
*Traction method :
Active friction traction
*Roller size :
Φ237mm*1500mm
*Material of roller :
Rubber
*Clamping method :
Pneumatic clamping
*Driving method Motor :2KW
*Traction speed :
0.4m-3.5m/min
7.Cutting machine
*Max cutting width :
1500mm
*Max. Cutting length :
3600mm
*Cutting thickness range :
1mm -6mm
*Motor power :
4KW
*Fixed length switch :
Photoelectric sensor
8.Discharging stacker

1.WHY CHOOSE US
We are the Professional
manufacturer to develop the plastic extrusion machines in Qingdao. Machine quality and customer satisfaction is our pursuit.Be sure we have the strength to provide you with quality machines and perfect service.
2.WHAT SERVICES DO WE OFFER?
Pre-sale communication →
Design proposal, signature confirmation→
Customized production→
Test machine before shipment →Package &
delivery→
Engineer installation→Training operator →
Technical support
3.PAYMENT TERMS:
30% of total amount should be paid by T/T as down payment ,the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
4.DELIVERY CONDITIONS:
4.1 Delivery condition: FOB
Qingdao
port
or CIF destination Port.
4.2 Delivery terms: Within
30-60 working days after receipt of advanced payment, the seller should inform the buyer to do inspection,the seller should finish
packing of goods and ready for
shipment within 15 working days after the seller
receipt the full payment.
5.WARRANTY TERMS
5.1 Warranty period: 12 months, starting from the machine receipt in customer's warehouse
5.2 Seller shall grant: services and spare parts, free-of-charge service throughout the entire equipment during warranty period.
5.3
long
life
service: the seller should provide long life service for the sold goods, the buyer pay for needed spare parts after the 12months warranty terms.
6.INSPECTION
When the machine finished, the seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods.the seller undertake the material cost for the machine inspection in seller's factory. the buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third party
to come to seller's factory to do the inspection work.
7.INSTALLATION AND EQUIPMENT COMMISSIONING:
if the buyer requires, the seller should send technician team to buyer's factory for installation and testing the whole line, and the buyer should undertake the whole food/place and round tickets (airplane, food, hotel, and so on), and pay salary to engineer for 100 usd/day/engineer.
