Noata® 24-8-I Production Line
Noata® 24-8-I Production Line, which is Sinoah'
s inner
flat
drip tape production equipment, is an advanced manufacturing system that integrates high technology, efficiency, and environmental protection. Our equipment uses innovative automation technology and precise insertion mechanisms to ensure that the patches in the drip tape are uniformly and accurately placed, greatly improving the water transfer efficiency of the drip irrigation system and the uniformity of crop irrigation. This precision not only optimizes the use of water resources but also significantly improves the quality and yield of crop growth.It is particularly worth mentioning that our equipment is designed with energy efficiency and long-term durability in mind, capable of stable operation under various environmental conditions, reducing the rate of failures and maintenance needs. Additionally, Sinoah'
s production lines support flexible configuration, allowing customization of drip tape specifications according to different crops and soil conditions, providing tailor-made solutions for customers.Through continuous technological innovation and strict quality control, Sinoah is committed to providing the most reliable and efficient drip tape production equipment to agricultural producers worldwide, helping them achieve more sustainable and profitable agricultural production. Choosing Sinoah'
s inner
flat drip tape production equipment is to choose the best way to optimize irrigation systems and enhance agricultural output.
Production Line Component
NO.Components
1
Dripper Sorting Collating Device
2
High-Speed Dripper Conveyor Device
3
Automatic Loading and Drying System
4
Hopper and Dryer Hopper
5
Single-Screw Servo Extruder and Temperature Control System

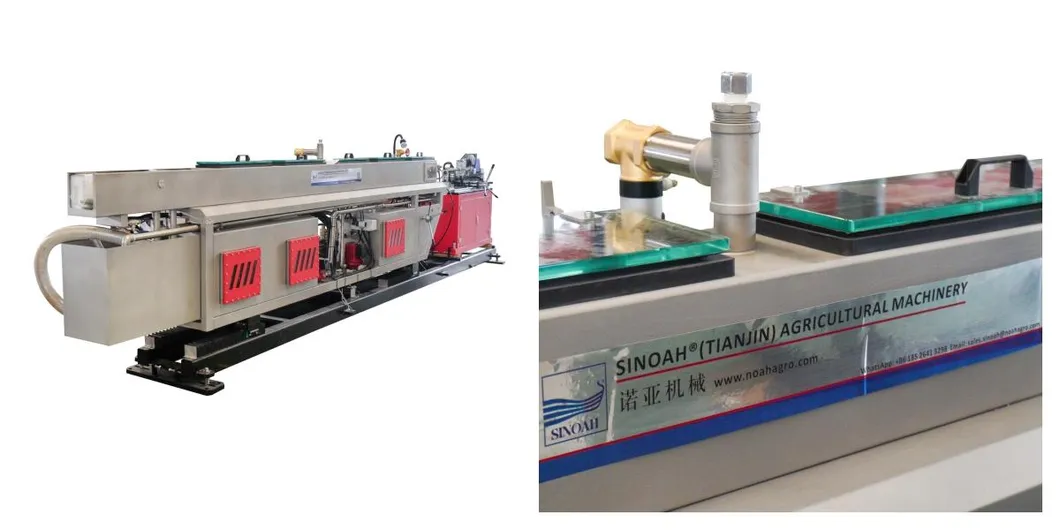

6
Vacuum Forming Device
7
Secondary Cooling Device
8
Traction Punching Device and Control System
9
Dual-Station Automatic Winding Device
10
Wheel Tension Collecting Device
11
Industrial Chiller

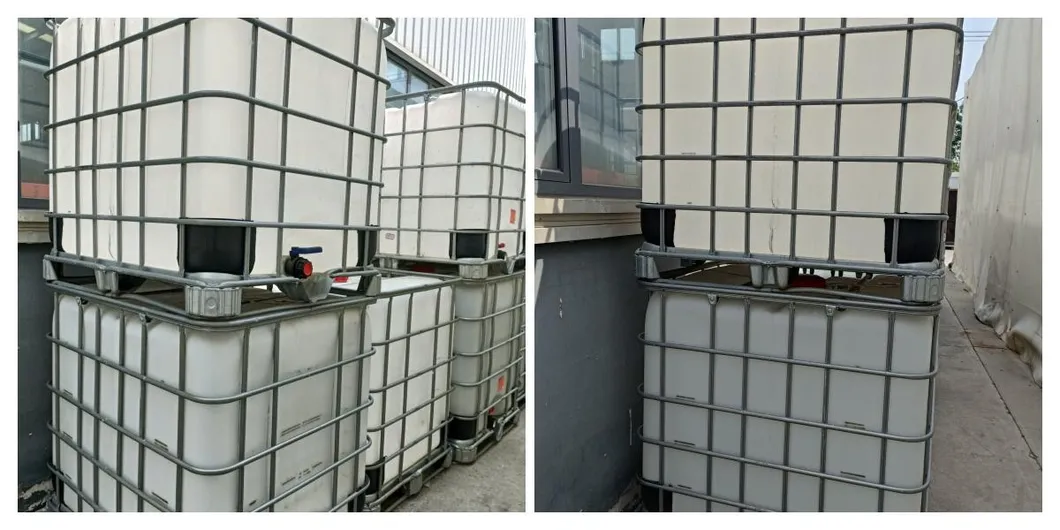

12
Water Storage Tank

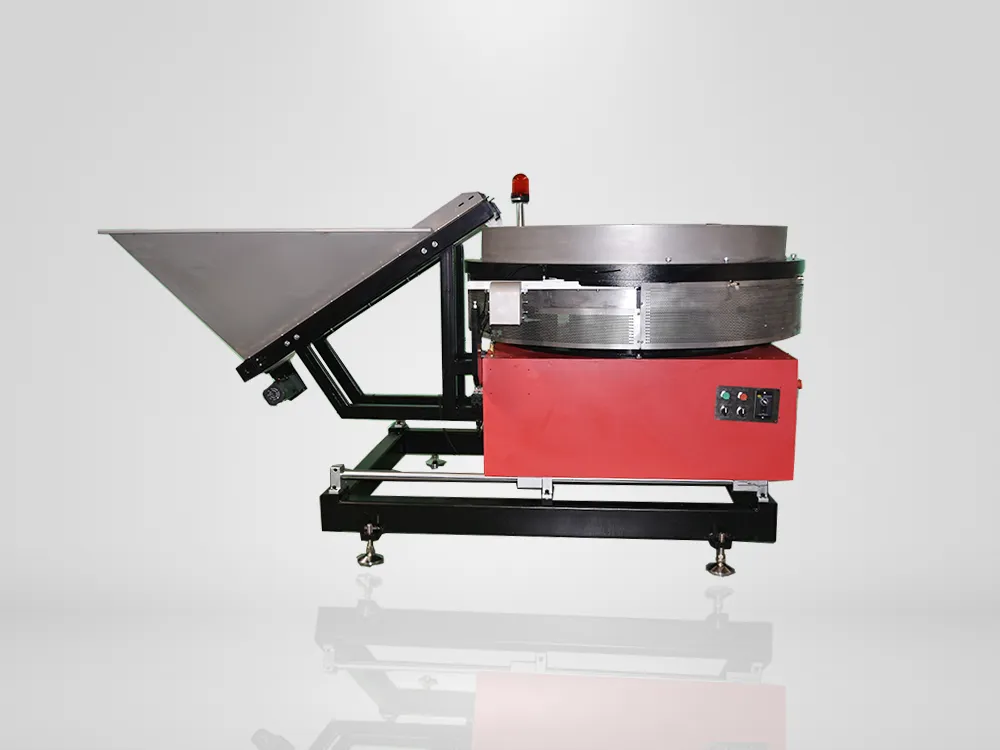

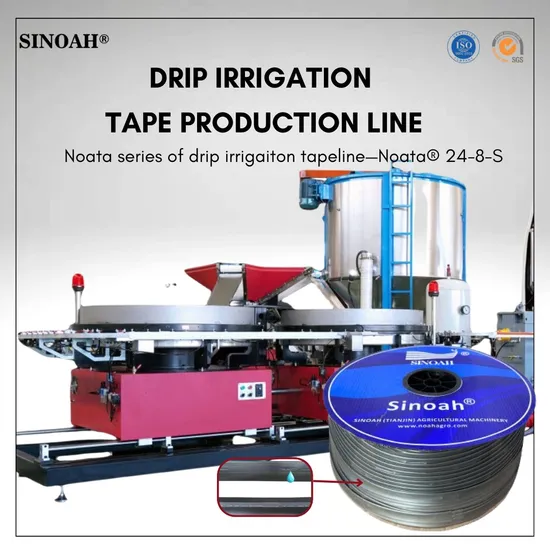

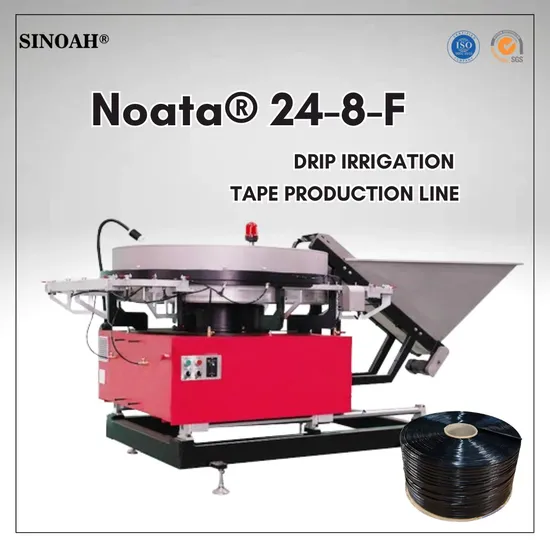

Dripper Sorting Collating Device

Sorting
Method
Automatic Sorting
Speed
2300 pcs/min
Collating Unit Diameter
1480mm
Collating Unit
Drive Method
AC Variable Frequency Controller
Inner Motor
1.5 kw
External Motor
2.2kw
High-Speed Dripper Conveyor Device

Conveying mode
Compressed Air and Drive by Servo
Servo Motor (Panasonic)
750
w
Conveying Speed
3000 drippers/min
Applicable Dripper Size
23mm*6mm*2.1mm
Rotation Speed
300 rpm

Material Automatic Vacuum Loading
Loading Capacity
300
kg/h
Motor Power
1.5
kw
Hopper and Dryer Hopper
Capacity
50
kg
Heating Power
5
kw
Blowing Power
0.18
kw

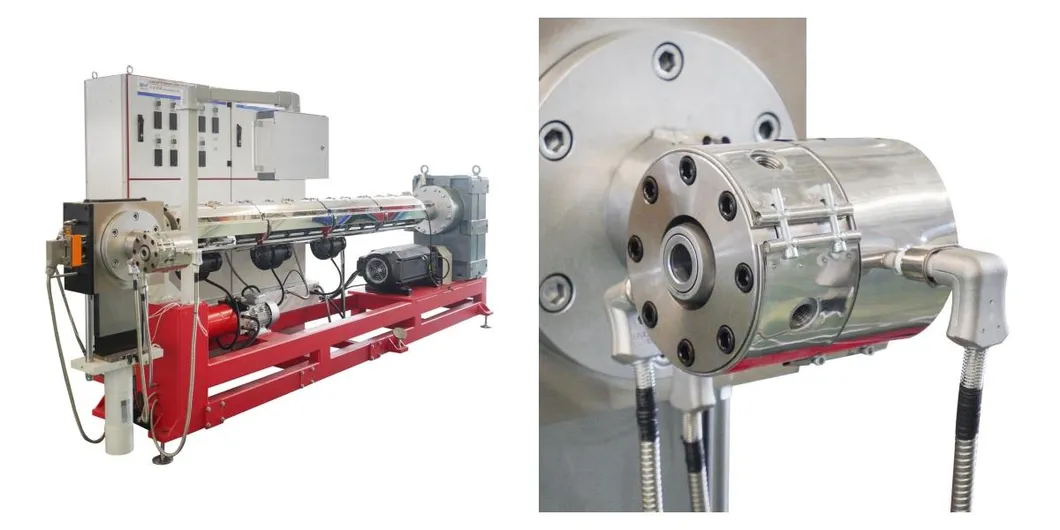

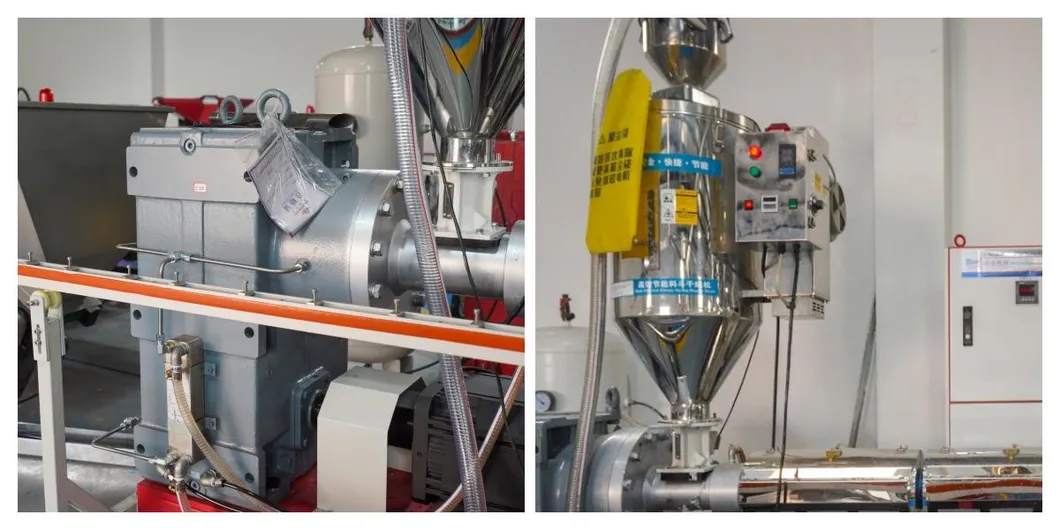

Single-Screw Servo Extruder and Temperature Control System

Screw Model
SJ-75/38
Diameter
85
mm
Length to Diameter Ratio
38:1
Servo motor (Inovance)
80
kw
Extruder Height
2.85m (Including Suction Device)
Extrusion Capacity
160 kg/h
Material
38CrMoAlA
Surface Treatment
Nitriding, Polishing
Barrel Material
38CrMoAlA
Inner Surface Treatment
Nitriding, Polishing
Heating Control Zones
5 Zones
Heating Method
Heating Rings with Copper Inside and Steel Outside
Heating Power
22
kw
Cooling System
Air cooling with Fans on the Barrel
Cooling Fan Power
120w × 4
Gearbox
Model
ZLYG225
Brand
Guomao
Gear Type
Helical Gear
Gear Material
20CrMnTi
Gear Surface Heat Treatment
Gear Surface Hardening
Roller Material
40 Cr
Lubrication System
Pressure Lubrication System
Screen Changer
Type 160

Compression Servo Motor (Panasonic)
400
w
Vacuum Pump
2.2 kw
Water Pump
750
W * 2
Tank Material
Stainless Steel
Tank Length
4m
Center Height
1000mm
Automated Open-Close Vacuum Control System

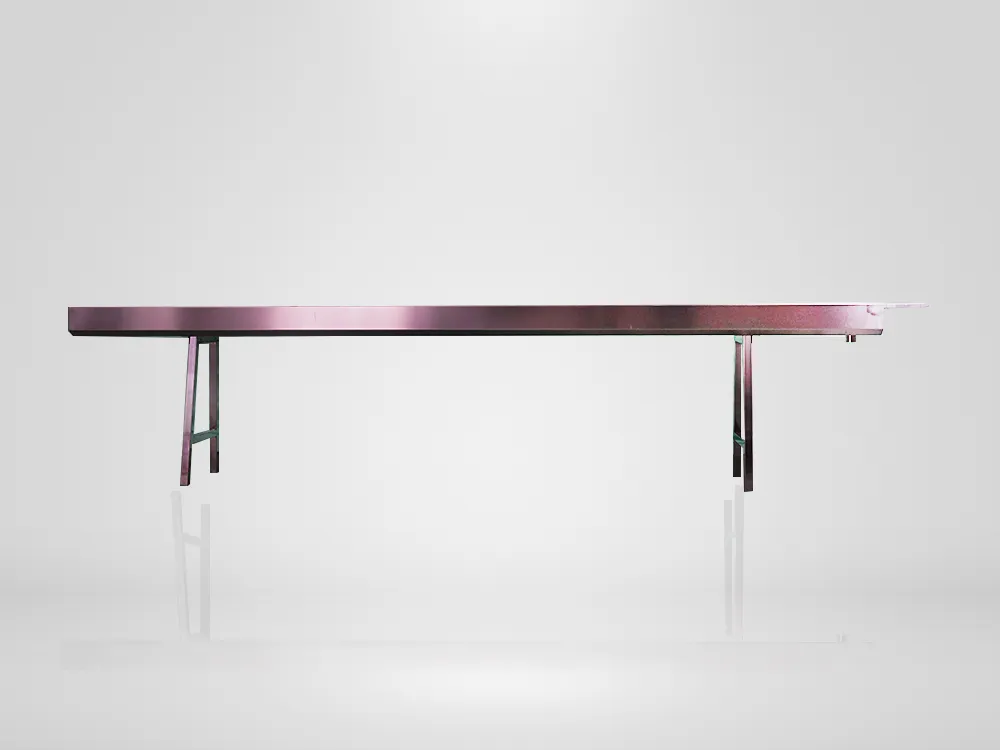

Secondary Cooling Device

Length
4
m
Immersion
Material
Stainless Steel

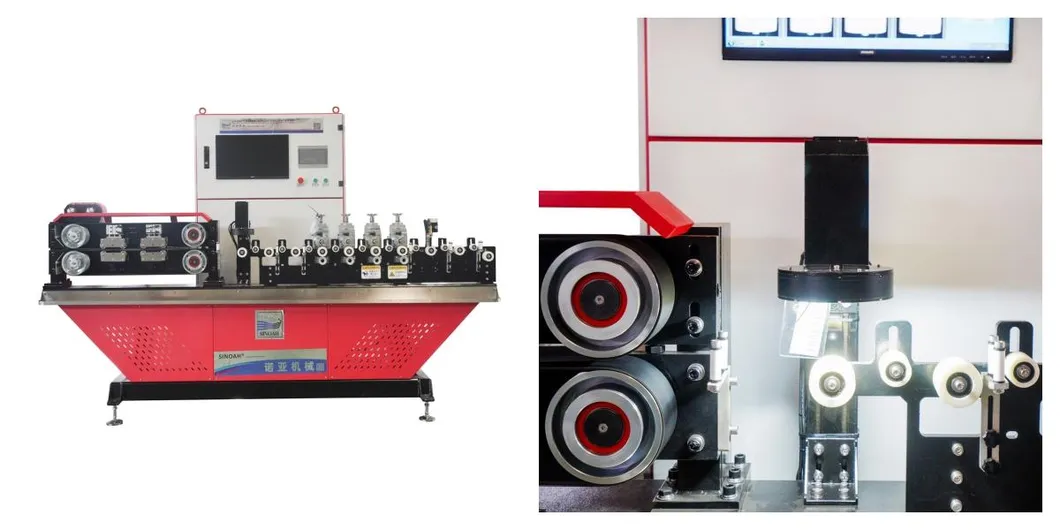

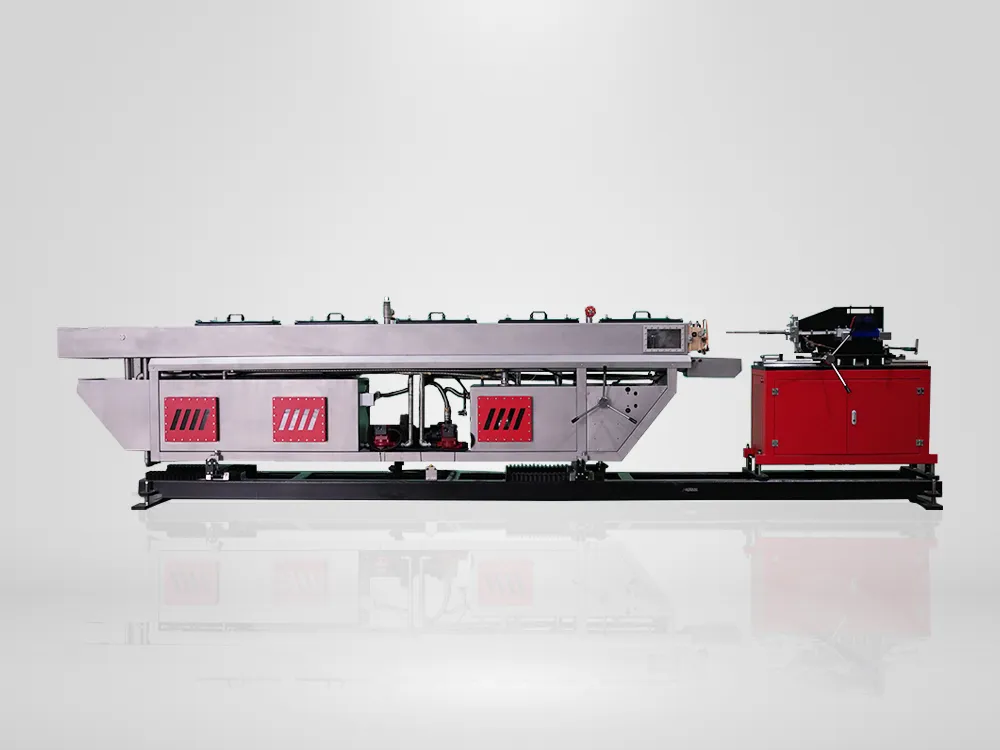

Traction Punching Device and Control System

Punching Type
4-Hole Punching
Punching Motor
Servo 750
w (Four Groups)
Maximum Punching Speed
>3200 Punches/min
Traction Device Servo Motor (Panasonic)
3 kw
Maximum Traction Speed
>450 meters/min

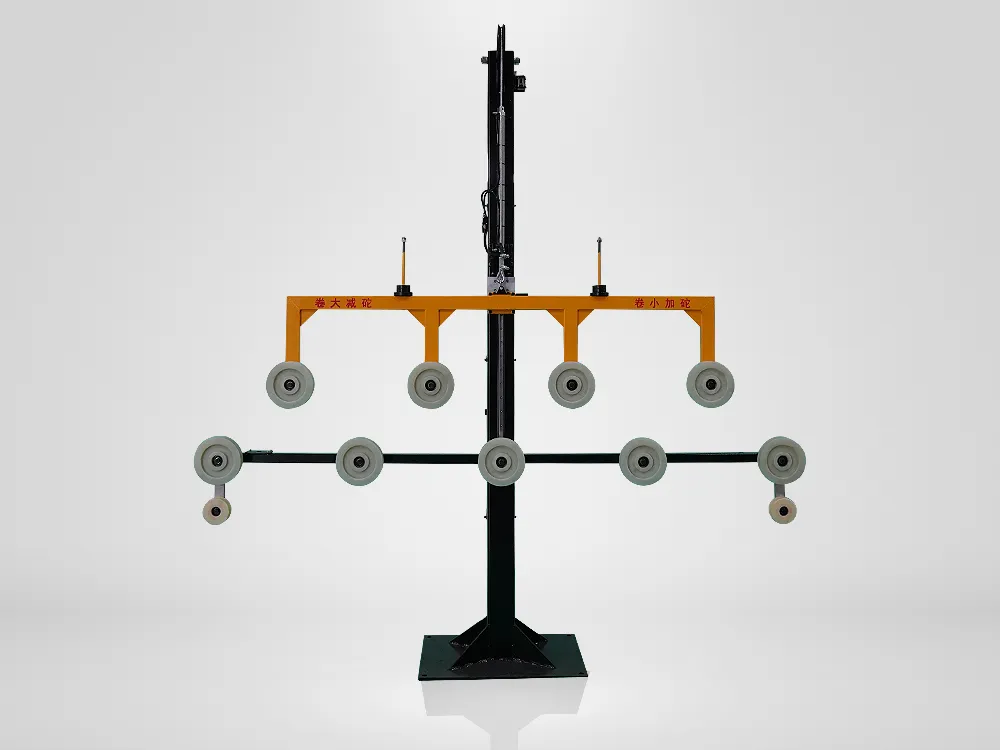

Wheel Tension Collecting Device

When operational at production speeds >420 meters/min, it can be normally operated by one person.

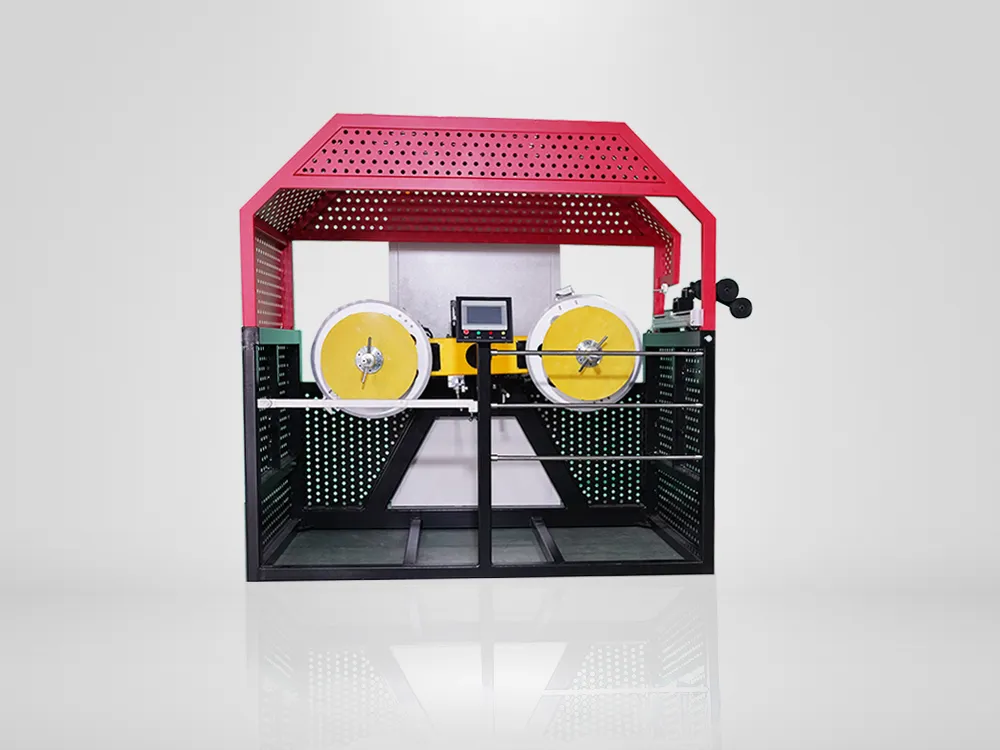

Dual-Station Automatic Winding Device

Servo Motor
3
kw
Drive and Motor (Panasonic)
Maximum Winding Speed
>450 meters/min
Winding Method
Automatic
Roll Changing Method
Manual
Winding Length
≤
2000m
Industrial Chiller

Capacity
20P

Capacity
1
m³
Supplementary Details
Equipment Operating Environment (Indoor)
Power Supply
Three-phase 380V
Temperature
10-35°C
Humidity
Below 55% RH
Production Environment
Voltage
380-415V
Installation Voltage
380-415V
Cooling Water Temperature
16-20°C
Air Pressure
0.45 Mpa-0.8 Mpa
Raw Material
HDPE, LDPE
Size of the Production Line
30m*2m*2m
Installation Instruction

Sinoah is committed to providing comprehensive equipment installation support and services to our overseas customers. We include detailed manuals and offer readily available online video guidance to ensure customers can smoothly install and commission the equipment. For more complex technical challenges, our approach includes dispatching experienced technicians directly to the overseas sites to provide professional guidance. This service ensures the correct installation and optimal performance of the equipment, although it requires customers to bear the related costs. Through this approach, Sinoah ensures that every customer can receive immediate and effective support anywhere in the world, enhancing user experience and equipment reliability.
About Finished Product

Sinoah consistently adopts high-standard protective measures for packaging and transporting equipment, ensuring that each product safely reaches our customers. Our products are first cushioned with pearl cotton, then sealed with PVC film, and finally wrapped with tape bearing the company's logo, enhancing recognition and providing additional protection. All products are loaded on sturdy wooden pallets to ensure stability and safety during transit. Depending on the distance to various countries and regions, we select the most suitable mode of transportation and rely on our extensive network of freight agents. These reliable supports, accumulated over years in the industry, ensure efficient and safe transportation.

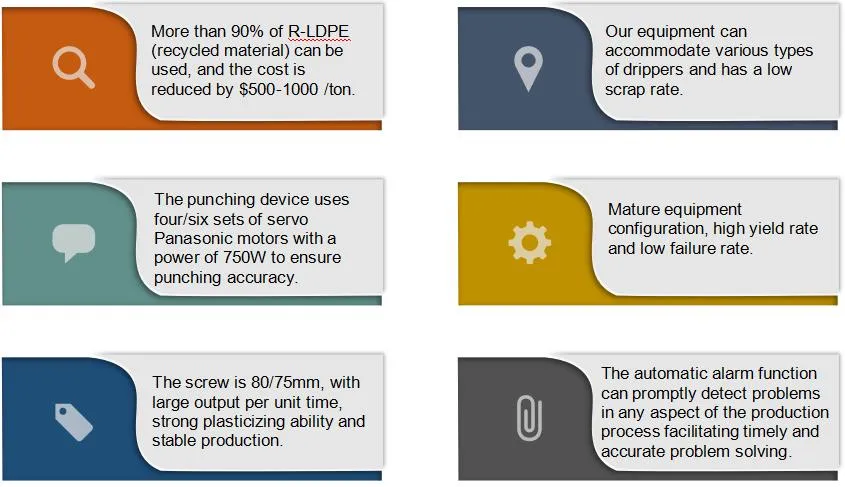

Our Advantages

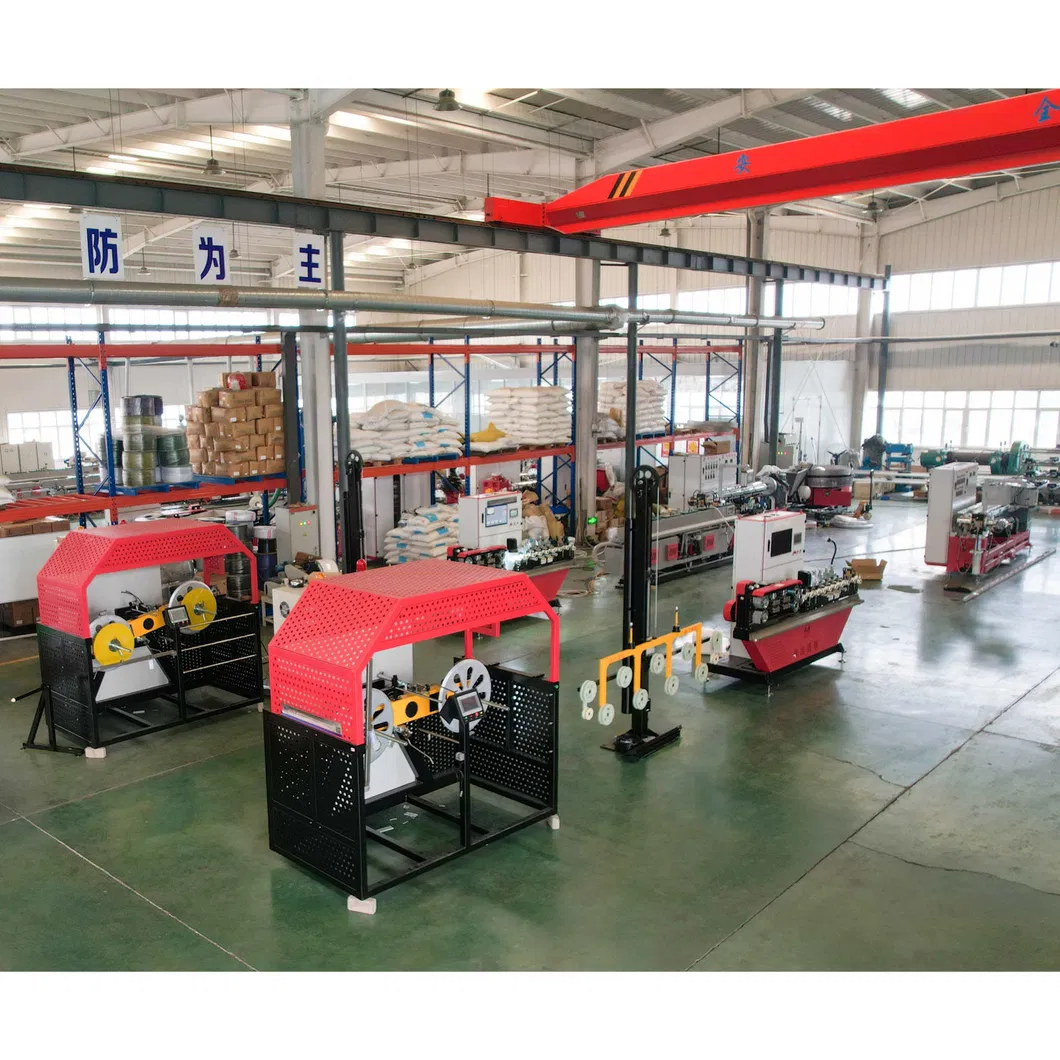

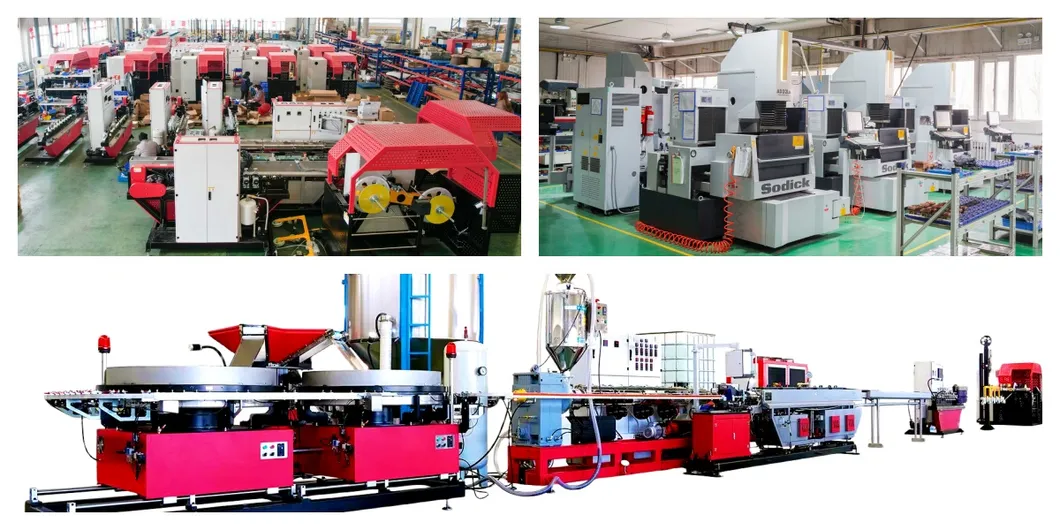

Sinoah (Tianjin) Agricultural Machinery Co., Ltd., a subsidiary of the group, is a professional enterprise engaged in the production and export of drip irrigation tape production equipment, drip irrigation
pipes, dripper molds, and other drip irrigation accessories. Equipped with advanced production facilities and exquisite processing technology, we are committed to providing customers with high-quality and reliable products. As the first domestic company to introduce drip irrigation technology, we have obtained numerous research and development and invention patents through continuous technological innovation and R&D capabilities.
Our drip irrigation tape production equipment is renowned for its stable production performance, fast production speed, and low failure rate, and has received widespread acclaim in the market. Our products have been sold to over 60 countries and regions worldwide, and we have established long-term stable cooperative relationships with many internationally renowned enterprises. We fully recognize the value of water resources and the needs of crops, which is why we have adopted the mission of "Save Every Drop, Nourish Every Crop" We are committed to maximizing the utilization of water resources and optimizing crop production through efficient drip irrigation technology. This not only helps to improve the economic efficiency of agricultural production but also is a responsible approach to the environment and promotes the development of sustainable agriculture.
