Fully Automatic Winder and Cutter
(Single Wall Corrugated Pipe)

Machine components:
Introduction
Name:
Automatic winding and packing machine for single wall corrugated pipe
Total weight of this machine: about 3000KG
Processing flow:
4.

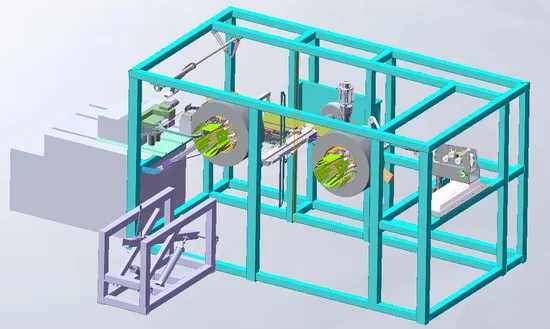

Layout scheme is the below photo:

Technical features:

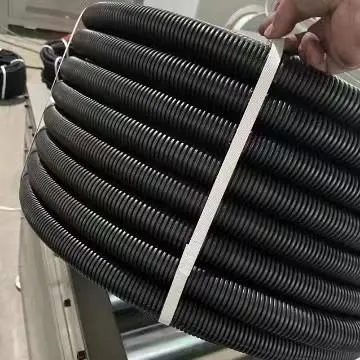

Automatically packing coils of single wall corrugated pipe diameters:16mm, 20mm, 25mm, 32mm.
Number of straps:
2/4/6 optional
Packing structure:encircled pipe melting packing ,
PP
strap size:14mm.
4)Winding width range
(Drum width ): 70mm - 250mm
5)Winding inner diameter range
(The inner diameter of the drum): 300mm - 460mm
6)
The outer diameter of the drum: 700 mm.
7)
Maximum coil weight 15 kg.
8) Speed: winding maximum speed - 30m/min
9) Machine overall size: 5100mm*2000mm*2100mm(L×W×H)
10) Painting color: protection cover for electrical parts is white color (No. 7035), other
parts are grey color.
11)Electrical control type is: Aluminum rocker-arm PLC control.
12)Controlled with HMI+PLC+Servo motor+coder+electromagnetic valve+pneumatic cylinder
III. Installation requirements
IV.Technical Configuration
(1) Main technical performance of the equipment:
1. The safety of the equipment complies with the corresponding national standards, with emergency stop switches, indicator lights, etc., and various safety signs.
2. Brands of key parts:
(2)Machine indicator and nameplate
1) Main nameplate 1 set,including:name, model, factory, date of production and etc.
2) This machine has clear indicator to show working situation:
a) Green light:normal running
b) Yellow light:stopped
c) Red light:abnormal or malfunction.
(3)Control type
1) Automatic/Manual control;

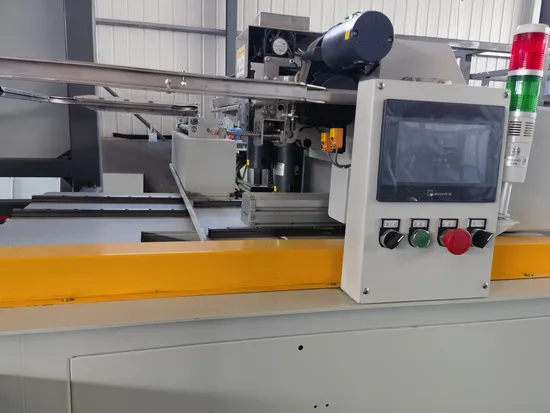

2) Human-machine interface interaction (equipment operating status, indicators; remote control port reserved).
(4)Equipment Color: Gray Lines, White Guards
V. Automatic packing data:

1. Voltage and power: 380V
2. Packing speed: ≤20 seconds/pc
3. Applicable package size: subject to drawings (refer to contract attachments)
4. Applicable packing belt material: PP strap
5. Applicable packing belt specifications: Width: 14mm
6. Packing tightness: ≤80kgs
7. Bonding method: hot welding
8. Movement device of movement: automatic movement (stop automatically after the limit control is in place)
9. Moving device of the whole machine: automatic movement (stop automatically after the limit control is in place)
VI. Electrical parts of automatic packing machine:
1. Control method: fully automatic strapping and packaging
2. Movement: Domestic movement (small size, space saving, higher stability)
3. Movement driving mode of movement: motor-driven movement
4. Moving device of the whole machine: motor-driven movement
VII. Coils sizes for reference
