- PVC drainage water pipe manufacturing making machinery extruder machine is mainly used in the production of Agricultural water supply & water discharge systems, architectural water supply & discharge systems, wire laying systems, etc. purposes.- The unit consists of a Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.-
the line can be equipped with a Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.- Process Flow:
Screw Loader for Mixer→ Mixer unit→ Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Haul-off → Planetary Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing

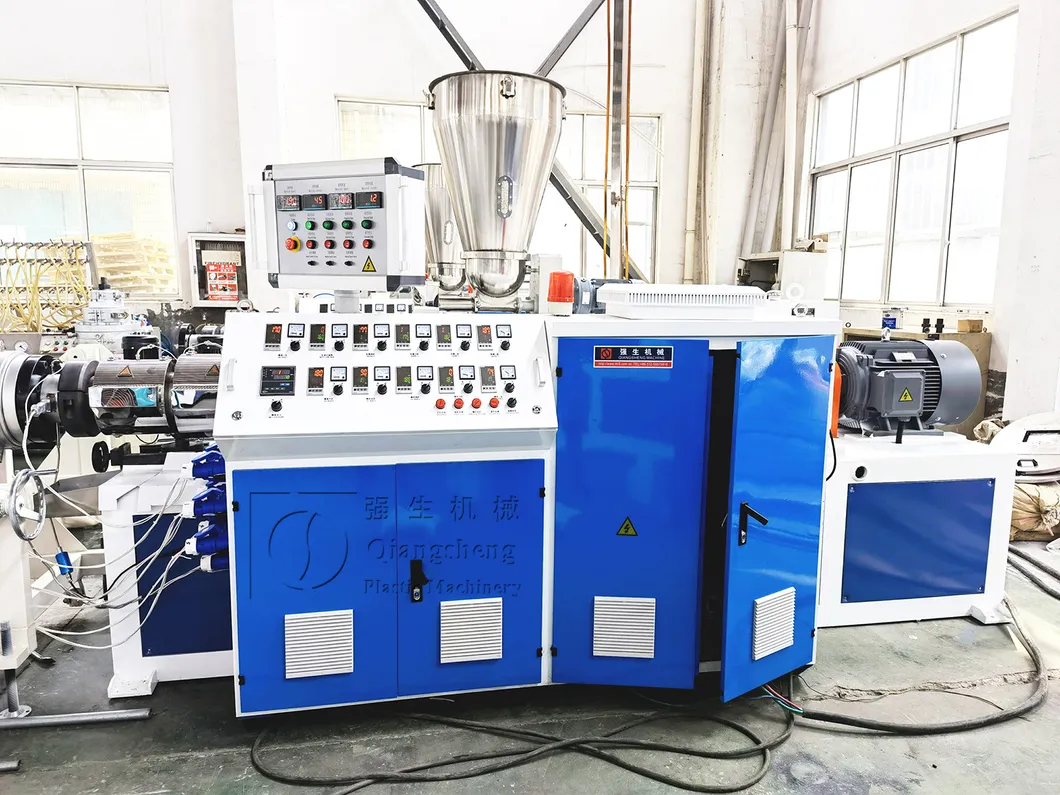

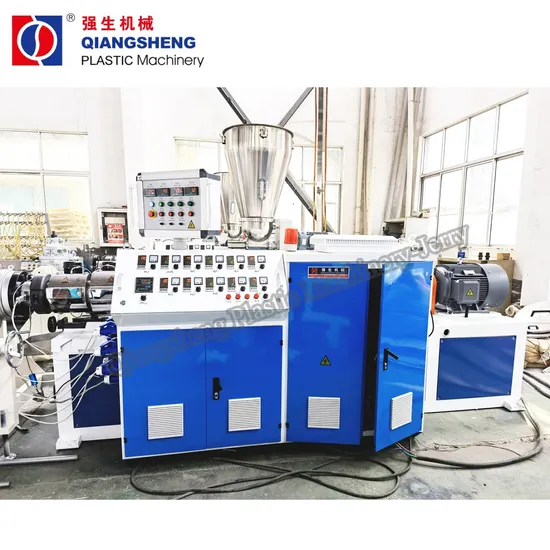

Conical Twin Screw Extruder:
Different models for options: SJSZ51/105, SJSZ65/132, SJSZ80/156 and SJSZ92/188.High quality electrical components, like Siemens, Omron, Fuji, Delta, etc.Alloy screw & barrel, which guarantee high quality and stable output.
Equipped with high qualty gearbox and distributor.Extruder control by PLC screen touch is available as well; PLC screen touch is from Siemens (customized).

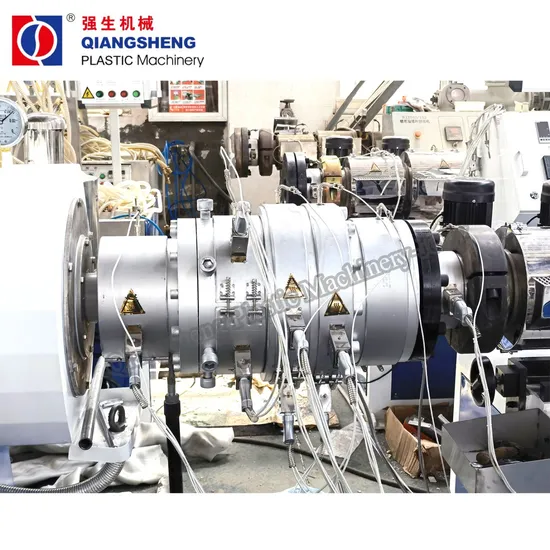

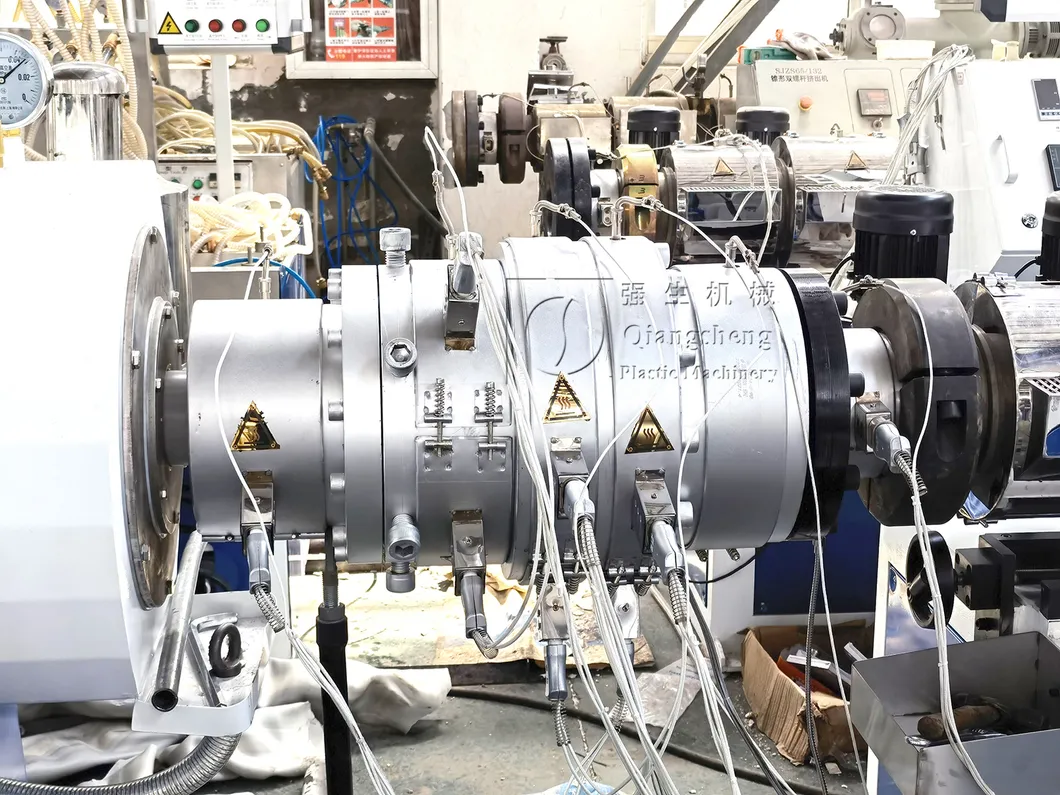

PVC Pipe Mould:
Including mould body, die, mandrel, calibration sleeve.
Mould Material:40Cr,
forged steel Chrome plated
Calibration Sleeve material: Cast Copper

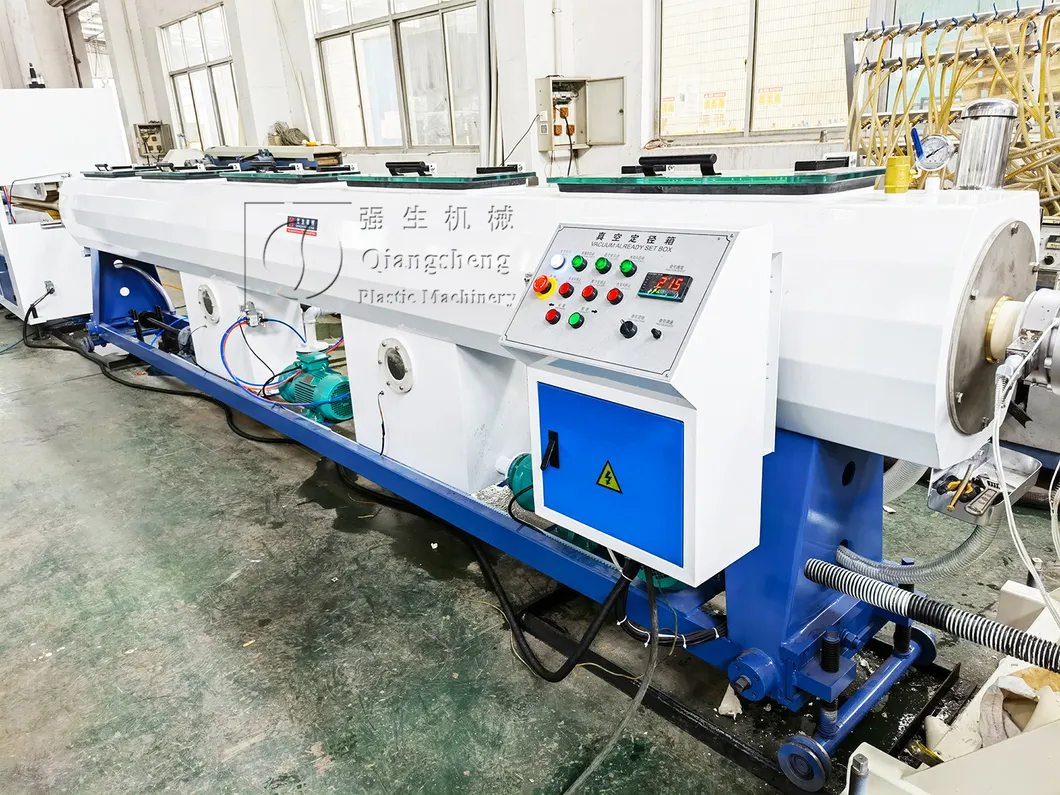

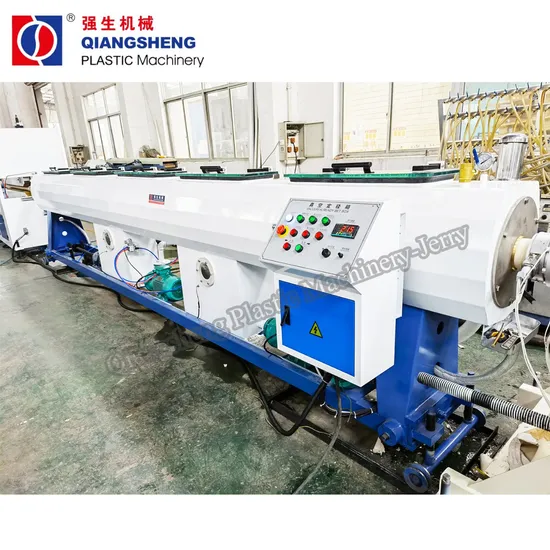

Stainless Steel Vacuum Calibration Tank:
Vacuum calibration Tank, SUS304 with spraying painting or pure SUS304 body is for option.Available sizes for different pipe diameters from 16mm upto 800mm.Equipped with famous and high-quality vacuum pump and water pump with overload protection; water temperature auto controlling.4/6/8/10/12 cooling tubes installed inside of the Tank, with ABS sprayers.5meters, 6meters, 9meters and other lengths for option, according to different pipe pressure requirements.

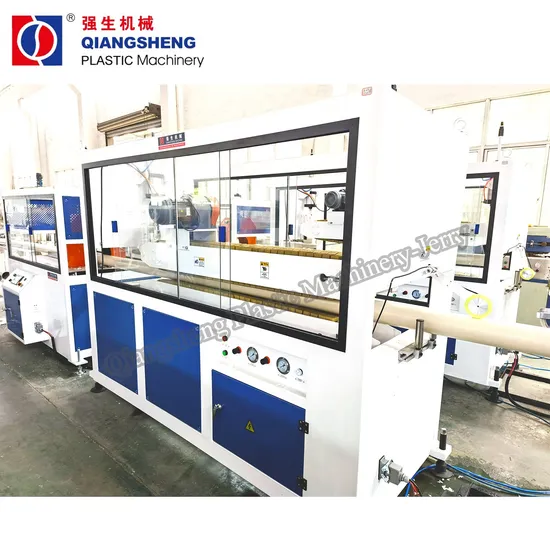

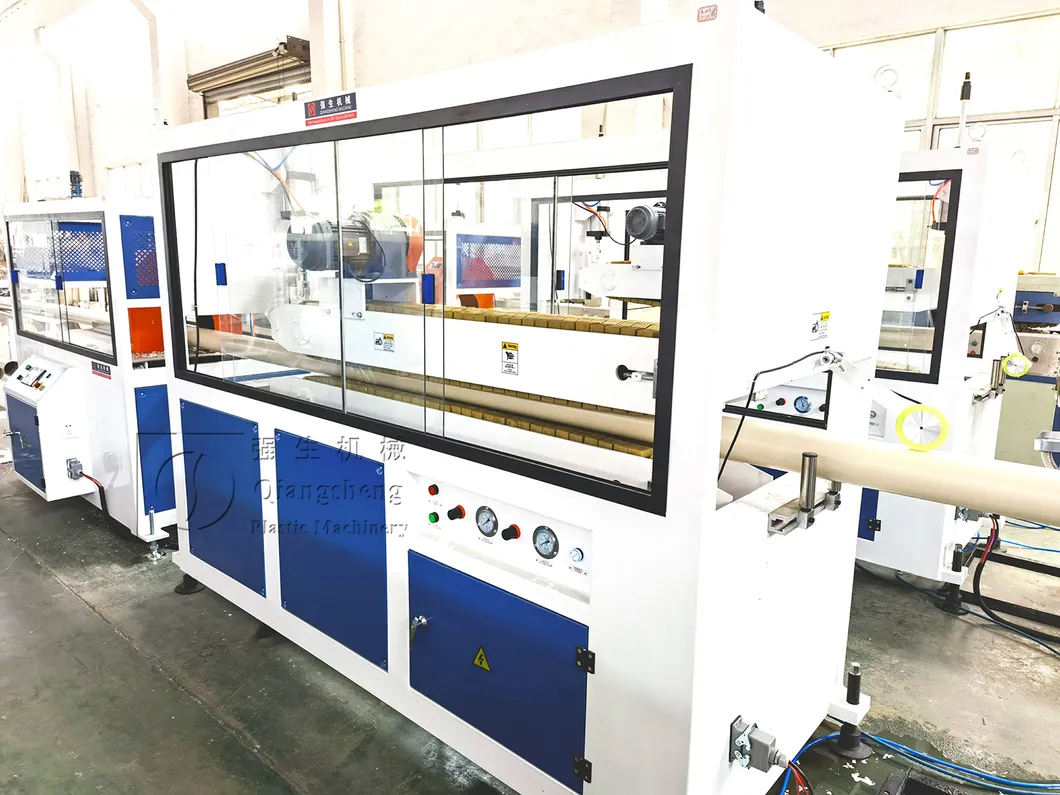

Haul-off Machine:
For different pipe diameters, we offer the suitable Haul off unit, like Double claw, Four-claw, three claw, four claw, six claw, eight claw, etc.Machine speed control is with ABB Inverter.Machine is controlled together with Vacuum calibration Tank and Cutter.

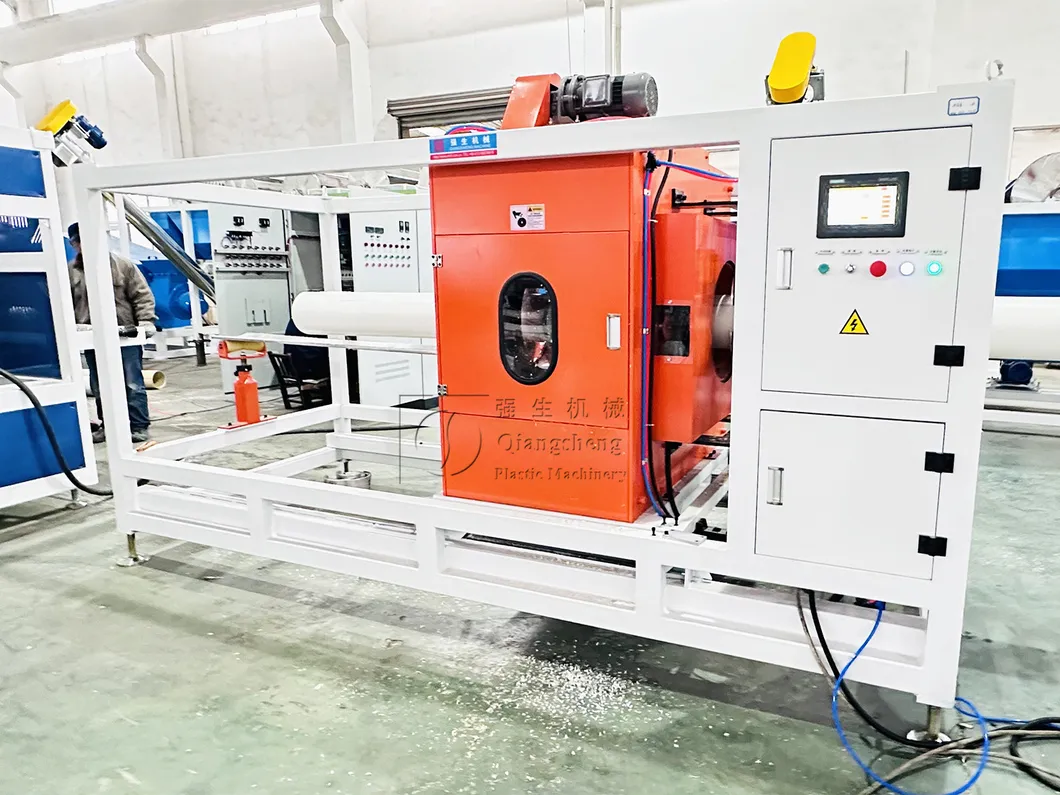

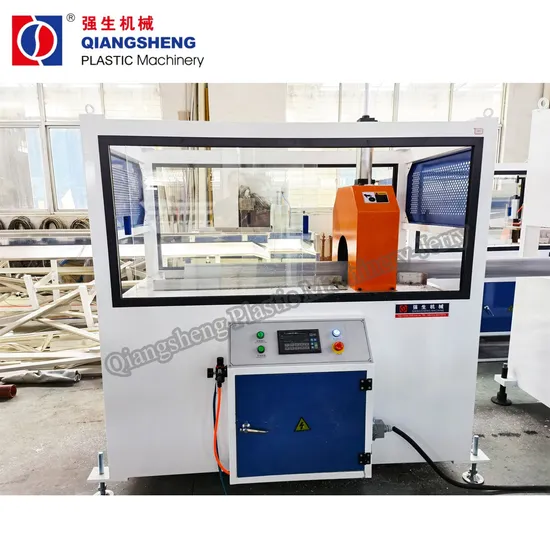

Cutter:
Normal Knife-lifting Cutter and Planetary Cutter are available for small and large pipe diameters.Both types of cutters are equipped with dust collector.

Product Parameters

Packaging: wooden pallet and PE film covered. Shipping: 45 working days after receipt of the down-payment. Port: Shanghai Port Term of payment: 30% deposit by T/T, 70% balance should be paid by T/T before delivery

Established in 2000, Zhangjiagang
City
Qiangsheng Plastic Machinery co.,Ltd is a specialized manufacturer of plastic machines . Located in
No.78 Baixiong Road, Sanxing, Jinfeng Town, Zhangjiagang City, Jiangsu Province, China.we enjoy convenient transportation. Our company occupies an area of 8,000 m2
and has advanced facilities of
double-screw extruder, single-screw
extruder,
sets of extruding production lines and auxiliary equipments, such as PE, PP, PVC and PPR plastic pipe production line, plastic profile production line, plastic granulating line, plastic recycling line and others. Conical twin-screw extruder can convert thermoplastic especial PVC powder into pipe, plate sheet, film and profile, and also provide function of modifying and pelletizing. Single-screw extruder can produce many kinds of plastic products such as film, pipe board, braid, belt as well as granule. With export license, we export products to twenty-nine provinces, cities and autonomous regions and are exported to Russia, Africa, Middle east and Southeast Asia.Our products gain wide praises at home and abroad. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is "To make our consumers satisfied".We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together.
Electric Appliance

1.Are you manufacturer or trading company?We are manufacturer for plastic extrusion machine for pipe, profile, sheet, board, granules etc and some auxiliary machines.2.Why choose us?We have 23 years experience for producing plastic extrusion machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.3.Delivery time:45-60 working days.4.Payment terms:30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).5.After-sales service:
Free Spare Parts
;
Field installation, commissioning and training
;
Field maintenance and repair
service
;
Video/Online
technical support.6.Warranty:
12 month7. How to send an inquiry?Plase tell us what kind of plastic product you want to make and their size, then we will prepare proposal for you.
