基本信息
型号 | EVOH/PERT |
自动化 | 自动的 |
计算机化的 | 计算机化的 |
认证 | CE, ISO9001:2008 |
定制的 | 定制的 |
条件 | 新 |
管路层 | 三层,五层 |
管道结构 | 塑料-胶水-EVOH-胶水-塑料 |
机器容量 | 每分钟30米 |
产生范围 | 16-32毫米 |
塑料层 | Pexb、Pex-a、PE Rt、Pb、PE |
机器控制 | PLC综合控制 |
变频器 | ABB |
管长/卷长 | 50至200米 |
交通包 | 软包装 |
规格说明 | 37米乘以4米乘以2.5米 |
商标 | 凯德马克 |
起源 | 中国 |
商品编码 | 8477209000 |
生产能力 | 每年150套 |
产品详情
Product Description
Preview

Preview
The Filve Layers PERT/EVOH Pipe Production Line, we can get the speed 35m/min 60m/min. Which is the Top Speed in China ! The machine have been sold to China Junxing Pipe Group, Rifeng Pipe Group, ERA Group, Geroge Ficher China factory, K-Flex Poland Factory, ,,,, etc.

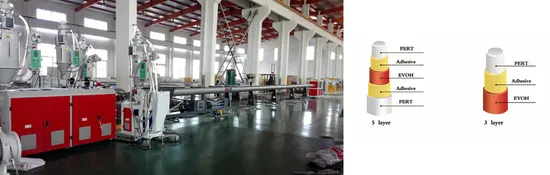

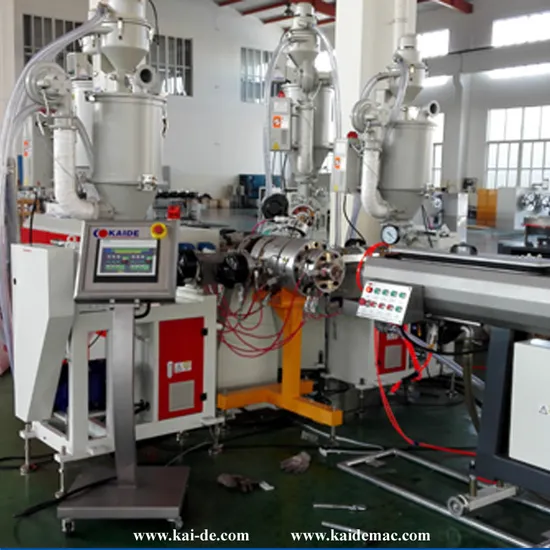

The multi-layer co-extrusion EVOH barrier pipe extrusion line adopts special designed extruders which is designed according the raw material's processing characteristics and own-patented multi-layer composite technology to extrude the oxygen barrier pipes with 3 layer or 5 layer in one-step.KAIDE factory uses reliable main and auxiliary extruders with excellent performance and perfect interaction, so that the multiple layers can be boned firmly and the size of the pipe can be accurate.PEX-b EVOH barrier pipe structure we can produce:
Technical Data:
PEXb/EVOH barrier pipe extrusion line configuration:
Main features of the EVOH barrier pexb pipe making machine:
1)The self-developed co-extrusion die head mold which has been vertified and improved for a long period of time has many advantages, such as easy operating, each layer thickness and high accuracy of the pipe sizes.2) The special control system and extruders that are developed based on the multi-layer co-extrusion characteristics optimally guarantees the stable running of the whole production line.3)The high precision PLC entire line control system can ensure the responsveness, reliability and stability of the line
4)The special designed EVOH extruder is suitable for extruding EVOH oxygen barrier resin with high melt pressure, ensuring the stability of the resin's extrusion
The multi-layer co-extrusion EVOH barrier pipe extrusion line adopts special designed extruders which is designed according the raw material's processing characteristics and own-patented multi-layer composite technology to extrude the oxygen barrier pipes with 3 layer or 5 layer in one-step.KAIDE factory uses reliable main and auxiliary extruders with excellent performance and perfect interaction, so that the multiple layers can be boned firmly and the size of the pipe can be accurate.PEX-b EVOH barrier pipe structure we can produce:
Technical Data:
PEXb/EVOH barrier pipe extrusion line configuration:
Main features of the EVOH barrier pexb pipe making machine:
1)The self-developed co-extrusion die head mold which has been vertified and improved for a long period of time has many advantages, such as easy operating, each layer thickness and high accuracy of the pipe sizes.2) The special control system and extruders that are developed based on the multi-layer co-extrusion characteristics optimally guarantees the stable running of the whole production line.3)The high precision PLC entire line control system can ensure the responsveness, reliability and stability of the line
4)The special designed EVOH extruder is suitable for extruding EVOH oxygen barrier resin with high melt pressure, ensuring the stability of the resin's extrusion
Preview

Preview

Preview

Preview
证书
标题:Credit Enterprise



Preview
中国五层管pert-EVOH-Pert管道机|EVOH/Pert管生产线
¥289600 ~ ¥724000
化工产业链 · 塑料橡胶机械 · 塑料管道机械
型号EVOH/PERT
产地中国
