productPVC管材管坯挤压机挤出机
Image 2Image 3Image 4Image 5
Image 1
Preview
基本信息产品详情证书

基本信息

型号编号SJSZ65/132 SJSZ80/156
类型管道挤压机
塑料加工聚氯乙烯
产品类型挤压成型机
饲养模式一个提要
汇编结构分离式螺杆挤出机
螺丝双螺杆
联动系统完全内啮合
螺管结构深度螺杆
耗尽排气管
自动化自动的
计算机化的计算机化的
使用PV管道生产线挤压机
生产的管径16至800毫米
主马达西门子
控制可编程逻辑控制器
温度控制器欧姆龙
机器色Optional
电压380V50Hz
容量每小时100-1000公斤
逆变器ABB品牌
运输包适航包装PVC管生产线
规格用于PVC管生产线的CE&ISO
商标七大起点的PVC管生产线
起源中国
商品编码84772090
生产能力每年100套

产品详情

Product Description
detail
Preview

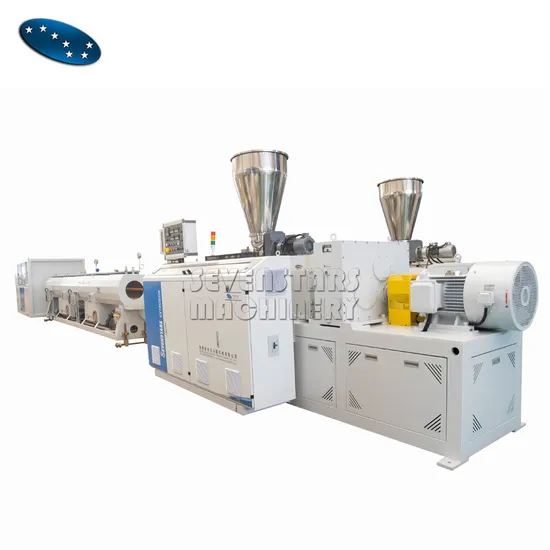

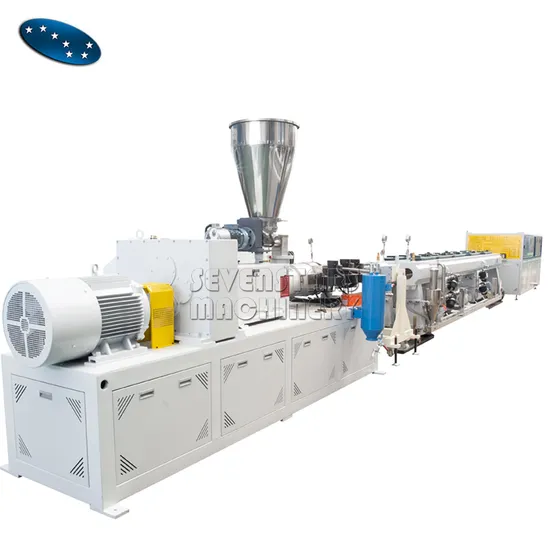

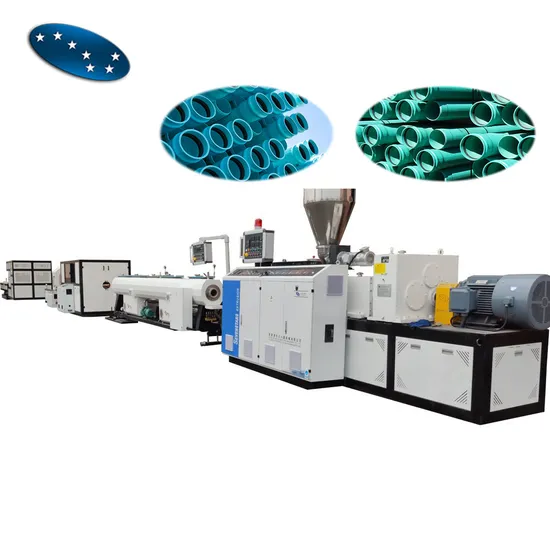

New type high output PVC water pipe making machine PVC pipe extrusion machine PVC pipe making machine PVC pipe extrusion line PVC pipe production line with low power consumption and high efficiency
Features of PVC pipe production line extruder machine
1) It is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
2) The set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.
3) The extruder and haul-off machine adopt the imported AC frequency control device.
The vacuum pump and hauling motor employ superior goods.

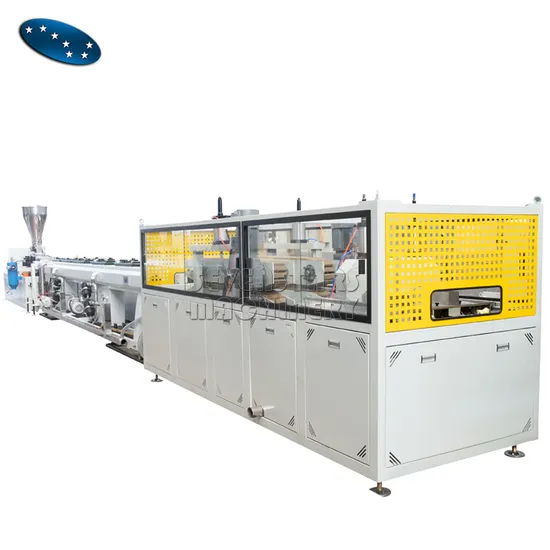

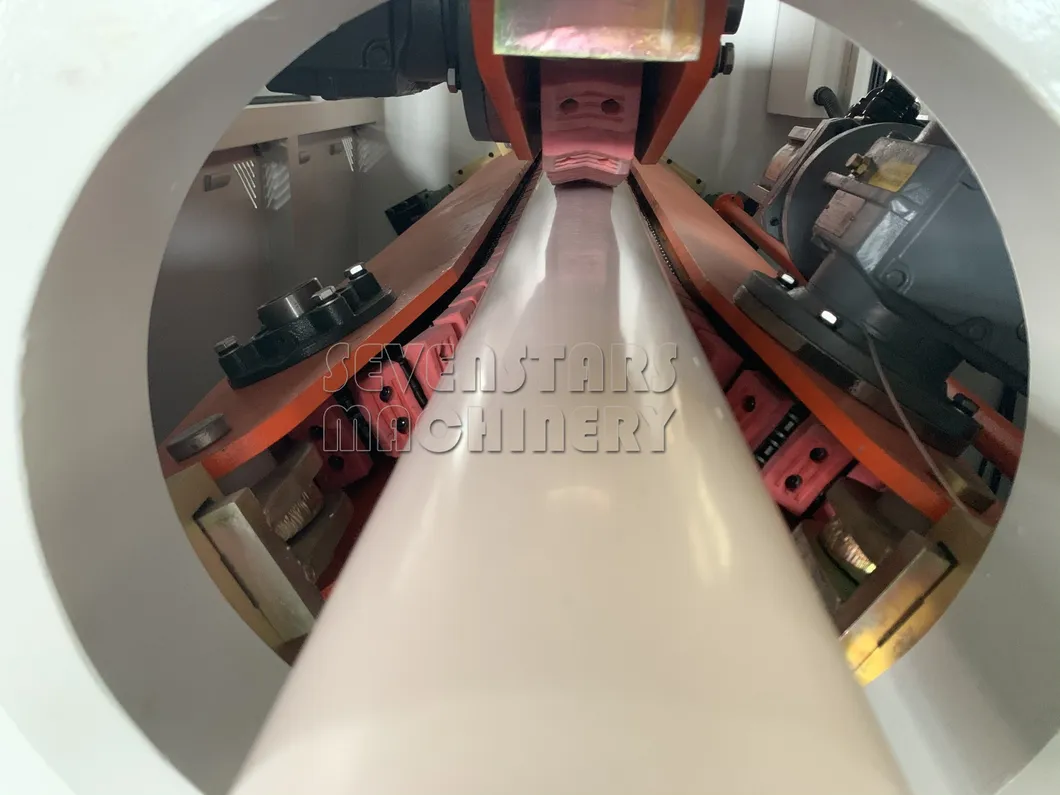

4) Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
5) It is additionally attched with length measuring apparatus and thickness increasing device.
6) The unit is of reliable performance and high production efficiency.
The pipe diameter is mainly from Φ 16mm-Φ 630mm. We also can design the machine according to your requirement
Main parameter of PVC pipe production line extruder machine
detail
Preview
detail
Preview
detail
Preview
detail
Preview
