基本信息产品详情证书
基本信息
型号/编号 | SM52PLUS |
起源 | 挤出机 |
产品类型 | 颗粒挤出机 |
喂养模式 | 多馈 |
Assembly Structure | 积分型挤压机 |
螺丝 | 双螺杆 |
聘任制度 | 完全内啮合 |
螺旋形结构 | 深螺杆 |
耗尽 | 用尽 |
自动化 | 自动的 |
计算机化的 | 计算机化的 |
输出(千克/小时) | 每小时2500至3500公斤 |
重量 | 大约13000公斤 |
认证 | 总工程师 |
功率(千瓦) | 315 |
螺钉转速(转/分) | 900转/分 |
螺钉直径(毫米) | 52 |
螺杆长径比 | 20到68 |
交通运包 | Container,指容器,是一个常见的词汇,如物流中集装器具等。 |
商标 | 孙麦克 |
起源 | 中国 |
商品编码 | 84772090 |
生产能力 | 1. |
包装尺寸 | 把 500.00cm乘以200.00cm再乘以200.00cm |
包装总重量 | 3500 千克 |
包装尺寸 | 500.00cm*200.00cm*200.00厘米 |
包装总重量 | 3500 千克 |
产品详情
Product Parameters
Applications

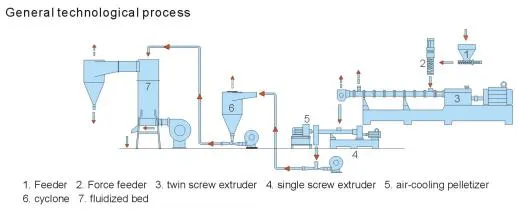

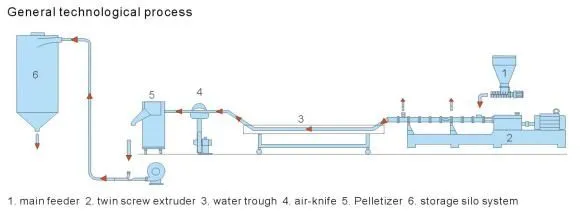

1.Advantages in Traditional Filler Masterbatch
Based on new design, output can reach more than 3 tons per hour, air cooling, water ring or under water system is optional.
Typical formulation
PE, PP, EVA, etc. + Calcium carbonate, talc powder, titanium powder;ABS, PC; PS, etc. + aluminum hydroxide, magnesium hydroxide, antimony oxide;PP, PA, ABS+ ferrous powder, sulphuric powder, ceramic powder.
Applications
1.Advantages in Traditional Filler Masterbatch
Based on new design, output can reach more than 3 tons per hour, air cooling, water ring or under water system is optional.
Typical formulation
PE, PP, EVA, etc. + Calcium carbonate, talc powder, titanium powder;ABS, PC; PS, etc. + aluminum hydroxide, magnesium hydroxide, antimony oxide;PP, PA, ABS+ ferrous powder, sulphuric powder, ceramic powder.
Preview

Preview

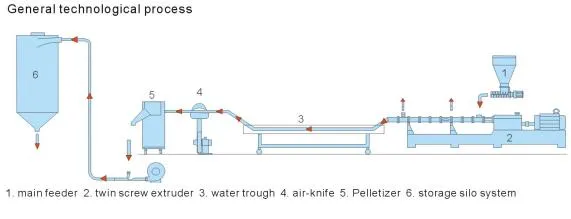

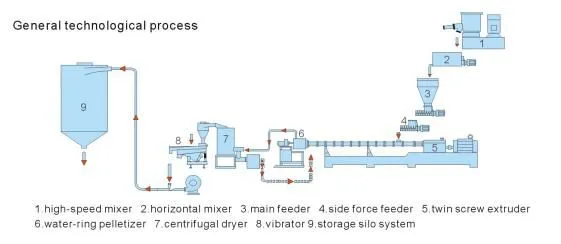

2.High performance filler masterbatch and modification
Adopting the multi-feeding method with high speed side force feeder, suitable for high-class filer masterbatch with low additive formula.
PE, PP, etc. + calcium carbonate, talc powder + less additives
Adopting the multi-feeding method with high speed side force feeder, suitable for high-class filer masterbatch with low additive formula.
PE, PP, etc. + calcium carbonate, talc powder + less additives
Preview

Preview

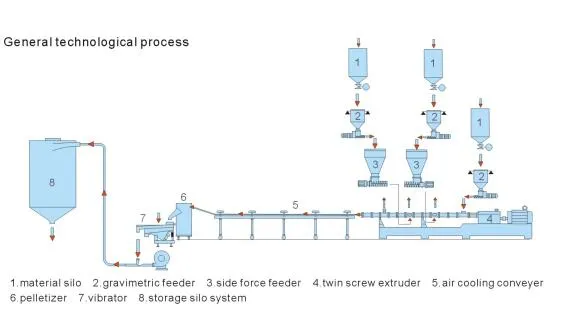

3.Application advantage of biodegradable masterbatch
Adapted to the physical characteristics of degradable material, air cooling or water cooling pelletizing system is available
.
PLA, PBAT etc. + CaCO3 powder, talc powder, etc.
Adapted to the physical characteristics of degradable material, air cooling or water cooling pelletizing system is available
.
PLA, PBAT etc. + CaCO3 powder, talc powder, etc.
Preview

Preview

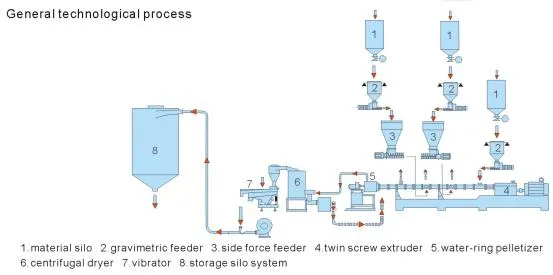

4.Advantages in additives masterbatch
Precisely control the material flow state in the machine, anti-block masterbatch, slip masterbatch, antistatic masterbatch, etc.
PP, PA, ABS, PBT, etc. + anti-burning agent and other additives; anti-flaming masterbatch;PE, PP, PS, etc. + starch; degradable masterbatchPE + fog-preventing dipper, stabilizer, UV masterbatchPET, PP, PE, anti-block masterbatch, slip masterbatch, antistatic masterbatch.
Precisely control the material flow state in the machine, anti-block masterbatch, slip masterbatch, antistatic masterbatch, etc.
PP, PA, ABS, PBT, etc. + anti-burning agent and other additives; anti-flaming masterbatch;PE, PP, PS, etc. + starch; degradable masterbatchPE + fog-preventing dipper, stabilizer, UV masterbatchPET, PP, PE, anti-block masterbatch, slip masterbatch, antistatic masterbatch.
Preview

Preview

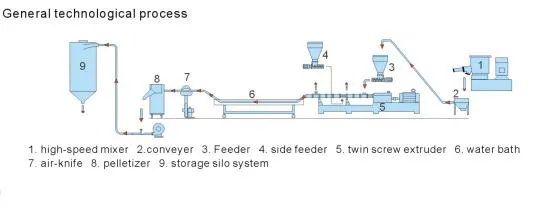

5.Advantages in color masterbatch
Based on new solution, obviously improve dispersion.
PE, PP, ABS, AS, PA, EVA, PET + pigment and auxiliary
Based on new solution, obviously improve dispersion.
PE, PP, ABS, AS, PA, EVA, PET + pigment and auxiliary
Preview

Preview
6.Advantages in plastic alloy and engineering plastics modification
Suitable for a variety of formula, accurate ratio, excellent mixing effect.
Stable performance, adapt to the high quality, high capacity production requirements.
PE, PP, PS + SBS; PA + EPDM; PP + NBR; EVA + Silicon rubber, etc.:PE, PA, PC, CPE + ABS (alloy); ABS + TPU; PBT + PET; PP+PE,
etc.chopped glass fibres, carbon fibres, crystals and so on, etc.EVA heat-melting glue, polyurethane, fluorin rubber, fluorine plastics, PP cigarette filtering material and TPR sole material.
Suitable for a variety of formula, accurate ratio, excellent mixing effect.
Stable performance, adapt to the high quality, high capacity production requirements.
PE, PP, PS + SBS; PA + EPDM; PP + NBR; EVA + Silicon rubber, etc.:PE, PA, PC, CPE + ABS (alloy); ABS + TPU; PBT + PET; PP+PE,
etc.chopped glass fibres, carbon fibres, crystals and so on, etc.EVA heat-melting glue, polyurethane, fluorin rubber, fluorine plastics, PP cigarette filtering material and TPR sole material.
Preview

Preview
7.Advantages in cable material
Adapt to a variety of formulations, stable product quality, high capacity, low energy consumption.
Adapt to a variety of formulations, stable product quality, high capacity, low energy consumption.
Preview

Preview
Company Profile
Preview

Preview

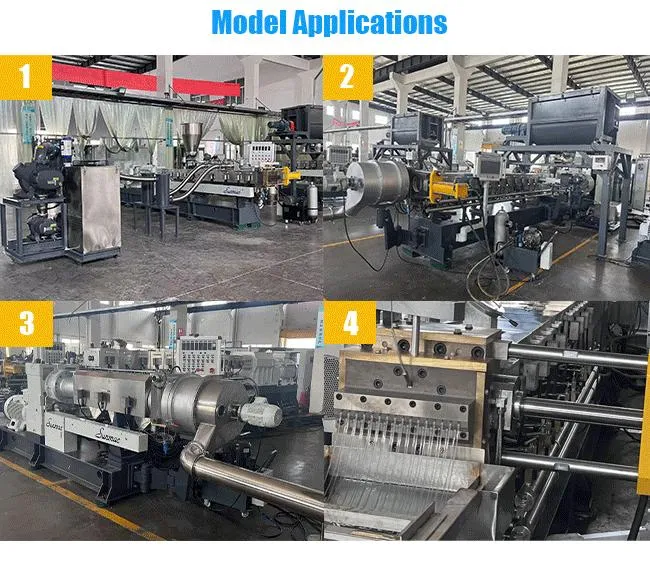

Model Applications
Preview

Preview
Certifications
Preview

Preview
Packaging & Shipping
Preview

Preview
Exhibitions
Preview

Preview
FAQ
Preview
1.Q:Are you a factory or trading company?We are manufacturer
with 20 years experience.2.Q: What makes you different from other suppliers?We
are
willing to introduce products in details, recommend suitable solutions, offering test for new formulation, testing expense is free.Providing layout and engineering conditions, offering screw plan and related documents, inform the project processing status.Insuring the product designed in accordance with technical document.Providing installation, commissioning
and training, offering spare parts. 3.Q:How long is the deliver time?Normally, 45 days from the date we receive your deposit.4.Q:How long is your machine's guarantee time?One
year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.5. Q:What can you provide for after sale service?A:We can send engineers to your factory for installation and training .
with 20 years experience.2.Q: What makes you different from other suppliers?We
are
willing to introduce products in details, recommend suitable solutions, offering test for new formulation, testing expense is free.Providing layout and engineering conditions, offering screw plan and related documents, inform the project processing status.Insuring the product designed in accordance with technical document.Providing installation, commissioning
and training, offering spare parts. 3.Q:How long is the deliver time?Normally, 45 days from the date we receive your deposit.4.Q:How long is your machine's guarantee time?One
year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.5. Q:What can you provide for after sale service?A:We can send engineers to your factory for installation and training .
Preview
证书
标题:CE

Preview

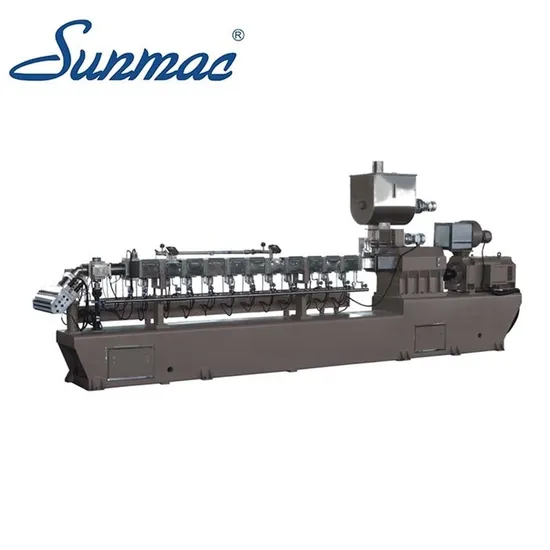

高填充改性双螺杆挤出机/双螺杆PE PP+CaCO3填料母料挤出机机器
