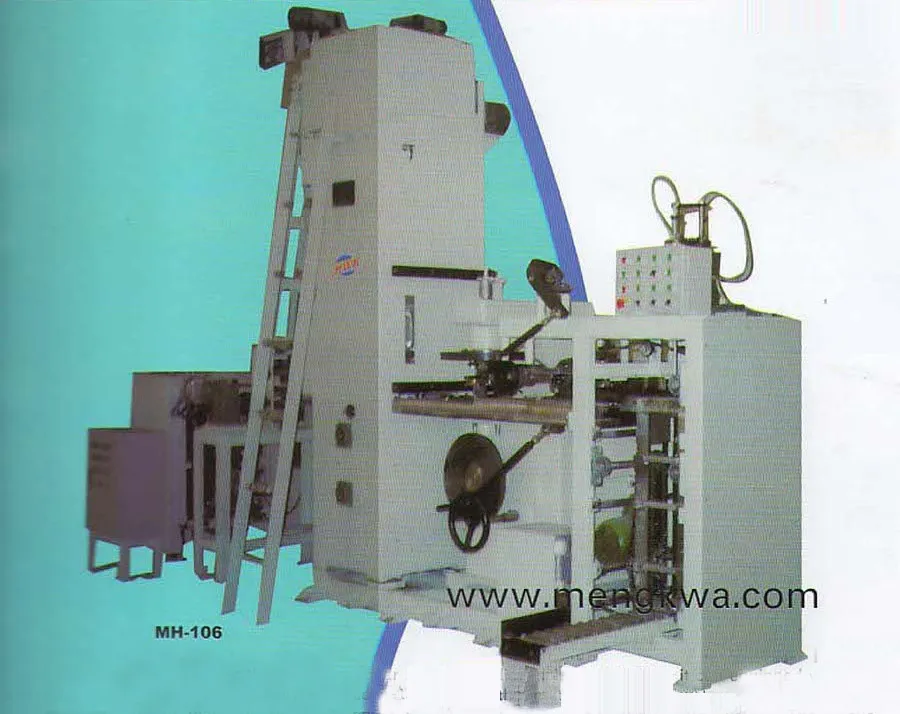

Lid Glue Dispensing and Drying Machine for 18L Square Can
This machine is used for the lid of 18L square tank glue dispensing and drying,it can equipment with 18L square can making machine.The machine including the material feeding system,glue dispensing machine, drying machine,receiving equipment,electric system and pneumatic system,The above mentioned machine can separately working or connect to one line.
Material feeding system :
put the lid on the material tray,then by vacuum suction system put the lid on the working station.
Glue dispensing machine the two glue dispensing nozzle rotate according to the lid,then dispense one layer of glue, the quantity and time can be adjustable.
Drying machine: the lid after glue dispensing will send to the drying machine,the machine is vertical type for reduce the working area.The lid is moving through lever vertically.The drying method is hot air recycle by electricity,the temperaturre is adjustable.
Receiving equipment: the lid after drying will send to the eereceiving tray and pile up automaticlly.
Electric system: Use imported PLC
motor power: 4.57kw(7PCS)
heating power: 18kw
electricity:380V(three phase),50Hz
speed: 30PCS/min
working pressure: 0.6Mpa
weight of machine: 3500kgs
Size: 4560*1540*2800mm

01 WHY CHOOSE MENGKWA?
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2)
Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a
week the company engineers, beyond a
week, the salaries borne by the customer engineer the factory.
