Claw Type Hard Plastic Granulator Machine Automatic Recycling Plastic Crusher Machine for Plastic Industry

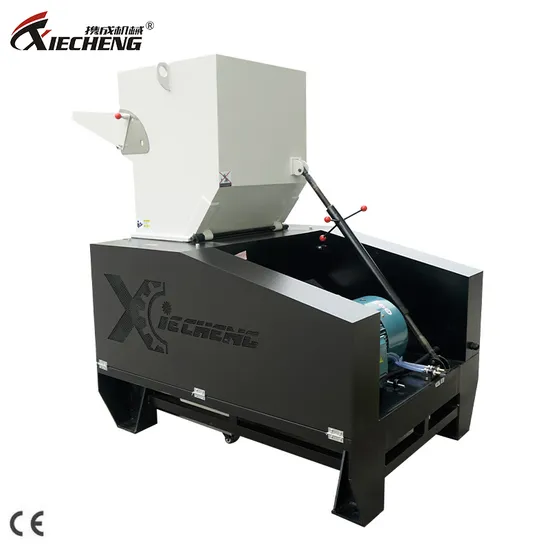

GY Claw Type Plastic Crusher
The claw type plastic crusher are especially suitable for larger and harder subjects like injection lump plastics, etc. Blade sets made by once cutting from steel plate, adopted with patent front-positioning blades design enlarging cutting angle and increasing cutting efficiency. Hence the output granules are even and with less powder or dust occurred. Models are divided into claw and flat types with wide applications.urred.
Features of GY series crusher:
▪
Versatility: It is suitable for granulating and recycling various types of plastic materials, including various plastic products, large plastic lumps, and rubber lumps.▪
High efficiency: It demonstrates significant crushing effectiveness on materials with high hardness, enabling efficient processing of such materials.▪
Customizability: Customized machine models specifically designed for glass fiber materials can be provided according to customer requirements, greatly enhancing the machine's lifespan.▪
Reliability: The blade frame is made from a single-cut steel plate, resulting in higher strength and stability.
Product Specifications
Model
XC-GY10HP
XC-GY15HP
XC-GY20HP
XC-GY30HP
XC-GY50HP
XC-GY75HP
XC-GY100HP
XC-GY10HP-SP
XC-GY15HP-SP
XC-GY20HP-SP
XC-GY30HP-SP
XC-GY50HP-SP
XC-GY75HP-SP
XC-GY100HP-SP
Grinding Chamber(mm)
360*260
420*260
480*330
660*350
720*500
910*820
1050*820
Grinding Capacity (KG/H)
200-400
300-500
350-550
500-800
800-1200
850-1300
1000-1500
Stationary Cutter
2
4
Rotary Cutter
18
21
24
27
30
33
Mesh Size (mm)
10
12
Power
KW
7.5
11
15
22
37
55
75
HP
20
50
100
Dimensions (LxWxHxH1 mm)
1000*830*1270*960
1200*995*1540*1215
1300*1075*1725*1350
1500*1330*1880*1480
2000*1520*2470*1914
2420*2060*3220*2375
2420*2060*3320*2375
Approx. Net Weight (KG)
540
795
1040
1700
2750
5400
6250
Dimension for SP (mm)
1250*880*1475*1190
1420*1020*1760*1440
1500*1140*1920*1540
1750*1400*2140*1735
2150*1570*2770*2200
2590*2230*3610*2375
Collective Blower (KW)
2.2
3
5.5
Approx. N.W for SP (KG)
750
1180
1400
2280
3630
5900
6500
If you want more sizes, please contact us for details
CONTACT SUPPLIER

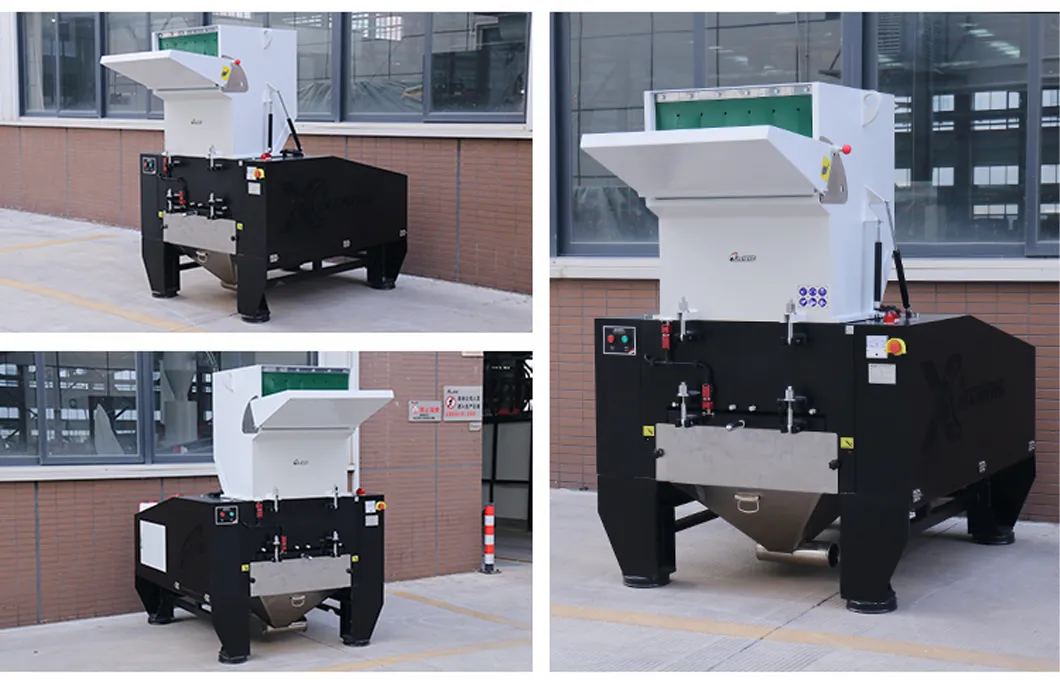

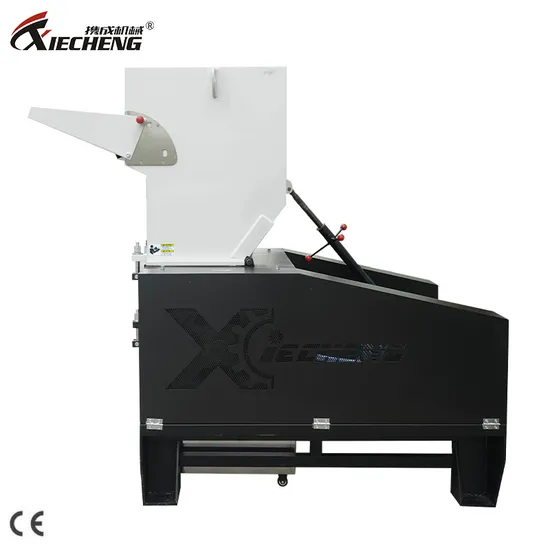

Actual Shooting
Product Details

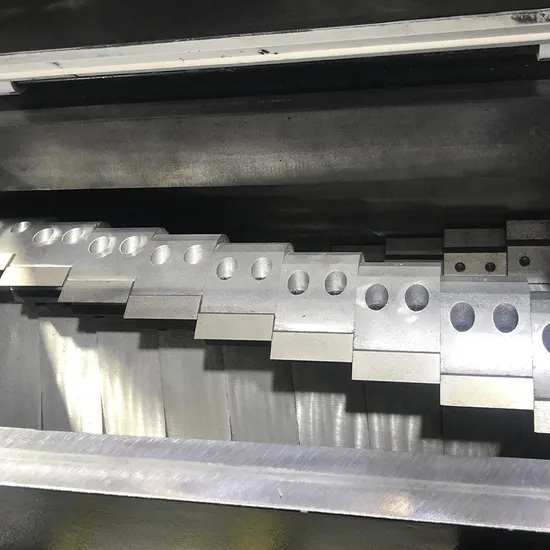

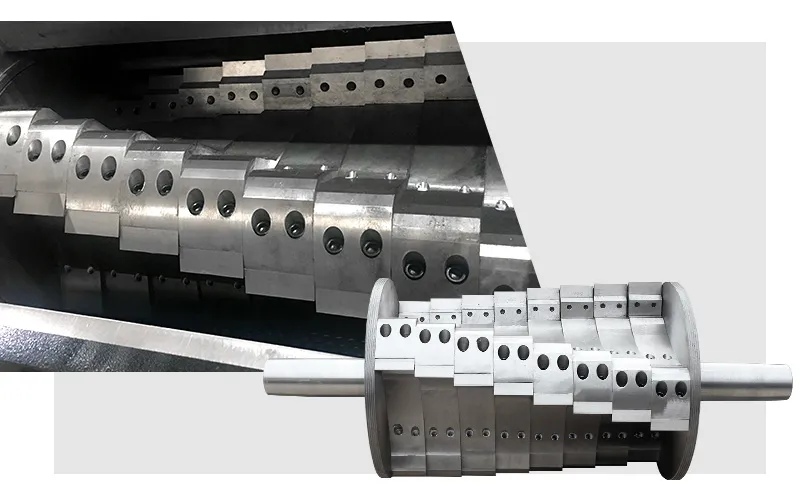

01 High-strength Blades
1.The main spindle blade holder is made of 45# steel and undergoes quenching and tempering treatment.
2.The blade material is CR12MOV, with a hardness of 57-59 degrees.
3.The blades are installed using internal hexagon socket screws, which prevents the screws from wearing out due to prolonged use.

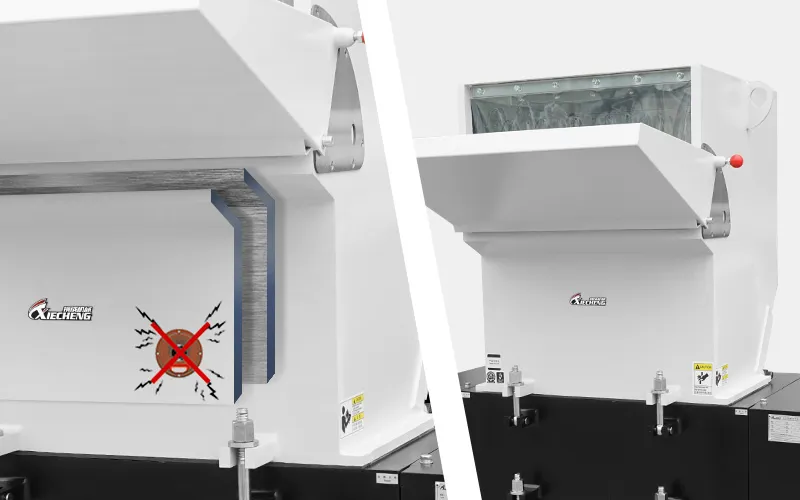

02 Soundproofing Design
The feeding hopper features a double-layer soundproof design on all four sides. The inner layer is made of stainless steel, and it is filled with soundproofing material in the middle. This design provides excellent noise reduction and ensures a quiet operation.

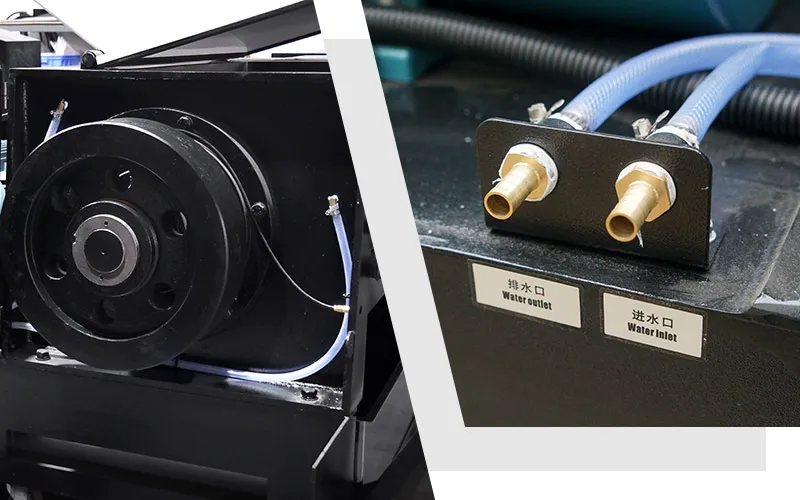

03 Chamber Cooling System
For machines with a power rating of 30HP or higher, a cooling system is included as a standard feature in the machine enclosure. This system allows the timely release of heat generated during the crushing process due to friction, thereby enhancing the machine's efficiency and lifespan.

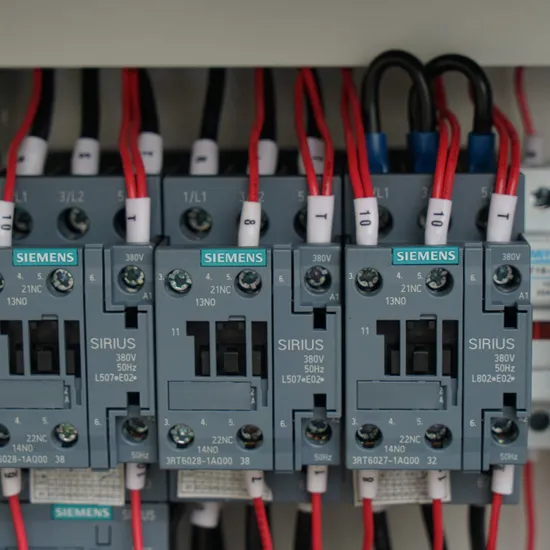

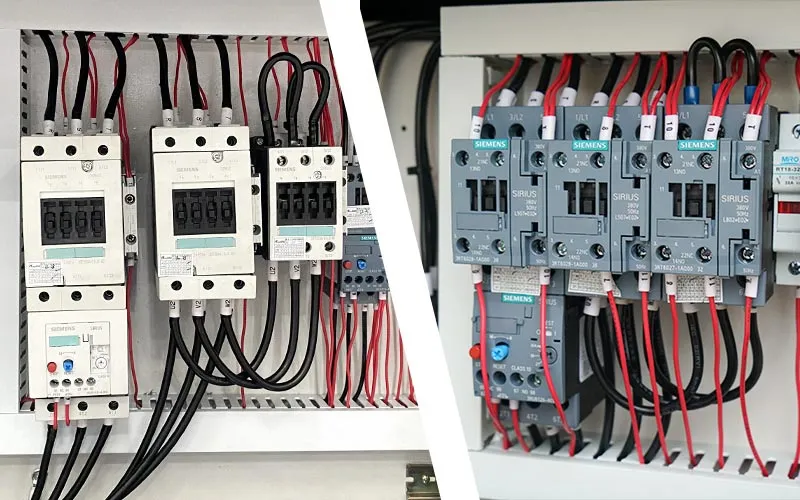

04 Electrical Components
The equipment is equipped with globally renowned Siemens electrical components, ensuring the stability of its performance and providing a high level of safety and reliability.

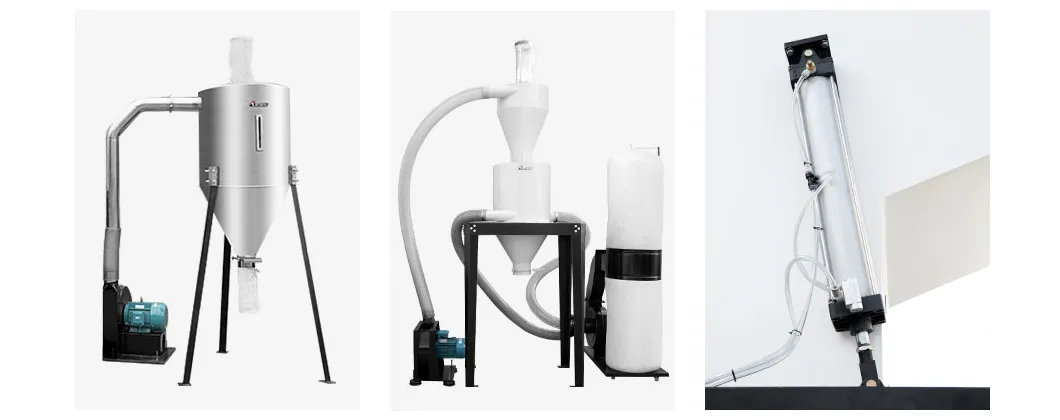

Optional Accessories List
The standard Claw type
plastic crusher offers the option to configure an automatic recycling and screening system. This system automatically recovers crushed materials, reducing the reliance on manual operations and thereby improving production efficiency. For models with a power rating of 75HP and above, the feeding hopper and screen frame are equipped with a cylinder system, which is now a standard configuration. For other models, you have the option to choose whether to add this cylinder system.

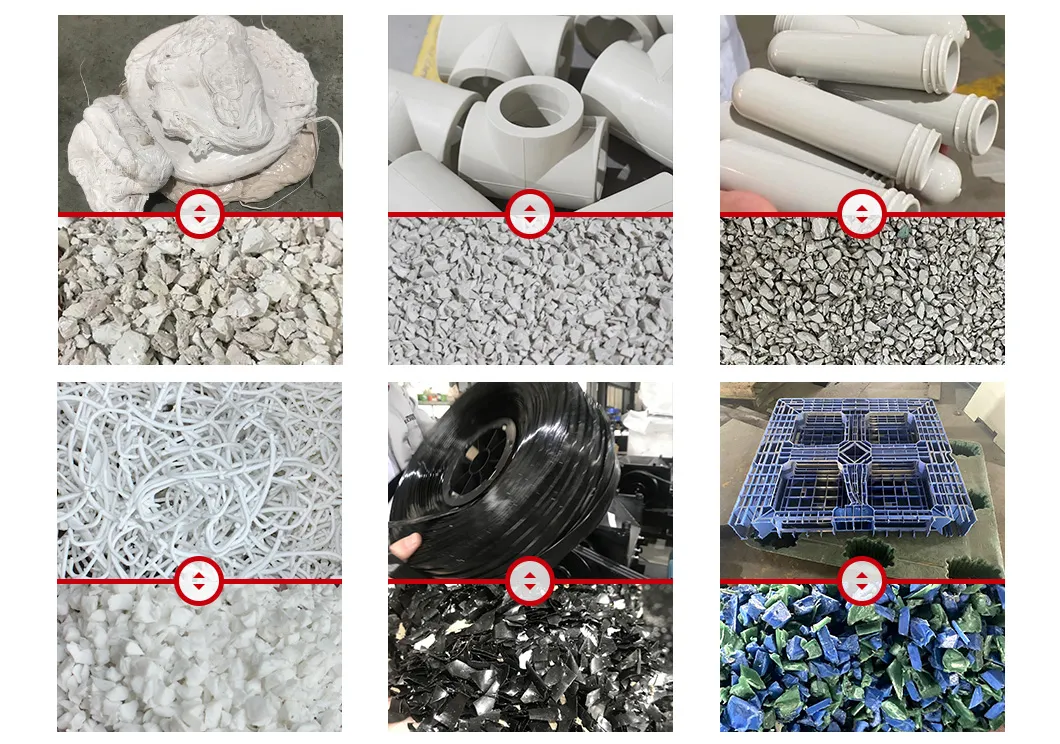

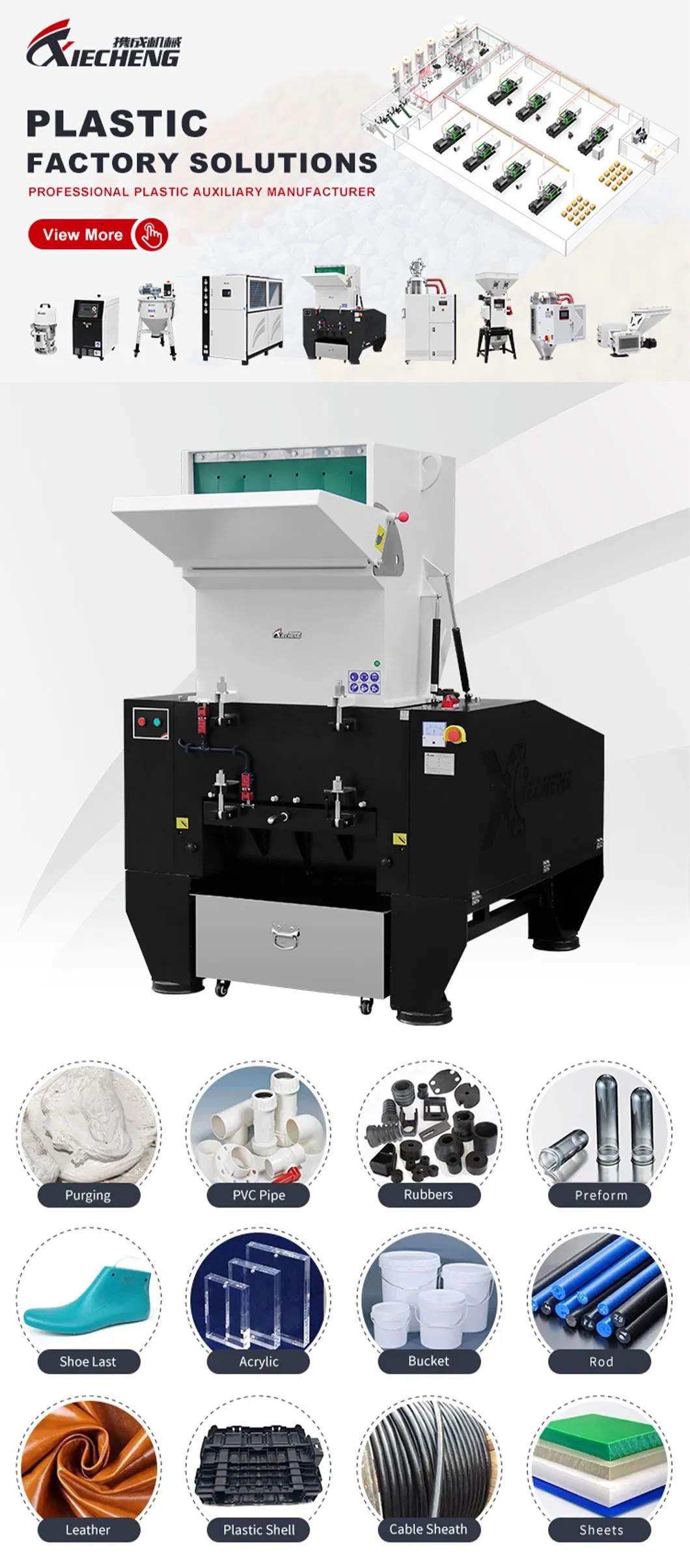

Application Range
The crushing effectThe Xiecheng GB Plastic bottle crusher machine is widely used in the rubber and plastic industry, including bottle blowing machines and blow molding machines. It is capable of directly crushing various shapes of hollow blow-molded barrels, including square and round PC/PET hollow blow-molded barrels, as well as mineral water bottles, gallon drums, paint buckets, chemical barrels, and more of various sizes. Additionally, this bottle crusher exhibits outstanding processing capability, with the ability to directly crush hollow barrels of up to 200 liters in size.
