基本信息产品详情证书
基本信息
型号(NO.) | 60×120毫米,120×120毫米 |
电阻线 | 镍铬线 |
功率(瓦) | 可定制的 |
绝缘材料 | 高纯度氧化镁粉末 |
电压 | 110伏/120伏/220伏/230伏/240伏 |
颜色 | 白、黑、黄、红、粉。 |
产品名称 | 陶瓷加热板 |
应用程序 | 热成型/上漆/干燥 |
运输包 | 出口案例 |
规格 | 60*60毫米,120*120毫米 |
商标 | 不 |
起源 | 中国 |
商品编码 | 851690100 |
生产能力 | 每年十万 |
包装尺寸 | 40.00厘米 * 30.00厘米 * 20.00厘米 |
包装总重量 | 6.000kg 千克 |
包装尺寸 | 这是指一个长方体的三个边长,分别对应长度、宽度和高度。具体来说,它的长度是40厘米,宽度是30厘米,高度是20厘米。 |
包装总重量 | 6千克 |
产品详情

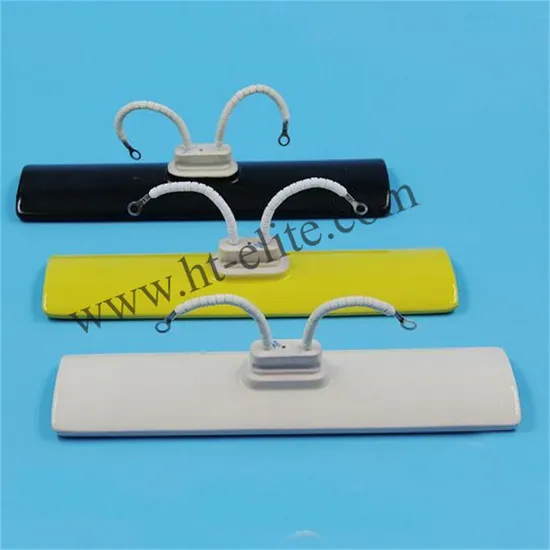

Curved 650W Ceramic Far Infrared Heater for thermoforming
Preview
Product Description
Preview
1. Introduction
Ceramic Infrared Heater is
efficient, robust heaters
which provide long wave infrared radiation.
The working under temperature 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb.
A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.
Our Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.
2.
Ceramic Infrared Heater is
efficient, robust heaters
which provide long wave infrared radiation.
The working under temperature 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb.
A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.
Our Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.
2.
Preview

Preview

Preview
In Thermoforming & Vacuum Forming Machines
In PVC Pipe Belling / Socketing Machines
In Hot Stamping Machines
As Heat Therapy Equipment
In Shrink Packaging
8. Photos reference
In PVC Pipe Belling / Socketing Machines
In Hot Stamping Machines
As Heat Therapy Equipment
In Shrink Packaging
8. Photos reference
Preview

Preview
证书
标题:营业执照

Preview
用于热成型工艺的弯曲式650瓦陶瓷远红外线加热器
¥18.1 ~ ¥76.02
化工产业链 · 塑料橡胶机械 · 其他塑料机械
产地中国
