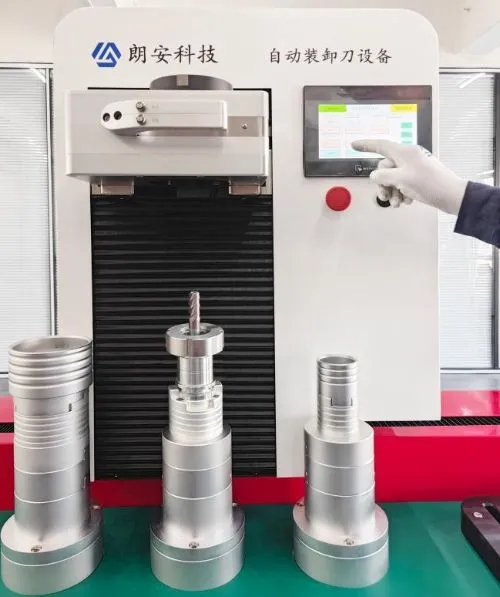

CHAS-A Series

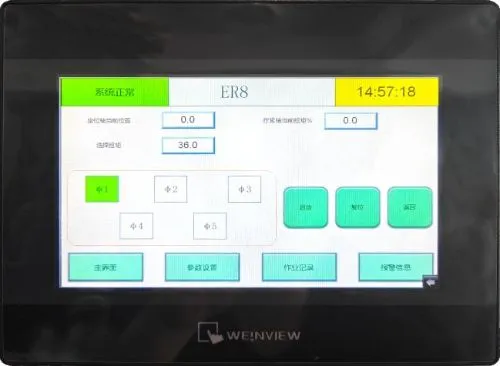

Product characteristicsWide applicabilityOnly one machine can cover most of the different models, different specifications of the cutter arbor, collet, and all can correspond to different tool stand and cutter arbor nut assembly.High efficiencyThe tool loading or unloading can be completed within 20 seconds, greatly shortening the tool changing time, improving production and efficiency and activation.SafetyThe machine only needs to select the touch screen function, and the loading and unloading can be completed at the touch of a button, without heavy tooling.High precisionThis machine
controls the servo motor through the PLC program to accurately control the torque of the loading and unloading tools, ensure the stability of the loading tools, and avoid the difference in force values caused by different operators, loading and unloading tools, loading and unloading methods, etc.Reduce production costsThe output torque of the machine is stable, which can greatly extend the service life of the tool and collet, and the cutter arbor and the tool have high matching accuracy, which can greatly reduce the production cost.
Our Advantages
Product AdvantagesOne: save both time and labourBefore using

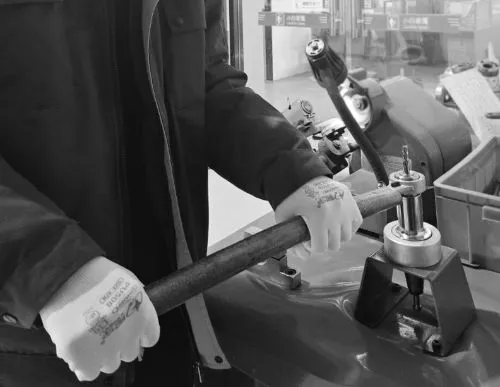

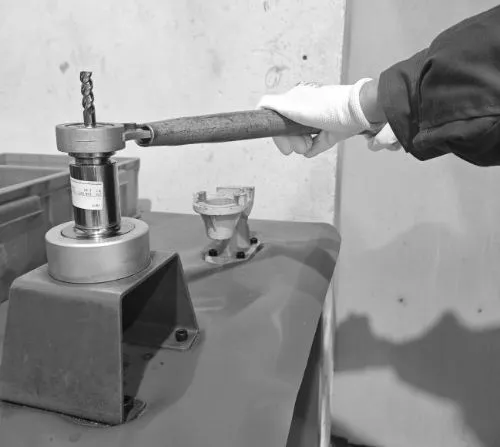

Manual operation, time-consuming and laborious, need to use extension bar, tooling and other auxiliary tools.After using

Loose button, fast completion, improve efficiency, save labor and time cost.Two: Save worry and spaceBefore using

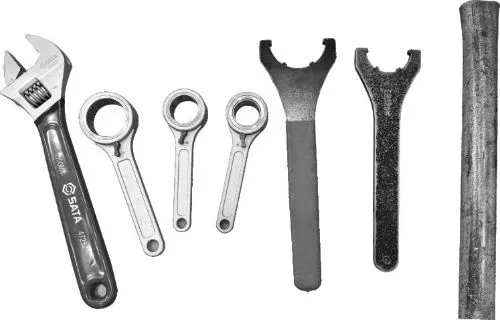

There are many kinds of loading and unloading tools, large quantity and difficult storage.

The tool stand is large and space-consuming.After using

The appearance is consistent, simple and beautiful.

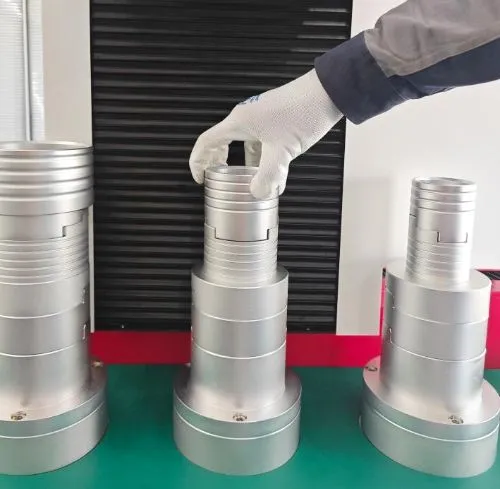

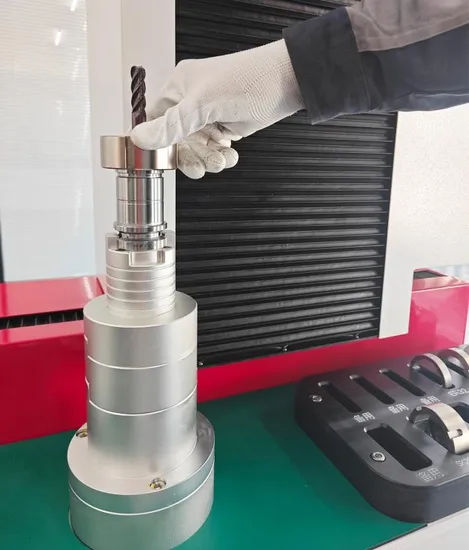

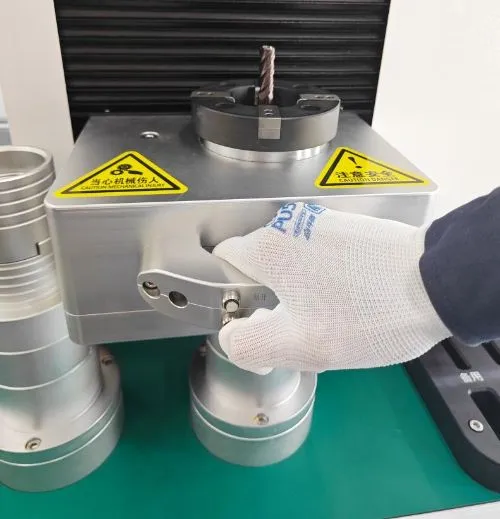

The tool stand is lightweight and easy to change with one hand.Three: Safe and accurateBefore using

Manual operation is easy to lean forward and backward, resulting in safety risks.

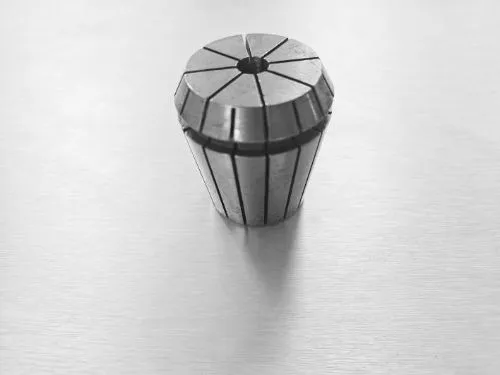

The output torque is unstable, resulting in unstable process, often accompanied by damage to the nut jacket, and the cost is high.After using

The torque is precise and controllable, the process is stable, and the cost is low.
Product Parameters
Product parameters1. Power supply requirements:
single-phase 220V/50HZ AC voltage,
allowable voltage and frequency fluctuation ±5%2. Environmental requirements: Operating temperature: -10°C~40°C
Storage temperature: -20°C~60°C
Ambient humidity ≤ 90%3. Dimensions: (L x W x H):
CHAS-A series: 1300mmx500mmx1575mm

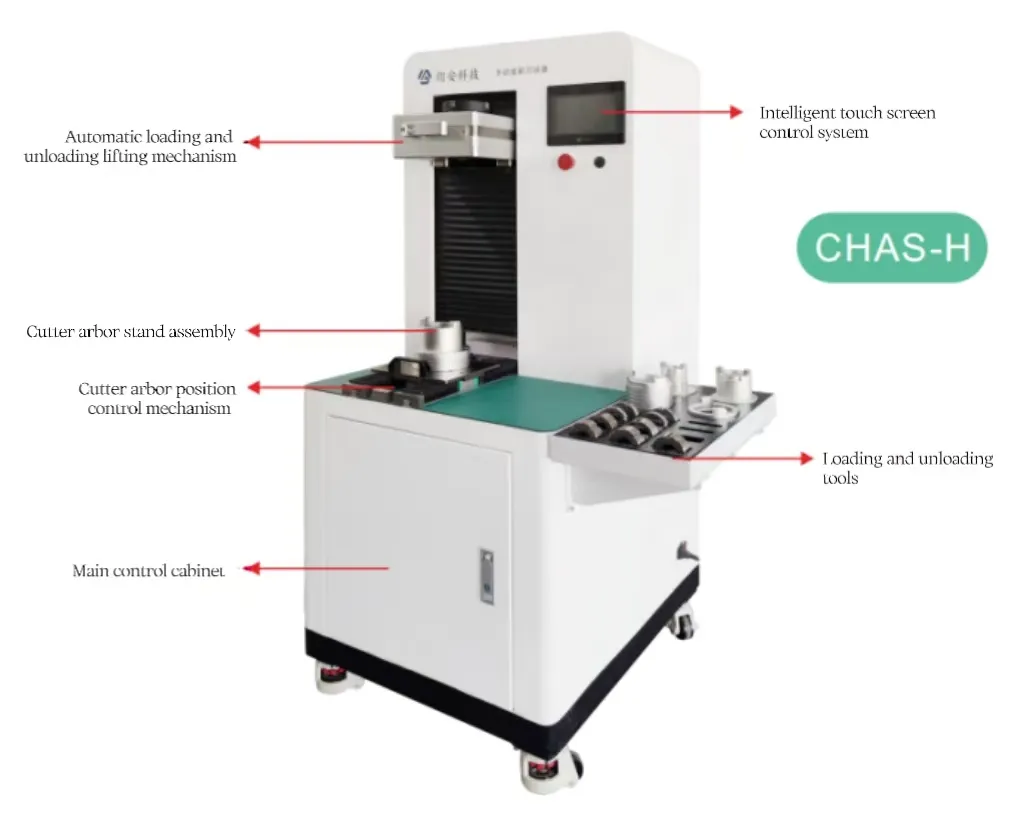

CHAS-H series: 950mmx750mmx1575mm

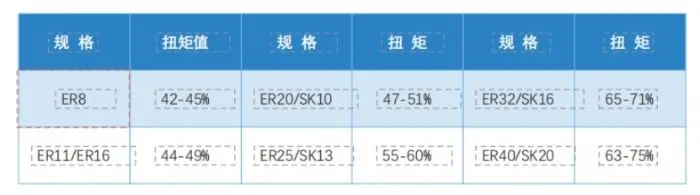

4. Recommended torque

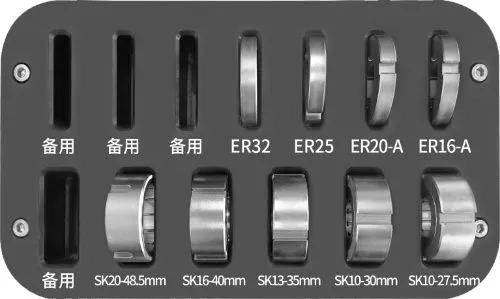

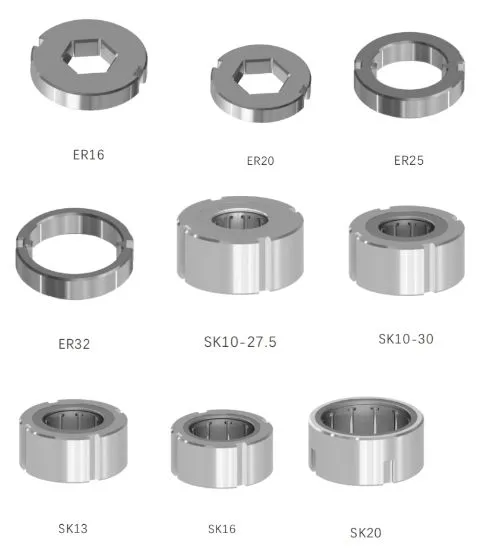

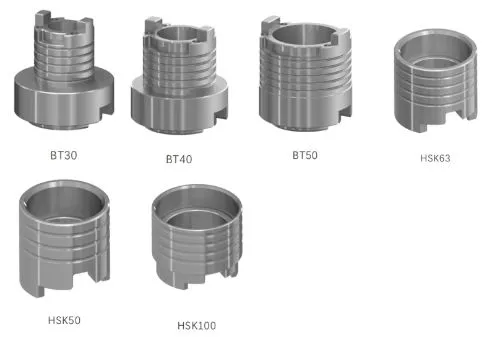

Accessories

Note: other types of tool stands or adapter sleeves can be customized.
Our Service
Pre-Sales Service
* Inquiry and consulting support.* Sample testing support.* View our Factory.*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.* Engineers available to service machinery overseas.* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

1.The innermost layer is EPE pearl cotton film package.2.The middle layer is wrapping up with environmental protection material .3.And the outermost layer is winding up with PE stretch film.4.They're very environmentally friendly.5.If you need a wooden box, we will make a wooden box.Delivery Detail:
Shipped in
25-30 working days after payment.
