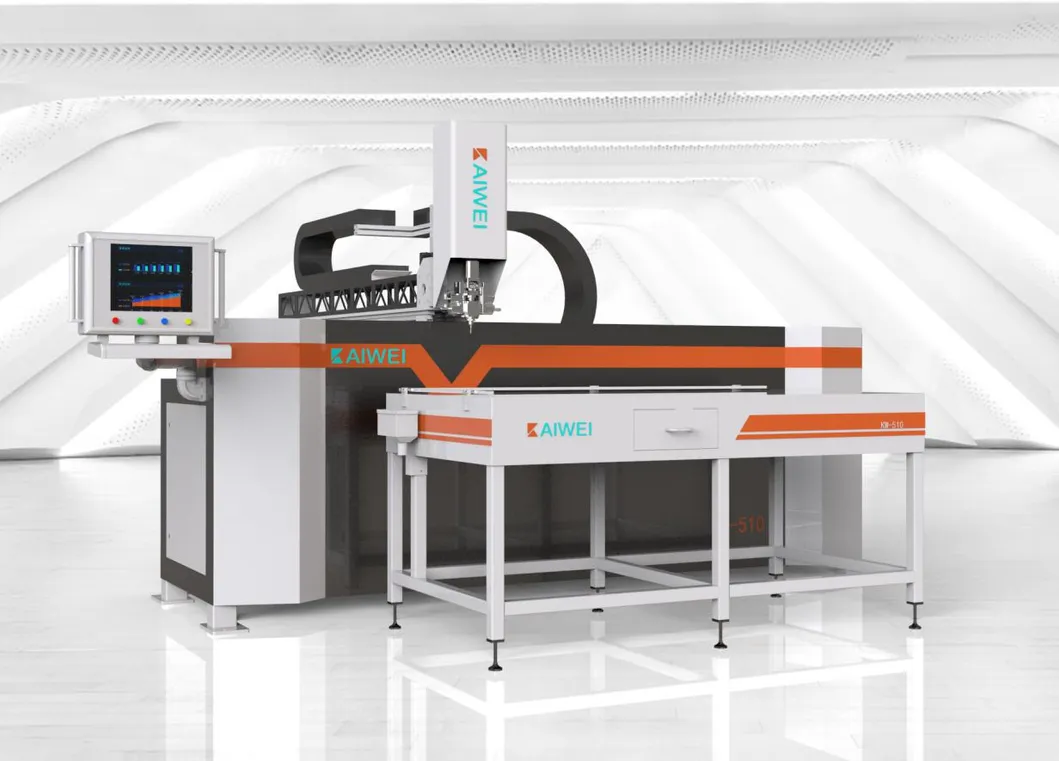

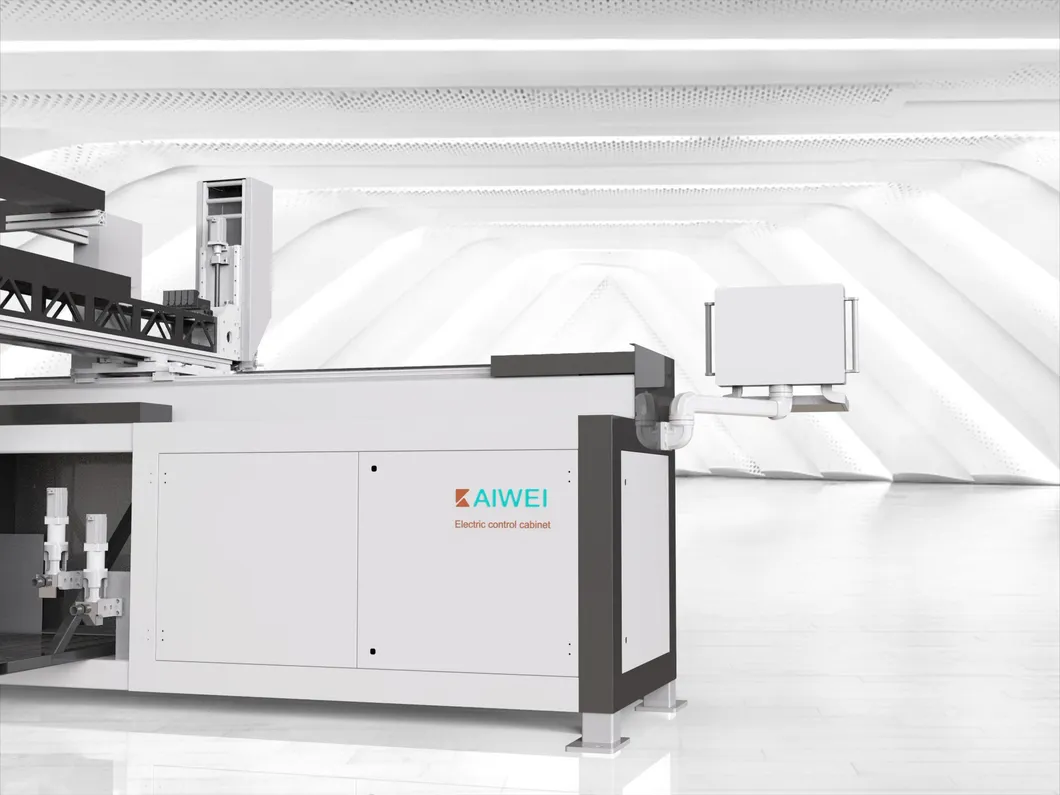

KW-510 Automatic PU Gasket Sealing Foam Dispensing Machine
Application
KW-510 is widely applied for car, cabinet/box, air filter, air-conditioning puring equipment, packing, electrical element, light, new energy, etc.
Feature
Material: PU
Stroke:1000X8000X200mm(X*Y*Z)
Working table:2000*1000mm(L*W)

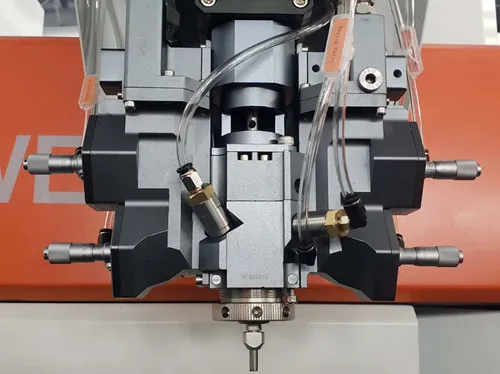

Mixing head:
KW-700
Finished gasket width 6-30mm.

Mixing and Dispensing:

Mixing head model:KW-700
Dimension:410*200*135mm
Weight:4.6KG
Colour:
Silver
Output:1-4g/s
Repeated glue output precision:1%
(weight test)
Pressure control method: electromagnetic valve
Description:
High pressure water-cleaning and air-cleaning
Modular light-weight structural design;
High strength aluminum alloy and stainless steel structure;
Multiple level
glue injecting
Stirring bar speed is adjustable,
special design makes glue mixing very even
High pressure pinhole injecting valve to control water-cleaning
Air-blow pinhole injecting valve to dry mixing head
Stirring bar directional movement to control the nozzle locking function
Graphical editing mode
1)
Auto Cad is built in the vertical computer; 2) USB port to transfer the Auto Cad drawing to the vertical computer; 3)

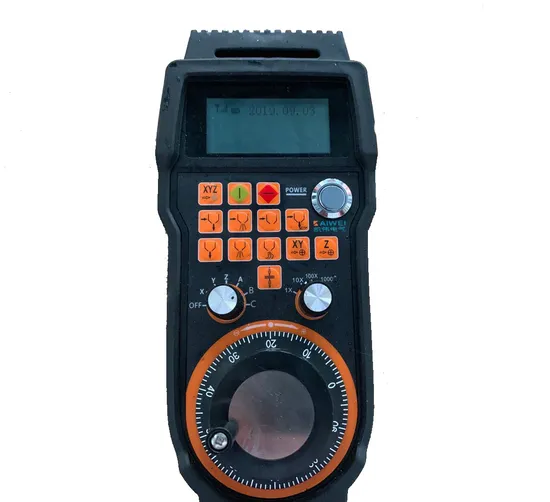

Gallery with standard pictures in the vertical computer;4) Wireless Hand operator panel for teach in programming;
Metering Pu
Germany Barmag metering pumps can assure the precision of glue feeding.
Mechanical Frame:
Mechanical frame is including 3-axis steel welding mechanical arm, gear-rack, rail, servo motor, speed reducer, drag chain, steel base and others.
Steel welding frame can meet the demands of high strength and stability when the machine moves in high speed.Besides, skewed tooth gear-rack
can improve the stability and precision of 3 axes, reduce the noise.
Ele

KAWIEI ES SERIES control panel:1700*1000*400mm(H*W*D)
Material :mild carbon steel
Color: RAL9003
RAL2011

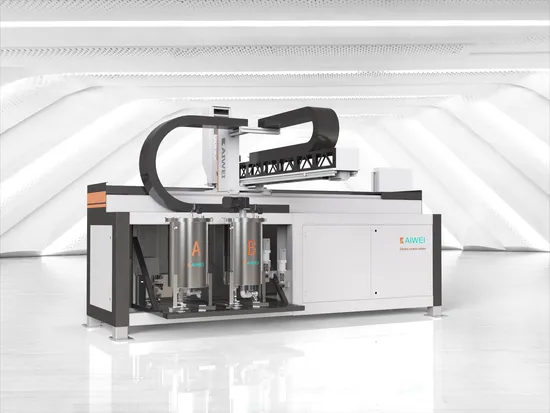

S
1,Material:stainless steel
2,Volume:
A-40L
B-40L
3,Automatic high-low level alarm for A
4,A
tank is with automatic glue-stirring and air-refilling function
5,A,B tank are with
impurity filter
6,A tank with automatic air refilling and mixing function

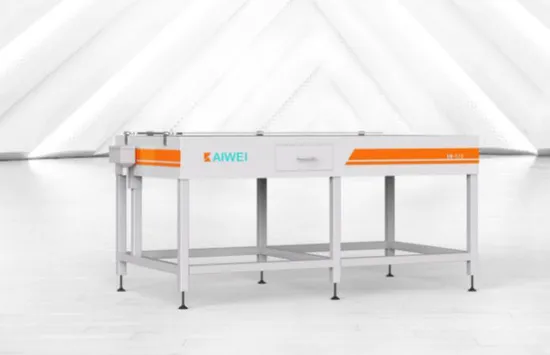

Working table:
Dimensions:2000*1000*900mm(L*W*H)
Material:Aluminum profiles
Desk top:Grey wear-resisting cloth
Water and air-cleaning
stainless box
Control button box
Work-piece fixing stainless bars
Raw Material-PU
PU is a
product of 2-component Polyurethane. It adopts FIPFG (foamed-in-place foam gasket) technology which can foam on the
workpiece directly. The finished product is a
soft and elastic foamed gasket. This gasket is made from component A
and component
B. Component A
is mainly polybasic alcohol, Component B
is a
hardener-isocyanate. After mixing A
and B
according to a
certain
proportion and completely foaming, the mixture will become a
soft foamed sealing strip.

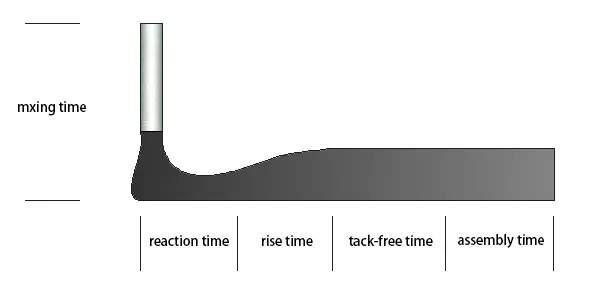

• Mixing time: time for mixing component A
and component B
• Reaction time: time for the mixture to react( about15-60 seconds after mixing)
• Foam time: time from reaction to finish (about 15-180 seconds)
• Dry time: time for no viscosity on the suface, and no damage with touch under room temperature 25 ºC(about 2-20 minitues later)
• Available time:time for the availability of gasket to be pressed or assembled (about 20 minitues-12 hours later)
