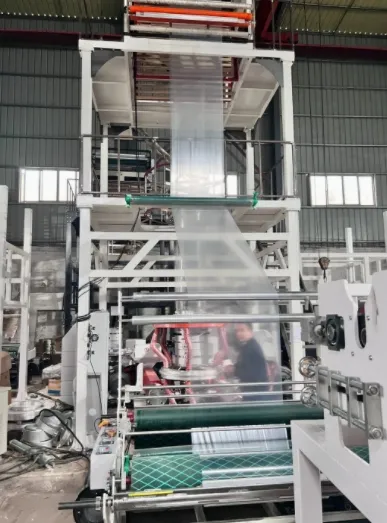

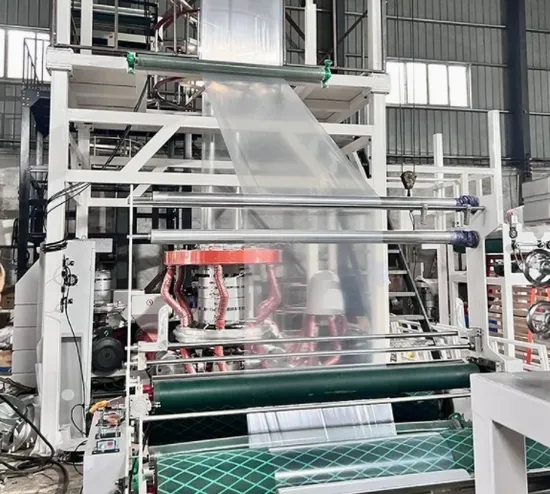

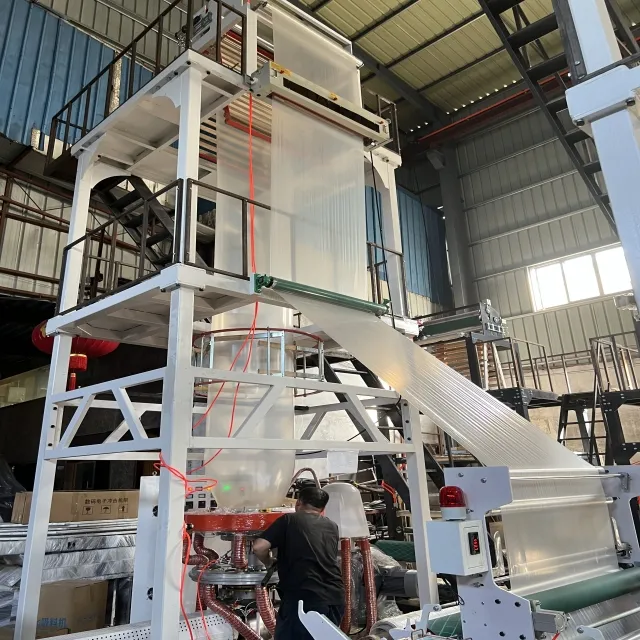

Three Layers Co-extruding
Rotary Die-head Film Blowing Machine
Product Description:

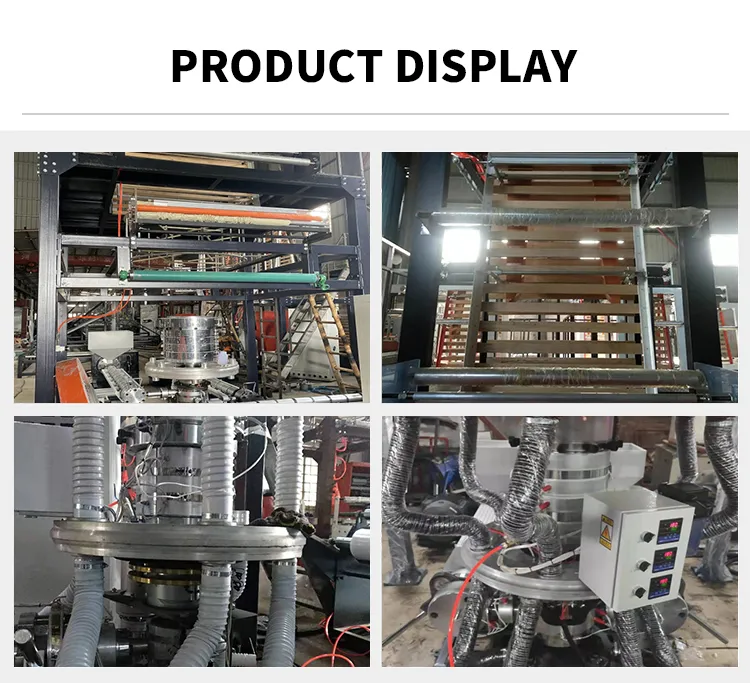

1. Die head is layer type spiral mandrel, continuous 360, rotation.
2. Screen pack changer Design is rational convenience, reliable, safe in operation.
3. Various functional parts may be installed to the lies, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
Use:

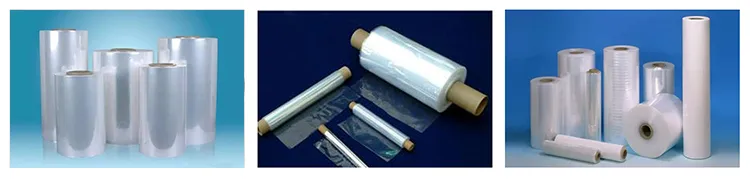

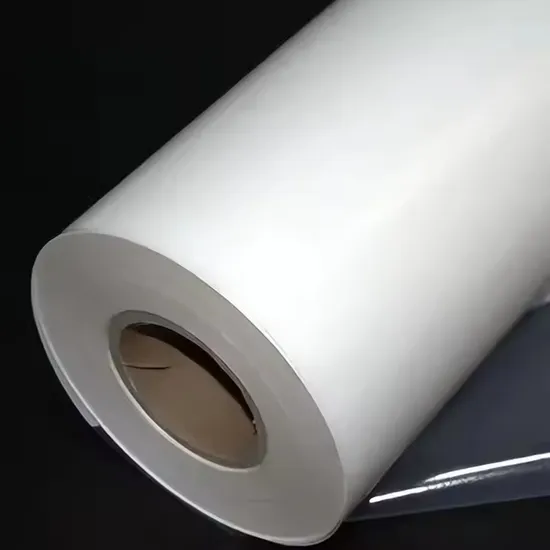

The line is designed and developed by our company according to market need, reaching the advanced levels in the 90s,coming up with analogous lines in domestic market. It is optimum designed on the trends of preference of analogous lines abroad and home. The line can continuously blow film from LDPE, HDPE, LLDPE, to MLLPE by up blowing. The film has good in sudation, for instance holding temperature, anti-humid, ant-breeze, anti-rain, anti-roost, insulation oxygen, oil resistive, and also used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
Main Technical Variables:
Model
SJ-45x3/FM1000
SJ-50x3/FM1200
SJ-55x3/FM1500
SJ-60x3/FM2000
SJ-65x3/FM2500
Screw Diameter
45mm
50mm
55mm
60mm
65mm
Screw Ratio
L/D30:1
Screw Speed
15-120r/min
Power of Main Motor
11kwx3
15kwx3
18.5kwx3
22kwx3
30kwx3
Range of Die
¢200mm
¢250
¢300
¢500
¢600
Output
100kg/h
120kg/h
150kg/h
180kg/h
200kg/h
Thickness of Film
0.01-0.10mm
0.03-0.10mm
Max. Folding Width
1000mm
1200mm
1500mm
2000mm
2500mm
Electric Total Capacity
76kw
88kw
102kw
130kw
156kw
Weight of Machine
4200kg
5300kg
6200kg
8600kg
10600kg
Overall Dimension
6600x4100x5000mm
6800x4300x6000mm
7000x4800x6800mm
7800x5300x8600mm
8600x6200x9600mm
Company Information

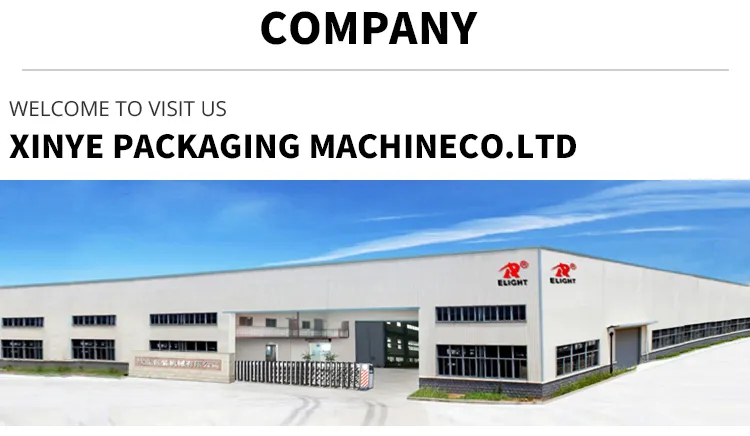

Xinye packaging machine company with a long history is located in Rui'an, Zhejiang Province. We specialize in producing series of packaging equipment, like bag making machines, printing machines, film blowing machines and material cutting and punching machines. Taking sincerity and credit as the most important factors for success, we will do our almost to improve product quality and perfect our service system. We welcome all friends to visit us for future cooperation.
Our Services:
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After Sales Service:
We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

1.Q: Are you a factory or trading company?
A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
A: Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
