Main parameters and configuration of Duplex Thick Sheet Vacuum Forming Machine
Parameters.Main parameters and configuration of Duplex Thick Sheet Vacuum Forming Machine

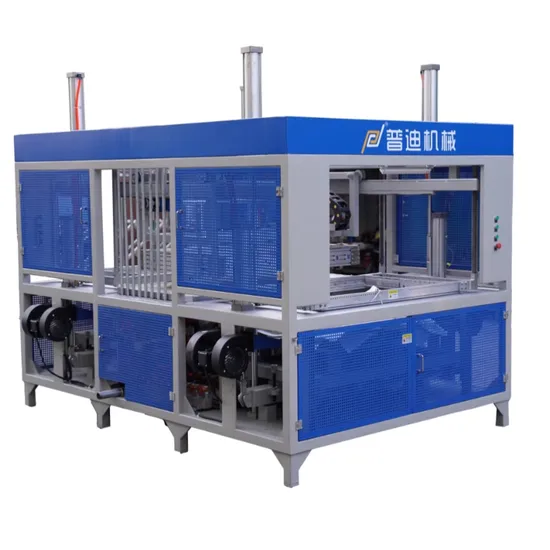

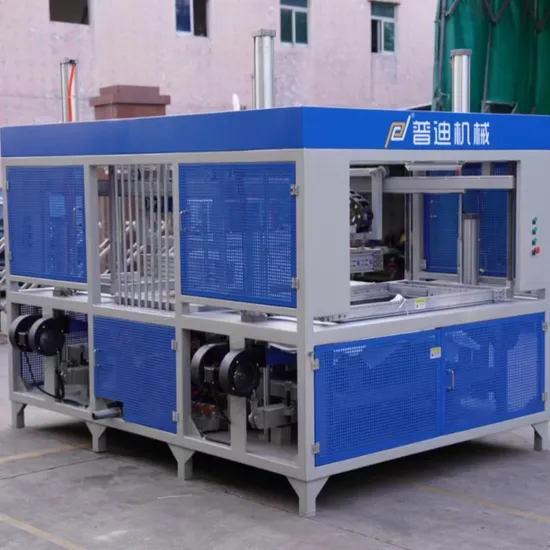

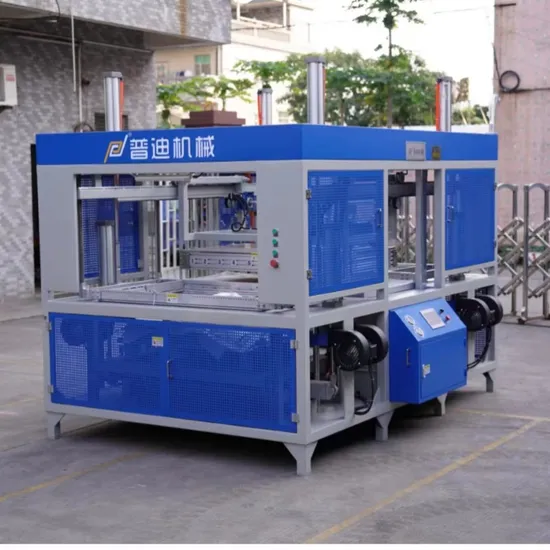

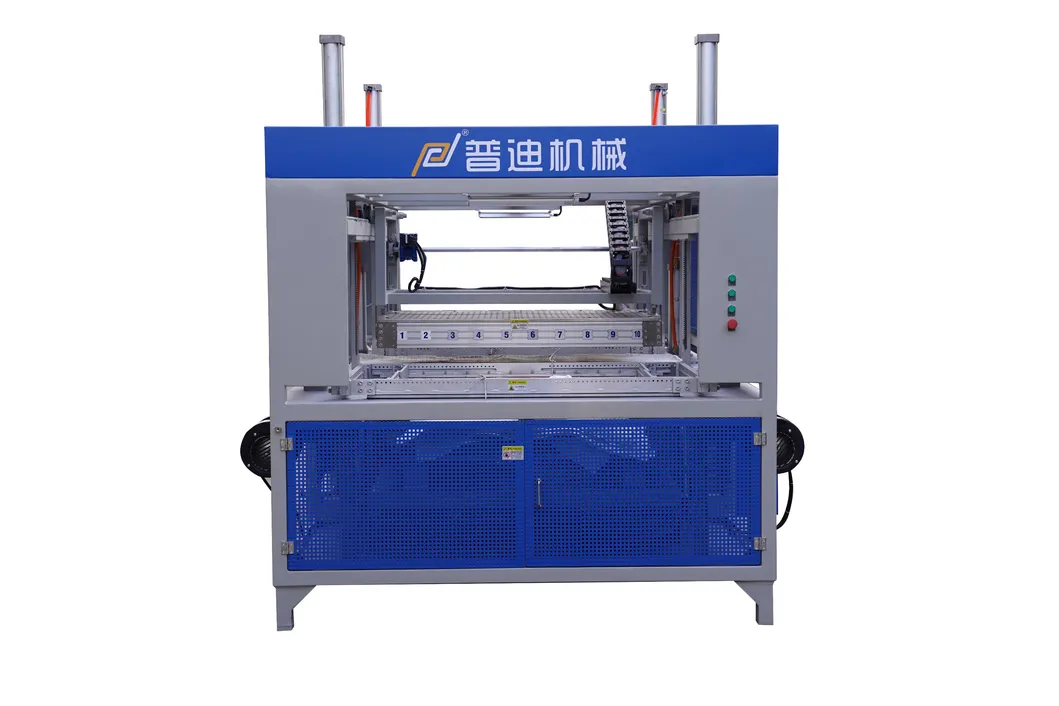

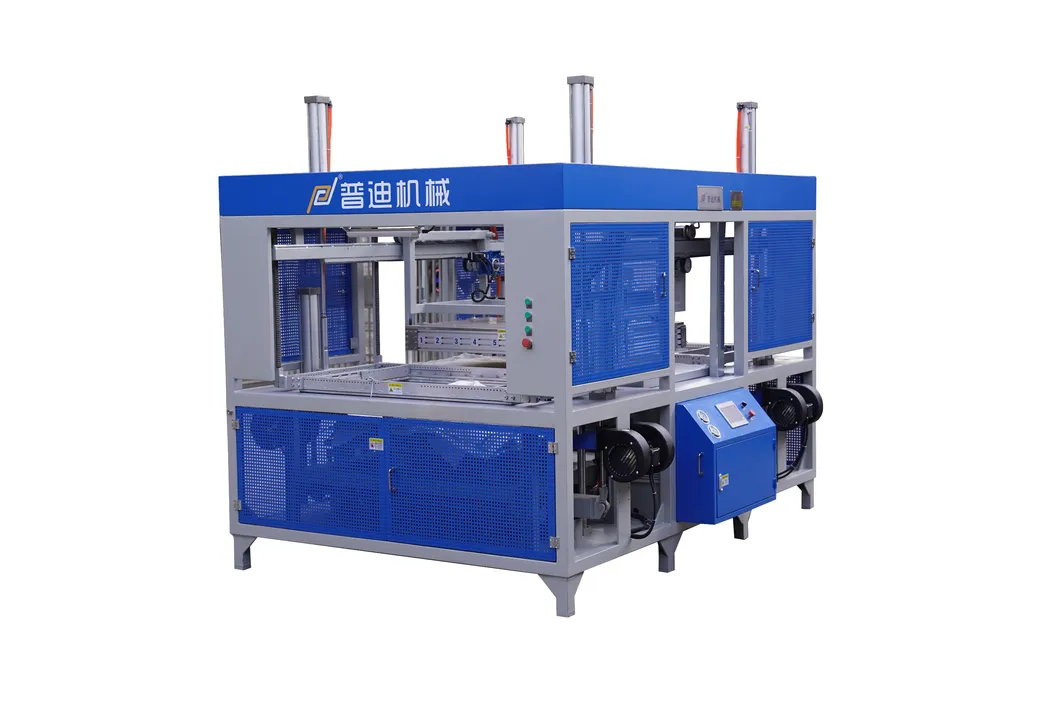

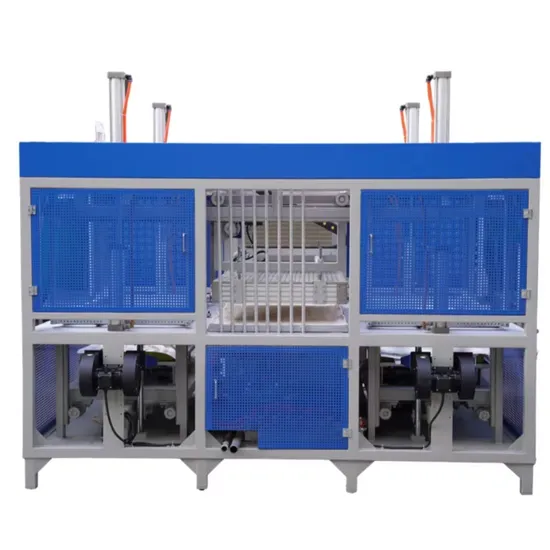

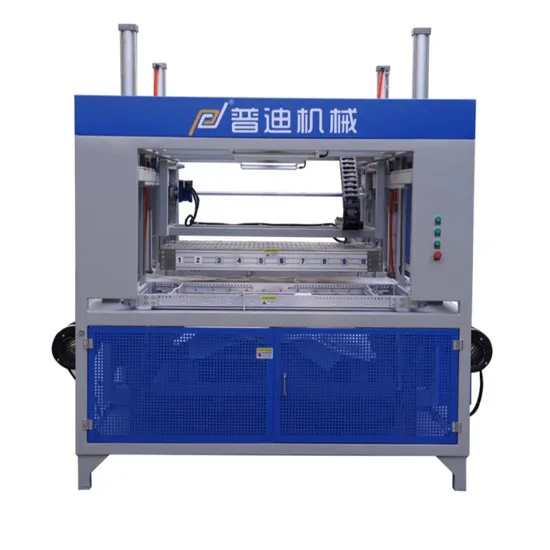

Duplex Thick Sheet Vacuum Forming Machine

Machine Description:This equipment consists of frame, pressing device, heating system, temperature control system, mold table lifting device, vacuum molding system, cooling system, electrical system and soon.1. Machine frame(1) It is welded by national standard steel structure profile and treated by electronic aging to ensure the strength and rigidity of the whole rack without deformation. The whole rack is treated with anti-rust treatment and bottom coating.(2)
All organic add-on fittings are of universal type, which is convenient for subsequent maintenance and quick replacement.2.Pressing deviceThe press frame is driven by pneumatic cylinder, according to the different sizes of the products, the upper press frame can be adjusted in different sizes of length and width, and the screws are locked;3.Heating System(1) This machine is single-sided heating, using high-quality ceramic heating brick heating.(2)The heating element is firmly installed in a fixed way, so that it is not easy to shake or fall off during use, and it is easy to dismantle and install.(3)Each heating brick is labeled with a corresponding number, which is convenient for quick adjustment of the corresponding heating brick.(4)The heating furnace is accurately positioned when it moves to the heating station, motor-driven, and the process is smooth.4.Temperature control system(1)Heater in the working state, equipped with a terminal controller, all process parameters, settings, using digital display; in the touch screen can intuitively display the action in place condition and a variety of equipment parameters, data;(2)Temperature control using temperature control module for regulation, accurate temperature control; using 485 communication, you can directly adjust the parameters on the touch screen, and can store multiple sets of data;5.Mold table lifting deviceThe mold table power lifting system is driven by cylinders, and the lifting speed is smooth;6.Vacuum
forming systemIt mainly consists of vacuum pump, vacuum tank, vacuum piping, vacuum control valve and so on.7.Cooling SystemThe machine is equipped with a powerful axial fan for product cooling.8.Electrical system(1)The lines are beautifully arranged and not exposed.(2)The wiring in the electric control box is beautiful and practical, neatly numbered and easy to maintain.(3)All heating units have short-circuit protection devices.
OUR EXPERTISE ,YOUR ADVANTANGE
1.Professional Technical Team :20 years of R&D and production experience,with rich experience in vacuum moulding technology2.Non-standard customised service : Provide one-stop service to provide customers with excellent complete vacuum forming solutions .3.Quality assurance and reliability : All mechanical parts are produced independently by CNC machining centre 4.Worry free after-sales service : Integration of installation ,commissioning and training services
Pudi service standard
Pre-sales service
1. According to the customer's products to provide customers with a reasonable program, plastic absorbing machine and peripheral equipment investment ratio.
2. Provide the amount of water, electricity and gas needed for the production workshop.
3. Provide reasonable workshop planning program.
4.Provide the mold manufacturers and material manufacturers for plastic injection molding.
The sale of services
1. In order to improve the subsequent production efficiency of the customer, the customer's existing molds or re-development of the mold planning proposals.
2. After the completion of the production of equipment, responsible for the installation, commissioning, training. And assist the operator to produce the ideal products.
3. Provide good production suggestions to customers who have just entered the plastic absorbing industry, and reduce customers' production costs.
After-sales service
1. One year warranty for the whole equipment, and the parts can be exchanged for new ones within one year (except for man-made damages and wearing parts).
2. Lifetime maintenance of the equipment, after the warranty period only charge the cost of materials, such as the need for door-to-door service only charge a reasonable travel expenses.
3. For all the customers who have purchased Pudi's equipment, we will make after-sale visits from time to time.
We can customise any model, if you are interested in our machines, please feel free to contact me!
