Filled Low Profile Controlled Fast Tooling Reisn

A promoted and thixotropic resin with filled.Formulated for the fabrication of composite tooling using by hand-up or spray-up application. It shows a lower profile controlled that provide dimensional stability as well as exceptional surface quality.A low viscosity with excellent fiber glass wet-out and lower print-out. High heat resistance. Superior laminate mechanical properties with quick tooling constuction.Color difference follow by
curing during the mold construction.It's designed to replace traditional tooling resin such as isophthalic, vinyl ester, and epoxy resins in tooling applications for RTM,LRTM,Infusion,Hand lay-up etc process.Liquid resin characteristics
Typical physical property with CSM reinforced as reference only.
Cure conditions: 2.0% Nouryon
M-50 at
RTx24hrs + 60ºC×4hrs + 100ºC×2hrs.
Application Attention
- Ensure the resin has
thoroughly mixing before application.- As a first coat, deposit a thin filmof the resin only to the
Skin coat(or
barrier coat) surface. Then immediately follow up with 4-5mm reinforcement layers in two separate passes, quickly removing air bubbles after each pass.- Strong recommended
that gel time should be checked in the customer's plant, as storage, temperature, humidity and catalyst will cause
different gel time from that
mentioned. The catalyst level should not exceed 2.0 % or fall down below 1.0 % for proper cure. Recommended range is within 1.0 % ~ 2.0 % at 25ºC

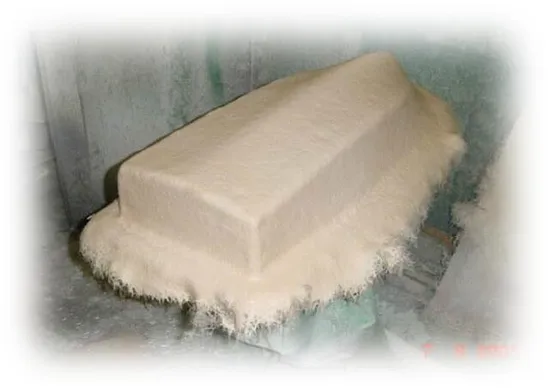

being ideal. This product should not be used when temperature is below 15ºC, as curing may be adversely affected.- once the layer has cooled you can continue building mould thickness by aadding successive layers of
filled tooling resin
until your desired mould thickness is attained.- Typical recommendation is a mould thickness 3
layes
your mold
thickness.- Ensure that each 5mm layer to cool
back to 25ºC before applying a successive layer.
- Please feel free let me know if more details about products information.

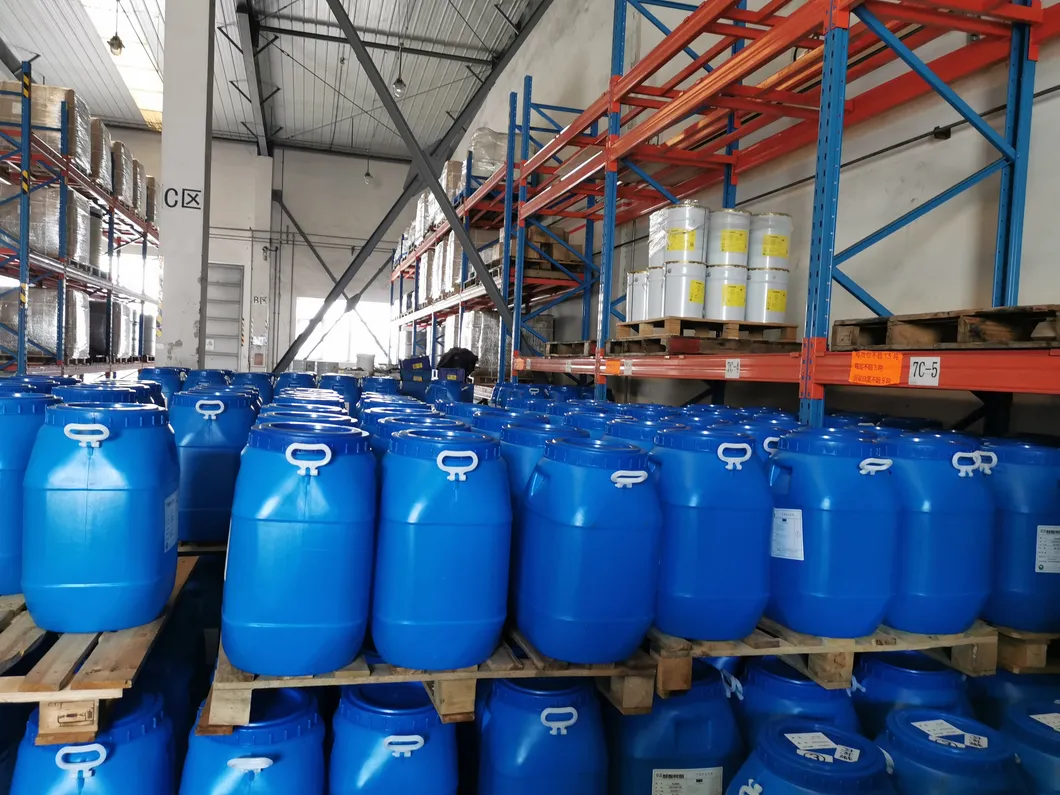

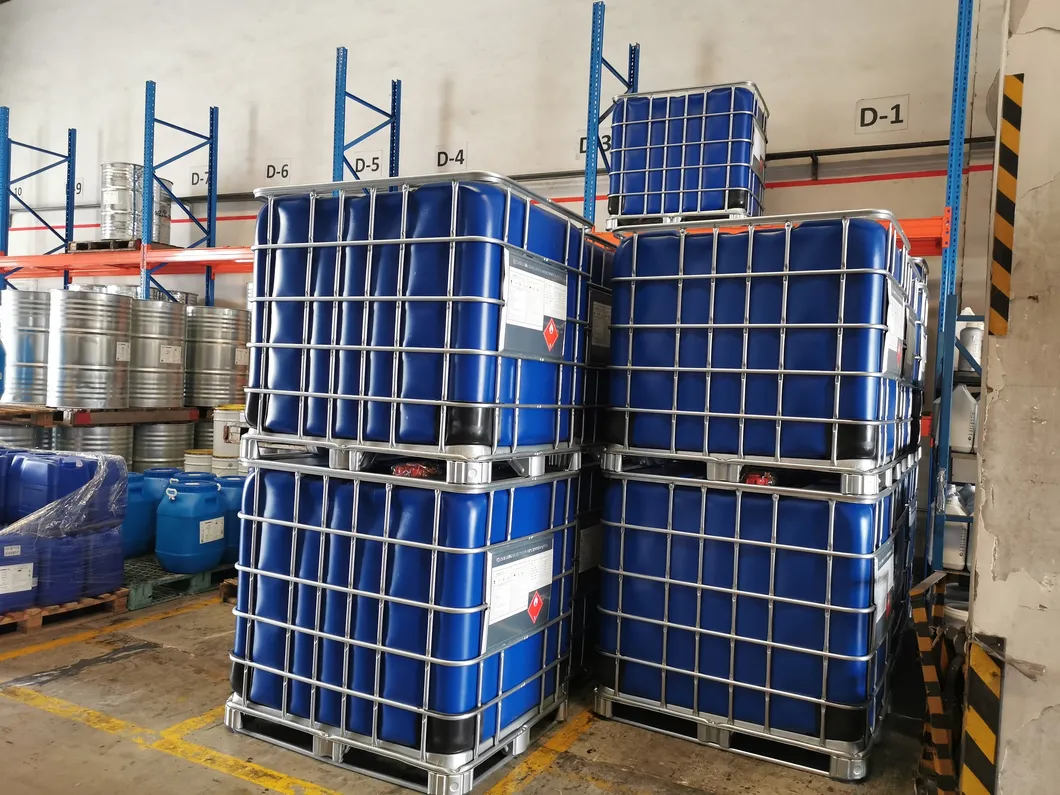

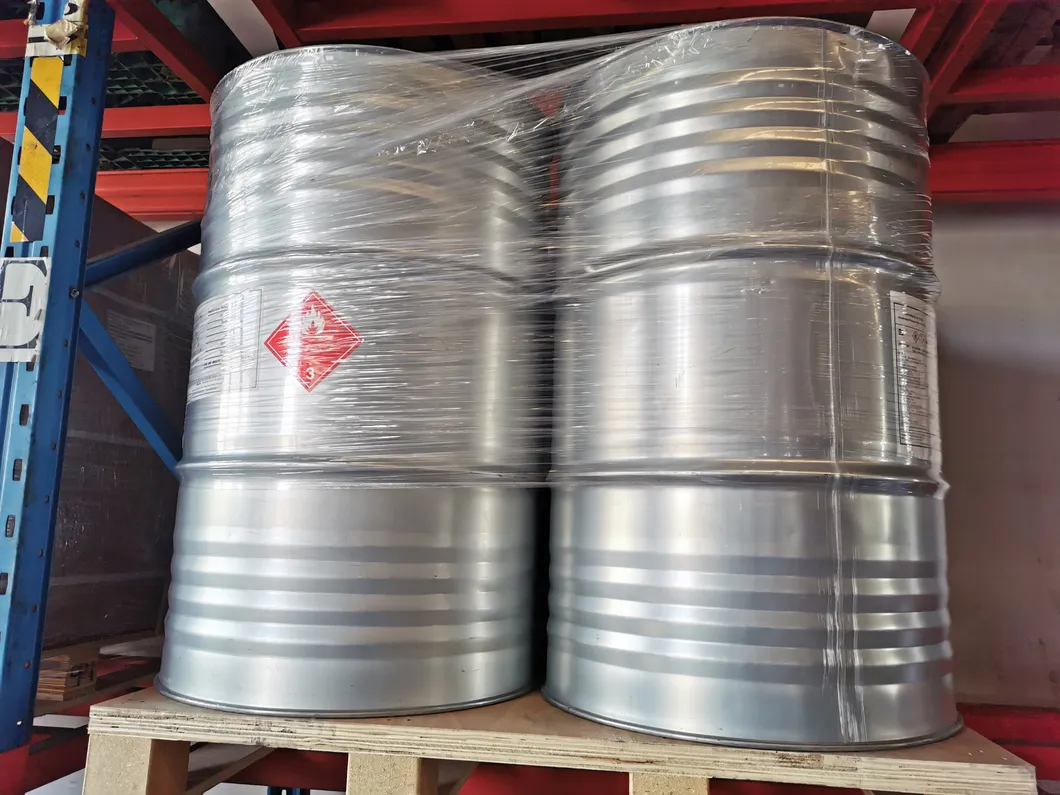

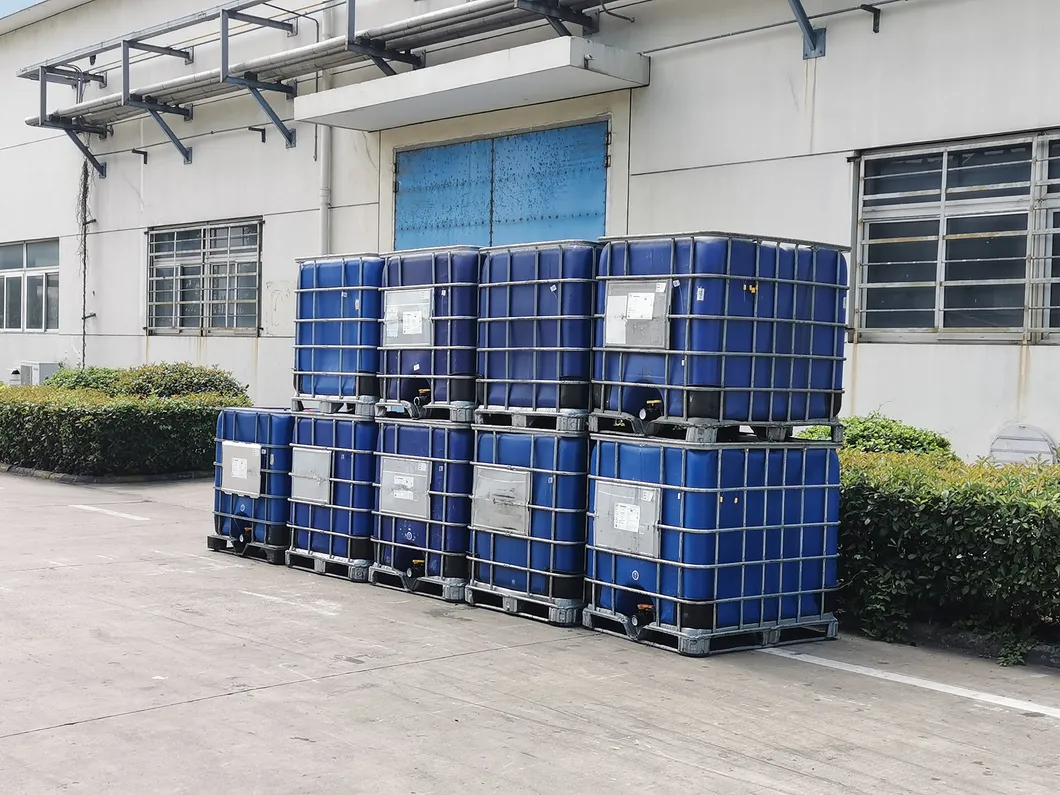

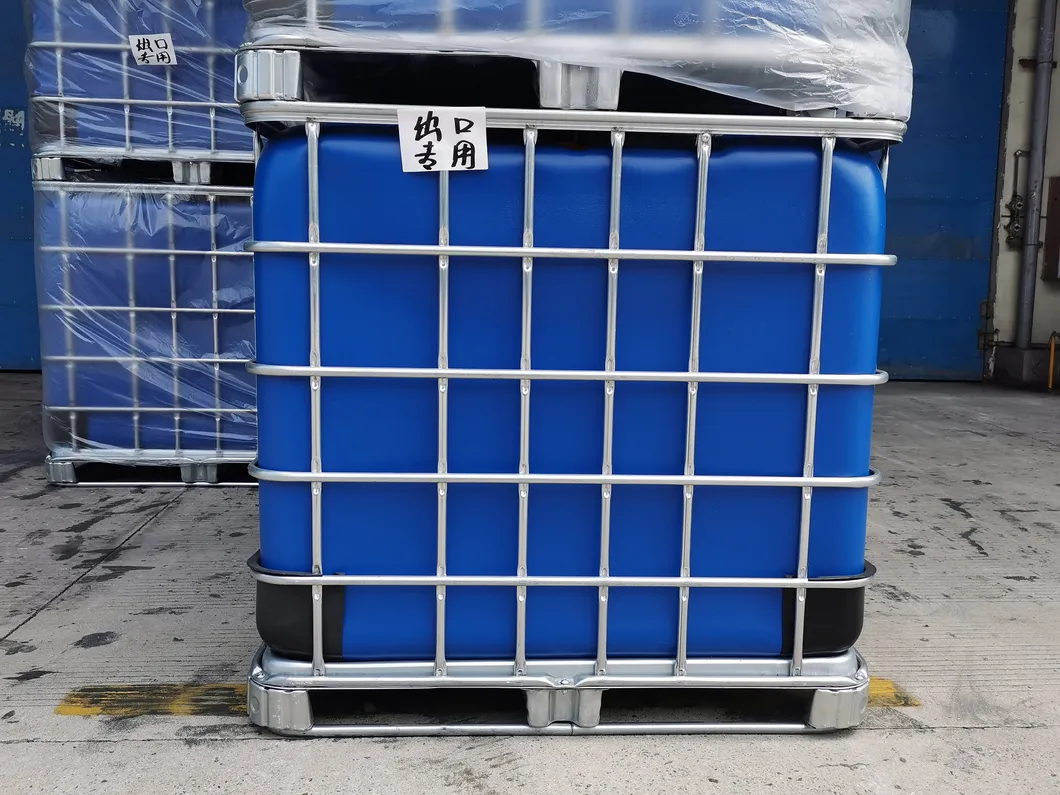

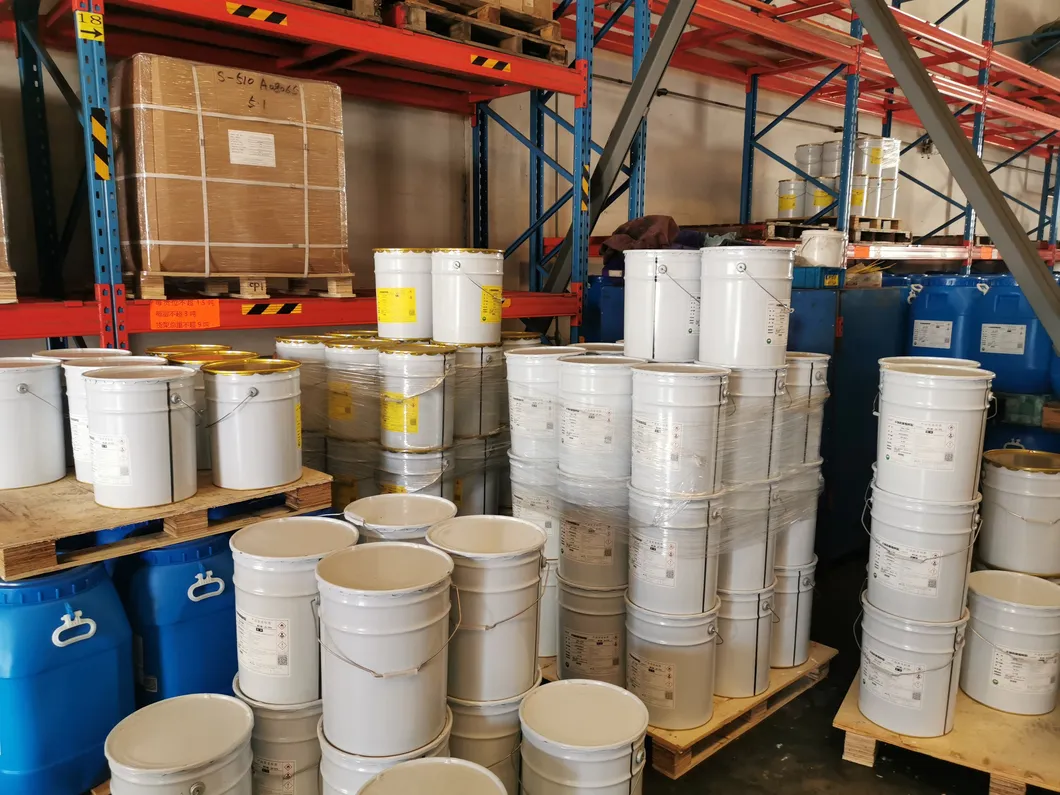

Package
- 20kg or 250kg with PE liner.Shelf life
- 3 months
when stored in original sealed containers
below 25ºC, away from direct heat, sunlight
and rain.Total tooling resins solutions for composites mold
We could offers a full line of tooling resins
for all methods of tooling manufacture. These products include
epoxy ,unsaturated polyester,
vinyl ester and a series of low profile resins.- Tooling gel coats are formulated specifically for mold making. These series contain both special polyester and vinyl ester products.- Skin coat.Superior mold cosmetics can be achieved by using a
skin coat with hybrid vinyl ester resin behind
the gel coat. Be applied after the gel coat application and offer good protection from fiber-print and distortion on the gel coat surface
in order to
increase mould turnaround time.- A
full line of tooling resins for all methods of tool manufacture. These products include a vinyl ester and a series of low profile resins. The vinyl ester resin can be used as skin and bulk materials in the conventional mold building process. This process consists of daily single ply lamination until the required mold skin thickness is achieved.

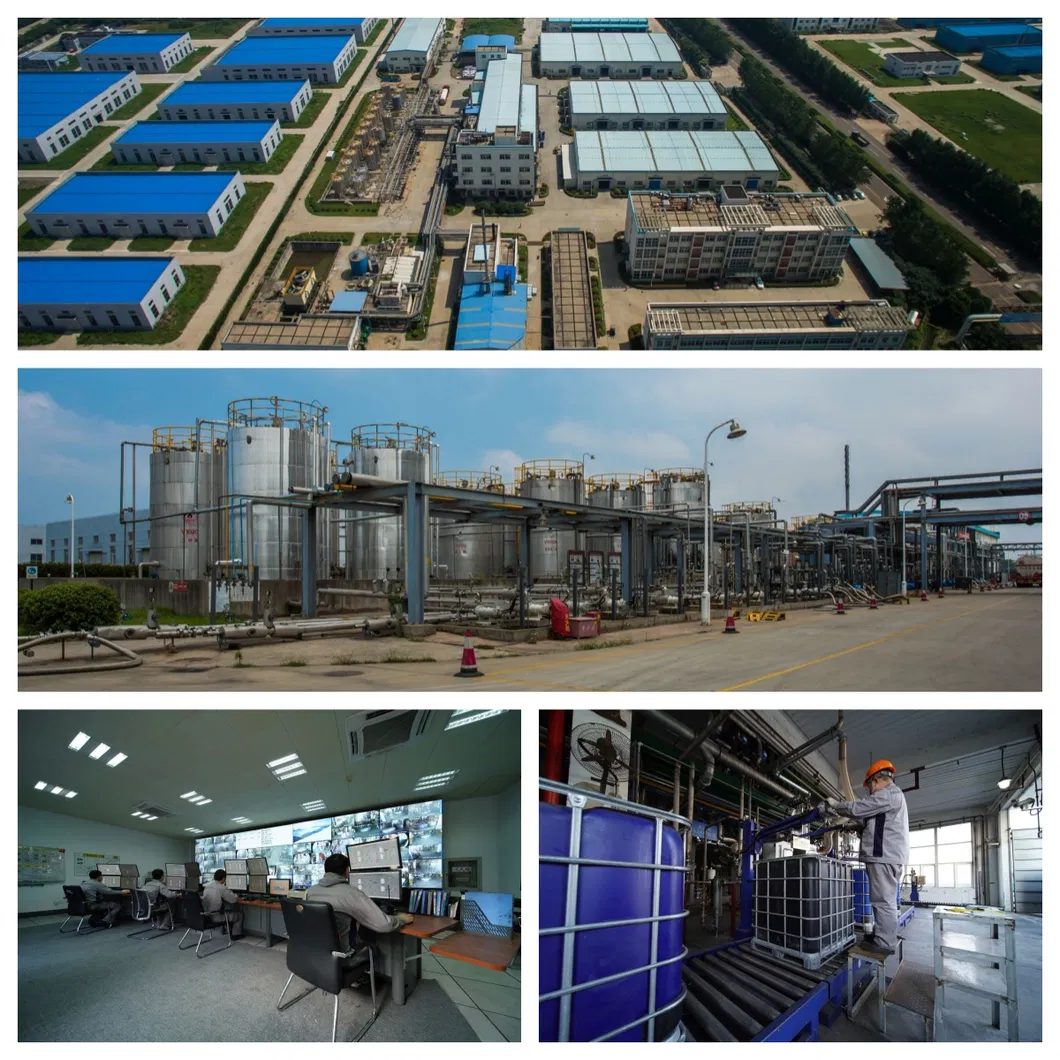

We focus on composites resin business and have a tolling plant in Changzhou city. We can supply all kinds of modified resin to feed up your solutions for composites. The business covers the total composites industry.

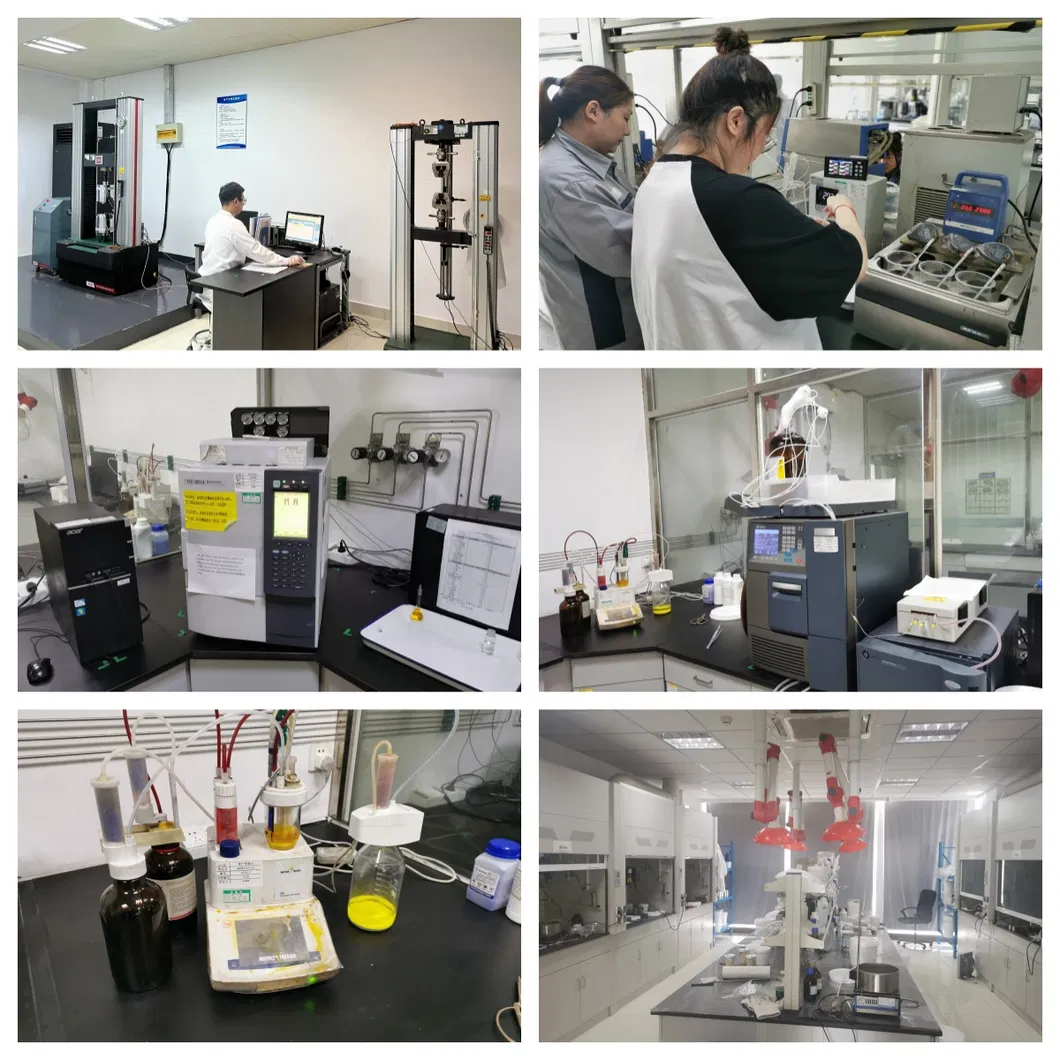

Laboratory

Q1:Do you provide sample for the trial?
A1:We could supply small size package for free.but we have to charge the freight.Q2.Could you supply customized products friendly?
A2: Yes,we do.We have a team to sever in Fortune 500 and be able to supply products to satisfied with the end-users' technical requirement.Q3. What about your lead time?
A3: Generally 2-4weeks after the order confirmed.Q4. What are your terms of payment?
A4:Usually we do EXW, FOB, CIF, and DDP.
