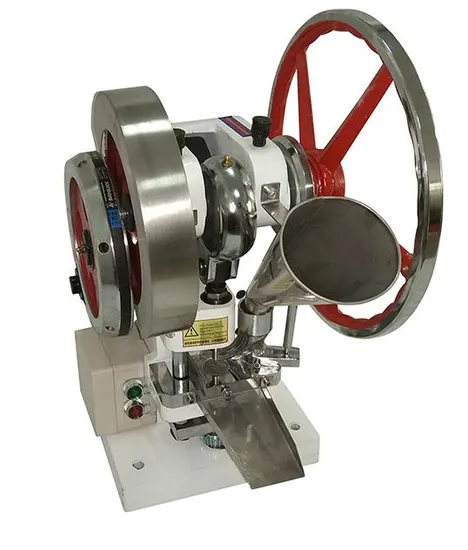

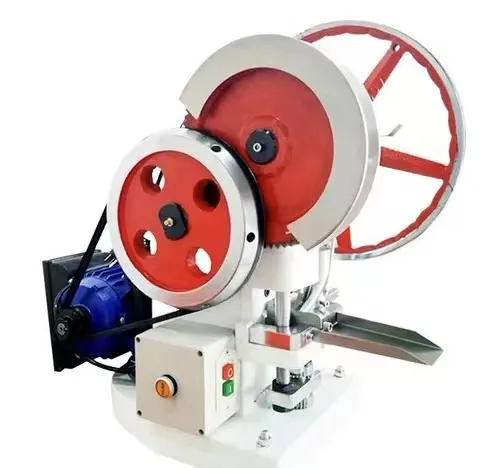

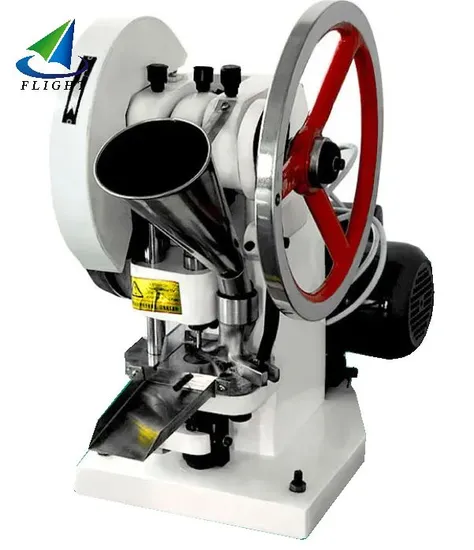

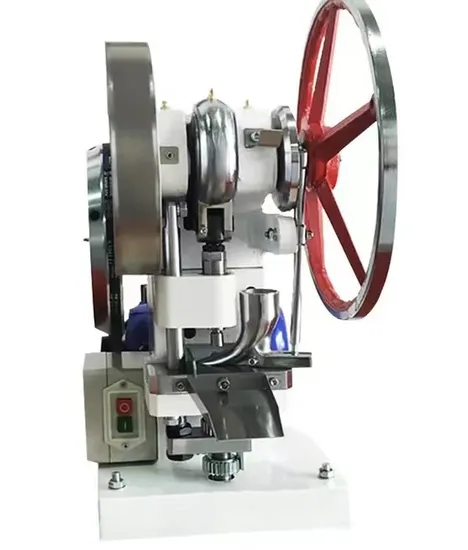

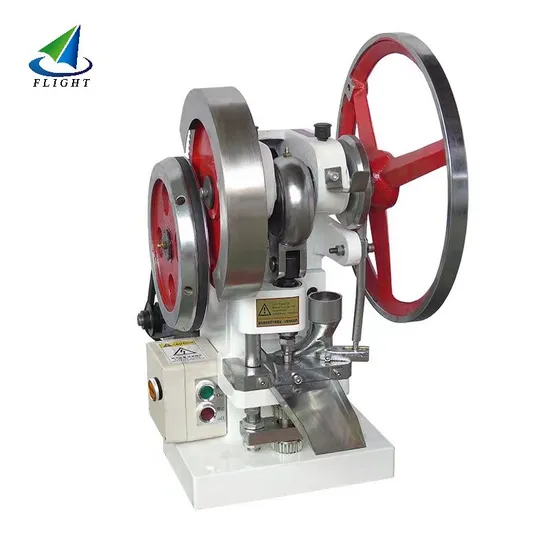

TDP单片冲压机
TDP-5单冲压式制片机可将原料压制成片剂，广泛应用于制药厂、化工厂、医院和研发机构。本机具有性能优良、适应性强、操作简便、易于维修、体积小、重量轻等特点。即使在停电的情况下，也可用手动操作。与原来的TDP型制片机相比，它提高了机器的精密度和发动机功率，同时增加了填充深度，从而扩大了药片的规格范围。因此，本机能满足不同领域的中药、西药和其他类似产品的需求。该机器深受不同领域客户的欢迎。
TDP单冲压片机TDP-5型，这款单片压片机可以将原料压缩成片状，广泛应用于制药厂、化工厂、医院和研发机构。本机性能优良，适用性广，操作简单，易于维修，体积小，重量轻。即使在停电的情况下，也可用手动操作。相比于原来的TDP型压片机，它提高了机器紧凑性和发动机功率，具有更大的强度。同时，增加了填充深度，从而扩大了药片的规格范围。因此，该机器可以满足不同种类的中药、西药和其他类似产品的需求。该机器深受不同领域客户的欢迎。

产品参数
Product Parameters

主要技术参数：
Main Technical Data:

印刷机的安装与连接
Installment and connection of the press machine
水泥桌）。使用4个M12螺栓固定它。从工作台表面到地面的高度约为600毫米（便于操作）。为方便拆卸和维修，压力杆底部对面应有一个直径约35毫米的孔。
cement table). Use 4 units of M12 bolts to fix it .The high from the worktable
surface to ground is around 600mm(consider easily to the operation) . Toconvenient to disassembly
and repair., there should be a hole the diameter around 35mm counter to the bottom of pressure rod.
然后卸下三角带，向操作方向滚动。（旋转方向应与防护罩或手轮上的箭头方向相反。）如果旋转方向不正确，会连接线路并安装三角带。四、模具的组装与拆卸以及操作中的调整
Then remove the triangle belt ,to rolling direction of the operation .(The rotary Direction should be opposed to the arrow direction on the shield or hand wheel.)If the rotary direction were incorrect ,it would connect the line additionally ,and The install the triangle belt.IV, Assemble and unassembled of the die and adjustment during the operation

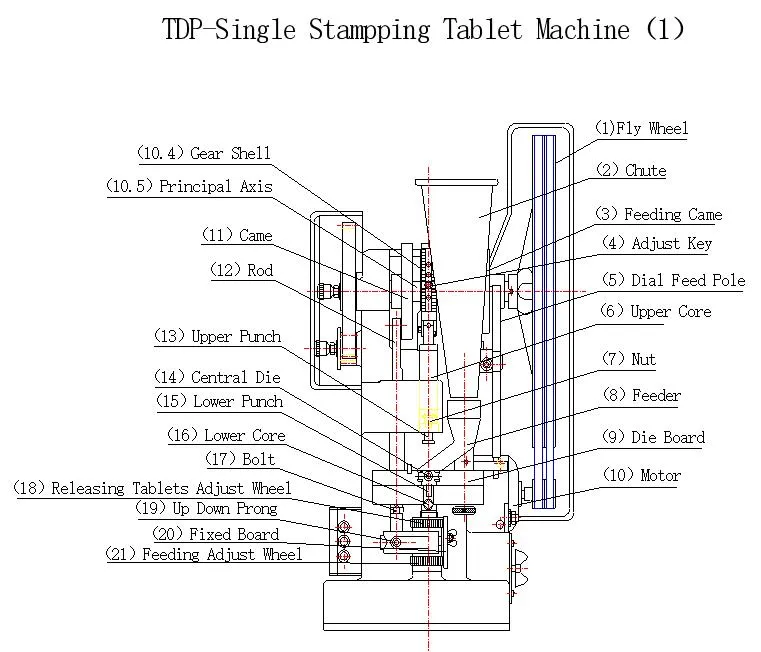

组装下冲
拧开固定螺栓，转动首轮将中心杆升至顶部位置，将底杆插入中心杆的下部孔中（注意间隙水平对准底部紧固螺栓）最后拧下下冲固定螺栓。
组装上冲
Assemble the down rush
Unscrew the fixed bolt ,turn the hand wheel to raise the central rod to the top location and insert the
undershoot rod to the hole of the down central rod.(Attention the gap level the gap level aim at the bottom tighten bolt) At last screw the down rush fixed bolt.Assemble up rush
拧开固定螺栓，将冲刺杆转向上面的孔，用扳手锁紧上面的螺栓并拧紧固定螺栓。
Unscrew the fixed bolt ,turn the to up rush rod to the upper hole ,use spanner to lock the upper bolt and screw the fixed bolt.
拧开固定螺栓，将模具放入模具板孔中，同时插入杆。将其推到孔底，然后拧紧螺栓。使中间模具水平，避免锁在板上损坏开口。
Unscrew the fixed bolt ,and put the mould into the hole of mould plate ,in the Meantime insert the rod into the hole .Push it to the bottom of the hole and then Screw the bolt .level the intermediate mould and avoid locking in the plate to damage
the orifice.
若有碰撞或摩擦，则拧松固定板的固定螺栓（2），调整中间模具板的固定位置。将上冲杆放入中间模具的孔中，并进行调整，直至没有碰撞或摩擦，即可称为合格安装。
there is collision or friction ,and then unscrew the fixed bolts (2) of the fixed plate ,adjust the fixed location of the intermediate mould plate .Let the up rush rod into the orifice of intermediate mould ,and the adjust it till no collision or no friction it can be called qualified installment..
通过转动操纵轮将下冲棒提升到最高点，观察下冲棒表面与中间模具是否在同一水平面上。如果没有对齐，拧开齿轮的螺栓和压板，调整下冲棒表面与中间模具对齐。下一步，转动操纵轮使机器空转几圈。如果一切正常，则可以按些材料进行试压，然后继续调整以便进行下一步操作。
Turn the hand wheel to raise the down rush rod to the top point ,observe whether the surface of down rush rod and intermediate mould are on the same level ,if No. unscrew bolt and press plate of gear ,make the surface of down rush rod and intermediate .Next step ,turn hand wheel and make the empty machine run for several circle .If it goes well ,and then you can press some material to try press and continue to adjustment for next step.
松开螺栓，松开齿轮压板，向左旋转下调齿轮以升高下冲杆，从而减少填充深度（减轻药片的重量）。调整之后应安装齿轮压板并拧紧螺栓。
tablet) .Unscrew the bolt and loose the gear press plate ,left turning the down adjustable gear to raise the down rush rod ,that's reduce the filling depth (lessen the weight of tablet). After adjustment should to install the gear press plate and screw bolt.
拧开锁紧螺母并旋转上冲刺杆，左转冲刺杆使其下移然后增大压力，药片的硬度会增加。相反，右转会降低压力并降低药片的硬度。调整后使用扳手锁住向上冲刺的底部并拧紧螺母。至此，模具的调整基本完成，重新启动机器进行试压几片，检查药片的重量、硬度、表面等质量问题。如果合格，则可以投入生产。生产过程中，可以随时检查药片的质量并进行立即调整。
Loosen the locked nut and turn up rush rod ,left turning rush rod to move down and then pressure increased ,the hardness of the tablet would be increased .On the contrary ,right turning would decrease the pressure and lower the hardness of the tablet .After adjustment use the spanner to lock the bottom of the up rush and screw the nut..Till now ,the adjustment of the die is basically completed ,restart the machine for trial press several tablets to check the weight of the tablet ,hardness and surface etc quality issues .if it's qualified ,you can put into production .During the production ,you can check the quality of the tablet anytime and adjust it immediately.
拧开固定螺母，拔出上升杆。如果杆结合得很紧，可以使用夹具拔出，但请注意保护杆尖。
Unscrew the fixed nut and pull out the up rush rod .If it's combined very tight ,you can use clamp to pull it out ,but attention to protect the tip of rod.
拧开中间模具的固定螺栓和下降拉杆的固定螺栓。拧开螺栓，松开齿轮压板。转动调节齿轮以提升下降拉杆并取出中间模具。如果中间模具装配很紧，则不能强行转动把手以保护零件。此时，应拆下中间板并取出模具。
Unscrew the fixed bolt of the intermediate mould and the fixed bolt of downRush Rod .unscrew the bolt and loosen the gear press plate .Turning adjustablegear to raise the down rush rod and take the intermediate mould out .if the intermediate mould assembled very tight ,so you cannot force turning the hand wheel to protect the parts .At this time you should disassemble the intermediate plate and take the mould out.
拧开固定螺栓，旋转手柄将下降推杆转到最高点，然后将下降推杆拔出。如果结合得很紧，可以使用夹具将其拔出。（注意保护杆尖。）
Unscrew the fixed bolt of down rush rod .and the turning hand wheel to raise the down rush rod to the top point ,you can pull the down rush rod out ,If it's combined very tight ,you can use the clamp to pull it out .(attention to protect the tip of the rod.)
下降冲击杆大约10mm，转动调节轮将下降冲击杆提高到最高点，最高点不超过中间模具底部（此步骤不能忽略，以避免下次下降冲击杆与中间模具发生碰撞）。最后拧紧下降冲击杆的固定螺栓。
Down rush rod around 10 mm ,turn the hand wheel to raise the down rush rodto the highest point ,no higher than the bottom of the intermediate mould (Thisstep cannot be ignored, avoiding collision between down rush rod andintermediate mould for next time.) At last screw the fixed bolt of down rushrod.

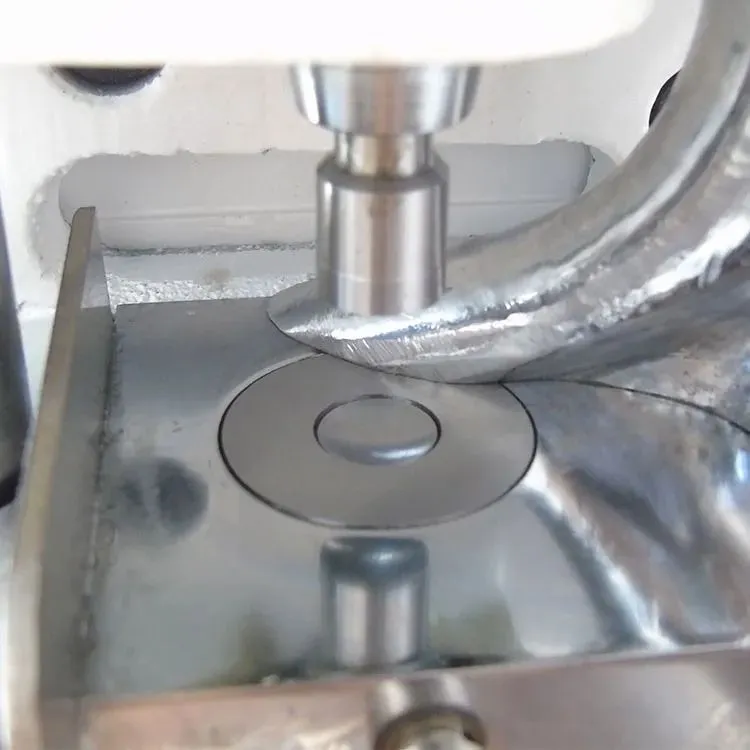

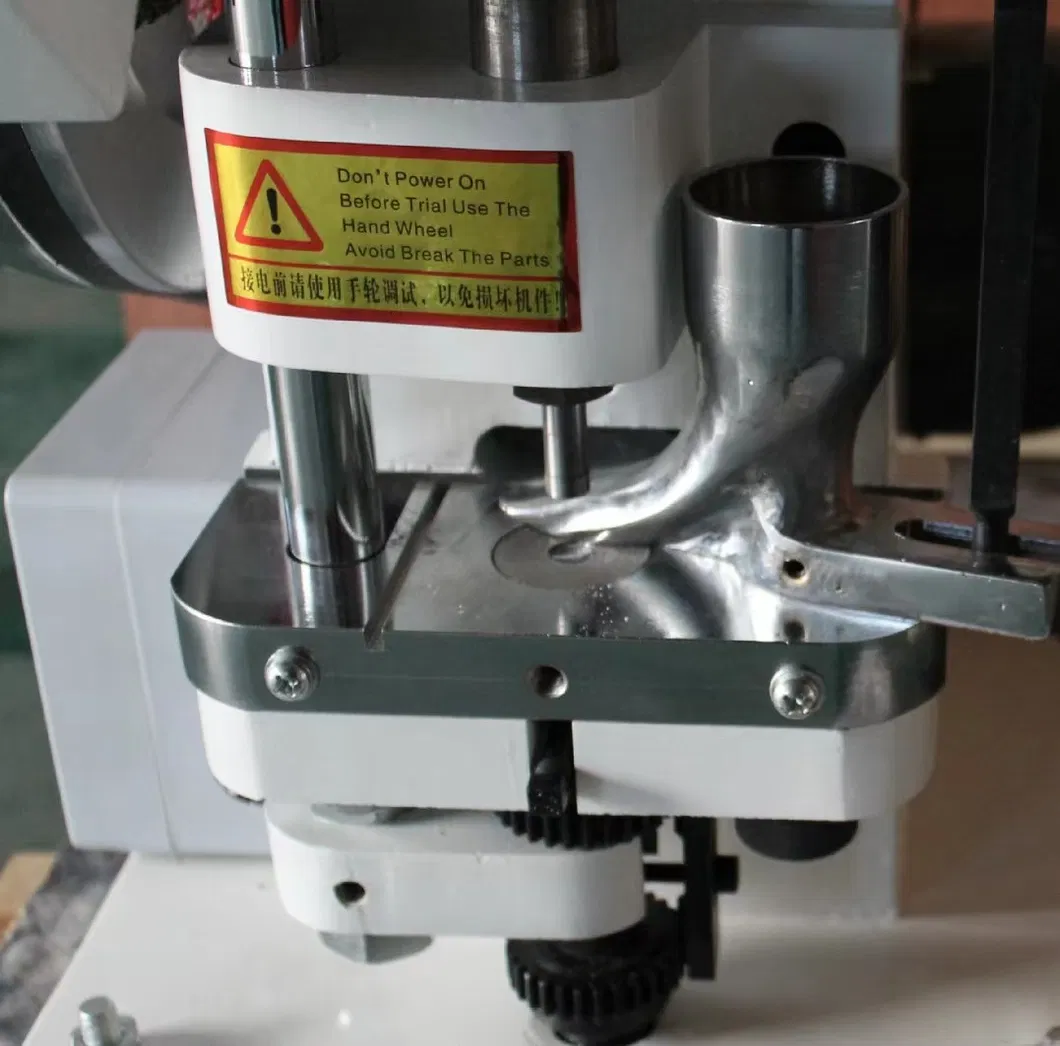

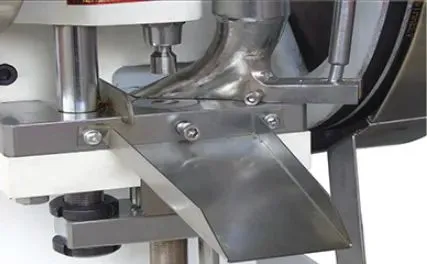

药片推片：采用304不锈钢材质，抛光润滑，确保推片过程中药片不受损坏
1. Tablet pusher: Made of 304 stainless steel and polished smooth to ensure that the tablets are not damaged during the process of being pushed out
2. 药片出口：以合适的角度，药片可以顺利落下，不会出现药片堆积的现象
2. Tablet outlet: With a good angle, the tablet can fall smoothly without any phenomenon of tablet accumulation

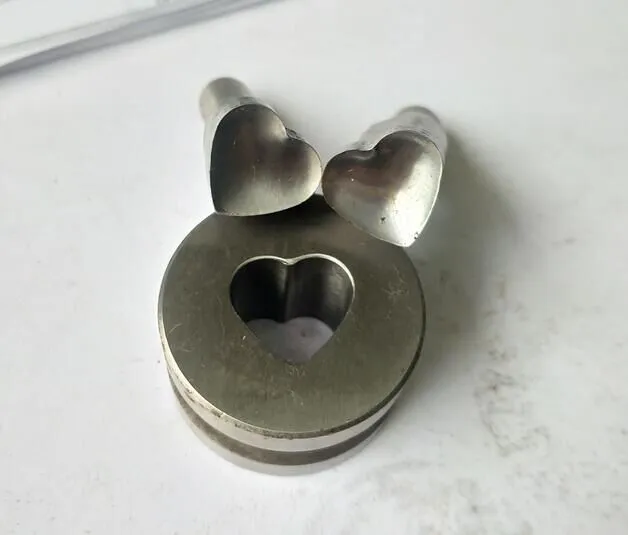

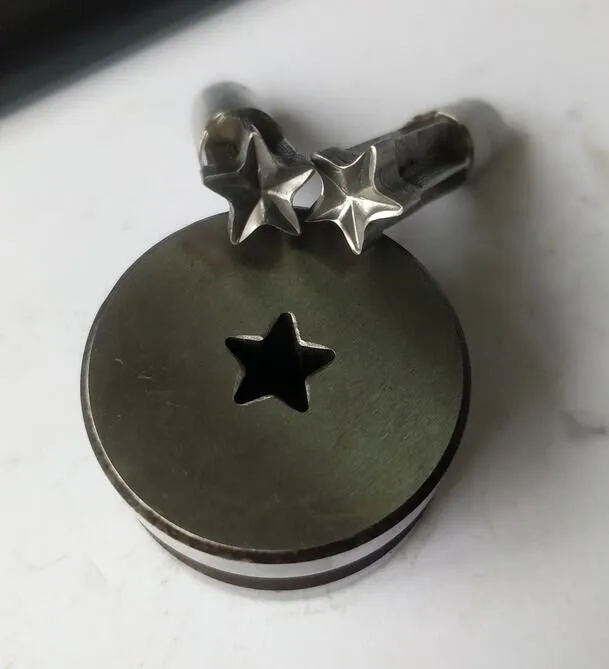

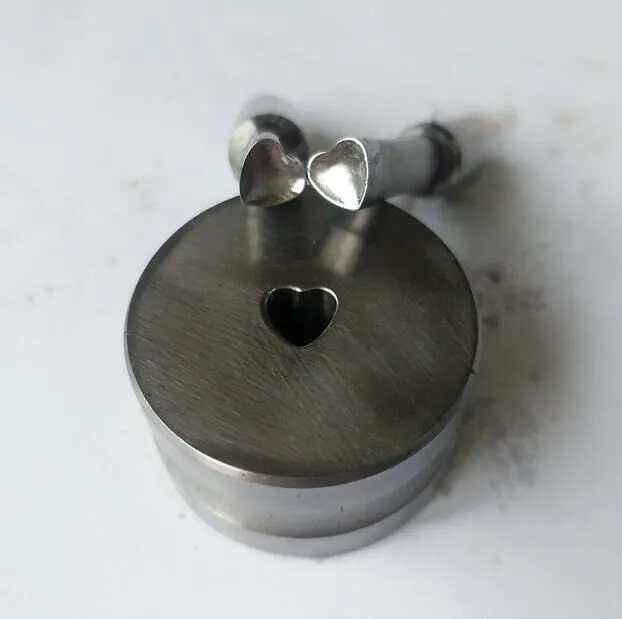

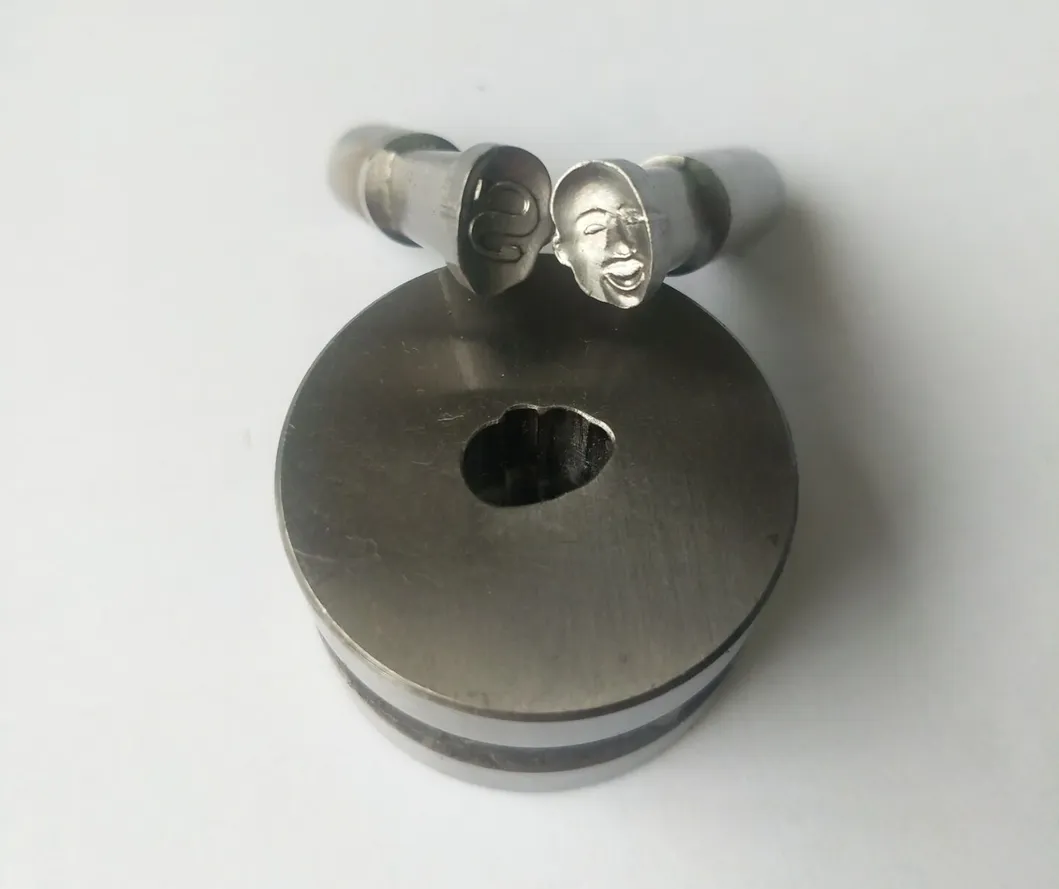

3. 模具：我们的模具闭合度高、精准度高，制成的药片光滑，不会出现卡堵或碎裂。
3. Mold: Our mold has a high degree of closure and precision, and the tablets are made very smoothly without any jamming or fragmentation

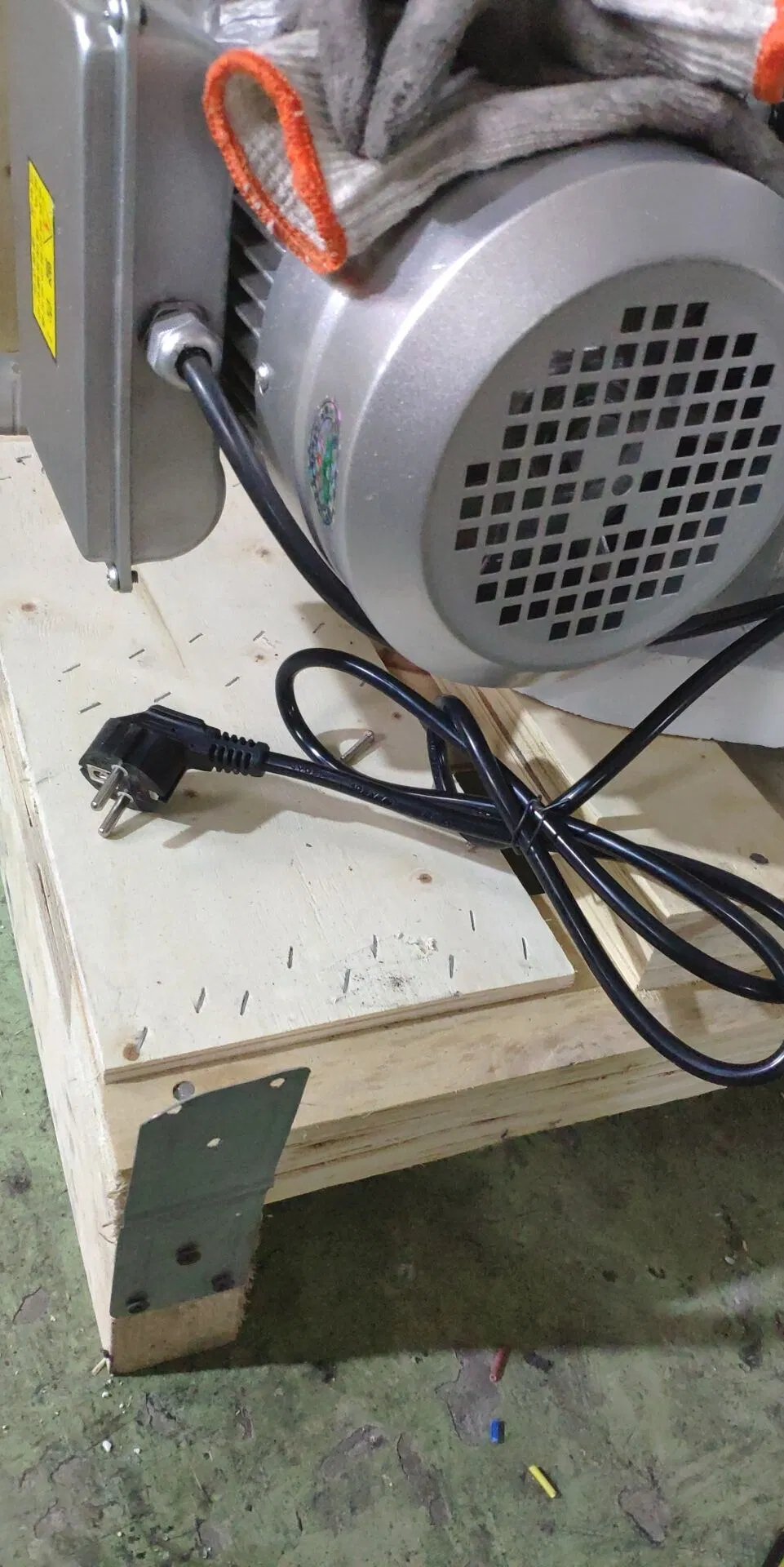

电机：采用进口铜轴电机，使用寿命长，品质优良，满足环保需求
4. Motor: Imported copper shaft motor is used, with a long service life and excellent quality, meeting the needs of environmental protection

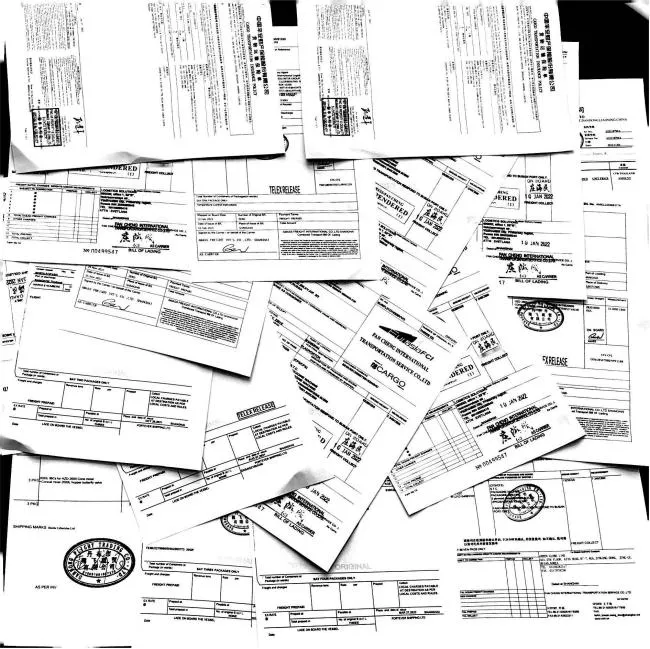

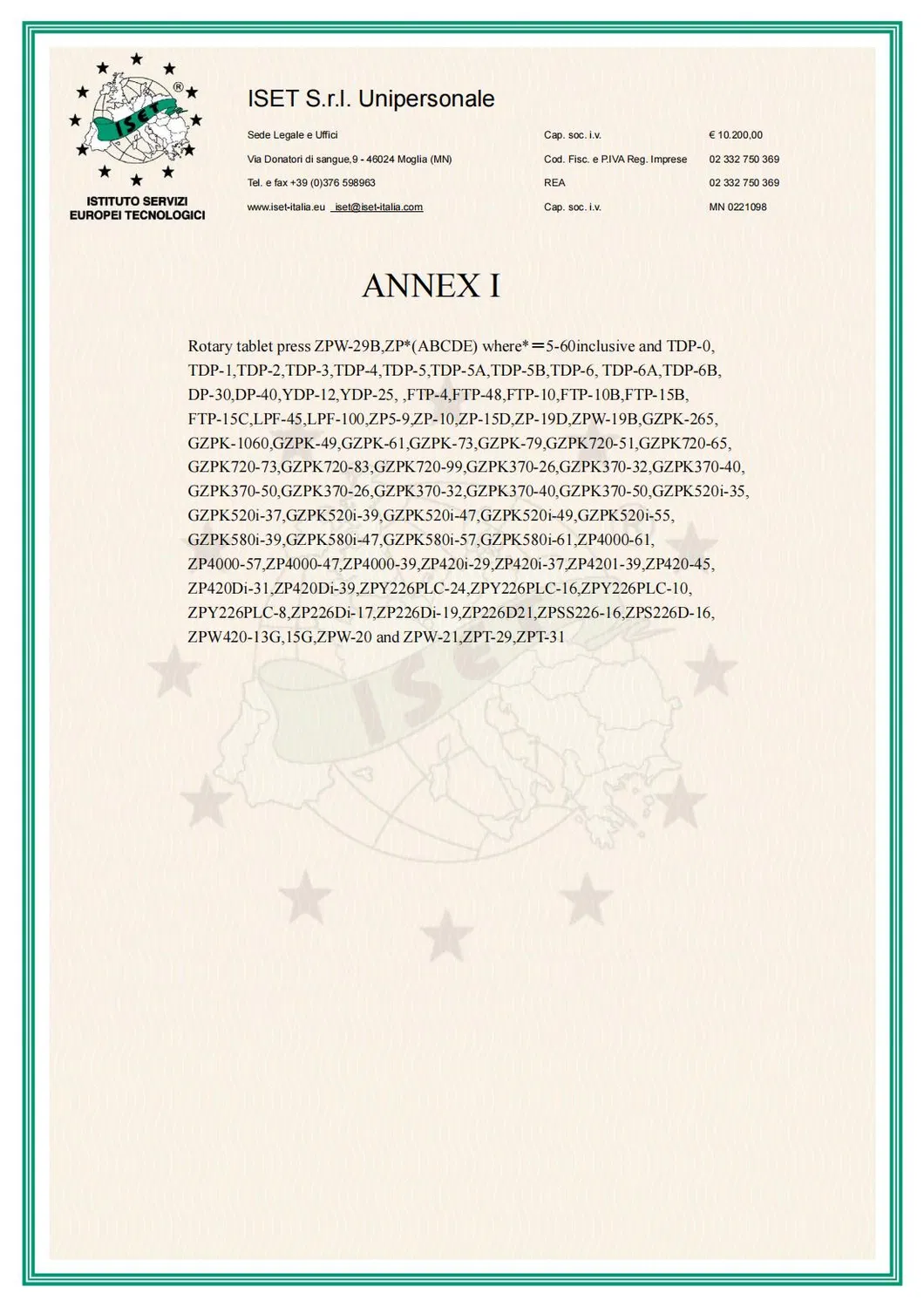

证书与交易记录
Our certificates and transaction
records

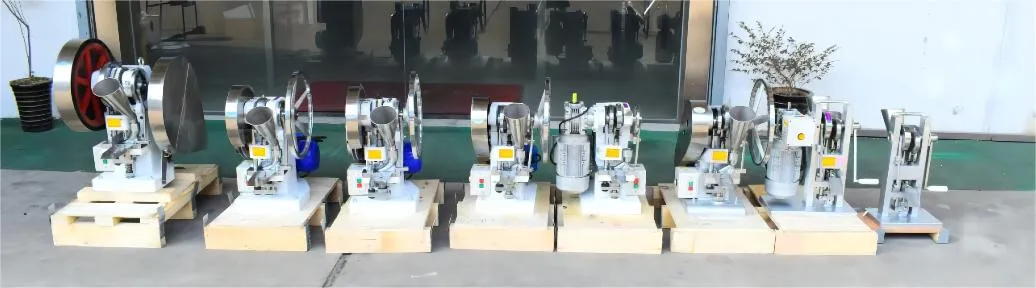

我们拥有丰富的出口经验，并享有全球客户
We have rich export experience and enjoy global customers

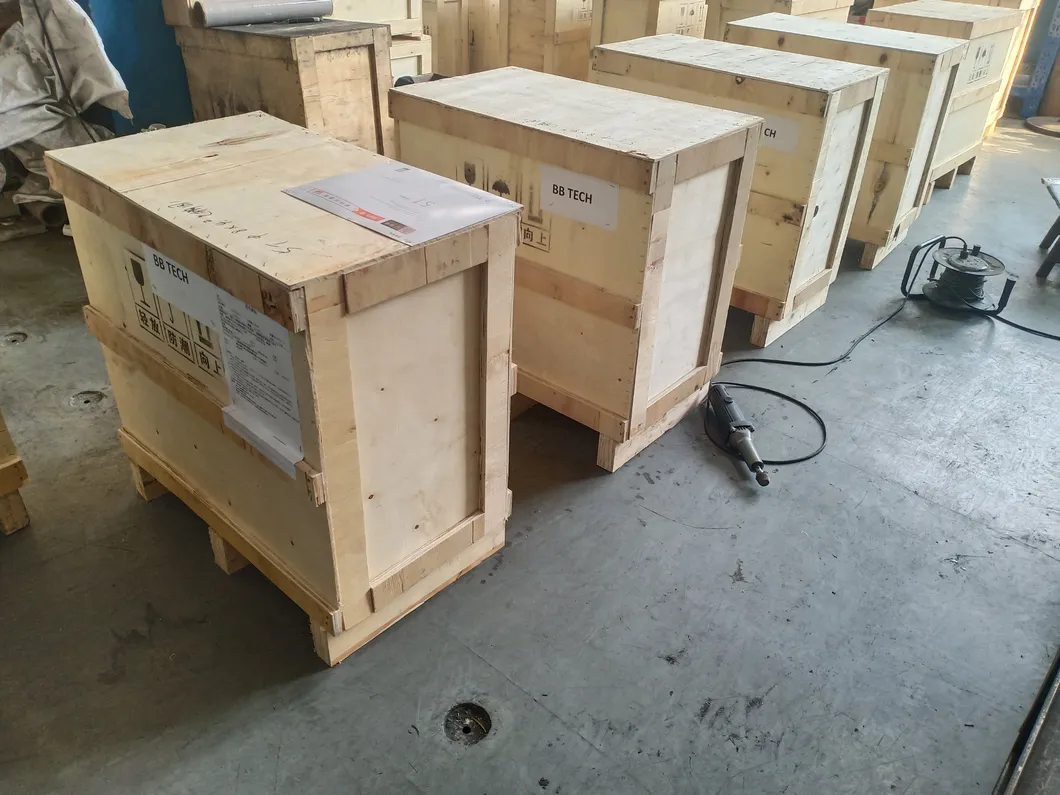

我们采用加厚双层出口木箱包装，以确保机器安全。我们提供工厂包装视频，以确保机器完整性。在运输方面，我们的货运代理可以确保运输的安全和及时性。我们也可以接受客户指定的所有运输方式用于出口。过去15年，我们的业务专长可以解决所有客户的问题，确保客户能够顺利快速地获得商品。
We use thickened double export wooden cases to ensure the safety of the machine We provide ex factory packing videos to ensure the integrity of the machine. In terms of transportation, our freight forwarder can ensure the safety and timeliness of transportation. We can also accept all transportation modes designated by customers for export. Over the past 15 years, our business proficiency can solve all customers' problems and ensure that our customers can get the goods smoothly and quickly.

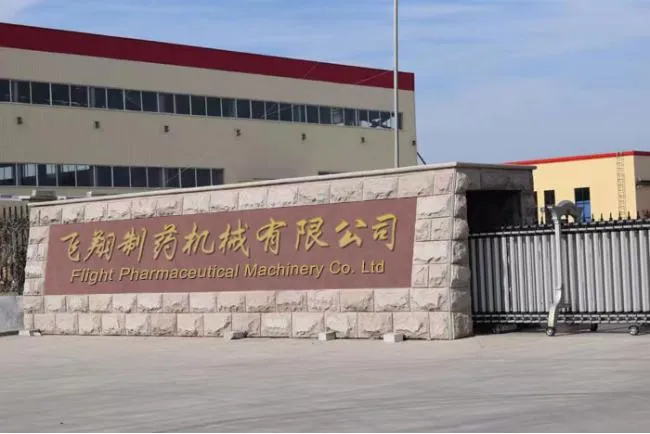

丹东飞行制药机械有限公司位于中国百强县之一的丹东东港市，是中国医药装备协会会员，已通过ISO9001:2000认证。其总部上海飞行制药机械有限公司创立于1999年，是中国较早的医药生产线制造商。公司秉持“诚信交友”的企业理念，以诚信经营为本，以礼相待世界。致力于实现更高品质、更好服务、更低价格。公司拥有先进技术，生产一流制药设备，主要专注于生产制片机、灌装线、包装线以及各种中小型设备。多年来，我们不断改善创新，与国内外近百家制造商和客户建立了合作关系，欢迎国内外客户与我们交流技术。我们为他们提供免费的技术指导，以便与时俱进，共同进步！公司以一流的质量、一流的服务、一流的声誉、一流的产品，打造中国高品质产品，搭建友谊之桥。公司衷心希望能与业内朋友携手合作，提高国内制药技术的技术水平。

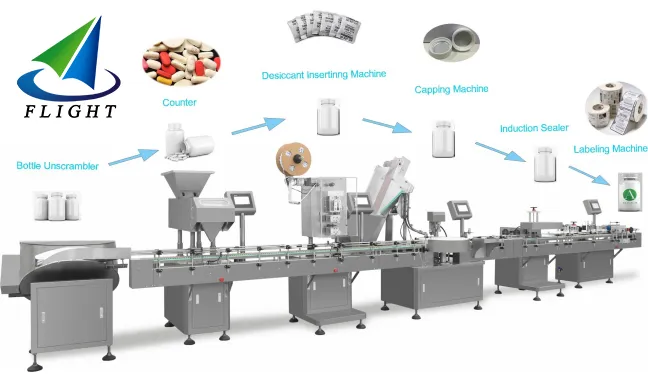

Dandong Flight Pharmaceutical Machinery Co., Ltd. is located in Dandong Donggang City, a top 100 County in China. It is a member of China Pharmaceutical Equipment Association and has passed ISO9001:2000 certification. The head office Shanghai Flight Pharmaceutical Machinery Co., Ltd., founded in 1999, is an earlier manufacturer of pharmaceutical production lines in China.The company is based on the enterprise concept of "integrity and friendship", establishes its business in good faith and wins the world with courtesy. Achieve higher quality, better service and lower price. We have advanced technology to produce first-class pharmaceutical equipment. It mainly focuses on the production of tablet press, filling line, packaging line and various small and medium-sized equipment. Over the years, we have continuously improved and innovated, reached cooperation with nearly 100 manufacturers and customers at home and abroad, and welcome customers at home and abroad to exchange technology with us.We provide free technical guidance to them, so as to make common progress with the times! With first-class quality, first-class service, first-class reputation and first-class products, the company creates high-quality products in China and builds a bridge of friendship. The company sincerely hopes to work with friends in the industry to improve the technical level of domestic pharmaceutical technology.

我们的公司技术
Our company's
technology

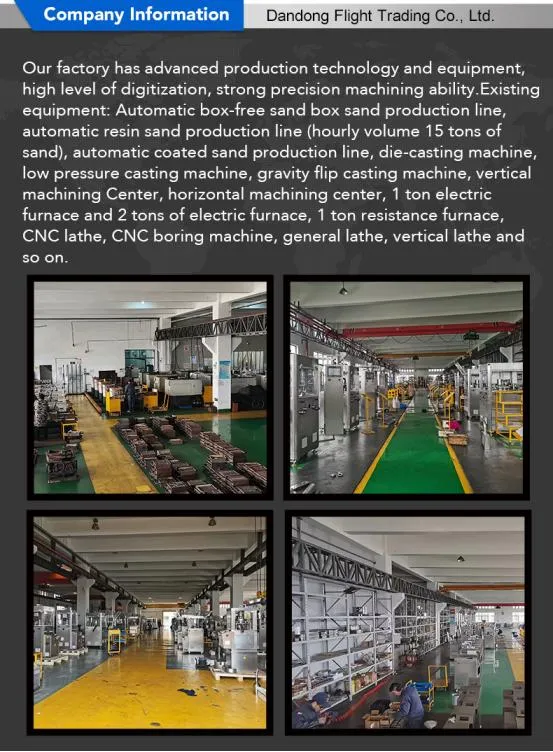

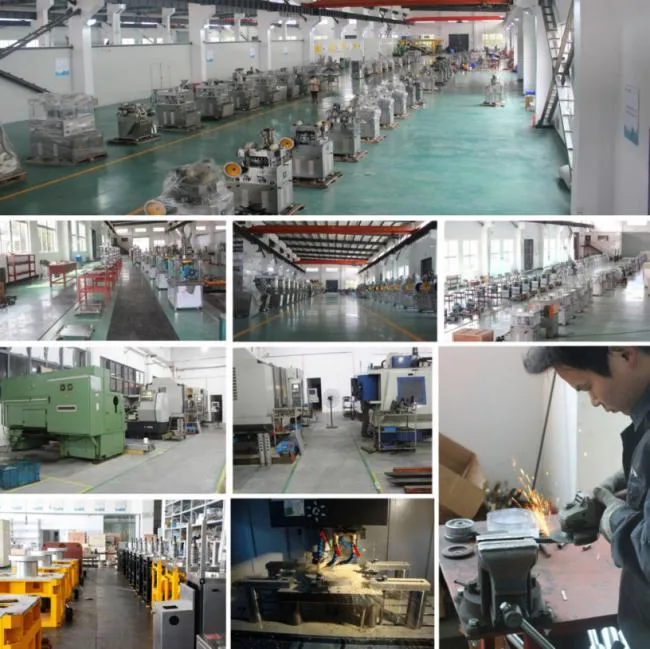

我们的车间进行了现代化改造，配备了高精度加工设备，如立式加工中心、卧式加工中心、数控龙门铣床和数控车床等。
Our workshops were modernized, and equipped with high precision processing facilities such as vertical and horizontal machining centers, digital CNC gantry milling machine and NC lathes, etc.
我们公司的工作室进行了现代化改造，配备了高精度加工设备，如立式加工中心、卧式加工中心、数控龙门铣床和数控车床等。
Our company's
technologyOur workshops were modernized, and equipped with high precision processing facilities such as vertical and horizontal machining centers, digital CNC gantry milling machine and NC lathes, etc.
售后服务
After Sales Service

价格条款：
Price Term:
FCA上海T/T付款
1.FCA Shanghai T/T payment
付款条款：生产前付50%TT+交货前付50%TT
2.Payment Terms: 50%TT before production +50%TT before delivery
交货期：3-21
3.Lead Time: 3-21
收到预付款和样品后的工作日内
working days after receipt of prepayment and samples
包装：木箱包装，符合国际运输标准。
4. Package: in wooden box, confirm to international transportation standard.
技术标准：符合GMP和相关国际规定。
5.Technical Standard: Confirm to GMP and relative international regulation.
供应商提供产品日期起的12个月免费质保
6.Warranty: The supplier provides 12 months free warranty since the date that the product
经过调整并符合规定，在此期间没有人为破坏。供应商
was adjusted and qualified, and there is no artificial destruction in this period. Supplier
提供终身服务支持
provides lifetime service support.
安装、调试和培训
7.Installation, Adjustment and Training
卖家提供关于如何安装、调试和使用机器的工具和视频
The seller provides instrument and video about how to install, adjust and use the machine as
机器一准备好马上就可以。当使用者有问题时，卖家提供准时服务。
soon as the machine is ready. The seller provides on-time service when user have use problem.
卖家可以派一名工程师到买方工厂进行安装和调试
The seller can dispatch one engineer to the buyer's factory for installation and commissioning
关于培训和差旅，买方应承担食宿和往返机票及签证费。
and training, the buyer should be responsible for the room and board and the go-back air tickets and visa fee.

问：你们的制药机器质量如何？答：我们的工厂拥有超过十年的机械加工经验；我们的所有机器都已经获得ISO9001、SGS证书、CE证书；已出口到许多国家和区域；已经获得了客户的好评。问：你们的制药机器价格如何？答：我们始终重视质量如工厂的生命，价格对我们而言并不重要。质量第一，在高质量的基础上，您一定会得到合理且满意的价格。问：下单后如何保证机器的质量？答：发货前，我们会发送机器的照片和视频给您，或者您可以亲自来我们这里进行质量检测，或通过您联系的第三方检测机构。问：你们的制药机器的安装服务和售后服务如何？答：1.质保一年，如需更换配件或工程师上门服务，我们将随时提供24小时、7天的服务。2.我们已经准备了技术手册和操作视频给客户展示，那么安装和使用机器将很容易。3.在工厂或客户现场或通过视频免费培训您的工人。
Q: What about your pharmaceutical machine quality?A: Our factory has more than 10 years experience in mechanical processing; all our machines already get IS09001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer's good reputation.Q: What about your pharmaceutical machine price?A: Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied pricel.Q: How can you ensure the machine's quality after we put the order?A: Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.Q: What about your installation service and sales service for pharmaceutical machine?A: 1>Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.3>It is free to train your worker in our factory or in your side or by video.
